RTF bullet

8 posts, 0 answers
  1. Fadi
    Fadi avatar
    10 posts
    Member since:
    Jan 2015

    Posted 31 Mar Link to this post

    Dear Sir,

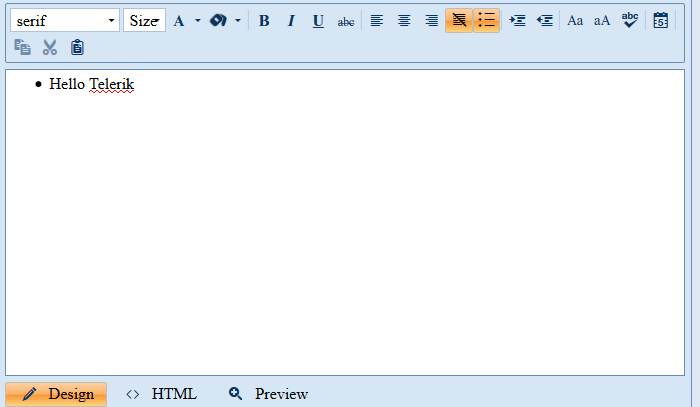

    I tried to put a text with bullet in the RadEditor  of a web application and save into database (see attached WebInput.png).

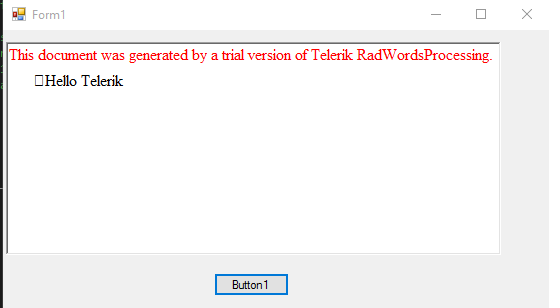

    when read the RTF from another windows application and put it into the RichtextBox control of the visual studio i get another character. (see attached WindowsApp.png).

    When trying to read the rtf again from the web application i get it with intent negative (see attached Web.png).

    Is there any suggestions? Why the RadEditor is not consistent?



    example:

    RTF= {\rtf\ansi\ansicpg1252\uc1\deff0\deflang1033{\fonttbl{\f0 Times New Roman;}{\f1 Verdana;}{\f2 Symbol;}}{\colortbl\red0\green0\blue0 ;\red255\green0\blue0 ;}{\*\defchp\ltrch\fs22\i0\b0\strike0\ulnone}{\*\defpap\sl240\slmult1}{\stylesheet{\s0\sqformat\spriority0\ltrch\fs24\i0\b0\strike0\ulnone\sl240\slmult1 Normal;}{\*\ts1\tsrowd\spriority59\tscbandsh0\tscbandsv0\trgaph0\trpaddfl3\trpaddl108\trpaddfr3\trpaddr108\trpaddft3\trpaddt0\trpaddfb3\trpaddb0\tsvertalt\clpadft3\clpadt115\clpadfr3\clpadr115\clpadfl3\clpadl0\clpadfb3\clpadb0\ltrch\fs22\i0\b0\strike0\ulnone\sl240\slmult1 Table Normal;}{\s2\sbasedon0\spriority99\ltrch\fs24\i0\b0\strike0\ulnone\sl240\slmult1\sb100\sbauto1\sa100\saauto1 Normal (Web);}}{\*\listtable{\list\listtemplateid-1\listhybrid{\listlevel\levelnfc23\levelnfcn23\leveljc0\leveljcn0{\leveltext\'01\u-3913?;}{\levelnumbers;}\ltrch\f2\fs24\i0\b0\strike0\ulnone\levelfollow0\levelstartat1\sl240\slmult1\fi-360\li720\lin720}{\listlevel\levelnfc0\levelnfcn0\leveljc0\leveljcn0{\leveltext\'02\'01.;}{\levelnumbers\'01;}\ltrch\fs24\i0\b0\strike0\ulnone\levelfollow0\levelstartat1\sl240\slmult1\fi-360\li1080\lin1080}{\listlevel\levelnfc0\levelnfcn0\leveljc0\leveljcn0{\leveltext\'02\'02.;}{\levelnumbers\'01;}\ltrch\fs24\i0\b0\strike0\ulnone\levelfollow0\levelstartat1\sl240\slmult1\fi-360\li1440\lin1440}{\listlevel\levelnfc0\levelnfcn0\leveljc0\leveljcn0{\leveltext\'02\'03.;}{\levelnumbers\'01;}\ltrch\fs24\i0\b0\strike0\ulnone\levelfollow0\levelstartat1\sl240\slmult1\fi-360\li1800\lin1800}{\listlevel\levelnfc0\levelnfcn0\leveljc0\leveljcn0{\leveltext\'02\'04.;}{\levelnumbers\'01;}\ltrch\fs24\i0\b0\strike0\ulnone\levelfollow0\levelstartat1\sl240\slmult1\fi-360\li2160\lin2160}{\listlevel\levelnfc0\levelnfcn0\leveljc0\leveljcn0{\leveltext\'02\'05.;}{\levelnumbers\'01;}\ltrch\fs24\i0\b0\strike0\ulnone\levelfollow0\levelstartat1\sl240\slmult1\fi-360\li2520\lin2520}{\listlevel\levelnfc0\levelnfcn0\leveljc0\leveljcn0{\leveltext\'02\'06.;}{\levelnumbers\'01;}\ltrch\fs24\i0\b0\strike0\ulnone\levelfollow0\levelstartat1\sl240\slmult1\fi-360\li2880\lin2880}{\listlevel\levelnfc0\levelnfcn0\leveljc0\leveljcn0{\leveltext\'02\'07.;}{\levelnumbers\'01;}\ltrch\fs24\i0\b0\strike0\ulnone\levelfollow0\levelstartat1\sl240\slmult1\fi-360\li3240\lin3240}{\listlevel\levelnfc0\levelnfcn0\leveljc0\leveljcn0{\leveltext\'02\'08.;}{\levelnumbers\'01;}\ltrch\fs24\i0\b0\strike0\ulnone\levelfollow0\levelstartat1\sl240\slmult1\fi-360\li3600\lin3600}{\listname ;}\listid0}}{\*\listoverridetable{\listoverride\listid0\listoverridecount0\ls0}}\nouicompat\viewkind1\deftab720\sectd\pgwsxn12240\pghsxn15840\marglsxn1440\margrsxn1440\margtsxn1440\margbsxn1440\vertalt\headery720\footery720\pard\ltrpar\sl240\slmult1{\ltrch\fs24\i0\b0\strike0\cf1\ulnone This document was generated by a trial version of Telerik RadWordsProcessing.}{\ltrch\f1\fs20\i0\b0\strike0\ulnone\par}\pard\s2\ltrpar\ls0\ilvl0{\listtext \u-3913?}\fi-360\li720\lin720\sl240\slmult1\sb100\sbauto1\sa100\saauto1\ilvl0{\ltrch\fs24\i0\b0\strike0\ulnone Hello Telerik}{\ltrch\f1\fs20\i0\b0\strike0\ulnone\par}}

  2. Mihail
    Admin
    Mihail avatar
    192 posts

    Posted 05 Apr Link to this post

    Hello Fadi,

    I've managed to reproduce the described behavior. The problem is that words processing is setting the indentation from the list as local properties to the paragraph when importing from RTF format. This results in additional indentation when exporting to HTML. This issue has been logged as bug report item in our feedback portal. Here is a link if you would like to subscribe to the item for status updates: List indentation is imported as local paragraph properties from RTF format provider.

    There is one possible workaround, to set the indentation to the default value when importing from RTF. Here is code example of how this could be done:
    RtfFormatProvider provider = new RtfFormatProvider();
    RadFlowDocument document = provider.Import(stream);

    foreach (Paragraph paragraph in document.EnumerateChildrenOfType<Paragraph>())
    {
        List list = this.document.Lists.GetList(paragraph.ListId);
        if (paragraph.Indentation.HangingIndent == list.Levels[0].ParagraphProperties.HangingIndent.LocalValue)
        {
            paragraph.Indentation.HangingIndent = Paragraph.HangingIndentPropertyDefinition.DefaultValue.Value;
        }

        if (paragraph.Indentation.FirstLineIndent == list.Levels[0].ParagraphProperties.FirstLineIndent.LocalValue)
        {
            paragraph.Indentation.FirstLineIndent = Paragraph.FirstLineIndentPropertyDefinition.DefaultValue.Value;
        }
    }

    I hope this information is helpful for you.

    Regards,
    Mihail
    Telerik
  3. Fadi
    Fadi avatar
    10 posts
    Member since:
    Jan 2015

    Posted 09 Apr in reply to Mihail Link to this post

    The issue is that the same text is not displayed correctly. See the following scenario:

    if you put RTF text of visual studio RichTextBox in the Telerik RadEditor or RadRichtextBoxEditor, you will not get the same result.



    • RTF of the RichTextBox:

    {\rtf1\ansi\ansicpg1252\deff0\deflang1033\deflangfe2052{\fonttbl{\f0\fnil\fcharset0 Times New Roman;}{\f1\fnil\fcharset2 Symbol;}} \viewkind4\uc1\pard{\pntext\f1\'B7\tab}{\*\pn\pnlvlblt\pnf1\pnindent0{\pntxtb\'B7}}\lang1024\f0\fs24 Bullet1\par {\pntext\f1\'B7\tab}Bullet2\par }



    • RTF of the Telerik RadEditor or RadRichTextBoxEditor:

    {\rtf\ansi\ansicpg1252\uc1\deff0\deflang1033{\fonttbl{\f0 Verdana;}{\f1 Times New Roman;}}{\colortbl\red0\green0\blue0 ;}{\*\defchp\ltrch\f0\fs24\i0\b0\strike0\cf0\ulc0\ulnone}{\*\defpap\sl276\slmult1\sa180}{\stylesheet{\s0\sqformat\spriority0\ltrch\f0\fs24\i0\b0\strike0\cf0\ulc0\ulnone\sl276\slmult1 Normal;}{\*\ts2\tsrowd\spriority59\trbrdrt\brdrnone\trbrdrb\brdrnone\trbrdrl\brdrnone\trbrdrr\brdrnone\trbrdrh\brdrnone\trbrdrv\brdrnone\trgaph0\clpadft3\clpadt0\clpadfr3\clpadr0\clpadfl3\clpadl0\clpadfb3\clpadb0\tsvertalt\ltrch\f0\fs24\i0\b0\strike0\cf0\ulc0\ulnone\sl276\slmult1 Table Normal;}}\nouicompat\viewkind4\paperw12240\paperh15840\margl1425\margr1425\margt1425\margb1425\deftab720\sectd\pgwsxn12240\pghsxn15840\marglsxn1425\margrsxn1425\margtsxn1425\margbsxn1425\headery720\footery720\pard\s0\ltrpar\sl240\slmult1{\ltrch\f0\fs24\i0\b0\strike0\cf0\ulc0\ulnone  }{\ltrch\f1\fs24\i0\b0\strike0\cf0\ulc0\ulnone Bullet1}{\ltrch\f1\fs24\i0\b0\strike0\cf0\ulc0\ulnone\par}\pard\s0\ltrpar\sl240\slmult1{\ltrch\f1\fs24\i0\b0\strike0\cf0\ulc0\ulnone Bullet2}{\ltrch\f1\fs24\i0\b0\strike0\cf0\ulc0\ulnone\par}}



    Code:

      Dim rtf As String = RichTextBox1.rtf
      RadRichTextEditor1.Document = getDocument(rtf)

    -------------------------------



      Function getDocument(rtf As String) As RadDocument
            Dim document As RadDocument = Nothing
            Dim provider As IDocumentFormatProvider = New RtfFormatProvider()

            Dim strAsBytes() As Byte = System.Text.Encoding.UTF8.GetBytes(rtf)
            Using ms As New System.IO.MemoryStream(strAsBytes)
                ms.Position = 0

                document = provider.Import(ms)

            End Using
            Return document

        End Function





    • Please what is the RTF-HTML and HTML-RTF converter that TELERIK used?
  4. Todor
    Admin
    Todor avatar
    168 posts

    Posted 13 Apr Link to this post

    Hi Fadi,

    The first Rtf string, you've shown has the '\pntext' tag as marker for an bullet item and '\pnlvlblt' control word which exists for backward compatibility with older versions of RTF (1.3, 1.4) in order the lists to be represented. These markers are not supported by the RtfFormatProvider. Thus, the text after the paragraph numbering text control word (the '\pntext' tag) is imported as a plain text. Currently, we don't plan to improve the format provider in this direction, as this standard is rather old - circa 1995.

    About conversion of the HTML to RTF format and vice versa, the corresponding format providers are used.

    If you have further questions or any feedback, please get back to us again.

    Regards,
    Todor
    Telerik
  5. Fadi
    Fadi avatar
    10 posts
    Member since:
    Jan 2015

    Posted 13 Apr in reply to Todor Link to this post

    The following RTF is the one that we get from Richtextbox of visual studio, i think it is RTF 1.6:
    {\rtf1\ansi\ansicpg1252\deff0\deflang1033\deflangfe2052{\fonttbl{\f0\fnil\fcharset0 Times New Roman;}{\f1\fnil\fcharset2 Symbol;}} \viewkind4\uc1\pard{\pntext\f1\'B7\tab}{\*\pn\pnlvlblt\pnf1\pnindent0{\pntxtb\'B7}}\lang1024\f0\fs24 Bullet1\par {\pntext\f1\'B7\tab}Bullet2\par }

    If we are planning to use the Telerik RadEditor for our web page with the RadRichTextbox for our windows applications, what do you suggest to migrate our old RTF data to the new RTF format?

  6. Todor
    Admin
    Todor avatar
    168 posts

    Posted 14 Apr Link to this post

    Hi Fadi,

    The RadWordsProcessing and RadRichTextBox Rtf format providers are implemented against the latest Rtf specification - version 1.9.1. Since the RadEditor control uses the RadWordsProcessing internally, the Rtf documents are processed against that version. This means that if your documents have obsoleted and not supported Rtf tags, the result might be different of what you are expecting.

    I'll be glad to assist you if you have further questions.

    Regards,
    Todor
    Telerik
  7. Fadi
    Fadi avatar
    10 posts
    Member since:
    Jan 2015

    Posted 14 Apr in reply to Todor Link to this post

    Currently if you save the following RTF into rtf document and you open it into word, it will display correctly:

    {\rtf1\ansi\ansicpg1252\deff0\deflang1033\deflangfe2052{\fonttbl{\f0\fnil\fcharset0 Times New Roman;}{\f1\fnil\fcharset2 Symbol;}} \viewkind4\uc1\pard{\pntext\f1\'B7\tab}{\*\pn\pnlvlblt\pnf1\pnindent0{\pntxtb\'B7}}\lang1024\f0\fs24 Bullet1\par {\pntext\f1\'B7\tab}Bullet2\par }

    Why Telerik don't have a backward compatibility with old RTF version?

    Do you mean that we cannot use the telerik components in our future products if we need to migrate the old data?

  8. Petya
    Admin
    Petya avatar
    975 posts

    Posted 18 Apr Link to this post

    Hello Fadi,

    The 1.9 version of the Rich Text Format specification was published in 2007 and the most commonly used
    software that is capable of producing such documents uses it. For example, while MS Word has compatibility for older versions, the document it creates ever since MS Word 2007 comply with this specification.

    I understand your point but we have not received other requests for such compatibility and we're trying to implement our components so they fulfill the needs of the majority of our customers. That said, implementing compatibility for RTF versions older than 1.9 is not something we're planning right now.

    As to your question - if you use the Telerik controls in your application with those documents, there might be some undesired formatting changes. The only thing I can think of is to make a one-time migration of your database to the latest version of RTF documents, but I cannot point you to a Telerik tool that is capable of doing this and I didn't find any third-party tools designed for the scenario. What comes to mind is that you could try using the Microsoft COM Interop automation for such migration.

    I hope this provides more context to the faced issue. I'm sorry I couldn't be of more help.

    Regards,
    Petya
    Telerik
