Rows and columns alignment problem

4 posts, 0 answers
  1. Nitchaphat
    Nitchaphat avatar
    2 posts
    Member since:
    Sep 2014

    Posted 06 Sep 2014 Link to this post

    Hi,

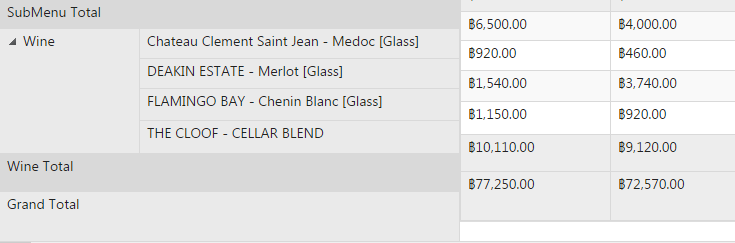

    I have PivotGrid in my web Application, The rows and columns in PivodGrid are not aligned correctly.
    What I've tried so far
    1.Finding solution from old thread in the forum but the solutions didn't work
    2.running on various browsers but it
    3.Running PivotGrid in empty page

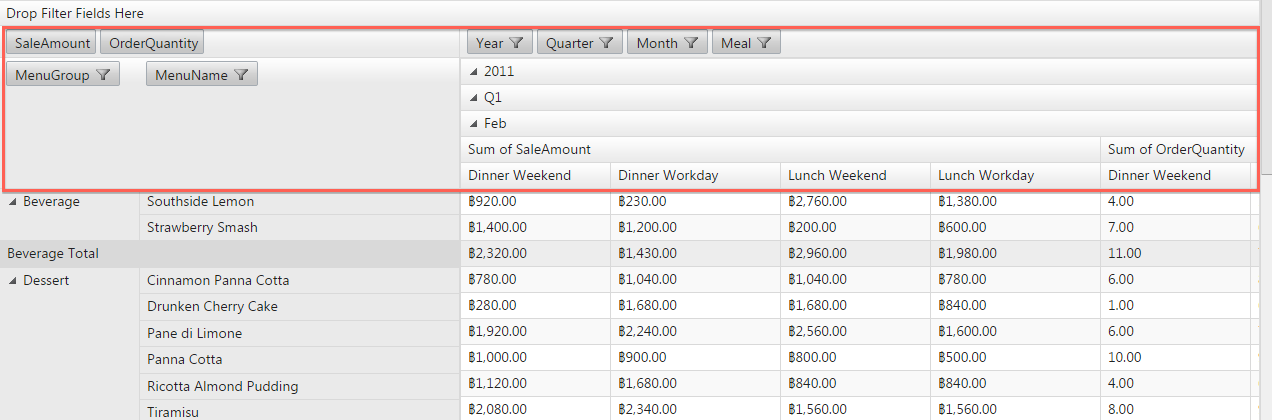

    4.Write CSS to fix it - I made PivotGrid Header display properly but I can't fix row height.
    It always generates the wrong height.

    My CSS
    <style type="text/css">
            /*fix header*/
            #ctl00_MainContent_RadPivotGrid1_OT > tbody> tr:nth-child(3) {
                height:129px !important;
            }
            #ctl00_MainContent_RadPivotGrid1_ctl02_DataZone_DT  tr:nth-child(4), tr:nth-child(5){
                height:26px !important;
            }
            /*Adjust row header total*/
            #ctl00_MainContent_RadPivotGrid1_OT > tbody > tr > td.rpgRowHeaderTotal{
                height:26px !important;
            }
            /*Adjust all data cell*/
            #ctl00_MainContent_RadPivotGrid1_ctl02_DataZone_DT > tbody > tr > td.rpgDataCell{
                height:26px !important;
            }
            /*test specific row*/
            /*#ctl00_MainContent_RadPivotGrid1_OT tbody tr:nth-child(5){
              height:25px !important;
            }*/
        </style>

    My Aspx

    <asp:Content ID="Content2" ContentPlaceHolderID="MainContent" runat="server">
        <telerik:RadScriptManager runat="server" ID="RadScriptManager1" />
        <telerik:RadFormDecorator ID="QsfFromDecorator" runat="server" DecoratedControls="All" EnableRoundedCorners="false" />
        <telerik:RadPivotGrid ID="RadPivotGrid1" runat="server" DataSourceID="SqlDataSource1" AggregatesLevel="3">
                    <PagerStyle ChangePageSizeButtonToolTip="Change Page Size" PageSizeControlType="RadComboBox"></PagerStyle>
                    <Fields>
                        <telerik:PivotGridColumnField DataField="Year" UniqueName="Year" Caption="Year">
                        </telerik:PivotGridColumnField>
                        <telerik:PivotGridColumnField DataField="Quarter" UniqueName="Quarter" Caption="Quarter">
                        </telerik:PivotGridColumnField>
                        <telerik:PivotGridColumnField DataField="Month" UniqueName="Month" Caption="Month">
                        </telerik:PivotGridColumnField>
                        <telerik:PivotGridColumnField Caption="Meal" DataField="Meal" UniqueName="Meal">
                        </telerik:PivotGridColumnField>
                        <telerik:PivotGridRowField DataField="MenuGroup" UniqueName="MenuGroup" Caption="MenuGroup">
                            <CellStyle Width="140px" />
                        </telerik:PivotGridRowField>
                        <telerik:PivotGridRowField DataField="MenuName" UniqueName="MenuName" Caption="MenuName">
                            <CellStyle Width="320px" />
                        </telerik:PivotGridRowField>
                        <telerik:PivotGridAggregateField Caption="SaleAmount" DataField="SaleAmount" GrandTotalAggregateFormatString="" UniqueName="SaleAmount" DataFormatString="{0:C}">
                            <CellStyle Width="150px" />
                        </telerik:PivotGridAggregateField>
                        <telerik:PivotGridAggregateField Caption="OrderQuantity" DataField="OrderQuantity" GrandTotalAggregateFormatString="" UniqueName="OrderQuantity">
                            <CellStyle Width="170px" />
                        </telerik:PivotGridAggregateField>
                    </Fields>
                    <ConfigurationPanelSettings EnableOlapTreeViewLoadOnDemand="True"></ConfigurationPanelSettings>
                </telerik:RadPivotGrid>

    Regards,
    Nitchaphat


  2. Radoslav
    Admin
    Radoslav avatar
    1564 posts

    Posted 10 Sep 2014 Link to this post

    Hi Nitchaphat,

    I tried to reproduce the described issue but to no avail. I am sending you a simple example which shows that the RadPivotGrid rows are aligned correctly. Please check it out and let me know what differs in your case.
    Additionally could you please confirm that you use the latest version of our dlls like in my example?
    Also could you please try setting the RowHeaderCellStyle.Height property and let me know if the issues still persist:
    <telerik:RadPivotGrid ID="RadPivotGrid1" runat="server"  AggregatesLevel="3">
            <PagerStyle ChangePageSizeButtonToolTip="Change Page Size" PageSizeControlType="RadComboBox"></PagerStyle>
            <RowHeaderCellStyle Height="40px" />
            <Fields>
    ...

    Looking forward for your reply.

    Regards,
    Radoslav
    Telerik


    Check out the Telerik Platform - the only platform that combines a rich set of UI tools with powerful cloud services to develop web, hybrid and native mobile apps.


  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. ts
    ts avatar
    13 posts
    Member since:
    Aug 2014

    Posted 10 Sep 2014 in reply to Nitchaphat Link to this post

    Nitchaphat,

    Your workaround fixed my issue. Thank you.

    My Issue can be found : www.telerik.com/forums/pivotgrid-alignment-issue

    I added below css to the page referring to your code .

    <style type="text/css">
    #ctl00_ContentPlaceHolder1_RPG_YearToYearSales_OT> tbody> tr> td.rpgRowsZone
    {
    height:103px !important;
    }

    #ctl00_ContentPlaceHolder1_RPG_YearToYearSales_ctl00_DataZone_DT> thead > tr
    {
    height:18px !important;
    }
    </style>
  5. Nitchaphat
    Nitchaphat avatar
    2 posts
    Member since:
    Sep 2014

    Posted 11 Sep 2014 Link to this post

    Hi Radoslav,

    Thanks for the reply.I just fixed the issue.
    I found thread mention that error in JavaScript can make row alignment error, so I recheck my code again and remove Foundation script from master page then problem solve.

    Nitchaphat

    @ts
    I'm glad that it can help you.
