Rotate Only the Resources Orientation

4 posts, 0 answers
  1. Rob
    Rob avatar
    7 posts
    Member since:
    Jun 2012

    Posted 15 Oct 2013 Link to this post

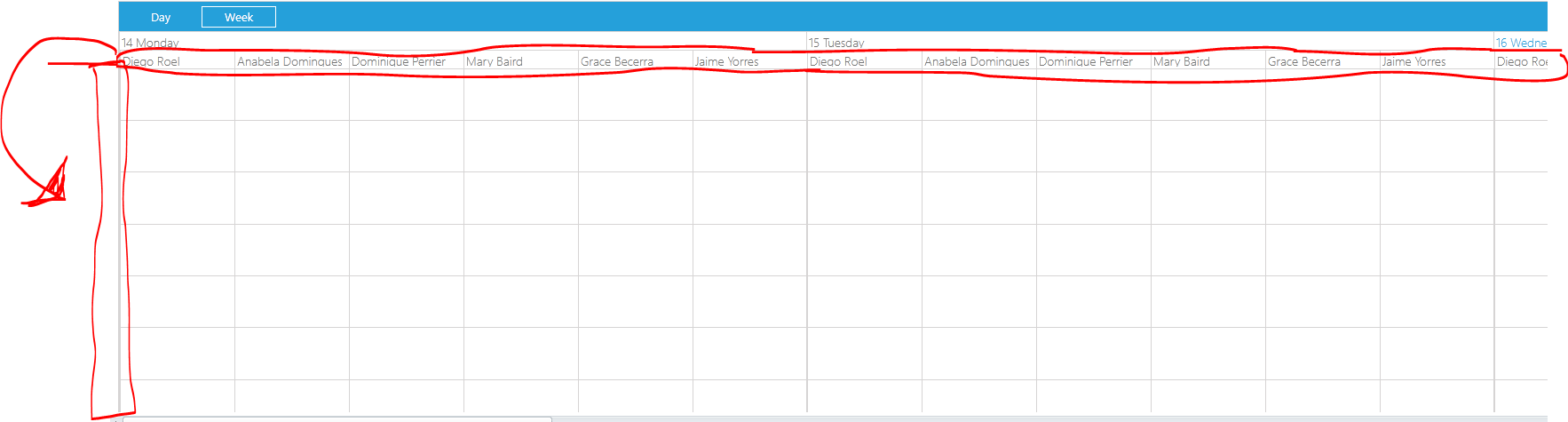

    Is it possible to rotate the resource orientation only and leave the date at the top on the week view?

  2. Kalin
    Admin
    Kalin avatar
    1207 posts

    Posted 16 Oct 2013 Link to this post

    Hello Rob,

    The desired appearance can be easily achieved if you use the TimelineViewDefinition instead of WeekViewDefinition and modify the TimeRuler as required (you can check the Configuring the TimeRuler ticks article from our documentation). This way you will have the dates on the top and the Resources on the left.

    Hope this helps. If you have any other questions let us know.

    Regards,
    Kalin
    Telerik
    TRY TELERIK'S NEWEST PRODUCT - EQATEC APPLICATION ANALYTICS for SILVERLIGHT.
    Learn what features your users use (or don't use) in your application. Know your audience. Target it better. Develop wisely.
    Sign up for Free application insights >>
  3. DevCraft banner
  4. Rob
    Rob avatar
    7 posts
    Member since:
    Jun 2012

    Posted 16 Oct 2013 Link to this post

    Thanks Kalin,

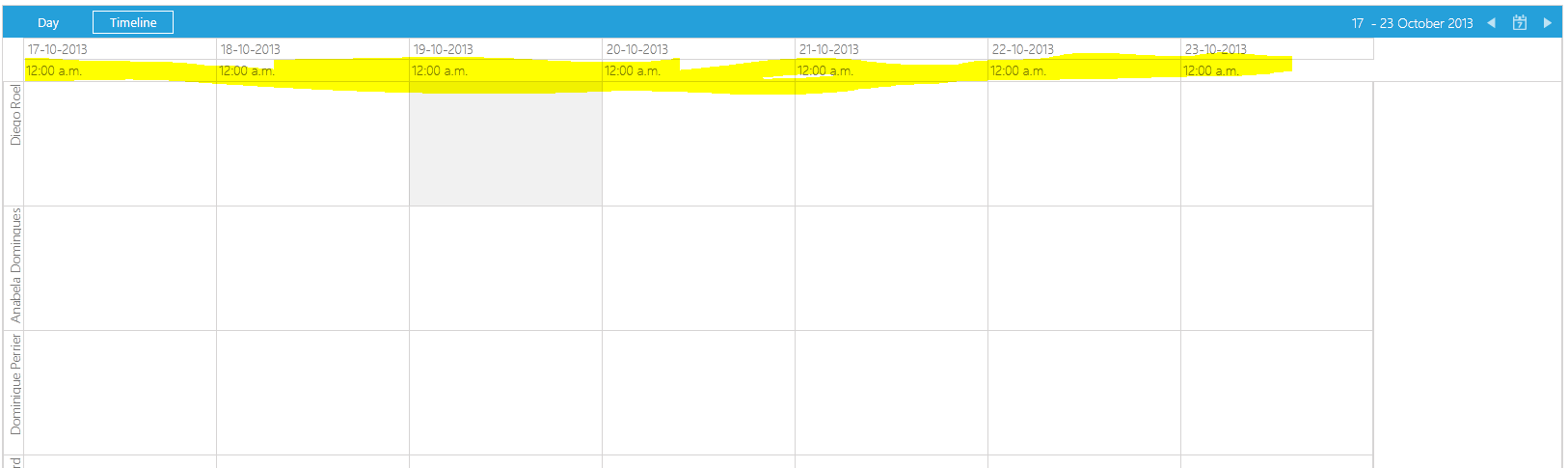

      Nearly Perfect. But how do I hide the time and keep the date?

  5. Kalin
    Admin
    Kalin avatar
    1207 posts

    Posted 17 Oct 2013 Link to this post

    Hello Rob,

    You need to set the TimerulerMajorTickStringFormat property of the TimelineViewDefinition to empty string in order to hide time in TimeRuler. Please see the code snippet below:

    <telerik:TimelineViewDefinition TimerulerMajorTickStringFormat="" VisibleDays="7" Title="Week"/>

    Hope this works for you.

    Regards,
    Kalin
    Telerik
