Resize RadWindow content

3 posts, 1 answers
  1. Alberto
    Alberto avatar
    26 posts
    Member since:
    Nov 2012

    Posted 14 Oct 2013 Link to this post

    Hello,

    I am creating an application where I need to have 4 RadWindows and each window has assigned a UserControl to its content.
    I was taking a look to the window examples in the WPF Demo so I took some code from there, this is how I created the windows:
    RadWindow window = new RadWindow();
            RadWindow window2 = new RadWindow();
            RadWindow window3 = new RadWindow();
            RadWindow window4 = new RadWindow();

            public MainWindow()
            {
                InitializeComponent();

                window.Header = "Window1";
                window.Owner = Application.Current.MainWindow;
                window.CanClose = false;

                window2.Header = "Window2";
                window2.Owner = Application.Current.MainWindow;
                window2.CanClose = false;

                window3.Header = "Window3";
                window3.Owner = Application.Current.MainWindow;
                window3.CanClose = false;

                window4.Header = "Window4";
                window4.Owner = Application.Current.MainWindow;
                window4.CanClose = false;

                this.Loaded += OnExampleLoaded;
                this.Unloaded += OnExampleUnloaded;

            }


    void OnExampleUnloaded(object sender, RoutedEventArgs e)
            {
                window.Close();
                window2.Close();
                window3.Close();
                window4.Close();
            }

            void OnExampleLoaded(object sender, RoutedEventArgs e)
            {
                double dblHeight = (this.ActualHeight / 2) - 15;
                double dblWidth = (this.ActualWidth / 2) - 20;

                window.Height = dblHeight;
                window.Width = dblWidth;

                window2.Height = dblHeight;
                window2.Width = dblWidth;

                window3.Height = dblHeight;
                window3.Width = dblWidth;

                window4.Height = dblHeight;
                window4.Width = dblWidth;

                window.Left = 10;
                window.Top = 34;

                window2.Left = dblWidth + 20;
                window2.Top = 34;

                window3.Left = 10;
                window3.Top = dblHeight + 44;

                window4.Left = dblWidth + 20;
                window4.Top = dblHeight + 44;

                window2.Content = new MyControl();

                window.Show();
                window2.Show();
                window3.Show();
                window4.Show();
            }

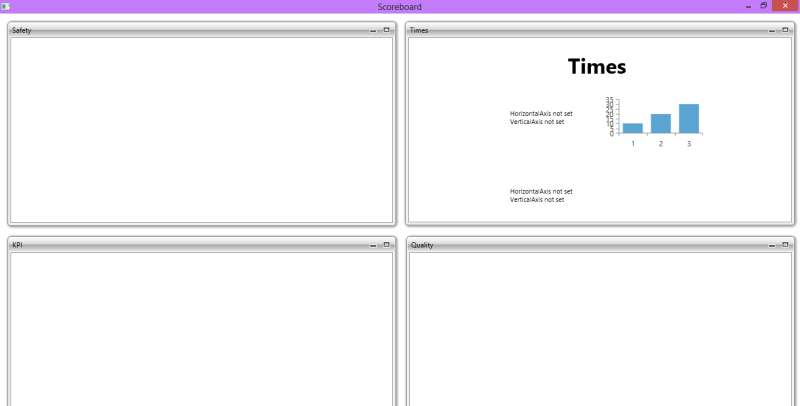

    And the first attached image is how this look.

    MyControl has 3 charts and a label:

    <UserControl
                 xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                 xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
                 xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation" x:Class="ScoreBoard.MyControl"
                 mc:Ignorable="d" Height="358.566" Width="391.232">
        <Grid Margin="0,10,10,10">
            <Grid.RowDefinitions>
                <RowDefinition Height="Auto" />
                <RowDefinition Height="132*"/>
                <RowDefinition Height="133*"/>
                <RowDefinition Height="27*"/>
            </Grid.RowDefinitions>

            <Grid.ColumnDefinitions>
                <ColumnDefinition Width="*" />
                <ColumnDefinition Width="*" />
            </Grid.ColumnDefinitions>


            <telerik:Label Content="Times" Margin="10,9,10,10" FontSize="36" FontWeight="Bold" HorizontalContentAlignment="Center" Grid.ColumnSpan="2"/>

            <telerik:RadCartesianChart x:Name="chartTimes1" Margin="10" Grid.Row="1" FontSize="11" FontWeight="Normal" >
                <telerik:RadCartesianChart.Behaviors>
                    <telerik:ChartPanAndZoomBehavior PanMode="Both" ZoomMode="Both"/>
                </telerik:RadCartesianChart.Behaviors>
            </telerik:RadCartesianChart>

            <telerik:RadCartesianChart x:Name="chartTimes2" Margin="10" Grid.Row="2" FontSize="11" FontWeight="Normal" Grid.RowSpan="2" >
                <telerik:RadCartesianChart.Behaviors>
                    <telerik:ChartPanAndZoomBehavior PanMode="Both" ZoomMode="Both"/>
                </telerik:RadCartesianChart.Behaviors>
            </telerik:RadCartesianChart>
            <telerik:RadCartesianChart Grid.Column="1" Margin="10" Grid.Row="1">
                <telerik:RadCartesianChart.HorizontalAxis>
                    <telerik:CategoricalAxis/>
                </telerik:RadCartesianChart.HorizontalAxis>
                <telerik:RadCartesianChart.VerticalAxis>
                    <telerik:LinearAxis/>
                </telerik:RadCartesianChart.VerticalAxis>
                <telerik:BarSeries>
                    <telerik:BarSeries.DataPoints>
                        <telerik:CategoricalDataPoint Category="{x:Null}" IsSelected="False" Label="10" Value="10"/>
                        <telerik:CategoricalDataPoint Category="{x:Null}" IsSelected="False" Label="20" Value="20"/>
                        <telerik:CategoricalDataPoint Category="{x:Null}" IsSelected="False" Label="30" Value="30"/>
                    </telerik:BarSeries.DataPoints>
                </telerik:BarSeries>
            </telerik:RadCartesianChart>

        </Grid>
    </UserControl>

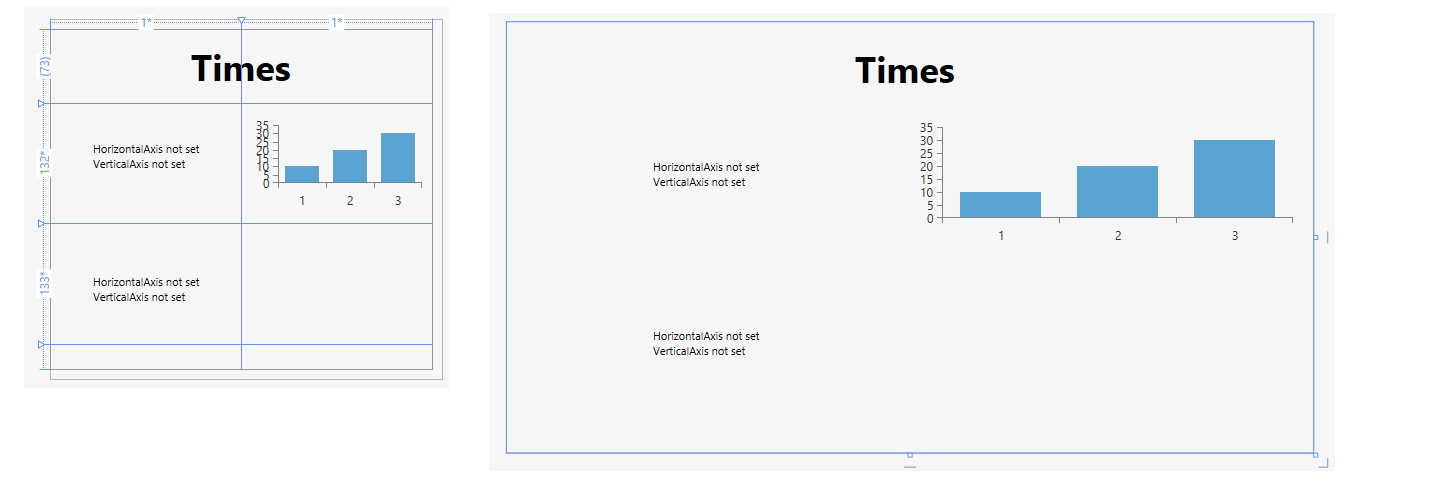

    In the design of MyControl I change the size of the control and the charts changes its size whether I make it smaller or larger, as you can see in the image MyControl.

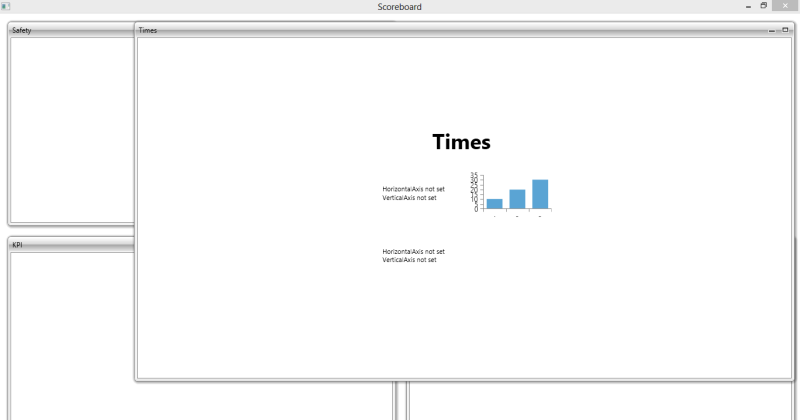

    But when I assign MyControl to the window content and I change the size of the window, the control appears to be fixed in the center but It doesn't change its size.

    Do I need to configure or assign MyControl in a different way?

    Regards,

    Alberto


  2. Answer
    Kalin
    Admin
    Kalin avatar
    1207 posts

    Posted 15 Oct 2013 Link to this post

    Hi Alberto,

    Thanks for the provided sample code.

    Looks like the UserControl with the Chart has Width and Height set which prevents changing its size when resizing the Window. As a suggestion you can just remove the Width and Height of the UserControl - this way it will take the size of the Window.

    Please try the explained above and let us know if this works for you.

    Regards,
    Kalin
    Telerik
    TRY TELERIK'S NEWEST PRODUCT - EQATEC APPLICATION ANALYTICS for WPF.
    Learn what features your users use (or don't use) in your application. Know your audience. Target it better. Develop wisely.
    Sign up for Free application insights >>
  3. UI for WPF is Visual Studio 2017 Ready
  4. Alberto
    Alberto avatar
    26 posts
    Member since:
    Nov 2012

    Posted 15 Oct 2013 Link to this post

    Hi Kalin,

    You're right, I just needed to remove the Width and Height.

    Thanks a lot,

    Alberto
