Removing old pdfs from memory

6 posts, 0 answers
  1. Ars
    Ars avatar
    7 posts
    Member since:
    Aug 2011

    Posted 13 Dec 2012 Link to this post

    Hi all,

    I`m using RadPdfViewer to show user a pdf files from my database (files stores at database by Filestream).

    <telerik:RadPdfViewer x:Name="PdfViewer" Grid.Column="1" ></telerik:RadPdfViewer>

    I`m loading files by Uri, here is my code:

    private void BrowseDocumentOnClick(object sender, RadRoutedEventArgs e)
    {
        //check if user have select document from tableview
        if (_viewModel.SelectedEntity == null) return;

        //form uri query to server. Inserting document identifier
        var uri = new Uri(String.Format("/Files/FileView.aspx?docId={0}", _viewModel.SelectedEntity.pk_documentid),
                          UriKind.Relative);

        //start loading file by chunks from server
        this.PdfViewer.DocumentSource = new PdfDocumentSource(uri);
    }


    The problem is that when I`m trying to sequentially see several different documents by one instance of RadPdfViewer  - the old documents are not removed from memory. And I`dont find any method at "this.pdfViewer" which could clean the memory from old documents.

  2. Kammen
    Admin
    Kammen avatar
    312 posts

    Posted 13 Dec 2012 Link to this post

    Hello Ars,

    Can you clarify in what way you understand that documents are not removed from the memory? Maybe send us a demo project that will reproduce this issue in a support ticket?

    We have tested RadPdfViewer and in our test project, the documents were released correctly.

    Looking forward to your answer.

    Regards,
    Kammen
    the Telerik team

    Explore the entire Telerik portfolio by downloading Telerik DevCraft Ultimate.

  3. DevCraft banner
  4. Ars
    Ars avatar
    7 posts
    Member since:
    Aug 2011

    Posted 17 Dec 2012 Link to this post

    | Can you clarify in what way you understand that documents are not removed from the memory?

    1. After solution run (two projects:asp.net, silverlight app) Instance of IE 9 at task manager shows 60-62 mb of memory usage.
    2. When I download a first pdf from a server side to telerik pdf control, the memory usage increase to nearly 70-75 mb ( exact size of upload file - 1 mb).
    3. When I download another pdf file from server, the memory usage increases up to 200 mb. (though pdf file size is about 2 mb). (It`s consist of images inserted inside a pdf file)

    I`ve attached 3 pics which show memory usage.

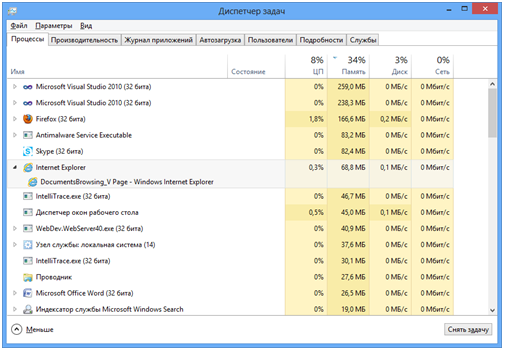

    1. 0 pdf files download from server

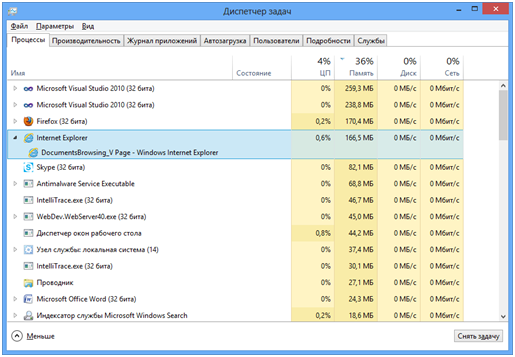

    2. 1 pdf files download from server

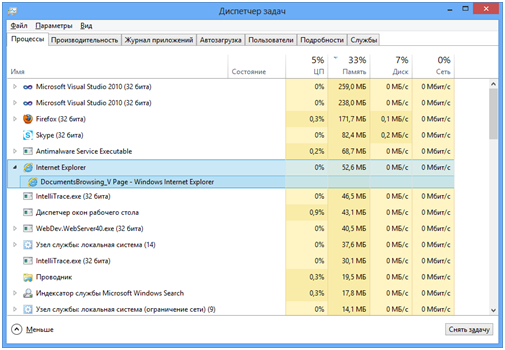

    3. 2 pdf files download from server


    The code of server side which sends file in chunks by bytes. (Code of client side I published in my first post. )
    using System;
    using System.IO;
    using System.Linq;

    namespace ATZO.Web.Files
    {
        public partial class FileView : System.Web.UI.Page
        {
            protected void Page_Load(object sender, EventArgs e)
            {
                var doc = Page.Request.QueryString["docId"];

                // some check logic
                if (doc == null)
                {

                }

                var DocumentId= long.Parse(doc);

                Response.ContentType = "application/pdf";
                Response.AddHeader("Pragma", "no-cache");

                var doc = new document();

                //get document from database
                using (var dbConnect= new DBConnect())
                {
                    doc= dbConnect.reg_document.SingleOrDefault(_=> _.DocId  == DocumentId);
                }

                int BufferSize = 8000;

                var fileBytes = doc.fileDATA;

                try
                {

                    long fileSize = fileBytes.Length;
                    int chunkLength = 0;
                    int position = 0;
                    var chunk = new Byte[BufferSize];
                    //count of bytes left to transmit
                    var bytesLeftToTransmit = fileSize;

                    while (bytesLeftToTransmit > 0)
                    {
                        chunkLength = fileBytes.Skip(position).Take(BufferSize).Count();

                        chunk = fileBytes.Skip(position).Take(chunkLength).ToArray();

                        Response.OutputStream.Write(chunk, 0, chunkLength);

                        Response.Flush();
                        position += chunkLength;
                        bytesLeftToTransmit -= chunkLength;
                    }
                }
                finally
                {
                    Response.End();
                }
                Response.End();
           }
        }
    }
  5. Kammen
    Admin
    Kammen avatar
    312 posts

    Posted 20 Dec 2012 Link to this post

    Hello Ars,

     As we mentioned before, we have tested this scenario with a profiler and the results are that all documents are removed as soon as the garbage collector collects them. The memory usage is increased because of the UI virtualization that RadPdfViewer implements. We do not release the created UI elements, but we store them in a factory so they can be used later. This behavior is due to performance reasons and we do not plan to change it for the moment.

    Also, it is normal that  RadPdfViewer uses more memory than the PDF document's size, because additional preprocessing is done, document elements are created and so on.

    Hope this answers your question.

    Regards,
    Kammen
    the Telerik team

    Explore the entire Telerik portfolio by downloading Telerik DevCraft Ultimate.

  6. Ars
    Ars avatar
    7 posts
    Member since:
    Aug 2011

    Posted 20 Dec 2012 Link to this post

     Hello Kammen,
    thank you for your reply.

    My anxiety was associated with a dramatic increase in memory usage.
    From 60 mb to 200-250 mb by showing a client a few pdf files (2-4).

    Regards,
    Ars Stepanov
  7. Jared
    Jared avatar
    1 posts
    Member since:
    Oct 2015

    Posted 25 Nov 2015 in reply to Ars Link to this post

    Hi Ars,

    I'm with you- i have an app that shows users PDF files, and a 6MB pdf turns into 400MB+ in memory.
    i find that if you dispose the pdf viewer after it closes it still remains in memory- until you create a new pdfViewer object then the memory usage drops back to normal.

    So what i do now, is when i want to view a PDF, i create a new tab (with option: CloseAction = DockWindowCloseAction.CloseAndDispose) and with that tab, a new RadPdfViewer & RadPdfViewerNavigator. it seems when you create another pdfviewer object the previous one gets removed from memory- does not matter if the tab is disposed, or you can force a GC(not recommended) but the code is below.

     Note: if you are going to run your app in a shared environment like a Terminal Server and call the GC collects, the runtime options in your App.Config should reference the <gcServer> and <gcConcurrent> options and be set to TRUE. It goes without saying: Use at your own risk and always test prior to deployment...

    Dim CurProc As Process = Process.GetCurrentProcess()
    'If the Process has gone over 500MB
     If FormatNumber(CDbl(((c.WorkingSet64 / 1024) / 1024)), 2) > 500.0 Then
       Try
          GC.Collect()
          GC.WaitForPendingFinalizers()
       Catch ex As Exception
       'Do something with our error here.
       End Try
     Else
     'Still within our operating limitations.
     End If
     'Cleanup
     CurProc = Nothing
