RangeList for Horizontal LinearScale

2 posts, 0 answers
  1. Keith
    Keith avatar
    2 posts
    Member since:
    Jun 2010

    Posted 10 Jun 2010 Link to this post

    Hi,

    I'm using a LinearScale where Orientation="Horizontal" with a RangeList.  I have 3 LinearRanges defined, low, mid, and high.  However, the LInearRange background does not display past just over the midpoint of the Horizontal LInearScale.  I have created a sample application to demonstrate this behavior.

    <Window x:Class="WPFLinearGauge.Window1"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation"
        Title="Window1" Height="500" Width="500"
        <Grid >
            <Grid.ColumnDefinitions>
                <ColumnDefinition Width="150" />
                <ColumnDefinition Width="350" />
                <ColumnDefinition Width="350" />
            </Grid.ColumnDefinitions>
            <telerik:LinearScale x:Name="lsQty1" Height="200" Width="200" Orientation="Vertical" HorizontalAlignment="Stretch"
                                 VerticalAlignment="Center" Min="0" Max="100" Grid.Column="0"

                <telerik:LinearScale.Label>
                    <telerik:LabelProperties Offset="0" Location="Outside" />
                </telerik:LinearScale.Label>


                <telerik:RangeList>

                    <telerik:LinearRange x:Name="lrQtyLow1"
                                         StartWidth="0.05"
                                         EndWidth="0.05"
                                         Location="OverCenter"
                                         Background="Red"
                                         BorderBrush="#7FFFFFFF" Min="0" Max="100"/>
                    <telerik:LinearRange x:Name="lrQtymid1"
                                         StartWidth="0.05"
                                         EndWidth="0.05"
                                         Location="OverCenter"
                                         Background="LightGreen"
                                         BorderBrush="#7FFFFFFF" Min="25" Max="75"/>
                    <telerik:LinearRange x:Name="lrQtyhigh1"
                                         StartWidth="0.05"
                                         EndWidth="0.05"
                                         Location="OverCenter"
                                         Background="Green"
                                         BorderBrush="#7FFFFFFF" Min="75" Max="100"/>
                </telerik:RangeList>

                <telerik:IndicatorList>
                    <telerik:Marker x:Name="mQty1"
                                    RelativeHeight="0.075"
                                    RelativeWidth="0.075"
                                    IsAnimated="True"
                                    Value="50"
                                    Location="OverCenter"
                                    Background="Blue"/>
                </telerik:IndicatorList>
            </telerik:LinearScale>

            <telerik:LinearScale x:Name="lsQty2" Height="200" Width="200" HorizontalAlignment="Left"
                                 VerticalAlignment="Center" Min="0" Max="100" Grid.Column="1"
                                 Orientation="Horizontal"

                <telerik:LinearScale.Label>
                    <telerik:LabelProperties Offset="0" Location="Outside" >
                    </telerik:LabelProperties>

                </telerik:LinearScale.Label>

                    <telerik:RangeList>

                    <telerik:LinearRange x:Name="lrQtyLow2"
                                         StartWidth="0.05"
                                         EndWidth="0.05"
                                         Location="OverCenter"
                                         Background="Red"
                                         BorderBrush="#7FFFFFFF" Min="0" Max="25"/>
                    <telerik:LinearRange x:Name="lrQtymid2"
                                         StartWidth="0.05"
                                         EndWidth="0.05"
                                         Location="OverCenter"
                                         Background="LightGreen"
                                         BorderBrush="#7FFFFFFF" Min="25" Max="75"/>
                    <telerik:LinearRange x:Name="lrQtyhigh2"
                                         StartWidth="0.05"
                                         EndWidth="0.05"
                                         Location="OverCenter"
                                         Background="Green"
                                         BorderBrush="#7FFFFFFF" Min="75" Max="100"/>
                </telerik:RangeList>

                <telerik:IndicatorList>
                    <telerik:Marker x:Name="mQty2"
                                    RelativeHeight="0.075"
                                    RelativeWidth="0.075"
                                    IsAnimated="True"
                                    Value="50"
                                    Location="OverCenter"
                                    Background="Blue"/>
                </telerik:IndicatorList>
            </telerik:LinearScale>
       </Grid>
    </Window>

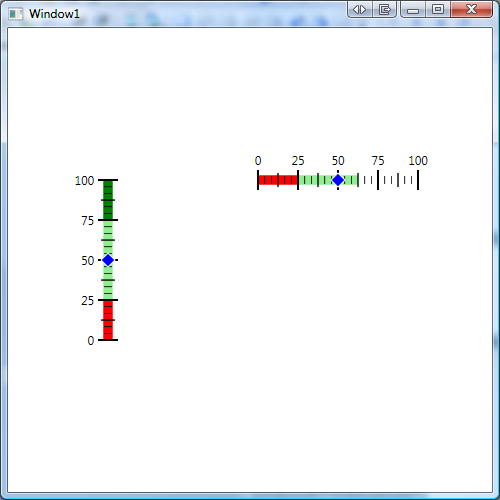

    I have also attached a screen shot showing both the Vertical and Horizonatl LInearScales.

    Is this the expected behavior?  Have I incorrectly defined or missed something in setting up the Horizontal LinearScale?  Or is there a different/better way to accomplish the desired Horizontal LinearScale?

    Thanks for any additional information,
    Keith
  2. Andrey
    Admin
    Andrey avatar
    1681 posts

    Posted 11 Jun 2010 Link to this post

    Hi Keith,

    The horizontal scale is clipped by top container (Grid). By default the Left property of the scale is set to 0.5. So horizontal scale starts at the half of the container. I suggest you change your code to specify different left position of the scale:

    <telerik:LinearScale x:Name="lsQty2"
         Height="200"
         Width="200"
         Left="0.1"
         HorizontalAlignment="Left"
             VerticalAlignment="Center"
         Min="0"
         Max="100"
         Grid.Column="1"
             Orientation="Horizontal">


    Best wishes,
    Andrey Murzov
    the Telerik team
