    Ok, i know there is a big problem with the auto resize of radwindows but i think i'm very close to getting my version working.

    I've followed the guides here from these threads:

    http://demos.telerik.com/aspnet-ajax/window/examples/dialogreturnvalue/defaultcs.aspx
    http://www.telerik.com/community/forums/aspnet-ajax/window/resize-radwindow-based-on-content-not-onload.aspx
    http://www.telerik.com/community/forums/aspnet-ajax/window/resizing-problem-and-autoresize-option.aspx
    http://www.telerik.com/community/forums/orm/general-discussions/to-resize-rad-window-on-the-change-of-the-size-of-control-on-it.aspx
    http://www.telerik.com/community/forums/aspnet-ajax/window/best-way-to-resize-window-when-content-changes-via-javascript.aspx

    But what is happening is that first my radwindow on chrome shows up very very small and then grows to the appropriate size. This kinda sucks but hey if it happens the first time i can deal with that. The problem is that every time i call "AdjustRadWidow" it does this behavior. This is unlike the demo's above.

    Calling code block:
    <telerik:RadWindowManager ID="RadWindowManager1" Overlay="true"  runat="server" Modal="true" EnableViewState="false"
        VisibleStatusbar="false" Behaviors="Close,Move,Resize" Skin="skr" EnableEmbeddedSkins="false" OnClientPageLoad="AdjustRadWidow" autoSize="true" >
    </telerik:RadWindowManager>

    My javascript block: this is functionaly equivalent to the code above but i made changes so it works with my custom skin.

    function AdjustRadWidow() {
        try {
            var manager = GetRadWindowManager();
            var oWindow = manager.GetActiveWindow();
        }
        catch (err) {
            var oWindow = GetRadWindow();
        }
        setTimeout(function () { oWindow.autoSize(true); if ($telerik.isChrome || $telerik.isSafari) ChromeSafariFix(oWindow); }, 500);
    }
    //fix for Chrome/Safari due to absolute positioned popup not counted as part of the content page layout
    function ChromeSafariFix(oWindow) {
        var iframe = oWindow.get_contentFrame();
        var body = jQuery('iframe[name=RadWindow1]').contents().find(".content");
        if (typeof jQuery(body).html() === 'undefined') {
            body = jQuery('.content');
        }
        setTimeout(function () {
            var height = jQuery(body)[0].scrollHeight + 275;
            var width = jQuery(body)[0].scrollWidth + 70;
            var iframeBounds = $telerik.getBounds(iframe);
            var heightDelta = height - iframeBounds.height;
            var widthDelta = width - iframeBounds.width;
            if (heightDelta > 0) oWindow.set_height(oWindow.get_height() + heightDelta);
            if (widthDelta > 0) oWindow.set_width(oWindow.get_width() + widthDelta);
            oWindow.center();
        }, 310);
    }


    How can i fix this.
  2. Marin Bratanov
    Admin
    Marin Bratanov avatar
    3595 posts

    Posted 07 Mar 2013 Link to this post

    Hi Chris,

    I advise that you follow this help article on getting autosizing to work properly: http://www.telerik.com/help/aspnet-ajax/window-troubleshooting-autosize-not-correct.html.

    On the resizing - if animations are enabled you will see the size change, so I advise that your remove them. Passing true as an argument to the autoSize() method causes it to animate, removing this argument should help.


    Kind regards,
    Marin Bratanov
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Chris
    Chris avatar
    7 posts
    Member since:
    Dec 2012

    Posted 07 Mar 2013 Link to this post

    I followed the guide you supplied and still no good. When i set "autosize = false" i no longer get the animation but the window still resizes to a very small size and then jumps to the appropriate size. This only happens on chrome/safari and it doesn't matter if i use the stocks window style.

  5. Marin Bratanov
    Admin
    Marin Bratanov avatar
    3595 posts

    Posted 11 Mar 2013 Link to this post

    Hi Chris,

    I am not aware of such browser-specific behaviour and I advise that you post the markup that is causing this issue so I can reproduce and investigate it. This includes the full RadWindow declaration, the way it is opened and the content page. Usually autosizing issues stem from the content that is supplied. You can follow the guidelines from this blog post to strip down as much irrelevant markup as possible.


    Regards,
    Marin Bratanov
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
  6. Qurat
    Qurat avatar
    21 posts
    Member since:
    Jan 2013

    Posted 12 Mar 2013 Link to this post

    hi Marin,

    i am trying to use client template for my radhtmlchart but i am unable to do it because i am using a dataset from the DB.
    i tried using this
      //PieChart1.PlotArea.Series[0].TooltipsAppearance.ClientTemplate = ds.Tables[0].ToString();
    it is also not working.
    please help me i have to submit the project and i have very less time

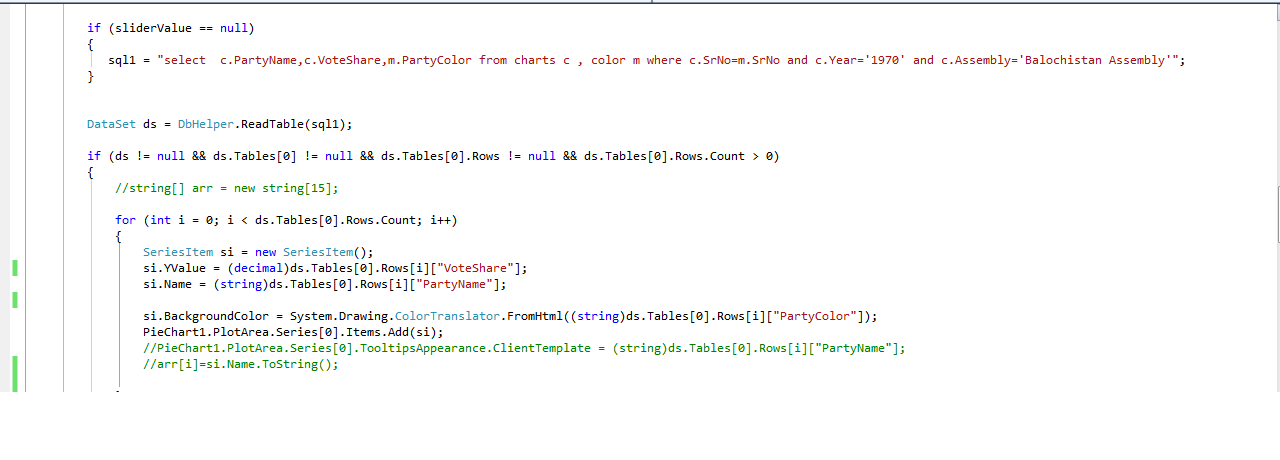

    here is a piece of code :
     DataSet ds = DbHelper.ReadTable(sql1);

            if (ds != null && ds.Tables[0] != null && ds.Tables[0].Rows != null && ds.Tables[0].Rows.Count > 0)
            {
                //string[] arr = new string[15];

                for (int i = 0; i < ds.Tables[0].Rows.Count; i++)
                {
                    SeriesItem si = new SeriesItem();
                    si.YValue = (decimal)ds.Tables[0].Rows[i]["VoteShare"];
                    si.Name = (string)ds.Tables[0].Rows[i]["PartyName"];

                    si.BackgroundColor = System.Drawing.ColorTranslator.FromHtml((string)ds.Tables[0].Rows[i]["PartyColor"]);
                    PieChart1.PlotArea.Series[0].Items.Add(si);
                    //PieChart1.PlotArea.Series[0].TooltipsAppearance.ClientTemplate = (string)ds.Tables[0].Rows[i]["PartyName"];
                    //arr[i]=si.Name.ToString();

                }

                //PieChart1.PlotArea.Series[0].TooltipsAppearance.ClientTemplate = ds.Tables[0].ToString();





    regards
    @nnu shah
    punjab lok sujag
