Radmenu horizontal in Sharepoint 2010

13 posts, 1 answers
  1. Gerard
    Gerard avatar
    6 posts
    Member since:
    Feb 2014

    Posted 25 Feb 2014 Link to this post

    Hello,

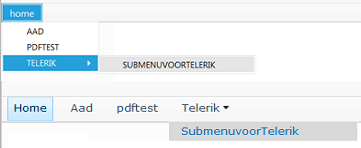

    In Sharepoint 2010 I would like to let Radmenu take over the global navigation. How can I change it's default behaviour to dropdown subsites below the Home-item and have them displayed horizontal like in the attached image?

    Thank you.
  2. Boyan Dimitrov
    Admin
    Boyan Dimitrov avatar
    1746 posts

    Posted 28 Feb 2014 Link to this post

    Hello,

    An easy and convenient way of achieving similar functionality would be to set your home item as root item as shown in the code snippet below:
    //markup code
    <telerik:RadMenu ID="RadMenu1" runat="server" Skin="Metro">
                    <Items>
                        <telerik:RadMenuItem Text="Home">
                            <Items>
                                <telerik:RadMenuItem Text="AAD"></telerik:RadMenuItem>
                                <telerik:RadMenuItem Text="PDFTEST"></telerik:RadMenuItem>
                                <telerik:RadMenuItem Text="Telerik">
                                    <Items>
                                        <telerik:RadMenuItem Text="Telerik Child Item"></telerik:RadMenuItem>
                                    </Items>
                                </telerik:RadMenuItem>
                            </Items>
                        </telerik:RadMenuItem>
                    </Items>
                </telerik:RadMenu>



    Regards,
    Boyan Dimitrov
    Telerik
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the UI for ASP.NET AJAX, subscribe to the blog feed now.

  3. Gerard
    Gerard avatar
    6 posts
    Member since:
    Feb 2014

    Posted 04 Mar 2014 in reply to Boyan Dimitrov Link to this post

    Thank you Boyan for pointing out the right direction!
    The only thing now is to get this to work with a DataSourceID="topSiteMap", is that possible?

    Thank you.
  4. Boyan Dimitrov
    Admin
    Boyan Dimitrov avatar
    1746 posts

    Posted 05 Mar 2014 Link to this post

    Hello,

    Indeed the RadMenu control does support binding to various data sources. Please take a look at our Binding to Table-Based DataSource Components help article and our Declarative Binding demo.


    Regards,
    Boyan Dimitrov
    Telerik

    DevCraft Q1'14 is here! Join the free online conference to see how this release solves your top-5 .NET challenges. Reserve your seat now!

  5. Travis Cotton
    Travis Cotton avatar
    10 posts
    Member since:
    Sep 2009

    Posted 10 Mar 2014 in reply to Boyan Dimitrov Link to this post

    <telerik:RadMenu ID="RadMenu1" runat="server" EnableEmbeddedSkins="False" DataSourceID="topSiteMap" Skin="Metro" style="z-index:10;position:absolute" ShowToggleHandle="True" />

    We wrap this in a web part but you can put this code directly in the master page if you want.  The master page would look like this:

    <telerik:RadMenu ID="RadMenu1" runat="server" EnableEmbeddedSkins="False" DataSourceID="topSiteMap" Skin="Metro" style="z-index:10;position:absolute" ShowToggleHandle="True" />
    <PublishingNavigation:PortalSiteMapDataSource ID="topSiteMap" runat="server" EnableViewState="false" SiteMapProvider="GlobalNavigation" StartFromCurrentNode="true" StartingNodeOffset="0" ShowStartingNode="false" TrimNonCurrentTypes="Heading"/>
  6. Gerard
    Gerard avatar
    6 posts
    Member since:
    Feb 2014

    Posted 11 Mar 2014 in reply to Travis Cotton Link to this post

    Hi Travis,

    Thank you for this Sharepoint-specific contribution.

    Using your masterpage example seems like the solution I was looking for.

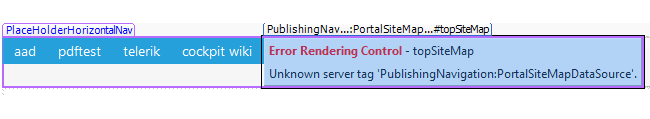

    Any idea what additional change I should make to prevent it from generating this rendering control error: Unknown server tag 'PublishingNavigationPortalSiteMapDataSource' ?

    Thanks again!


  7. Travis Cotton
    Travis Cotton avatar
    10 posts
    Member since:
    Sep 2009

    Posted 11 Mar 2014 in reply to Gerard Link to this post

    Make sure you have this at the top of the page:

    <%@ Register Tagprefix="PublishingNavigation" Namespace="Microsoft.SharePoint.Publishing.Navigation" Assembly="Microsoft.SharePoint.Publishing, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
  8. Gerard
    Gerard avatar
    6 posts
    Member since:
    Feb 2014

    Posted 11 Mar 2014 in reply to Travis Cotton Link to this post

    Travis,

    I added the register part. Thanks!
    Now it complains about "Duplicate component name 'topsiteMap'.
    I tried 'SiteMapDS' instead with no luck.

    Any idea?
  9. Travis Cotton
    Travis Cotton avatar
    10 posts
    Member since:
    Sep 2009

    Posted 11 Mar 2014 in reply to Gerard Link to this post

    Can you post your master page code here?
  10. Gerard
    Gerard avatar
    6 posts
    Member since:
    Feb 2014

    Posted 11 Mar 2014 in reply to Travis Cotton Link to this post

    <%@Master language="C#"%>
    <%@ Register Tagprefix="SharePoint" Namespace="Microsoft.SharePoint.WebControls" Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %> <%@ Register Tagprefix="Utilities" Namespace="Microsoft.SharePoint.Utilities" Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %> <%@ Import Namespace="Microsoft.SharePoint" %> <%@ Assembly Name="Microsoft.Web.CommandUI, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
    <%@ Import Namespace="Microsoft.SharePoint.ApplicationPages" %>
    <%@ Register Tagprefix="WebPartPages" Namespace="Microsoft.SharePoint.WebPartPages" Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
    <%@ Register TagPrefix="wssuc" TagName="Welcome" src="_controltemplates/Welcome.ascx" %>
    <%@ Register TagPrefix="wssuc" TagName="MUISelector" src="_controltemplates/MUISelector.ascx" %>
    <%@ Register TagPrefix="wssuc" TagName="DesignModeConsole" src="_controltemplates/DesignModeConsole.ascx" %>
    <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN"
    "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">
    <%@ register tagprefix="telerik" namespace="Telerik.Web.UI" assembly="Telerik.Web.UI, Version=2013.3.1324.35, Culture=neutral, PublicKeyToken=121fae78165ba3d4" %>
    <%@ Register Tagprefix="PublishingNavigation" Namespace="Microsoft.SharePoint.Publishing.Navigation" Assembly="Microsoft.SharePoint.Publishing, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
    <html lang="<%$Resources:wss,language_value%>" dir="<%$Resources:wss,multipages_direction_dir_value%>" runat="server" xmlns:o="urn:schemas-microsoft-com:office:office" __expr-val-dir="ltr">
    <head runat="server">
     <meta http-equiv="X-UA-Compatible" content="IE=8"/>
     <meta name="GENERATOR" content="Microsoft SharePoint"/>
     <meta name="progid" content="SharePoint.WebPartPage.Document"/>
     <meta http-equiv="Content-Type" content="text/html; charset=utf-8"/>
     <meta http-equiv="Expires" content="0"/>
     <SharePoint:RobotsMetaTag runat="server"/>
     <title id="onetidTitle"><asp:ContentPlaceHolder id="PlaceHolderPageTitle" runat="server"/></title>
     <SharePoint:CssLink runat="server" Version="4"/>
     <SharePoint:Theme runat="server"/>
     <SharePoint:ULSClientConfig runat="server"/>
     <script type="text/javascript">
     var _fV4UI = true;
     </script>
     <SharePoint:ScriptLink language="javascript" name="core.js" OnDemand="true" runat="server"/>
     <SharePoint:CustomJSUrl runat="server"/>
     <SharePoint:SoapDiscoveryLink runat="server"/>
     <asp:ContentPlaceHolder id="PlaceHolderAdditionalPageHead" runat="server"/>
     <SharePoint:DelegateControl runat="server" ControlId="AdditionalPageHead" AllowMultipleControls="true"/>
     <SharePoint:SPShortcutIcon runat="server" IconUrl="/_layouts/images/favicon.ico"/>
     <asp:ContentPlaceHolder id="PlaceHolderBodyAreaClass" runat="server"/>
     <asp:ContentPlaceHolder id="PlaceHolderTitleAreaClass" runat="server"/>
     <SharePoint:SPPageManager runat="server"/>
     <SharePoint:SPHelpPageComponent Visible="false" runat="server"/>
     <Sharepoint:CSSRegistration Name="http://sodn047w/Style Library/Mywhite.css" After="corev4.css" runat="server"/>
    </head>
    <body scroll="no" onload="if (typeof(_spBodyOnLoadWrapper) != 'undefined') _spBodyOnLoadWrapper();" class="v4master">
      <form runat="server" onsubmit="if (typeof(_spFormOnSubmitWrapper) != 'undefined') {return _spFormOnSubmitWrapper();} else {return true;}">
      <asp:ScriptManager id="ScriptManager" runat="server" EnablePageMethods="false" EnablePartialRendering="true" EnableScriptGlobalization="false" EnableScriptLocalization="true" />
     <WebPartPages:SPWebPartManager id="m" runat="Server"/>
    <SharePoint:SPNoScript runat="server"/>
    <div id="TurnOnAccessibility" style="display:none" class="s4-notdlg noindex">
     <a id="linkTurnOnAcc" href="#" class="ms-TurnOnAcc" onclick="SetIsAccessibilityFeatureEnabled(true);UpdateAccessibilityUI();document.getElementById('linkTurnOffAcc').focus();return false;">
     <SharePoint:EncodedLiteral runat="server" text="<%$Resources:wss,master_turnonaccessibility%>" EncodeMethod="HtmlEncode"/></a>
    </div>
    <div id="TurnOffAccessibility" style="display:none" class="s4-notdlg noindex">
     <a id="linkTurnOffAcc" href="#" class="ms-TurnOffAcc" onclick="SetIsAccessibilityFeatureEnabled(false);UpdateAccessibilityUI();document.getElementById('linkTurnOnAcc').focus();return false;">
     <SharePoint:EncodedLiteral runat="server" text="<%$Resources:wss,master_turnoffaccessibility%>" EncodeMethod="HtmlEncode"/></a>
    </div>
    <div class="s4-notdlg s4-skipribbonshortcut noindex">
     <a href="javascript:;" onclick="javascript:this.href='#startNavigation';" class="ms-SkiptoNavigation" accesskey="<%$Resources:wss,skipribbon_accesskey%>" runat="server">
     <SharePoint:EncodedLiteral runat="server" text="<%$Resources:wss,skipRibbonCommandsLink%>" EncodeMethod="HtmlEncode"/></a>
    </div>
    <div class="s4-notdlg noindex">
     <a href="javascript:;" onclick="javascript:this.href='#mainContent';" class="ms-SkiptoMainContent" accesskey="<%$Resources:wss,maincontent_accesskey%>" runat="server">
     <SharePoint:EncodedLiteral runat="server" text="<%$Resources:wss,mainContentLink%>" EncodeMethod="HtmlEncode"/></a>
    </div>
    <a id="HiddenAnchor" href="javascript:;" style="display:none;"></a>
    <SharePoint:DelegateControl runat="server" ControlId="GlobalNavigation"/>
    <div id="s4-ribbonrow" class="s4-pr s4-ribbonrowhidetitle">
     <div id="s4-ribboncont">
      <SharePoint:SPRibbon
       runat="server"
       PlaceholderElementId="RibbonContainer"
       CssFile=""><SharePoint:SPRibbonPeripheralContent
        runat="server"
        Location="TabRowLeft"
        CssClass="ms-siteactionscontainer s4-notdlg"><span class="ms-siteactionsmenu" id="siteactiontd"><SharePoint:SiteActions runat="server" accesskey="<%$Resources:wss,tb_SiteActions_AK%>" id="SiteActionsMenuMain"
          PrefixHtml=""
          SuffixHtml=""
          MenuNotVisibleHtml="&amp;nbsp;"
          ><CustomTemplate>
          <SharePoint:FeatureMenuTemplate runat="server"
           FeatureScope="Site"
           Location="Microsoft.SharePoint.StandardMenu"
           GroupId="SiteActions"
           UseShortId="true"
           >
           <SharePoint:MenuItemTemplate runat="server" id="MenuItem_EditPage"
            Text="<%$Resources:wss,siteactions_editpage%>"
            Description="<%$Resources:wss,siteactions_editpagedescriptionv4%>"
            ImageUrl="/_layouts/images/ActionsEditPage.png"
            MenuGroupId="100"
            Sequence="110"
            ClientOnClickNavigateUrl="javascript:ChangeLayoutMode(false);"
            />
           <SharePoint:MenuItemTemplate runat="server" id="MenuItem_TakeOffline"
            Text="<%$Resources:wss,siteactions_takeoffline%>"
            Description="<%$Resources:wss,siteactions_takeofflinedescription%>"
            ImageUrl="/_layouts/images/connecttospworkspace32.png"
            MenuGroupId="100"
            Sequence="120"
            />
           <SharePoint:MenuItemTemplate runat="server" id="MenuItem_CreatePage"
            Text="<%$Resources:wss,siteactions_createpage%>"
            Description="<%$Resources:wss,siteactions_createpagedesc%>"
            ImageUrl="/_layouts/images/NewContentPageHH.png"
            MenuGroupId="200"
            Sequence="210"
            UseShortId="true"
            ClientOnClickScriptContainingPrefixedUrl="if (LaunchCreateHandler('Page')) { OpenCreateWebPageDialog('~site/_layouts/createwebpage.aspx') }"
            PermissionsString="AddListItems, EditListItems"
            PermissionMode="All" />
           <SharePoint:MenuItemTemplate runat="server" id="MenuItem_CreateDocLib"
            Text="<%$Resources:wss,siteactions_createdoclib%>"
            Description="<%$Resources:wss,siteactions_createdoclibdesc%>"
            ImageUrl="/_layouts/images/NewDocLibHH.png"
            MenuGroupId="200"
            Sequence="220"
            UseShortId="true"
            ClientOnClickScriptContainingPrefixedUrl="if (LaunchCreateHandler('DocLib')) { GoToPage('~site/_layouts/new.aspx?FeatureId={00bfea71-e717-4e80-aa17-d0c71b360101}&amp;ListTemplate=101') }"
            PermissionsString="ManageLists"
            PermissionMode="Any"
            VisibilityFeatureId="00BFEA71-E717-4E80-AA17-D0C71B360101" />
           <SharePoint:MenuItemTemplate runat="server" id="MenuItem_CreateSite"
            Text="<%$Resources:wss,siteactions_createsite%>"
            Description="<%$Resources:wss,siteactions_createsitedesc%>"
            ImageUrl="/_layouts/images/newweb32.png"
            MenuGroupId="200"
            Sequence="230"
            UseShortId="true"
            ClientOnClickScriptContainingPrefixedUrl="if (LaunchCreateHandler('Site')) { STSNavigate('~site/_layouts/newsbweb.aspx') }"
            PermissionsString="ManageSubwebs,ViewFormPages"
            PermissionMode="All" />
           <SharePoint:MenuItemTemplate runat="server" id="MenuItem_Create"
            Text="<%$Resources:wss,siteactions_create%>"
            Description="<%$Resources:wss,siteactions_createdesc%>"
            MenuGroupId="200"
            Sequence="240"
            UseShortId="true"
            ClientOnClickScriptContainingPrefixedUrl="if (LaunchCreateHandler('All')) { STSNavigate('~site/_layouts/create.aspx') }"
            PermissionsString="ManageLists, ManageSubwebs"
            PermissionMode="Any" />
           <SharePoint:MenuItemTemplate runat="server" id="MenuItem_ViewAllSiteContents"
            Text="<%$Resources:wss,quiklnch_allcontent%>"
            Description="<%$Resources:wss,siteactions_allcontentdescription%>"
            ImageUrl="/_layouts/images/allcontent32.png"
            MenuGroupId="300"
            Sequence="302"
            UseShortId="true"
            ClientOnClickNavigateUrl="~site/_layouts/viewlsts.aspx"
            PermissionsString="ViewFormPages"
            PermissionMode="Any" />
            <SharePoint:MenuItemTemplate runat="server" id="MenuItem_EditSite"
            Text="<%$Resources:wss,siteactions_editsite%>"
            Description="<%$Resources:wss,siteactions_editsitedescription%>"
            ImageUrl="/_layouts/images/SharePointDesigner32.png"
            MenuGroupId="300"
            Sequence="304"
            UseShortId="true"
            ClientOnClickScriptContainingPrefixedUrl="EditInSPD('~site/',true);"
            PermissionsString="AddAndCustomizePages"
            PermissionMode="Any"
           />
           <SharePoint:MenuItemTemplate runat="server" id="MenuItem_SitePermissions"
            Text="<%$Resources:wss,people_sitepermissions%>"
            Description="<%$Resources:wss,siteactions_sitepermissiondescriptionv4%>"
            ImageUrl="/_layouts/images/Permissions32.png"
            MenuGroupId="300"
            Sequence="310"
            UseShortId="true"
            ClientOnClickNavigateUrl="~site/_layouts/user.aspx"
            PermissionsString="EnumeratePermissions"
            PermissionMode="Any" />
           <SharePoint:MenuItemTemplate runat="server" id="MenuItem_Settings"
            Text="<%$Resources:wss,settings_pagetitle%>"
            Description="<%$Resources:wss,siteactions_sitesettingsdescriptionv4%>"
            ImageUrl="/_layouts/images/settingsIcon.png"
            MenuGroupId="300"
            Sequence="320"
            UseShortId="true"
            ClientOnClickNavigateUrl="~site/_layouts/settings.aspx"
            PermissionsString="EnumeratePermissions,ManageWeb,ManageSubwebs,AddAndCustomizePages,ApplyThemeAndBorder,ManageAlerts,ManageLists,ViewUsageData"
            PermissionMode="Any" />
           <SharePoint:MenuItemTemplate runat="server" id="MenuItem_CommitNewUI"
            Text="<%$Resources:wss,siteactions_commitnewui%>"
            Description="<%$Resources:wss,siteactions_commitnewuidescription%>"
            ImageUrl="/_layouts/images/visualupgradehh.png"
            MenuGroupId="300"
            Sequence="330"
            UseShortId="true"
            ClientOnClickScriptContainingPrefixedUrl="GoToPage('~site/_layouts/prjsetng.aspx')"
            PermissionsString="ManageWeb"
            PermissionMode="Any"
            ShowOnlyIfUIVersionConfigurationEnabled="true" />
          </SharePoint:FeatureMenuTemplate>
          </CustomTemplate>
           </SharePoint:SiteActions></span><asp:ContentPlaceHolder id="PlaceHolderGlobalNavigation" runat="server"><SharePoint:PopoutMenu
           runat="server"
           ID="GlobalBreadCrumbNavPopout"
           IconUrl="/_layouts/images/fgimg.png"
           IconAlt="<%$Resources:wss,master_breadcrumbIconAlt%>"
           IconOffsetX=0
           IconOffsetY=112
           IconWidth=16
           IconHeight=16
           AnchorCss="s4-breadcrumb-anchor"
           AnchorOpenCss="s4-breadcrumb-anchor-open"
           MenuCss="s4-breadcrumb-menu"><div class="s4-breadcrumb-top">
            <asp:Label runat="server" CssClass="s4-breadcrumb-header" Text="<%$Resources:wss,master_breadcrumbHeader%>" /></div><asp:ContentPlaceHolder id="PlaceHolderTitleBreadcrumb" runat="server"><SharePoint:ListSiteMapPath
             runat="server"
             SiteMapProviders="SPSiteMapProvider,SPContentMapProvider"
             RenderCurrentNodeAsLink="false"
             PathSeparator=""
             CssClass="s4-breadcrumb"
             NodeStyle-CssClass="s4-breadcrumbNode"
             CurrentNodeStyle-CssClass="s4-breadcrumbCurrentNode"
             RootNodeStyle-CssClass="s4-breadcrumbRootNode"
             NodeImageOffsetX=0
             NodeImageOffsetY=353
             NodeImageWidth=16
             NodeImageHeight=16
             NodeImageUrl="/_layouts/images/fgimg.png"
             RTLNodeImageOffsetX=0
             RTLNodeImageOffsetY=376
             RTLNodeImageWidth=16
             RTLNodeImageHeight=16
             RTLNodeImageUrl="/_layouts/images/fgimg.png"
             HideInteriorRootNodes="true"
             SkipLinkText="" /></asp:ContentPlaceHolder></SharePoint:PopoutMenu><div class="s4-die"><asp:ContentPlaceHolder id="PlaceHolderGlobalNavigationSiteMap" runat="server" Visible="false"></asp:ContentPlaceHolder></div></asp:ContentPlaceHolder><SharePoint:PageStateActionButton id="PageStateActionButton" runat="server" Visible="false" /></SharePoint:SPRibbonPeripheralContent><SharePoint:SPRibbonPeripheralContent
        runat="server"
        Location="TabRowRight"
        ID="RibbonTabRowRight"
        CssClass="s4-trc-container s4-notdlg"><SharePoint:DelegateControl runat="server" ID="GlobalDelegate0" ControlId="GlobalSiteLink0" /><a href="#" tabindex="-1" style="display:none"></a><a href="#" tabindex="-1" style="display:none"></a><div class="s4-trc-container-menu"><div><wssuc:Welcome id="IdWelcome" runat="server" EnableViewState="false">
       </wssuc:Welcome><wssuc:MUISelector ID="IdMuiSelector" runat="server"/></div></div><SharePoint:DelegateControl ControlId="GlobalSiteLink2" ID="GlobalDelegate2" Scope="Farm" runat="server" /><span><span class="s4-devdashboard"><Sharepoint:DeveloperDashboardLauncher
        ID="DeveloperDashboardLauncher"
        NavigateUrl="javascript:ToggleDeveloperDashboard()"
        runat="server"
        ImageUrl="/_layouts/images/fgimg.png"
        Text="<%$Resources:wss,multipages_launchdevdashalt_text%>"
        OffsetX=0
        OffsetY=222
        Height=16
        Width=16 /></span></span></SharePoint:SPRibbonPeripheralContent></SharePoint:SPRibbon>
     </div>
     <div id="notificationArea" class="s4-noti">
     </div>
     <asp:ContentPlaceHolder ID="SPNavigation" runat="server">
       <SharePoint:DelegateControl runat="server" ControlId="PublishingConsole" Id="PublishingConsoleDelegate"></SharePoint:DelegateControl>
     </asp:ContentPlaceHolder>
     <div id="WebPartAdderUpdatePanelContainer">
      <asp:UpdatePanel
       ID="WebPartAdderUpdatePanel"
       UpdateMode="Conditional"
       ChildrenAsTriggers="false"
       runat="server">
       <ContentTemplate>
        <WebPartPages:WebPartAdder ID="WebPartAdder" runat="server"/>
       </ContentTemplate>
       <Triggers>
        <asp:PostBackTrigger ControlID="WebPartAdder" />
       </Triggers>
      </asp:UpdatePanel>
     </div>
    </div>
    <div id="s4-workspace">
      <div id="s4-bodyContainer">
       <div id="s4-titlerow" class="s4-pr s4-notdlg s4-titlerowhidetitle">
        <div class="s4-title s4-lp">
         <div class="s4-title-inner">
          <table class="s4-titletable" cellspacing="0">
           <tbody>
            <tr>
             <td class="s4-titlelogo">
              <SharePoint:SPLinkButton runat="server" NavigateUrl="~site/" id="onetidProjectPropertyTitleGraphic"><SharePoint:SiteLogoImage name="onetidHeadbnnr0" id="onetidHeadbnnr2" LogoImageUrl="/_layouts/images/siteIcon.png" runat="server"/></SharePoint:SPLinkButton>
             </td>
             <td class="s4-titletext">
              <h1 name="onetidProjectPropertyTitle">
               <asp:ContentPlaceHolder id="PlaceHolderSiteName" runat="server">
                <SharePoint:SPLinkButton runat="server" NavigateUrl="~site/" id="onetidProjectPropertyTitle"><SharePoint:ProjectProperty Property="Title" runat="server" /></SharePoint:SPLinkButton>
               </asp:ContentPlaceHolder>
              </h1>
              <span id="onetidPageTitleSeparator" class="s4-nothome s4-bcsep s4-titlesep">
              <SharePoint:ClusteredDirectionalSeparatorArrow runat="server"/> </span>
              <h2>
               <asp:ContentPlaceHolder id="PlaceHolderPageTitleInTitleArea" runat="server" />
              </h2>
              <div class="s4-pagedescription" tabindex="0" >
               <asp:ContentPlaceHolder id="PlaceHolderPageDescription" runat="server"/>
              </div>
             </td>
             <td class="s4-socialdata-notif">
              <SharePoint:DelegateControl ControlId="GlobalSiteLink3" Scope="Farm" runat="server"/>
             </td>
            </tr>
           </tbody>
          </table>
         </div>
        </div>
        <div id="s4-topheader2" class="s4-pr s4-notdlg">
         <a name="startNavigation"></a>
         <div id="s4-searcharea" class="s4-search s4-rp">
          <asp:ContentPlaceHolder id="PlaceHolderSearchArea" runat="server">
           <SharePoint:DelegateControl runat="server" ControlId="SmallSearchInputBox" Version="4"/>
          </asp:ContentPlaceHolder>
          <span class="s4-help">
            <span style="height:17px;width:17px;position:relative;display:inline-block;overflow:hidden;" class="s4-clust"><a href="#" style="height:17px;width:17px;display:inline-block;" onclick="TopHelpButtonClick('HelpHome');return false" accesskey="<%$Resources:wss,multipages_helplink_accesskey%>" id="TopHelpLink" title="<%$Resources:wss,multipages_helplinkalt_text%>" runat="server">
          <img src="/C:/Users/stoelhor/Desktop/fgimg.png" alt="<%$Resources:wss,multipages_helplinkalt_text%>" style="left:-0px !important;top:-309px !important;position:absolute;" align="absmiddle" border="0" runat="server" /></a></span>
          </span>
         </div>
         <div class="s4-rp s4-app">
         </div>
         <div class="s4-lp s4-toplinks">
          <asp:ContentPlaceHolder id="PlaceHolderTopNavBar" runat="server">
          <h2 class="ms-hidden">
          <SharePoint:EncodedLiteral runat="server" text="<%$Resources:wss,topnav_pagetitle%>" EncodeMethod="HtmlEncode"/></h2>
            <asp:ContentPlaceHolder id="PlaceHolderHorizontalNav" runat="server"><telerik:RadMenu ID="RadMenu1" runat="server" EnableEmbeddedSkins="False" DataSourceID="topSiteMap" Skin="Metro" style="z-index:10;position:absolute" ShowToggleHandle="True"/>
    <PublishingNavigation:PortalSiteMapDataSource ID="topSiteMap" runat="server" EnableViewState="false" SiteMapProvider="CurrentNavigation" StartFromCurrentNode="true" StartingNodeOffset="0" ShowStartingNode="false" TrimNonCurrentTypes="Heading"/>
             <SharePoint:DelegateControl runat="server" ControlId="TopNavigationDataSource" Id="topNavigationDelegate"><Template_Controls>
       <asp:SiteMapDataSource
         ShowStartingNode="False"
         SiteMapProvider="SPNavigationProvider"
         id="topSiteMap"
         runat="server"
         StartingNodeUrl="sid:1002"/>
      </Template_Controls></SharePoint:DelegateControl>
            </asp:ContentPlaceHolder>
          </asp:ContentPlaceHolder>
         </div>
        </div>
       </div>
       <div id="s4-statusbarcontainer">
        <div id="pageStatusBar" class="s4-status-s1">
        </div>
       </div>
        <SharePoint:VisualUpgradePreviewStatus runat="server"/>
       <div id="s4-mainarea" class="s4-pr s4-widecontentarea">
        <div id="s4-leftpanel" class="s4-notdlg">
         <div id="s4-leftpanel-content">
          <asp:ContentPlaceHolder id="PlaceHolderLeftNavBarDataSource" runat="server" />
          <asp:ContentPlaceHolder id="PlaceHolderCalendarNavigator" runat="server" />
          <asp:ContentPlaceHolder id="PlaceHolderLeftActions" runat="server"></asp:ContentPlaceHolder>
           <asp:ContentPlaceHolder id="PlaceHolderLeftNavBarTop" runat="server"/>
          <asp:ContentPlaceHolder id="PlaceHolderLeftNavBar" runat="server">
        <div class="ms-quicklaunchouter">
        <div class="ms-quickLaunch">
        <Sharepoint:UIVersionedContent runat="server" UIVersion="4">
         <ContentTemplate>
          <h2 style="display:inline;" class="ms-hidden"><SharePoint:EncodedLiteral runat="server" text="<%$Resources:wss,quiklnch_pagetitle%>" EncodeMethod="HtmlEncode"/></h2>
         </ContentTemplate>
        </SharePoint:UIVersionedContent>
        <asp:ContentPlaceHolder id="PlaceHolderQuickLaunchTop" runat="server">
        <SharePoint:UIVersionedContent UIVersion="3" runat="server">
         <ContentTemplate>
          <h3 class="ms-standardheader"><label class="ms-hidden"><SharePoint:EncodedLiteral runat="server" text="<%$Resources:wss,quiklnch_pagetitle%>" EncodeMethod="HtmlEncode"/></label>
          <Sharepoint:SPSecurityTrimmedControl runat="server" PermissionsString="ViewFormPages">
           <div class="ms-quicklaunchheader"><SharePoint:SPLinkButton id="idNavLinkViewAll" runat="server" NavigateUrl="~site/_layouts/viewlsts.aspx" Text="<%$Resources:wss,quiklnch_allcontent%>" accesskey="<%$Resources:wss,quiklnch_allcontent_AK%>"/></div>
          </SharePoint:SPSecurityTrimmedControl>
          </h3>
         </ContentTemplate>
        </SharePoint:UIVersionedContent>
        </asp:ContentPlaceHolder>
        <Sharepoint:SPNavigationManager
        id="QuickLaunchNavigationManager"
        runat="server"
        QuickLaunchControlId="QuickLaunchMenu"
        ContainedControl="QuickLaunch"
        EnableViewState="false"
        CssClass="ms-quicklaunch-navmgr">
        <div>
         <SharePoint:DelegateControl runat="server" ControlId="QuickLaunchDataSource">
          <Template_Controls>
          <asp:SiteMapDataSource SiteMapProvider="SPNavigationProvider" ShowStartingNode="False" id="QuickLaunchSiteMap" StartingNodeUrl="sid:1025" runat="server" />
          </Template_Controls>
         </SharePoint:DelegateControl>
         <SharePoint:UIVersionedContent UIVersion="3" runat="server">
          <ContentTemplate>
           <SharePoint:AspMenu id="QuickLaunchMenu" runat="server" DataSourceId="QuickLaunchSiteMap" Orientation="Vertical" StaticDisplayLevels="2" ItemWrap="true" MaximumDynamicDisplayLevels="0" StaticSubMenuIndent="0" SkipLinkText="" CssClass="s4-die">
            <LevelMenuItemStyles>
             <asp:menuitemstyle CssClass="ms-navheader" />
             <asp:menuitemstyle CssClass="ms-navitem" />
            </LevelMenuItemStyles>
            <LevelSubMenuStyles>
             <asp:submenustyle CssClass="ms-navSubMenu1" />
             <asp:submenustyle CssClass="ms-navSubMenu2" />
            </LevelSubMenuStyles>
            <LevelSelectedStyles>
             <asp:menuitemstyle CssClass="ms-selectednavheader" />
             <asp:menuitemstyle CssClass="ms-selectednav" />
            </LevelSelectedStyles>
           </SharePoint:AspMenu>
          </ContentTemplate>
         </SharePoint:UIVersionedContent>
         <SharePoint:UIVersionedContent UIVersion="4" runat="server">
          <ContentTemplate>
           <SharePoint:AspMenu id="V4QuickLaunchMenu" runat="server" EnableViewState="false" DataSourceId="QuickLaunchSiteMap" UseSimpleRendering="true" UseSeparateCss="false" Orientation="Vertical" StaticDisplayLevels="2" MaximumDynamicDisplayLevels="0" SkipLinkText="" CssClass="s4-ql" />
          </ContentTemplate>
         </SharePoint:UIVersionedContent>
        </div>
        </Sharepoint:SPNavigationManager>
       <Sharepoint:UIVersionedContent runat="server" UIVersion="3">
        <ContentTemplate>
         <Sharepoint:SPNavigationManager
         id="TreeViewNavigationManager"
         runat="server"
         ContainedControl="TreeView"
         >
           <table class="ms-navSubMenu1" cellpadding="0" cellspacing="0" border="0">
          <tr>
            <td>
           <table class="ms-navheader" width="100%" cellpadding="0" cellspacing="0" border="0">
             <tr>
            <td nowrap="nowrap" id="idSiteHierarchy">
              <SharePoint:SPLinkButton runat="server" NavigateUrl="~site/_layouts/viewlsts.aspx" id="idNavLinkSiteHierarchy" Text="<%$Resources:wss,treeview_header%>" accesskey="<%$Resources:wss,quiklnch_allcontent_AK%>"/>
            </td>
             </tr>
           </table>
            </td>
          </tr>
           </table>
           <div class="ms-treeviewouter">
          <SharePoint:DelegateControl runat="server" ControlId="TreeViewAndDataSource">
            <Template_Controls>
           <SharePoint:SPHierarchyDataSourceControl
            runat="server"
            id="TreeViewDataSource"
            RootContextObject="Web"
            IncludeDiscussionFolders="true"
           />
           <SharePoint:SPRememberScroll runat="server" id="TreeViewRememberScroll" onscroll="javascript:_spRecordScrollPositions(this);" style="overflow: auto;height: 400px;width: 150px; ">
             <Sharepoint:SPTreeView
            id="WebTreeView"
            runat="server"
            ShowLines="false"
            DataSourceId="TreeViewDataSource"
            ExpandDepth="0"
            SelectedNodeStyle-CssClass="ms-tvselected"
            NodeStyle-CssClass="ms-navitem"
            NodeStyle-HorizontalPadding="2"
            SkipLinkText=""
            NodeIndent="12"
            ExpandImageUrl="/_layouts/images/tvplus.gif"
            CollapseImageUrl="/_layouts/images/tvminus.gif"
            NoExpandImageUrl="/_layouts/images/tvblank.gif"
             >
             </Sharepoint:SPTreeView>
           </Sharepoint:SPRememberScroll>
            </Template_Controls>
          </SharePoint:DelegateControl>
           </div>
         </Sharepoint:SPNavigationManager>
        </ContentTemplate>
       </SharePoint:UIVersionedContent>
       <Sharepoint:UIVersionedContent runat="server" UIVersion="4">
        <ContentTemplate>
         <Sharepoint:SPNavigationManager
         id="TreeViewNavigationManagerV4"
         runat="server"
         ContainedControl="TreeView"
         CssClass="s4-treeView"
         ><SharePoint:SPLinkButton runat="server" NavigateUrl="~site/_layouts/viewlsts.aspx" id="idNavLinkSiteHierarchyV4" Text="<%$Resources:wss,treeview_header%>" accesskey="<%$Resources:wss,quiklnch_allcontent_AK%>" CssClass="s4-qlheader" /><div class="ms-treeviewouter"><SharePoint:DelegateControl runat="server" ControlId="TreeViewAndDataSource"><Template_Controls>
            <SharePoint:SPHierarchyDataSourceControl
             runat="server"
             id="TreeViewDataSourceV4"
             RootContextObject="Web"
             IncludeDiscussionFolders="true"
            />
            <SharePoint:SPRememberScroll runat="server" id="TreeViewRememberScrollV4" onscroll="javascript:_spRecordScrollPositions(this);" style="overflow: auto;height: 400px;width: 155px; ">
              <Sharepoint:SPTreeView
             id="WebTreeViewV4"
             runat="server"
             ShowLines="false"
             DataSourceId="TreeViewDataSourceV4"
             ExpandDepth="0"
             SelectedNodeStyle-CssClass="ms-tvselected"
             NodeStyle-CssClass="ms-navitem"
             SkipLinkText=""
             NodeIndent="12"
             ExpandImageUrl="/_layouts/images/tvclosed.png"
             ExpandImageUrlRtl="/_layouts/images/tvclosedrtl.png"
             CollapseImageUrl="/_layouts/images/tvopen.png"
             CollapseImageUrlRtl="/_layouts/images/tvopenrtl.png"
             NoExpandImageUrl="/_layouts/images/tvblank.gif"
              >
              </Sharepoint:SPTreeView>
            </Sharepoint:SPRememberScroll>
             </Template_Controls>
           </SharePoint:DelegateControl></div></Sharepoint:SPNavigationManager>
        </ContentTemplate>
       </SharePoint:UIVersionedContent>
        <asp:ContentPlaceHolder id="PlaceHolderQuickLaunchBottom" runat="server">
        <SharePoint:UIVersionedContent UIVersion="3" runat="server" id="PlaceHolderQuickLaunchBottomV3">
         <ContentTemplate>
          <table width="100%" cellpadding="0" cellspacing="0" border="0" class="s4-die">
          <tbody>
          <tr><td>
          <table class="ms-recyclebin" width="100%" cellpadding="0" cellspacing="0" border="0">
          <tbody>
          <tr><td nowrap="nowrap">
          <SharePoint:SPLinkButton runat="server" NavigateUrl="~site/_layouts/recyclebin.aspx" id="v3idNavLinkRecycleBin" ImageUrl="/_layouts/images/recycbin.gif" Text="<%$Resources:wss,StsDefault_RecycleBin%>" PermissionsString="DeleteListItems" />
          </td></tr>
          </table>
          </td></tr>
          </table>
         </ContentTemplate>
        </SharePoint:UIVersionedContent>
        <SharePoint:UIVersionedContent UIVersion="4" runat="server" id="PlaceHolderQuickLaunchBottomV4">
         <ContentTemplate>
          <ul class="s4-specialNavLinkList">
           <li>
            <SharePoint:ClusteredSPLinkButton
             runat="server"
             NavigateUrl="~site/_layouts/recyclebin.aspx"
             ImageClass="s4-specialNavIcon"
             ImageUrl="/_layouts/images/fgimg.png"
             ImageWidth=16
             ImageHeight=16
             OffsetX=0
             OffsetY=428
             id="idNavLinkRecycleBin"
             Text="<%$Resources:wss,StsDefault_RecycleBin%>"
             CssClass="s4-rcycl"
             PermissionsString="DeleteListItems" />
           </li>
           <li>
            <SharePoint:ClusteredSPLinkButton
             id="idNavLinkViewAllV4"
             runat="server"
             PermissionsString="ViewFormPages"
             NavigateUrl="~site/_layouts/viewlsts.aspx"
             ImageClass="s4-specialNavIcon"
             ImageUrl="/_layouts/images/fgimg.png"
             ImageWidth=16
             ImageHeight=16
             OffsetX=0
             OffsetY=0
             Text="<%$Resources:wss,quiklnch_allcontent_short%>"
             accesskey="<%$Resources:wss,quiklnch_allcontent_AK%>"/>
           </li>
          </ul>
         </ContentTemplate>
        </SharePoint:UIVersionedContent>
        </asp:ContentPlaceHolder>
        </div>
        </div>
          </asp:ContentPlaceHolder>
         </div>
        </div>
        <div class="s4-ca s4-ca-dlgNoRibbon" id="MSO_ContentTable">
         <div class="s4-die">
          <asp:ContentPlaceHolder id="PlaceHolderPageImage" runat="server" Visible="false"/>
          <asp:ContentPlaceHolder id="PlaceHolderTitleLeftBorder" runat="server" Visible="false">
          </asp:ContentPlaceHolder>
           <div id="onetidPageTitleAreaFrame" class='ms-pagetitleareaframe s4-pagetitle'></div>
          <asp:ContentPlaceHolder id="PlaceHolderMiniConsole" runat="server" Visible="false"/>
          <span class="s4-die">
           <asp:ContentPlaceHolder id="PlaceHolderTitleRightMargin" runat="server" Visible="false"/>
          </span>
          <asp:ContentPlaceHolder id="PlaceHolderTitleAreaSeparator" runat="server" Visible="false"/>
           <asp:ContentPlaceHolder id="PlaceHolderNavSpacer" runat="server" Visible="false">
            <img src="/C:/Users/stoelhor/Desktop/blank.gif" width='138' height='1' alt="" /></asp:ContentPlaceholder>
          <asp:ContentPlaceHolder id="PlaceHolderLeftNavBarBorder" runat="server" Visible="false"></asp:ContentPlaceHolder>
          <asp:ContentPlaceHolder id="PlaceHolderBodyLeftBorder" runat="server" Visible="false">
          </asp:ContentPlaceHolder>
         </div>
         <SharePoint:VersionedPlaceHolder UIVersion="3" ID="DesignModeConsoleV3" runat="server">
          <asp:ContentPlaceHolder id="WSSDesignConsole" runat="server">
           <wssuc:DesignModeConsole id="IdDesignModeConsole" runat="server" />
          </asp:ContentPlaceHolder>
         </SharePoint:VersionedPlaceHolder>
          <div class='s4-ba'><div class='ms-bodyareacell'>
           <div id="MSO_ContentDiv" runat="server">
          <a name="mainContent"></a>
          <asp:ContentPlaceHolder id="PlaceHolderMain" runat="server">
          </asp:ContentPlaceHolder>
           </div>
          </div></div>
         <div class="s4-die">
          <asp:ContentPlaceHolder id="PlaceHolderBodyRightMargin" runat="server">
          </asp:ContentPlaceHolder>
         </div>
        </div>
       </div>
       <SharePoint:DeveloperDashboard runat="server"/>
      </div>
    </div>
      <asp:ContentPlaceHolder id="PlaceHolderFormDigest" runat="server">
      <SharePoint:FormDigest runat="server"/>
      </asp:ContentPlaceHolder>
       <input type="text" name="__spText1" title="text" style="display:none;" />
       <input type="text" name="__spText2" title="text" style="display:none;" />
      </form>
      <asp:ContentPlaceHolder id="PlaceHolderUtilityContent" runat="server"/>
     <SharePoint:WarnOnUnsupportedBrowsers runat="server"/>
    </body>
    </html>
  11. Answer
    Travis Cotton
    Travis Cotton avatar
    10 posts
    Member since:
    Sep 2009

    Posted 11 Mar 2014 in reply to Gerard Link to this post

    Your error is generated because this delegate control shares the same ID:

    <SharePoint:DelegateControl runat="server" ControlId="TopNavigationDataSource" Id="topNavigationDelegate"><Template_Controls>
       <asp:SiteMapDataSource
         ShowStartingNode="False"
         SiteMapProvider="SPNavigationProvider"
         id="topSiteMap"
         runat="server"
         StartingNodeUrl="sid:1002"/>
      </Template_Controls></SharePoint:DelegateControl>


    You can remove this or comment it out if you prefer.



  12. Gerard
    Gerard avatar
    6 posts
    Member since:
    Feb 2014

    Posted 11 Mar 2014 in reply to Travis Cotton Link to this post

    Travis,

    Thank you very much for your patience and time.
    I only had to change EnableEmbeddedSkins into "True" additionally and now it works!

    Cheers.

  13. Travis Cotton
    Travis Cotton avatar
    10 posts
    Member since:
    Sep 2009

    Posted 11 Mar 2014 in reply to Gerard Link to this post

    Oh yeah sorry.  Im not using any of the predefined skins since we use these master pages for multiple sites all with their own color schemes.  Its a pita but there it is.  Glad its working for you.
Back to Top
