RadImageEditorUI databinding doesn't work

6 posts, 0 answers
  1. Enric
    Enric avatar
    32 posts
    Member since:
    Apr 2013

    Posted 09 Sep 2013 Link to this post

    Hi all of you,

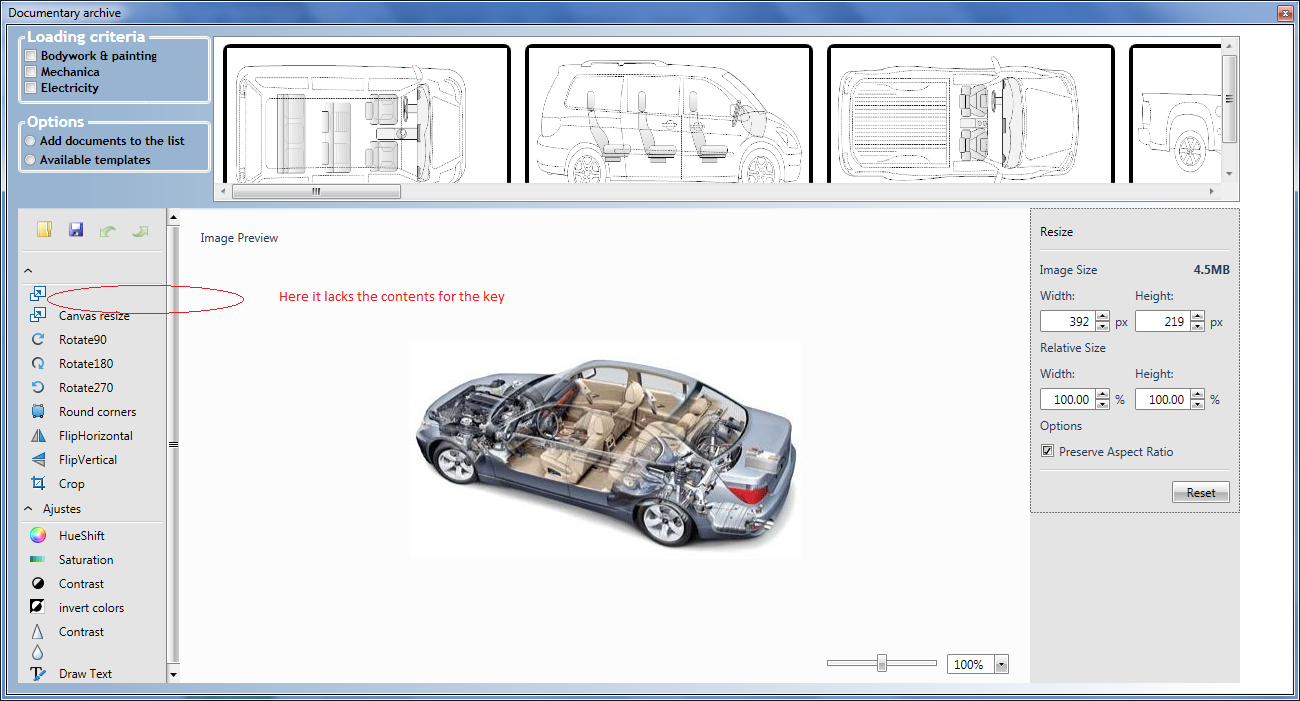

    I'm using this control under trial license. I'm trying to do a very simple binding but it doesn't work at all:

    xaml header:

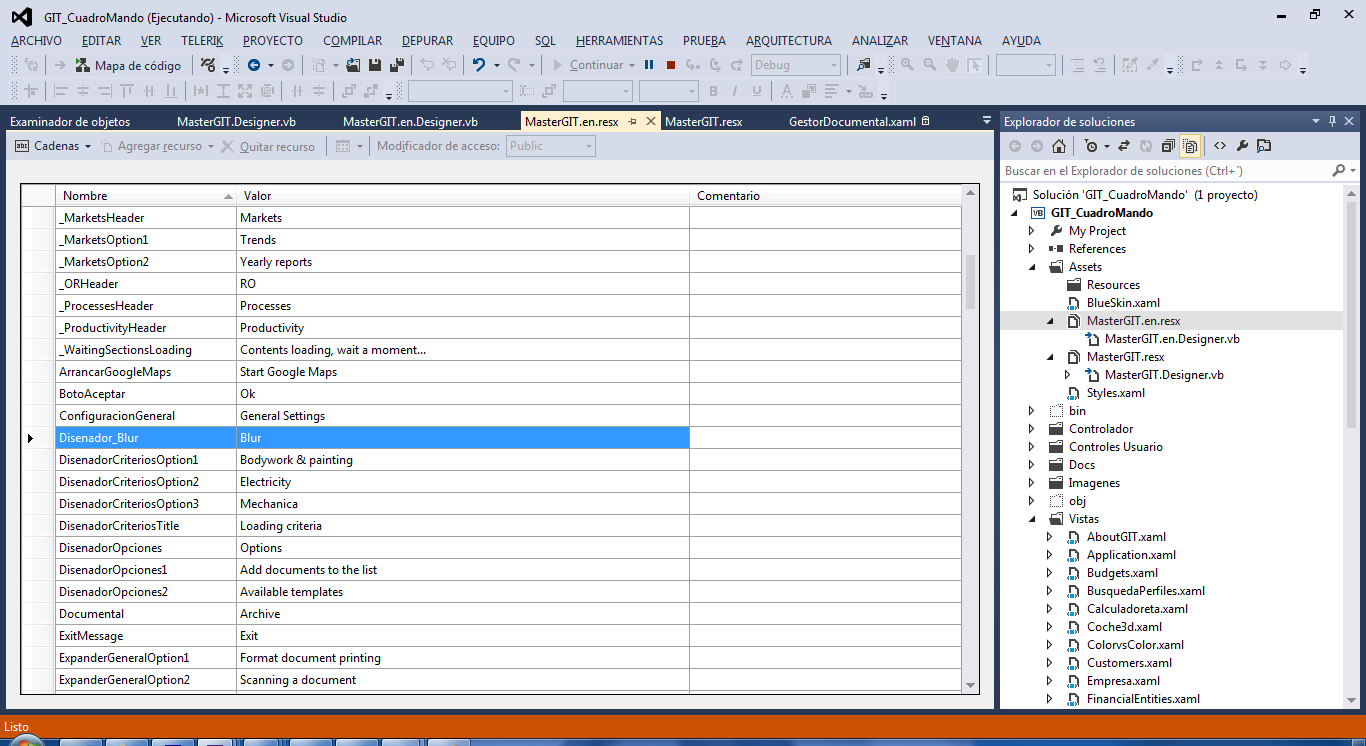

    Here you can see the reference to one of my RESX files (I've got one for English and another one for Spanish where every key is named alike.

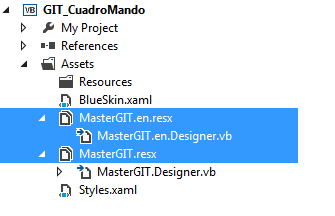

    Names of resources files:

    MasterGIT.resx and MasterGIT.en.resx

    This line uses one RESX under criteria language:

         ResxExtension.DefaultResxName="GIT_CuadroMando.MasterGIT" Language="{UICulture}"

    <Window
            ResxExtension.DefaultResxName="GIT_CuadroMando.MasterGIT" Language="{UICulture}"
        xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation"  x:Class="GestorDocumental"

        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" Loaded="Window_Loaded"
        xmlns:local="clr-namespace:GIT_CuadroMando"
        xmlns:commands="clr-namespace:Telerik.Windows.Media.Imaging.ImageEditorCommands.RoutedCommands;assembly=Telerik.Windows.Controls.ImageEditor"
        xmlns:tools="clr-namespace:Telerik.Windows.Media.Imaging.Tools;assembly=Telerik.Windows.Controls.ImageEditor"
        Title="{Resx TitleGestorDocumental}" Height="701" Width="1000" ResizeMode="CanResize" WindowStyle="ToolWindow">


    xaml stuff:
    <telerik:RadImageEditorUI x:Name="BodyWorkAndPaintingTool" Grid.ColumnSpan="4" Margin="10,49,33,10" Grid.Row="1" Grid.RowSpan="4">
              <telerik:RadImageEditorUI.ImageToolsSections>
                  <telerik:ImageToolsSection Header="{Resx Disenador_Blur}"  >

                      <telerik:ImageToolItem ImageKey="Resize" Text="Resize" Command="commands:ImageEditorRoutedCommands.ExecuteTool">
                          <telerik:ImageToolItem.CommandParameter>
                              <tools:ResizeTool x:Name="resizeTool"/>
                          </telerik:ImageToolItem.CommandParameter>
                      </telerik:ImageToolItem>

                      <telerik:ImageToolItem ImageKey="Resize" Text="Canvas resize" Command="commands:ImageEditorRoutedCommands.ExecuteTool">
                          <telerik:ImageToolItem.CommandParameter>
                              <tools:CanvasResizeTool/>
                          </telerik:ImageToolItem.CommandParameter>
                      </telerik:ImageToolItem>

    Code-behind:


      Private Sub Window_Loaded(sender As Object, e As RoutedEventArgs)

            CultureManager.UICulture = Thread.CurrentThread.CurrentCulture
    '        Thread.CurrentThread.CurrentUICulture = New CultureInfo("es")

        End Sub


    Thanks in advance for any hint or advice,
  2. Petya
    Admin
    Petya avatar
    975 posts

    Posted 12 Sep 2013 Link to this post

    Hello,

    Please refer to this help article explaining how to localize RadImageEditor. I am also attaching a simple sample project which demonstrates the explained approach.

    I hope this helps!

    Regards,
    Petya
    Telerik
    TRY TELERIK'S NEWEST PRODUCT - EQATEC APPLICATION ANALYTICS for WPF.
    Learn what features your users use (or don't use) in your application. Know your audience. Target it better. Develop wisely.
    Sign up for Free application insights >>
  3. UI for WPF is Visual Studio 2017 Ready
  4. Enric
    Enric avatar
    32 posts
    Member since:
    Apr 2013

    Posted 12 Sep 2013 Link to this post

    Hi Petya,

    Thanks a lot, I've got it!!


  5. Enric
    Enric avatar
    32 posts
    Member since:
    Apr 2013

    Posted 12 Sep 2013 Link to this post

    LocalizationManager.Manager = new LocalizationManager()
    {
                    ResourceManager = MasterGIT.ResourceManager
    };

    Above lines, could you be please so kind to translate into VB .NET?
  6. Enric
    Enric avatar
    32 posts
    Member since:
    Apr 2013

    Posted 12 Sep 2013 Link to this post

    It doesn't work.

    I'll try to be more clear as much I can (sorry for my english)

    code-behind view (I don't know if the problem born here..

    Public Class GestorDocumental
    Public Sub New()

    ' Llamada necesaria para el diseñador.
    InitializeComponent()
    DataContext = Me
    afegirimatges()

    Dim m As ResourceManager
    LocalizationManager.Manager() = New LocalizationManager()

    m = MasterGIT2.ResourceManager


    xaml:


    <telerik:RadImageEditorUI.ImageToolsSections>
                   <telerik:ImageToolsSection telerik:LocalizationManager.ResourceKey="Disenador_Blur"  >


    ResourceMAnager class (MasterGIT.Designer.vb):

    '------------------------------------------------------------------------------
    ' <auto-generated>
    '     Este código fue generado por una herramienta.
    '     Versión de runtime:4.0.30319.18052
    '
    '     Los cambios en este archivo podrían causar un comportamiento incorrecto y se perderán si
    '     se vuelve a generar el código.
    ' </auto-generated>
    '------------------------------------------------------------------------------

    Option Strict On
    Option Explicit On

    Imports System

    Namespace My.Resources

        'StronglyTypedResourceBuilder generó automáticamente esta clase
        'a través de una herramienta como ResGen o Visual Studio.
        'Para agregar o quitar un miembro, edite el archivo .ResX y, a continuación, vuelva a ejecutar ResGen
        'con la opción /str o vuelva a generar su proyecto de VS.
        '''<summary>
        '''  Clase de recurso con establecimiento inflexible de tipos, para buscar cadenas traducidas, etc.
        '''</summary>
        <Global.System.CodeDom.Compiler.GeneratedCodeAttribute("System.Resources.Tools.StronglyTypedResourceBuilder", "4.0.0.0"), _
         Global.System.Diagnostics.DebuggerNonUserCodeAttribute(), _
         Global.System.Runtime.CompilerServices.CompilerGeneratedAttribute()> _
        Public Class MasterGIT2

            Private Shared resourceMan As Global.System.Resources.ResourceManager

            Private Shared resourceCulture As Global.System.Globalization.CultureInfo

            <Global.System.Diagnostics.CodeAnalysis.SuppressMessageAttribute("Microsoft.Performance", "CA1811:AvoidUncalledPrivateCode")> _
            Friend Sub New()
                MyBase.New()
            End Sub

            '''<summary>
            '''  Devuelve la instancia de ResourceManager almacenada en caché utilizada por esta clase.
            '''</summary>
            <Global.System.ComponentModel.EditorBrowsableAttribute(Global.System.ComponentModel.EditorBrowsableState.Advanced)> _
            Public Shared ReadOnly Property ResourceManager() As Global.System.Resources.ResourceManager
                Get
                    If Object.ReferenceEquals(resourceMan, Nothing) Then
                        Dim temp As Global.System.Resources.ResourceManager = New Global.System.Resources.ResourceManager("GIT_CuadroMando.MasterGIT", GetType(MasterGIT2).Assembly)
                        resourceMan = temp
                    End If
                    Return resourceMan
                End Get
            End Property



  7. Petya
    Admin
    Petya avatar
    975 posts

    Posted 17 Sep 2013 Link to this post

    Hello,

    The below code snippet you requested in VB looks like this:
    LocalizationManager.Manager = New LocalizationManager() With {.ResourceManager = MasterGIT.ResourceManager}

    Generally, I am not sure what the issue on your end is and I am unable to replicate it.

    However, I can see you decided to change the Name strings in your resources. Please note that other than the ones in your pages, the same resource keys are used in the settings panels for example. That said, the predefined UI of RadImageEditorUI does not use the resource key for Reset, but changing it in the resources as explained in the referenced article would still localize it.

    In case you are still facing difficulties please get back to us with a sample project which we can troubleshoot.

    Regards,
    Petya
    Telerik
