RadHtmlChart not working with Dataset, even code from the demos not working

3 posts, 0 answers
  1. Keith
    Keith avatar
    102 posts
    Member since:
    Mar 2015

    Posted 09 Dec 2015 Link to this post

    For a new project I am working on, I am going to make use of the RadHtmlChart that would be bound to a dataset to do a Bar Chart.

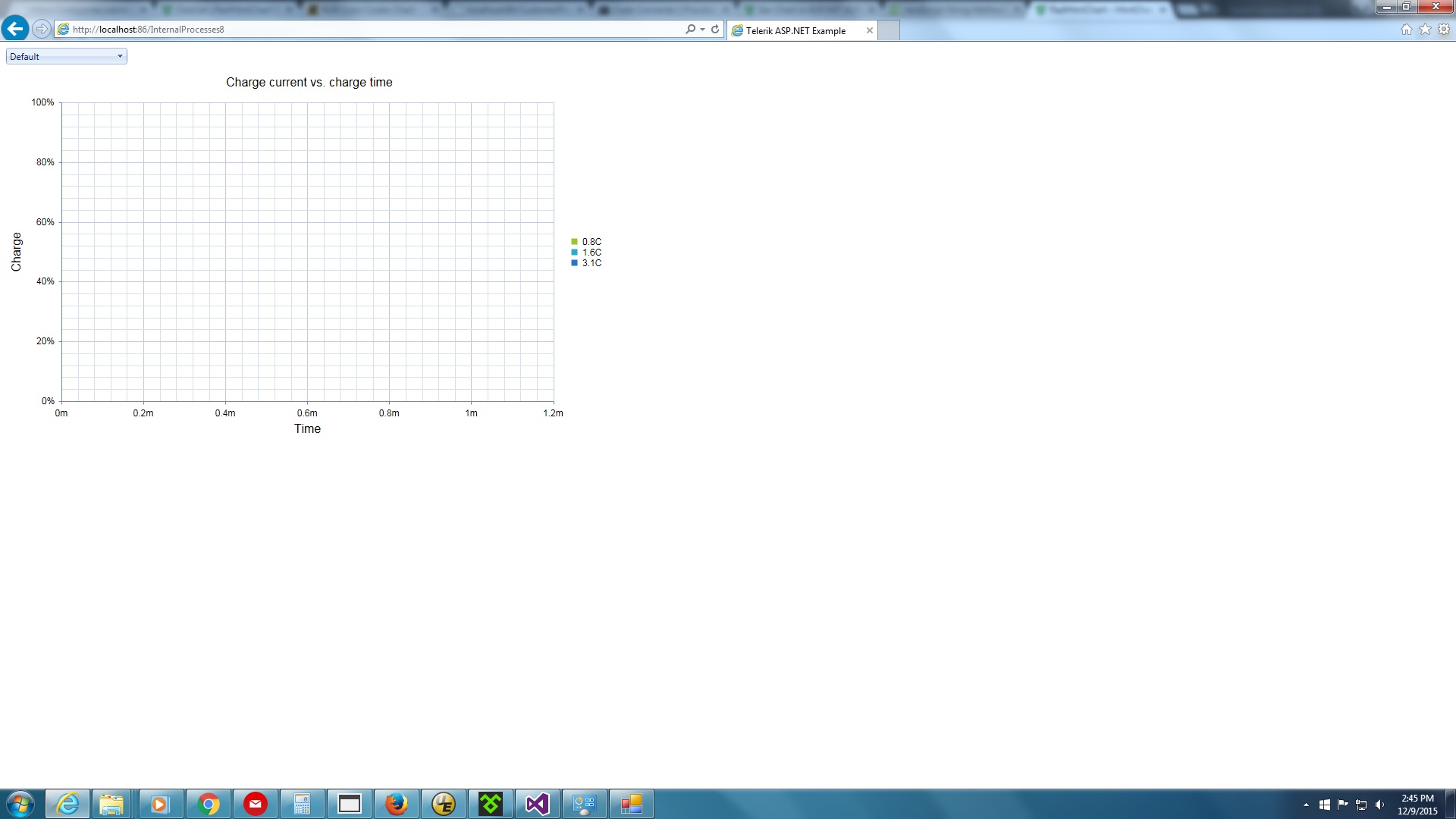

    First I needed to get familiar with the RadHtmlChart and binding a dataset to it.  To do that I started with the demos. First I created an ASP.Net page with VB.net as the code behind. I had copied the ASP.net code from the demo to the ASP.Net page I created and copied the vb code-behind to the code-behind for the ASP.Net page I created.  When I try to display that ASP.Net page in my web browser, it showed the chart without the lines that should have been plotted based on the data.  See the attached screenshot.

    I have even tried the example code in the documentation for using a dataset and still did not work.

    Why is this NOT working?

    It should be simple and straight-forward but it is not working.  I have tried it in IE11 and Google Chrome.  I have bind other Telerik controls to datasets before without any problems.

    Please DO NOT refer me to the example in the documentation and the demo because they are not working.

    Please LOOK at my code below and help find out why it is NOT working.

    ---------------------------------------------------------------------

    TestRadHTMLChart.aspx  -

    <%@ Page Language="VB" AutoEventWireup="false" CodeFile="TestRadHtmlChart.aspx.vb" Inherits="TestRadHtmlChart" %>

    <%@ Register TagPrefix="telerik" Namespace="Telerik.Web.UI" Assembly="Telerik.Web.UI" %>

    <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN" "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd">
    <html xmlns='http://www.w3.org/1999/xhtml'>
    <head runat="server">
        <title>Telerik ASP.NET Example</title>
    </head>

    <body>
        <form id="form1" runat="server">
        <telerik:RadScriptManager runat="server" ID="RadScriptManager1" />
        <telerik:RadSkinManager ID="RadSkinManager1" runat="server" ShowChooser="true" />
        <div class="demo-container size-wide">
            <telerik:RadHtmlChart runat="server" ID="RadHtmlChart1" Width="800px" Height="500px">
                <PlotArea>
                    <Series>
                        <telerik:ScatterLineSeries Name="0.8C" DataFieldX="ChargeTime08C" DataFieldY="ChargeCurrent08C">
                            <TooltipsAppearance Color="White" DataFormatString="{1}% in {0} minutes"></TooltipsAppearance>
                            <LabelsAppearance Visible="false">
                            </LabelsAppearance>
                        </telerik:ScatterLineSeries>
                        <telerik:ScatterLineSeries Name="1.6C" DataFieldX="ChargeTime16C" DataFieldY="ChargeCurrent16C">
                            <TooltipsAppearance Color="White" DataFormatString="{1}% in {0} minutes"></TooltipsAppearance>
                            <LabelsAppearance Visible="false">
                            </LabelsAppearance>
                        </telerik:ScatterLineSeries>
                        <telerik:ScatterLineSeries Name="3.1C" DataFieldX="ChargeTime31C" DataFieldY="ChargeCurrent31C">
                            <TooltipsAppearance Color="White" DataFormatString="{1}% in {0} minutes"></TooltipsAppearance>
                            <LabelsAppearance Visible="false">
                            </LabelsAppearance>
                        </telerik:ScatterLineSeries>
                    </Series>
                    <XAxis>
                        <LabelsAppearance DataFormatString="{0}m" />
                        <TitleAppearance Text="Time" />
                    </XAxis>
                    <YAxis MaxValue="100">
                        <LabelsAppearance DataFormatString="{0}%" />
                        <TitleAppearance Text="Charge" />
                    </YAxis>
                </PlotArea>
                <ChartTitle Text="Charge current vs. charge time">
                </ChartTitle>
            </telerik:RadHtmlChart>
        </div>
        </form>
    </body>
    </html>

    TestRadHtmlChart.aspx.vb

    Imports System
    Imports System.Data

    Partial Class TestRadHtmlChart
        Inherits System.Web.UI.Page

        Protected Sub Page_Load(sender As Object, e As System.EventArgs)
            RadHtmlChart1.DataSource = GetData()
            RadHtmlChart1.DataBind()
        End Sub

        Private Function GetData() As DataSet
            Dim ds As New DataSet("ChargeCurrentTimeRatio")
            Dim dt As New DataTable("ChargeData")
            dt.Columns.Add("Id", Type.[GetType]("System.Int32"))
            dt.Columns.Add("ChargeTime08C", Type.[GetType]("System.Decimal"))
            dt.Columns.Add("ChargeCurrent08C", Type.[GetType]("System.Decimal"))
            dt.Columns.Add("ChargeTime16C", Type.[GetType]("System.Decimal"))
            dt.Columns.Add("ChargeCurrent16C", Type.[GetType]("System.Decimal"))
            dt.Columns.Add("ChargeTime31C", Type.[GetType]("System.Decimal"))
            dt.Columns.Add("ChargeCurrent31C", Type.[GetType]("System.Decimal"))

            dt.Rows.Add(1, 10, 10, 10, 40, 10, _
                70)
            dt.Rows.Add(2, 15, 20, 17, 50, 13, _
                90)
            dt.Rows.Add(3, 20, 25, 18, 70, 25, _
                100)
            dt.Rows.Add(4, 32, 40, 35, 90, Nothing, _
                Nothing)

            dt.Rows.Add(5, 43, 50, 47, 95, Nothing, _
                Nothing)
            dt.Rows.Add(6, 55, 60, 60, 100, Nothing, _
                Nothing)
            dt.Rows.Add(7, 60, 70, Nothing, Nothing, Nothing, _
                Nothing)
            dt.Rows.Add(8, 70, 80, Nothing, Nothing, Nothing, _
                Nothing)
            dt.Rows.Add(9, 90, 100, Nothing, Nothing, Nothing, _
                Nothing)
            ds.Tables.Add(dt)
            Return ds
        End Function
    End Class

  2. Keith
    Keith avatar
    102 posts
    Member since:
    Mar 2015

    Posted 09 Dec 2015 in reply to Keith Link to this post

    I got it to work.

    The Page_Load declaration in the code-behind from the demo and example in documentation was incorrect.

    It should have been the following:

    Protected Sub Page_Load(sender As Object, e As EventArgs) Handles Me.Load

    Not the following:

    Protected Sub Page_Load(sender As Object, e As EventArgs)

    The code in the demo and example in the documentation needs to be corrected.

  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Marin Bratanov
    Admin
    Marin Bratanov avatar
    3600 posts

    Posted 10 Dec 2015 Link to this post

    Hello Keith,

    If you set AutoEventWireup to true in the Page directive like in our demo, the handler will be called automatically without the Handles clause. This is a generic issue with the VB language and not with our demos or documentation.

    Regards,

    Marin Bratanov
    Telerik
