RadEditor’s Toolbar icons missing images and functionalities

3 posts, 0 answers
  1. Stephen
    Stephen avatar
    1 posts
    Member since:
    Jul 2012

    Posted 29 Jul 2012 Link to this post


    Hi,

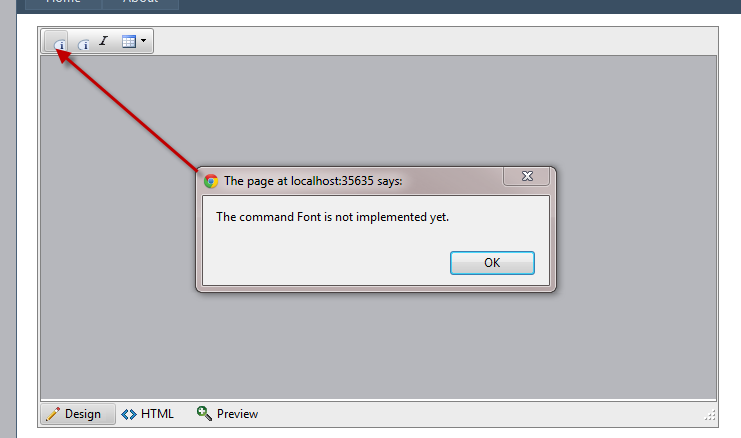

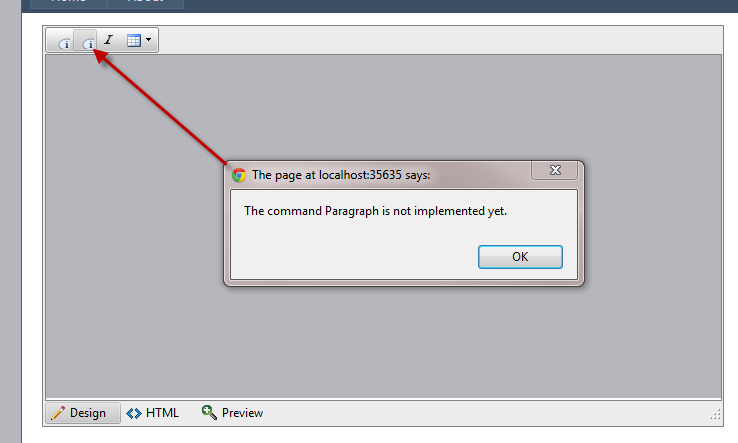

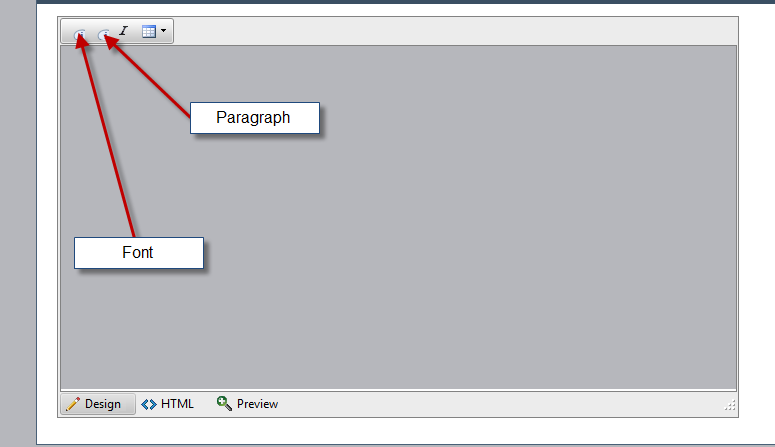

    I have issue with some of the tools icons in RadEditor. Some of the icon shows and functioning as it supposed to, but some it does not show the icon image and looks like it has some problem firing the event for the button as well. This is really simple and I haven’t used any JavaScript. I also attached couple of images for mentioned issue.

    Your advice and help would greatly be appreciated!



    <%@ Page Title="Home Page" Language="C#" MasterPageFile="~/Site.master" AutoEventWireup="true"
        CodeBehind="Default.aspx.cs" Inherits="TestAndDelete._Default" %>

    <%@ Register Assembly="Telerik.Web.UI" Namespace="Telerik.Web.UI" TagPrefix="telerik" %>

    <asp:Content ID="HeaderContent" runat="server" ContentPlaceHolderID="HeadContent">
    </asp:Content>
    <asp:Content ID="BodyContent" runat="server" ContentPlaceHolderID="MainContent">
        <asp:ScriptManager ID="ScriptManager1" runat="server">
        </asp:ScriptManager>

        <telerik:RadEditor ID="RadEditor1" runat="server">
            <Tools>
                <telerik:EditorToolGroup>
                    <telerik:EditorTool Name="Font" />
                    <telerik:EditorTool Name="Paragraph" />
                    <telerik:EditorTool Name="Italic" />
                    <telerik:EditorTool Name="InsertTable" />
                </telerik:EditorToolGroup>
            </Tools>
            <Content>
    </Content>
        </telerik:RadEditor>
    </asp:Content>
  2. Rumen
    Admin
    Rumen avatar
    12849 posts

    Posted 01 Aug 2012 Link to this post

    Hi,

    RadEditor does not offer tools called Font and Paragraph.

    You can replace them with FontName, FontSize and InsertParagraph.

    More information is available in this help article: Introduction to Toolbars.

    All the best,
    Rumen
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. <span>w</span>
    <span>w</span> avatar
    84 posts
    Member since:
    Jun 2012

    Posted 05 Sep 2014 Link to this post

     Radeditor icons are missing in Internet explorer. But when i show full RadEditor. it is showing correctly.

    <telerik:RadEditor ID="txtEditor1" runat="server" ToolbarMode="Default" BorderStyle="None" EditModes="Design" BorderWidth="0" BorderColor="Transparent"
                                                         Height="190" Width="575">
                                                          <Tools>
                                                            <telerik:EditorToolGroup>
                                                                <telerik:EditorTool Name="Bold" />
                                                                <telerik:EditorTool Name="Italic" />
                                                                <telerik:EditorTool Name="Underline" />
                                                                <telerik:EditorTool Name="ForeColor" />
                                                                <telerik:EditorTool Name="InsertSymbol" />
                                                            </telerik:EditorToolGroup>
                                                            <telerik:EditorToolGroup>
                                                                <telerik:EditorTool Name="InsertUnorderedList" />
                                                                <telerik:EditorTool Name="InsertOrderedList" />
                                                            </telerik:EditorToolGroup>
                                                            <telerik:EditorToolGroup>
                                                                <telerik:EditorTool Name="Outdent" />
                                                                <telerik:EditorTool Name="Indent" />
                                                            </telerik:EditorToolGroup>
                                                            <telerik:EditorToolGroup>
                                                                <telerik:EditorTool Name="JustifyLeft" />
                                                                <telerik:EditorTool Name="JustifyCenter" />
                                                                <telerik:EditorTool Name="JustifyRight" />
                                                            </telerik:EditorToolGroup>
                                                            <telerik:EditorToolGroup>
                                                                <telerik:EditorTool Name="LinkManager" />
                                                            </telerik:EditorToolGroup>
                                                            <telerik:EditorToolGroup>
                                                                <telerik:EditorToolStrip Name="InsertTable" />
                                                            </telerik:EditorToolGroup>
                                                        </Tools>
                                                        <Content>
                                                        </Content>

                                                    </telerik:RadEditor>


    Thanks,
    Muhammad Waseem
