RadChart Not Parsing

4 posts, 0 answers
  1. J
    J avatar
    3 posts
    Member since:
    Feb 2012

    Posted 25 Oct 2012 Link to this post

    Version 2011.2.712.1040

    When InitializeComponent I get an XamlParseException "The type 'RadChart' was not found".

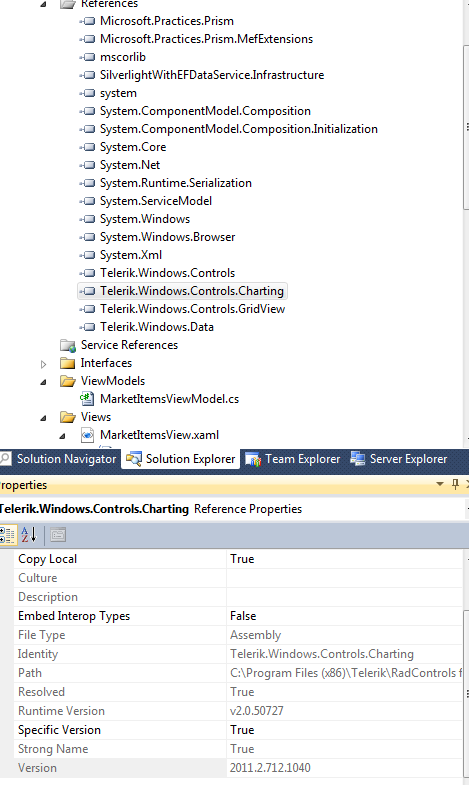

    I have included in this module:
    Telerik.Windows.Controls
    Telerik.Windows.Controls.Charting
    Telerik.Windows.Controls.GirdView

    This is using MEF where this RadChart is in a Module view.  I've tried removing the reference then dragging from the tool box to add again, eliminate bindings, using <telerik:RadChart />.  One would think at least an empty control would work.

    Your tools shouldn't cause this much trouble.  It has been more than once where I had to reinstall your products and lose days of work troubleshooting problems.  I also imagine Microsoft can be the blame as well.

    using System;

    using System.Linq;

    using System.Windows.Controls;

    using System.ComponentModel.Composition;

    using SilverlightWithEFDataService.Module.MarketItems.Interfaces;

    using SilverlightWithEFDataService.Infrastructure;

    namespace SilverlightWithEFDataService.Module.MarketItems.Views

    {

        [ViewExport(RegionName = "MainRegion")]

        [PartCreationPolicy(CreationPolicy.NonShared)]

        public partial class MarketItemsView : UserControl

        {

            public MarketItemsView()

            {

                try

                {

                    InitializeComponent();

                }

                catch (Exception ex)

                {

                    Console.WriteLine(string.Format(@"{0}", ex.InnerException.ToString()));

                }

            }

            [Import]

            public IMarketItemsView ViewModel

            {

                set { this.DataContext = value; }

            }

        }

    }


    <UserControl xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation"

                 xmlns:sdk="http://schemas.microsoft.com/winfx/2006/xaml/presentation/sdk"

                 x:Class="SilverlightWithEFDataService.Module.MarketItems.Views.MarketItemsView"

                 xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

                 xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

                 xmlns:d="http://schemas.microsoft.com/expression/blend/2008"

                 xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"

                 xmlns:viewmodel="clr-namespace:SilverlightWithEFDataService.Module.MarketItems.ViewModels"

                 mc:Ignorable="d"

                 d:DesignHeight="800" d:DesignWidth="1000" ScrollViewer.VerticalScrollBarVisibility="Visible">



        <d:DesignProperties.DataContext>

            <viewmodel:MarketItemsViewModel/>

        </d:DesignProperties.DataContext>

        <Grid>

            <Grid.RowDefinitions>

                <RowDefinition Height="Auto"/>

                <RowDefinition Height="Auto"/>

                <RowDefinition Height="Auto"/>

                <RowDefinition Height="Auto"/>

                <RowDefinition Height="Auto"/>

                <RowDefinition Height="Auto"/>

                <RowDefinition Height="*"/>

            </Grid.RowDefinitions>

            <Grid.ColumnDefinitions>

                <ColumnDefinition Width="200"/>

                <ColumnDefinition Width="320"/>

                <ColumnDefinition Width="400"/>

                <ColumnDefinition Width="*"/>

            </Grid.ColumnDefinitions>



            <telerik:RadBusyIndicator telerik:StyleManager.Theme="Metro" IsBusy="{Binding SubmitIsBusy}" DisplayAfter="0" Grid.Column="0" Grid.Row="0">

                <StackPanel Margin="3">

                    <TextBlock Text="TickerSymbol" HorizontalAlignment="Center"/>

                    <TextBox Width="100" HorizontalAlignment="Center" Text="{Binding TickerSymbolName, Mode=TwoWay}"/>

                    <TextBlock Text="LastPrice" HorizontalAlignment="Center"/>

                    <TextBox Width="100" HorizontalAlignment="Center" Text="{Binding LastPrice, Mode=TwoWay}"/>

                    <TextBlock Text="Volume" HorizontalAlignment="Center"/>

                    <TextBox Width="100" HorizontalAlignment="Center" Text="{Binding Volume, Mode=TwoWay}"/>

                    <telerik:RadButton IsEnabled="{Binding EnableSubmit}" Content="Update Item" Margin="5" Command="{Binding SubmitCommand}" HorizontalAlignment="Center"/>

                    <TextBlock Text="{Binding StatusLabel}" Margin="5" VerticalAlignment="Bottom" TextWrapping="Wrap" HorizontalAlignment="Center" Grid.RowSpan="100" Grid.Row="0" Grid.Column="2" />

                </StackPanel>

            </telerik:RadBusyIndicator>

            <telerik:RadBusyIndicator telerik:StyleManager.Theme="Metro" IsBusy="{Binding MarketItemsIsBusy}" DisplayAfter="0" Grid.Column="1" Grid.Row="0" >

                <telerik:RadGridView ItemsSource="{Binding MarketItems}" SelectedItem="{Binding CurrentMarketItem, Mode=TwoWay}" SelectionMode="Single"

                                            AutoGenerateColumns="False" ScrollViewer.VerticalScrollBarVisibility="Visible" MaxHeight="600">

                <telerik:RadGridView.Columns>

                    <telerik:GridViewDataColumn Header="TickerSymbol" DataMemberBinding="{Binding TickerSymbol.TickerSymbolName, Mode=TwoWay}" />

                    <telerik:GridViewDataColumn Header="LastPrice" DataMemberBinding="{Binding LastPrice, Mode=TwoWay}" />

                    <telerik:GridViewDataColumn Header="Volume" DataMemberBinding="{Binding Volume, Mode=TwoWay}" />

                </telerik:RadGridView.Columns>

                </telerik:RadGridView>

            </telerik:RadBusyIndicator>

            <telerik:RadBusyIndicator telerik:StyleManager.Theme="Metro" IsBusy="{Binding HistoryIsBusy}" DisplayAfter="0" Grid.Column="2" Grid.Row="0" >

            <telerik:RadGridView Name="historyView" ItemsSource="{Binding MarketHistoryItems}" AutoGenerateColumns="False"

                                 ScrollViewer.VerticalScrollBarVisibility="Visible" MaxHeight="600">

                <telerik:RadGridView.Columns>

                    <telerik:GridViewDataColumn Header="TickerSymbol" DataMemberBinding="{Binding MarketItem.TickerSymbol.TickerSymbolName, Mode=TwoWay}" />

                    <telerik:GridViewDataColumn Header="CurrentPrice" DataMemberBinding="{Binding CurrentValue, Mode=TwoWay}" />

                    <telerik:GridViewDataColumn Header="CurrentDate" DataMemberBinding="{Binding CurrentDate.Date, Mode=TwoWay}" />

                </telerik:RadGridView.Columns>

                </telerik:RadGridView>

            </telerik:RadBusyIndicator>



            <telerik:RadChart Grid.Column="4" Grid.Row="0" Grid.ColumnSpan="3"

                              ItemsSource="{Binding ItemPriceHistory}" />

        </Grid>

    </UserControl>


  2. Petar Kirov
    Admin
    Petar Kirov avatar
    425 posts

    Posted 29 Oct 2012 Link to this post

    Hello,

    I believe that the  cause of the problem is that your project is targeting Silverlight version 5 and you have referenced Telerik Controls for Silverlight 4 assembly(ies).

    Please check and if this is not the cause of the problem do let us know.

    Regards,
    Petar Kirov
    the Telerik team

    Explore the entire Telerik portfolio by downloading Telerik DevCraft Ultimate.

  3. DevCraft banner
  4. J
    J avatar
    3 posts
    Member since:
    Feb 2012

    Posted 05 Nov 2012 Link to this post

    No, I checked everything, each project.  It is targeting Silverlight 4.  .NET 4.0.3
  5. J
    J avatar
    3 posts
    Member since:
    Feb 2012

    Posted 05 Nov 2012 Link to this post

    I found my problem.  I was using mef to use the chart in the main view.  I didn't reference the Charting library in the main view.  Sorry for my confusion.
