RadCartesianChart axis

2 posts, 0 answers
  1. Jorn
    Jorn avatar
    222 posts
    Member since:
    Jun 2009

    Posted 24 Nov 2015 Link to this post

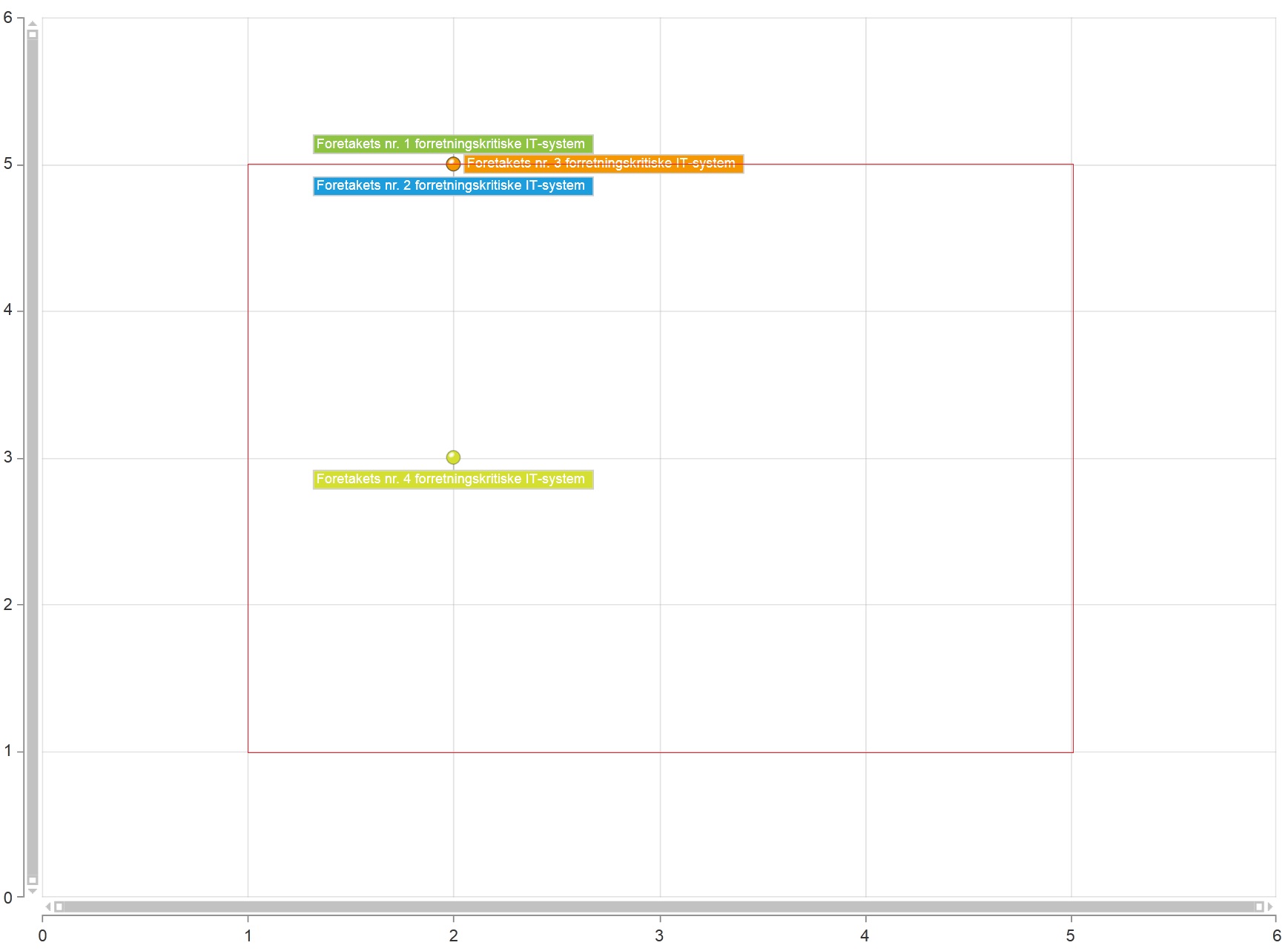

    See attached screenshot.

    I have a chart where the both axis have minimum value 1 and maximum value 5. All data points are within this range on both axis. I don't want the data point labels to be "squished" in the edges when they have minimum/maximum values. Sometimes (even with smart labels) the data point labels overlap (bug in the control). So my idea was to "virtualize" the chart's minimum/maximum axis values so that the available plot area was enhanced. In the attached screen shot I have set the minimum/maximum axis to 1 and 6 and all the data points are within 1 to 5 (red area). So far so good, but to minimize the wasted space I'm trying to set the minimum/maximum to -0.5 and 0.5. However the axis labels then gets decimals on them 0,5 - 1,5 and so on even if the MajorStep, MajorInterval etc. are set to 1 (and I'm hiding the first/last label via LabelOffset and LastLabelVisibility). I want the labels to be 1-5. Can this be achieved and if so, how?

  2. Ivan
    Admin
    Ivan avatar
    44 posts

    Posted 26 Nov 2015 Link to this post

    Hi Jorn,

    There is a way to display only the integer values on your axes labels. In your setup this can be achieved by setting the TickOrigin property to 0:
    <telerik:LinearAxis Minimum="0.5"
                Maximum="6.5"
                MajorStep="1"
                TickOrigin="0" />

    Please find further information about it in the Axis help article.

    Let us know if you have any further questions about this case.

    Regards,
    Ivan
