rad html column chart dynamic series

4 posts, 1 answers
  1. Navneet
    Navneet avatar
    3 posts
    Member since:
    Oct 2012

    Posted 07 Nov 2012 Link to this post

    any example with xaxis also dymanic Like:
  2. Danail Vasilev
    Admin
    Danail Vasilev avatar
    1490 posts

    Posted 08 Nov 2012 Link to this post

    Hello Navneet,

    If I understand correctly your question you are trying to programmatically declare XAxis items to the chart.
    If this is the case I am attaching a simple example where I am using a dataset.

    What I do is bind the dataset to the RadHtmlChart and then tell the XAxis Labels which column to get from the dataset through the DataLabelsField property:
    protected void Page_Load(object sender, System.EventArgs e)
     {
         DataSet myDS = GetData();
         RadHtmlChart1.DataSource = myDS;
         RadHtmlChart1.PlotArea.XAxis.DataLabelsField = "Name";
         RadHtmlChart1.DataBind();
     }
    You can also set this property in the markup of the control.

    In case you are creating the entire chart programmatically you can take a look at the following examples and use them as a starting point for your implementation:
    http://www.telerik.com/help/aspnet-ajax/htmlchart-use-explicit-items.html - see the second section
    http://demos.telerik.com/aspnet-ajax/htmlchart/examples/serversideapi/programmaticcreation/defaultcs.aspx


    Kind Regards,

    All the best,
    Danail Vasilev
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Navneet
    Navneet avatar
    3 posts
    Member since:
    Oct 2012

    Posted 08 Nov 2012 Link to this post

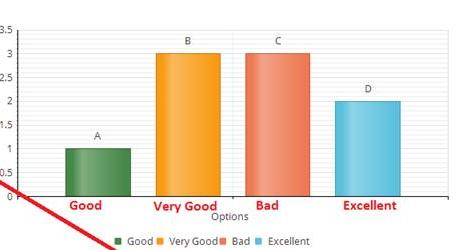

    Hi Thanks for response, It show perfect but need to display bar color changes means i have multiple series.....
    no single series..
  5. Answer
    Danail Vasilev
    Admin
    Danail Vasilev avatar
    1490 posts

    Posted 09 Nov 2012 Link to this post

    Hello Navneet,

    A single series uses the same color for all its items by design. The concept is that these items have to be grouped by this color so that the reader can easily identify this. The feature of modify colors for separate items within a series is logged and you can follow it, vote and comment in this URL.

    On using more than one series - you can add as much series as you want. I am giving you an example with two series.
    The change in the markup could look like:
    <Series>
        <telerik:ColumnSeries Name="Products" DataFieldY="Price1">
            <TooltipsAppearance DataFormatString="${0}" />
            <LabelsAppearance Visible="false" />
        </telerik:ColumnSeries>
         <telerik:ColumnSeries Name="Products" DataFieldY="Price2">
            <TooltipsAppearance DataFormatString="${0}" />
            <LabelsAppearance Visible="false" />
        </telerik:ColumnSeries>
    </Series>

    Where "Price1" is the data for the first ColumnSeries and "Price2" is the data for the second ColumnSeries.

    In the code behind I am inserting another column "Price2" (in orange color) for the second series and its values (in yellow color).
    private DataSet GetData()
    {
        DataSet ds = new DataSet("Bookstore");
        DataTable dt = new DataTable("Products");
        dt.Columns.Add("Id", Type.GetType("System.Int32"));
        dt.Columns.Add("Name", Type.GetType("System.String"));
        dt.Columns.Add("Price1", Type.GetType("System.Double"));
        dt.Columns.Add("Price2", Type.GetType("System.Double"));
        dt.Rows.Add(1, "Pen", 5.45, 6.45);
        dt.Rows.Add(2, "Audio book", 9.95, 10.95);
        dt.Rows.Add(3, "Pencil", 1.99, 3.99);
        dt.Rows.Add(4, "Book", 15.95, 12.95);
        dt.Rows.Add(5, "Newspaper", 0.95, 0.33);
        dt.Rows.Add(6, "Magazine", 3.95, 2.55);
        ds.Tables.Add(dt);
        return ds;
    }

    Please find attached the whole example.

    Greetings,
    Danail Vasilev
    the Telerik team
