Problem with GaugeRange Background shifting

[Maxwell]

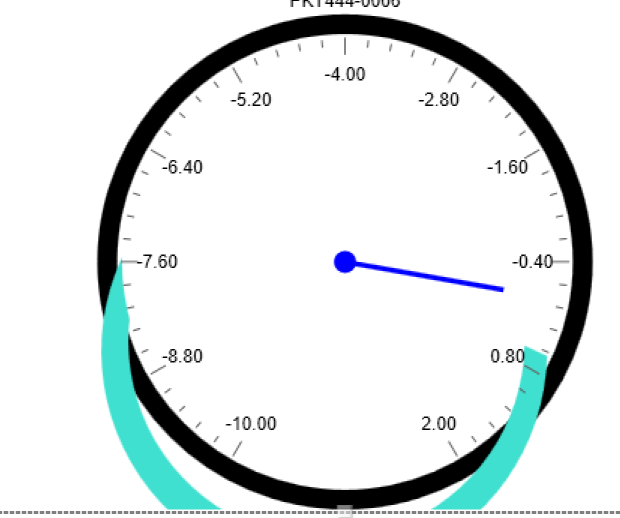

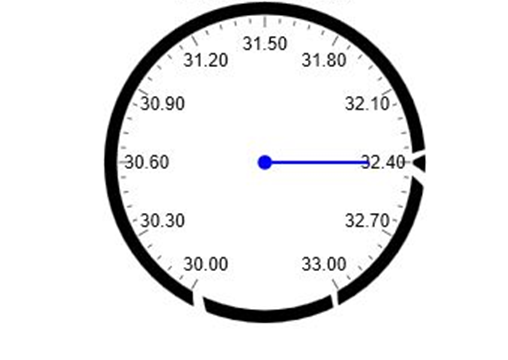

Some times when I place a gauge the GaugeRange Background is off. Im not sure where to start looking for this issue.

Im using a vdi. Next thought is to try on an actual box. See attachement

[Martin Ivanov]

Hello Maxwell,

This usually happens if the GaugeRange has a range that goes outside of the scale's range. For example, this shifting can appear if the scale has a minimum of 0 and maxim of 10, but the GaugeRange is between 12 and 36. To resolve this, make sure that the GaugeRange falls within the scale's range. If this is not the case, I would suggest you to open a new support ticket from your telerik.com account and send a project with the troublesome behavior there.

Regards,
Martin Ivanov
Progress Telerik
