Problem in Zoom bar and Cartesian grid are not shown in chartview wpf

2 posts, 0 answers
  1. Senthil kumar
    Senthil kumar avatar
    21 posts
    Member since:
    Sep 2013

    Posted 19 Dec 2013 Link to this post

    Here i have mentioned implementation of code. i created a custom control 'VSRadCartesianChart' and implemented some dependency control in  it and generate the X,Y axis and line series are dynamically.

    i applied Zoom&Par bar visible to both axis and applied style that that it only visible when zoom & par when applied.(other wise in normal case, it does it show).

    Also , I have implemented 'CartesianGrid' in it and applied Y axis line visibility.


    problem which are facing:

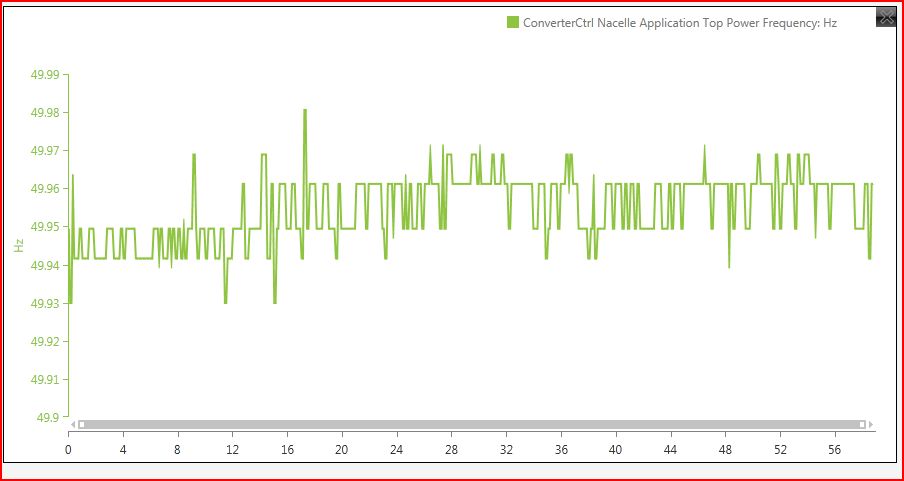

    1. setting which applied in cartesian grid is not shown. it doesn't apply any style in it. (see the attached image)
    2. Y-axis zoombar is not shown.
    3. TargetType="chartView:PanZoomBar" style setting is not applied (controlling the visiblity of panzoombar based in property in viewmodel)


    could you please give your feedback. it is urgent requirement.





    <local:VSRadCartesianChart x:Name="Chart1"    Zoom="{Binding Zoom }" PanOffset="{Binding PanOffset}"  local:ChartViewDragDropBehaviour.IsEnabled="True" AllowDrop="True"   >

     <local:VSRadCartesianChart.Resources>
                                        <Style TargetType="chartView:PanZoomBar">
                                            <Setter Property="Visibility" Value="{Binding Path=IsZoomBarVisible Converter={StaticResource BoolToCollapsedConverter} }" />
                                        </Style>

    <Style x:Key="BorderStyle" TargetType="Border">
                                            <Setter Property="Background" Value="#1B9DDE" />
                                        </Style>
      </local:VSRadCartesianChart.Resources>
    ---
    ---
    ---
    <local:VSRadCartesianChart.Grid >
                                        <telerik:CartesianChartGrid MajorLinesVisibility="Y" StripLinesVisibility="Y" >
                                            <telerik:CartesianChartGrid.YStripeBrushes>
                                            <SolidColorBrush Color="#FFD7D7D7"  Opacity="0.3" />
                                            <SolidColorBrush Color="Transparent" />
                                            </telerik:CartesianChartGrid.YStripeBrushes>
                                        </telerik:CartesianChartGrid>
                                    </local:VSRadCartesianChart.Grid>

                                    <local:VSRadCartesianChart.LinearSeriesSource>
                                            <Binding Path="ChartList" Mode="TwoWay" UpdateSourceTrigger="PropertyChanged"  />
                                    </local:VSRadCartesianChart.LinearSeriesSource>
                                     <local:VSRadCartesianChart.Behaviors >
                                        <telerik:ChartPanAndZoomBehavior ZoomMode="Both" PanMode="Both" >
                                        </telerik:ChartPanAndZoomBehavior>
                                    </local:VSRadCartesianChart.Behaviors>
           </local:VSRadCartesianChart>
  2. Peshito
    Admin
    Peshito avatar
    497 posts

    Posted 23 Dec 2013 Link to this post

    Hi Senthil kumar,

    I tried to reproduce the issues you are facing but to no avail. I had not problems showing the CartesianGrid and the PanZoomBars on both axis, as well as applying the style to the PanZoomBar. Please provide a sample runnable project isolating the issues so I can debug it locally and give you a possible solution. As this is a forum thread you can do that by using a third party website for upload and share or open a ticket thread and attach it there.

    Also, in case you require faster replies you can open a support ticket thread where you will get a reply within 24 hours.

    Regards,
    Peshito
    Telerik
