Problem in "adjusting" appointment's times

[Cheau-Long]

Hi Telerik,

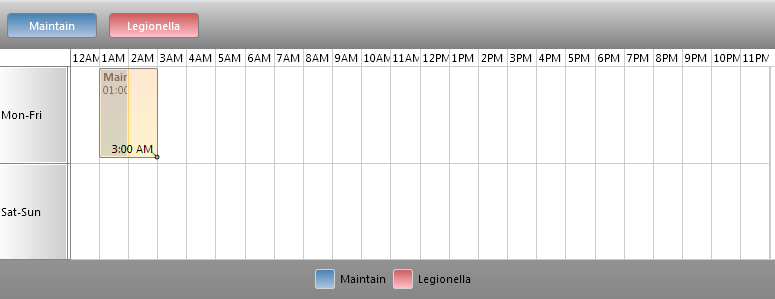

I'm experiencing a strange behavior of the ScheduleView. I set schedule to view by day and had one hour increment as shown below. The ScheduleView had SnapAppointments="True". The problem is I couldn't adjust down to one hour slot, but I could change it through appointment edit dialog. For example, I couldn't slide end time from 3AM to 2AM where start time is 1AM. Any ideas what went wrong? Thanks.

        <!-- ScheduleView -->
        <telerik:RadScheduleView x:Name="scheduleView"
                                Grid.Row="2"
                                MaxTimeRulerExtent="500"
                                AppointmentsSource="{Binding Tasks, Mode=TwoWay}"
                                ResourceTypesSource="{Binding ScheduleOptionList, Mode=TwoWay}"
                                GroupDescriptionsSource="{Binding GroupCollection, Mode=TwoWay}"
                                CurrentDate="{Binding DefaultDate}"
                                NavigationHeaderVisibility="Collapsed"
                                AllowDrop="True"
                                SnapAppointments="True"
                                Height="Auto">

            <telerik:RadScheduleView.DragDropBehavior>
                <local:ScheduleDragDropBehavior/>
            </telerik:RadScheduleView.DragDropBehavior>

            <telerik:RadScheduleView.AppointmentItemContentTemplate>
                <DataTemplate>
                    <StackPanel>
                        <TextBlock Text="{Binding Subject}"  FontWeight="Bold"/>
                        <StackPanel Orientation="Horizontal">
                            <TextBlock Text="{Binding Start, StringFormat={}{0:hh:mm tt}}"/>
                            <TextBlock Text=" - "/>
                            <TextBlock Text="{Binding End, StringFormat={}{0:hh:mm tt}}"/>
                        </StackPanel>
                    </StackPanel>
                </DataTemplate>
            </telerik:RadScheduleView.AppointmentItemContentTemplate>

            <telerik:RadScheduleView.ActiveViewDefinition>
                <telerik:DayViewDefinition Orientation="Horizontal" FirstDayOfWeek="Monday" TimerulerMajorTickStringFormat="{}{0:htt}"
                                            MinorTickLength="1h"  MajorTickLength="1h" MinTimeRulerExtent="700" />
            </telerik:RadScheduleView.ActiveViewDefinition>

            <telerik:RadScheduleView.GroupHeaderContentTemplateSelector>
                <telerik:OrientedGroupHeaderContentTemplateSelector>
                    <telerik:OrientedGroupHeaderContentTemplateSelector.VerticalDayViewDateTemplate>
                        <DataTemplate>
                            <Grid Visibility="Hidden"/>
                        </DataTemplate>
                    </telerik:OrientedGroupHeaderContentTemplateSelector.VerticalDayViewDateTemplate>
                    <telerik:OrientedGroupHeaderContentTemplateSelector.VerticalResourceTemplate>
                        <DataTemplate>
                            <TextBlock Width="60" Margin="5,0" Text="{Binding FormattedName}"
                                       HorizontalAlignment="Center" VerticalAlignment="Center" />
                        </DataTemplate>
                    </telerik:OrientedGroupHeaderContentTemplateSelector.VerticalResourceTemplate>
                </telerik:OrientedGroupHeaderContentTemplateSelector>
            </telerik:RadScheduleView.GroupHeaderContentTemplateSelector>

        </telerik:RadScheduleView>

[Rosi]

Hello Cheau,

I suggest you change the value of the MinAppointmentWidth .For example :MinAppointmentWidth="22".

The default value is 50 and this value is considered during snapping. We will improve this behavior for the next version.


Regards,
Rosi
the Telerik team

[Cheau-Long]

Thanks Rosi! This indeed has fixed the problem.
