Preventing a ToolWindow from fading away when closing

3 posts, 1 answers
  1. Pascal GUERY
    Pascal GUERY avatar
    38 posts
    Member since:
    Apr 2010

    Posted 13 Feb 2014 Link to this post

    Hi everyone,

    I am developing a WPF application at my company.
    I use controls from RadControls For WPF Trial Version assemblies including the RadDocking control.
    The StyleManager.ApplicationTheme property is set to an instance of SummerTheme.

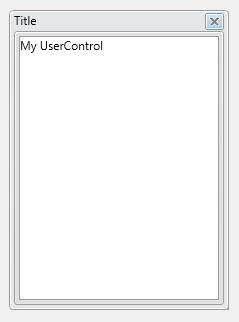

    When the user closes a floating Pane then the containing ToolWindow fades away and disappears as shown on the attached pictures 1.png to 3.png.
    I want the ToolWindow to disappear without fading away.
    What do I need to do ?

    Thank you in advance for your help
  2. Answer
    Masha
    Admin
    Masha avatar
    355 posts

    Posted 18 Feb 2014 Link to this post

    Hi Pascal,

    I would suggest that you modify the AnimationManager.AnimationSelector of RadDocking control. Please refer to the following XAML that demonstrates how to do this:

    <Window x:Class="RadDockingAnimation.MainWindow"
            xmlns:sys="clr-namespace:System;assembly=mscorlib"
            xmlns:telerikAnimation="clr-namespace:Telerik.Windows.Controls.Animation;assembly=Telerik.Windows.Controls"
            Title="MainWindow" Height="350" Width="525">
        <Window.Resources>
            <sys:TimeSpan x:Key="AutoHideInAnimationDuration">0:0:0.360</sys:TimeSpan>
            <sys:TimeSpan x:Key="AutoHideOutAnimationDuration">0:0:0.400</sys:TimeSpan>
        </Window.Resources>

        <Grid>
            <telerik:RadDocking  >
                <telerikAnimation:AnimationManager.AnimationSelector>
                    <telerikAnimation:AnimationSelector>
                        <!-- ToolWindow, Compass, RootCompass and DragCue animations -->
                        <!--This code enables the animations.-->
                        <!--  <telerikAnimation:AnimationGroup AnimationName="Move">
                            <telerikAnimation:MoveAnimation />
                            <telerikAnimation:ResizeAnimation />
                            <telerikAnimation:FadeAnimation Direction="In" />
                            <telerikAnimation:ScaleAnimation Direction="In" MinScale="0.7"
                                    MaxScale="1.0" TargetElementName="VisualRoot" />
                        </telerikAnimation:AnimationGroup>

                       <telerikAnimation:AnimationGroup AnimationName="Show">
                            <telerikAnimation:FadeAnimation Direction="In" />
                            <telerikAnimation:ScaleAnimation Direction="In" MinScale="0.95"
                                    MaxScale="1.0" TargetElementName="VisualRoot" />
                        </telerikAnimation:AnimationGroup>
                        <telerikAnimation:AnimationGroup AnimationName="Hide" SpeedRatio="0.7">
                            <telerikAnimation:FadeAnimation Direction="Out" />
                            <telerikAnimation:ScaleAnimation Direction="Out" MinScale="0.7"
                                    MaxScale="1.0" TargetElementName="VisualRoot" />
                        </telerikAnimation:AnimationGroup>-->

                        <!-- AutoHideArea animations -->

                        <!-- Left AutoHideArea animations -->
                        <telerikAnimation:AnimationGroup AnimationName="LeftIn">
                            <telerikAnimation:SlideAnimation SlideMode="Top"
                                    Duration="{StaticResource AutoHideInAnimationDuration}"
                                    TargetElementName="PopupChild" Orientation="Horizontal"
                                    Direction="In" />

                            <!--<telerikAnimation:FadeAnimation TargetElementName="PopupChild" Direction="In" />-->
                        </telerikAnimation:AnimationGroup>

                        <telerikAnimation:AnimationGroup AnimationName="LeftOut">
                            <telerikAnimation:SlideAnimation TargetElementName="PopupChild"
                                    SlideMode="Top"
                                    Duration="{StaticResource AutoHideOutAnimationDuration}"
                                    Orientation="Horizontal" Direction="Out" />

                            <!--<telerikAnimation:FadeAnimation TargetElementName="PopupChild"
                                                            Direction="Out" />-->
                        </telerikAnimation:AnimationGroup>

                        <!-- Top AutoHideArea animations -->

                        <telerikAnimation:AnimationGroup AnimationName="TopIn">
                            <telerikAnimation:SlideAnimation Orientation="Vertical"
                                    Duration="{StaticResource AutoHideInAnimationDuration}"
                                    TargetElementName="PopupChild" Direction="In" />
                            <!--<telerikAnimation:FadeAnimation TargetElementName="PopupChild"
                                                            Direction="In" />-->
                        </telerikAnimation:AnimationGroup>

                        <telerikAnimation:AnimationGroup AnimationName="TopOut">
                            <telerikAnimation:SlideAnimation TargetElementName="PopupChild"
                                    Duration="{StaticResource AutoHideOutAnimationDuration}"
                                    Orientation="Vertical" Direction="Out" />
                            <!--<telerikAnimation:FadeAnimation TargetElementName="PopupChild"
                                                            Direction="Out" />-->
                        </telerikAnimation:AnimationGroup>

                        <!-- Right AutoHideArea animations -->

                        <telerikAnimation:AnimationGroup AnimationName="RightIn">
                            <telerikAnimation:SlideAnimation SlideMode="Bottom"
                                    TargetElementName="PopupChild"
                                    Duration="{StaticResource AutoHideInAnimationDuration}"
                                    Orientation="Horizontal" Direction="In" />
                            <!--<telerikAnimation:FadeAnimation TargetElementName="PopupChild"
                                                            Direction="In" />-->
                        </telerikAnimation:AnimationGroup>

                        <telerikAnimation:AnimationGroup AnimationName="RightOut">
                            <telerikAnimation:SlideAnimation TargetElementName="PopupChild"
                                    SlideMode="Bottom"
                                    Duration="{StaticResource AutoHideOutAnimationDuration}"
                                    Orientation="Horizontal" Direction="Out" />
                            <!--<telerikAnimation:FadeAnimation TargetElementName="PopupChild"
                                                            Direction="Out" />-->
                        </telerikAnimation:AnimationGroup>

                        <!-- Bottom AutoHideArea animations -->

                        <telerikAnimation:AnimationGroup AnimationName="BottomIn">
                            <telerikAnimation:SlideAnimation SlideMode="Bottom"
                                    Duration="{StaticResource AutoHideInAnimationDuration}"
                                    Orientation="Vertical" TargetElementName="PopupChild" Direction="In" />
                            <!--<telerikAnimation:FadeAnimation TargetElementName="PopupChild"
                                    Direction="In" />-->
                        </telerikAnimation:AnimationGroup>
                        <telerikAnimation:AnimationGroup AnimationName="BottomOut">
                            <telerikAnimation:SlideAnimation
                                    Duration="{StaticResource AutoHideOutAnimationDuration}"
                                    TargetElementName="PopupChild" Direction="Out"
                                    Orientation="Vertical" SlideMode="Bottom" />
                            <!--<telerikAnimation:FadeAnimation TargetElementName="PopupChild"
                                    Direction="Out" />-->
                        </telerikAnimation:AnimationGroup>
                    </telerikAnimation:AnimationSelector>
                </telerikAnimation:AnimationManager.AnimationSelector>

                <telerik:RadDocking.DocumentHost>

                    <telerik:RadSplitContainer>
                        <telerik:RadPaneGroup>
                            <telerik:RadDocumentPane Header="Document 1" Title="Document 1" />
                        </telerik:RadPaneGroup>
                    </telerik:RadSplitContainer>

                </telerik:RadDocking.DocumentHost>

                <telerik:RadSplitContainer Orientation="Vertical" InitialPosition="DockedLeft">
                    <telerik:RadPaneGroup telerik:ProportionalStackPanel.RelativeSize="200, 300">
                        <telerik:RadPane Header="Pane Left 1" IsPinned="False">
                            <TextBlock Text="Pane Left 1" />
                        </telerik:RadPane>
                    </telerik:RadPaneGroup>
                    <telerik:RadPaneGroup telerik:ProportionalStackPanel.RelativeSize="200, 100">
                        <telerik:RadPane Header="Pane Left 2" IsPinned="False">
                            <TextBlock Text="Pane Left 2" />
                        </telerik:RadPane>
                    </telerik:RadPaneGroup>
                    <telerik:RadPaneGroup>
                        <telerik:RadPane Header="Pane Left 3">
                            <TextBlock Text="Pane Left 3" />
                        </telerik:RadPane>
                    </telerik:RadPaneGroup>
                </telerik:RadSplitContainer>
            </telerik:RadDocking>
        </Grid>
    </Window>

    I hope this helps.

    Regards,
    Masha
    Telerik
  3. UI for WPF is Visual Studio 2017 Ready
  4. Pascal GUERY
    Pascal GUERY avatar
    38 posts
    Member since:
    Apr 2010

    Posted 18 Feb 2014 in reply to Masha Link to this post

    Thank you for your detailed answer
