Pie chart border

Thread is closed for posting
4 posts, 0 answers
  1. Adrian
    Adrian avatar
    3 posts
    Member since:
    Aug 2012

    Posted 27 Aug 2012 Link to this post

    Hi,

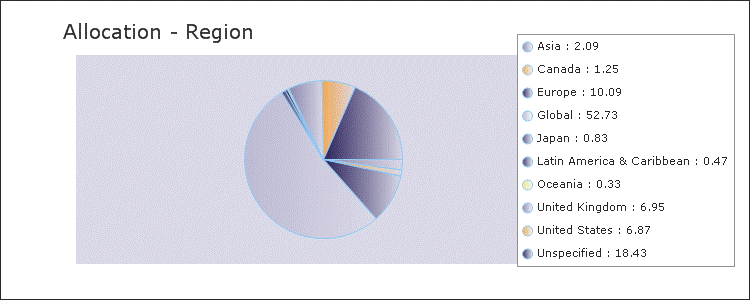

    I'm trying to change the color of the border of the sectors in this pie chart from the light-blue it seems to be defaulting to.
    How do I access the property to make the change?
  2. Princy
    Princy avatar
    17421 posts
    Member since:
    Mar 2007

    Posted 28 Aug 2012 Link to this post

    Hi Adrian,

    Try setting Appearance-Border-Color property of ChartSeries to achieve your scenario.

    ASPX:
    <telerik:RadChart ID="RadChart1" runat="server" SkinsOverrideStyles="true" Width="600px">
        ..........
      <Series>
        <telerik:ChartSeries Name="Series 1" Type="Pie" Appearance-Border-Color="Red">
           <Items>
             ...........
           </Items>
        </telerik:ChartSeries>
      </Series>
    </telerik:RadChart>

    Hope this help.

    Regards,
    Princy.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Adrian
    Adrian avatar
    3 posts
    Member since:
    Aug 2012

    Posted 28 Aug 2012 Link to this post

    Thanks it worked. Just as a follow up, I also need to change the fill type on the pie sectors which are all defaulted to gradient, but I need them to be solid.  The code I'm trying is this:

     Protected Sub ConfigureChart(ByVal dt As DataTable, ByVal thechart As Telerik.Web.UI.RadChart, ByVal x_colname As String, ByVal y_colname As String)
            Dim chartseries As New ChartSeries
            chartseries.Type = ChartSeriesType.Pie

            chartseries.Appearance.Border.Color = Drawing.Color.White

            For Each item In chartseries.Items
                item.Appearance.FillStyle.MainColor = Drawing.Color.Lime
                item.Appearance.FillStyle.FillType = Styles.FillType.Solid

            Next

            chartseries.DataLabelsColumn = x_colname
            chartseries.DataYColumn = y_colname
            chartseries.Appearance.LegendDisplayMode = ChartSeriesLegendDisplayMode.ItemLabels
            'chartseries.Appearance.ShowLabelConnectors = True
            chartseries.Appearance.ShowLabels = False

            thechart.Series.Add(chartseries)

            thechart.Appearance.FillStyle.FillType = Styles.FillType.Solid
            thechart.DataSource = dt
            thechart.DataBind()


        End Sub
  5. Evgenia
    Admin
    Evgenia avatar
    1406 posts

    Posted 31 Aug 2012 Link to this post

    Hi Adrian,

    You may need to use SkinsOverrideStyles=false, so that you can your own settings are getting applied (the default skin will not override them). If this is not of help to you, could you prepare a small project that we can use to inspect what's preventing the settings to be applied on our side?

    Greetings,
    Evgenia
