One scroll-bar for multiple RadCartesianChart

6 posts, 0 answers
  1. Anand
    Anand avatar
    12 posts
    Member since:
    Dec 2011

    Posted 19 Jan 2012 Link to this post

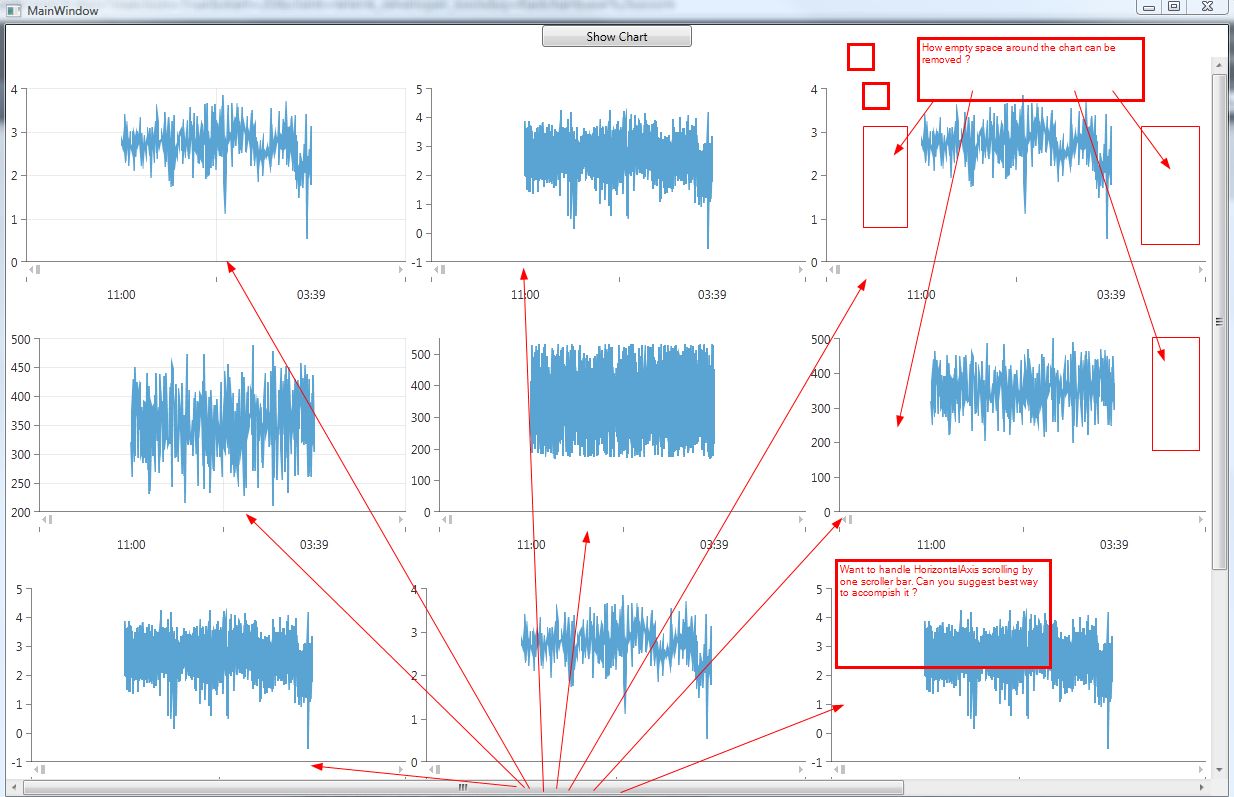

    I wish to extend "Smooth scrolling". I have 9 charts in grid of 3x3. Want to have only one scroll-bar for all horizontal Axis. Attaching picture and comments. Let me know the best way to accomplish this.


  2. Petar Marchev
    Admin
    Petar Marchev avatar
    968 posts

    Posted 23 Jan 2012 Link to this post

    Hello,

    1. How empty space around the chart can be removed?

    You can try to set the horizontal axis PlotMode property to OnTicks.

    2. Want to have only one scroll-bar for all horizontal Axis.
    As demonstrated in the "Smooth Scrolling" example - you need a view model and all charts' Zoom and PanOffset properties should  be bound to that view model's corresponding properties. As in the example, you can enable one of the chart views pan and zoom behavior. This way Zoom and PanOffset will be calculated automatically. If you do not wish to use a central chart view - you can add a RadSlider with property IsSelectionRangeEnabled set to true, and calculate the Zoom and PanOffset manually.

    Kind regards,
    Petar Marchev
    the Telerik team
    Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get it now >>
  3. UI for WPF is Visual Studio 2017 Ready
  4. Anand
    Anand avatar
    12 posts
    Member since:
    Dec 2011

    Posted 23 Jan 2012 Link to this post

    Can you provide an example of "RadSlider with property IsSelectionRangeEnabled set to true, and calculate the Zoom and PanOffset manually" ?
  5. Petar Marchev
    Admin
    Petar Marchev avatar
    968 posts

    Posted 25 Jan 2012 Link to this post

    Hello Anand,

    As of recently there are issues with the zoom and pan feature of the chart view which prevent your scenario. Our developers are aware of them and will do their best to fix these problems until the next release, which is scheduled to be in the middle of February.

    I apologize for any caused inconvenience.

    All the best,
    Petar Marchev
    the Telerik team
    Explore the entire Telerik portfolio by downloading the Ultimate Collection trial package. Get it now >>
  6. Samjog
    Samjog avatar
    1 posts
    Member since:
    Dec 2011

    Posted 06 Feb 2012 Link to this post

    Is this issue resolved now?
    Any update on this?
  7. Petar Marchev
    Admin
    Petar Marchev avatar
    968 posts

    Posted 09 Feb 2012 Link to this post

    Hello,

    Yes, this issue has been resolved. With the new version, which is to be released on February the 15th, it is possible to use a rad slider to control the pan and zoom of a chart view.

    Greetings,
    Petar Marchev
    the Telerik team
