Layout behavior in RadDiagram

3 posts, 1 answers
  1. Alex
    Alex avatar
    4 posts
    Member since:
    Jun 2015

    Posted 28 Sep 2015 Link to this post

    Hello!

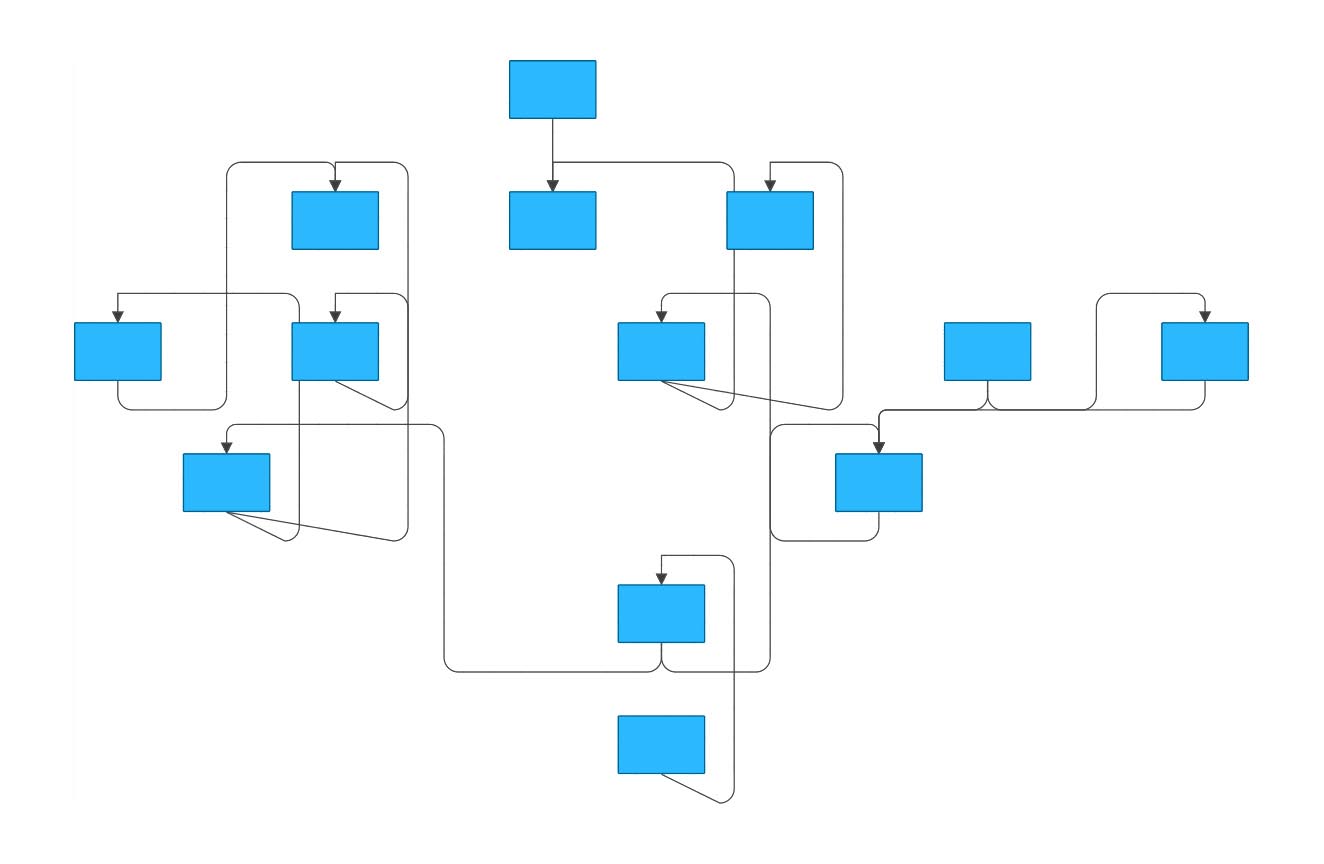

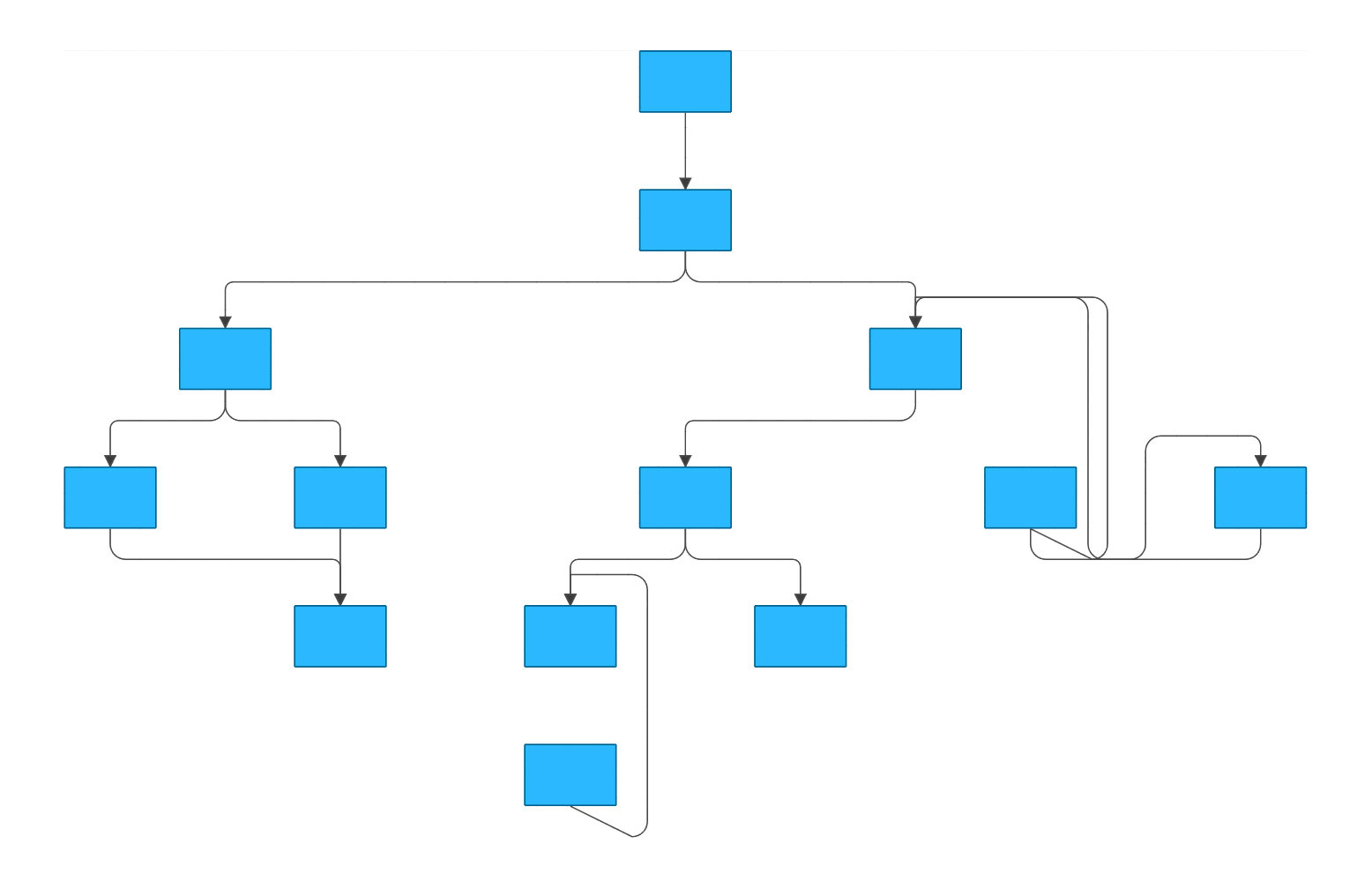

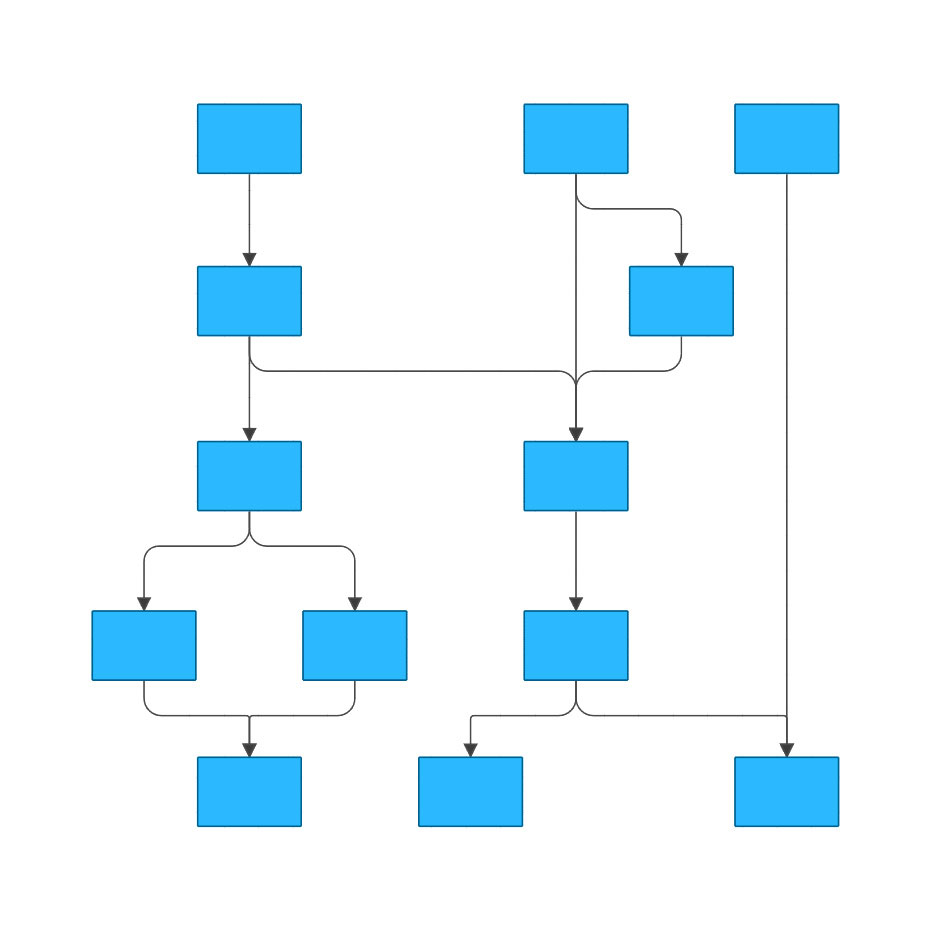

    I have a problem with Layout in RadDiagram. While using this example after applying Layout() method to my diagram (Sample.jpg), arrangement of layers and connections between them became very strange. Examples of applying Tree-down and Tree-up layouts are in the files TreeDown.jpg and TreeUp.jpg respectively.

    Is it possible to place layers applying Layout() method, according to their connection?

    Thank You!

  2. Answer
    Kiril Vandov
    Admin
    Kiril Vandov avatar
    324 posts

    Posted 30 Sep 2015 Link to this post

    Hello Alex,

    This is a custom Layout based on a predefined logic currently the RadDiagram does not support such custom Layout. There is a feature request to allow control over layouted elements logged in our system, you can track its progress and vote for its implementation in our feedback portal. However you could give a try to one of our SDK samples which implements a Layout based on a multiple roots just like you in your case. You could take advantage of the SDK and modify it to work for your scenario.
    As for your question "Is it possible to place layers applying Layout() method, according to their connection? ". No currently there is no way to place layers which to be applied to the Layout.

    I hope this information helps.
