Issue with Radgrid inside a panelbar

2 posts, 0 answers
  1. bhaskar
    bhaskar avatar
    3 posts
    Member since:
    Jun 2007

    Posted 17 Nov 2011 Link to this post

    Dear Telerik Team,

    I am trying to add a grid dynamically within a panelbar.The panel bar is created at design time.
    I am getting the below issue  :

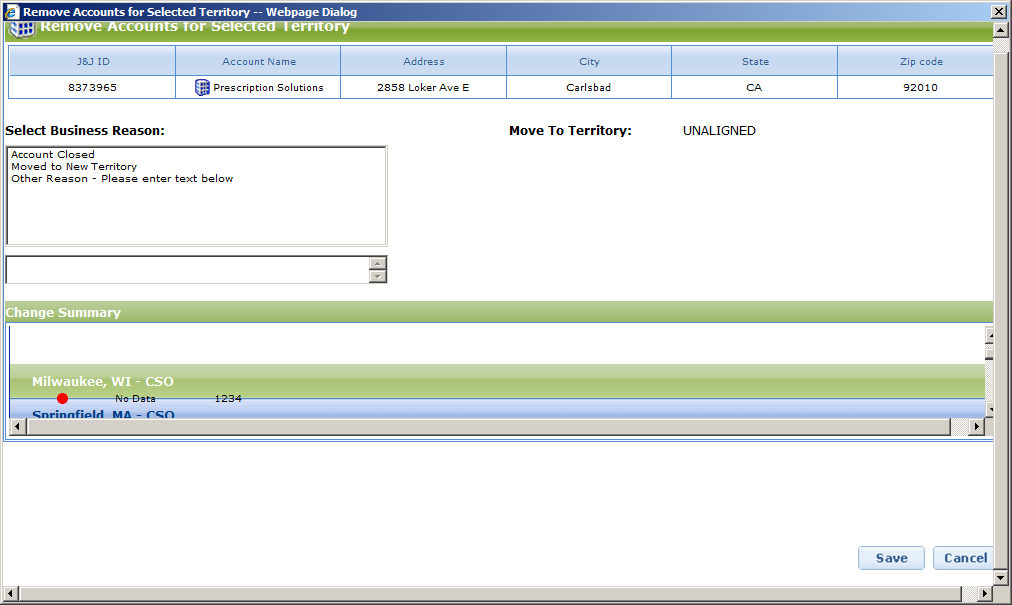

    Radpanelbar is contained inside a div and grid is inside the panelbar. When the Panelbar item is clicked, then grid is generated and populated by the dataset.The problem is that the header of the grid is scrollable alongwith the panelbar but the grid rows do not get scrolled and remain static.

    Please suggest a resolution it is very urgent.There seem to be lot of issues with Radgrid when it is used inside a panelbar by generating dynamically.

    Here is the code  :

    ASPX:







    <div id="divChangeImpact" style="width:100%;height:100;overflow:auto">







    <rad:RadAjaxPanel ID="ajPanelImpact" runat="server" ScrollBars="None" Width="100%" Height="100" LoadingPanelID="AjaxLoadingPanelAccount">

















    <rad:RadPanelbar ID="panelChangeImpact" runat="server" Width="100%"







    Height="100px" ExpandMode="SingleExpandedItem" Skin="Outlook">



















    </rad:RadPanelbar>

















    </rad:RadAjaxPanel>

















    </div>

    CodeBehind (VB) :

    Adding items to panel:



    Private





    Sub BindTerritory()







    '--Items added to PanelBar----------------------------------------------------------









    For Each row As DataRow In dsDirs.Tables(0).Rows







    Dim dataItem As New RadPanelItem()



    dataItem.Text =



    Convert.ToString(row("Sales_position_name"))



    dataItem.Value =



    Convert.ToString(row("Sales_pos_id"))



    dataItem.Expanded =



    False











    panelChangeImpact.Items.Add(dataItem)





    Dim item As New RadPanelItem()



    dataItem.Items.Add(item)





    Next









    ClsGeneral.setDropDownTitle(ddlTerritory)







    End Sub



    Protected





    Sub panelChangeImpact_ItemClick(ByVal sender As Object, ByVal e As Telerik.WebControls.RadPanelbarEventArgs) Handles panelChangeImpact.ItemClick







    Dim ItemClicked As Telerik.WebControls.RadPanelItem = e.Item







    Dim str As String = ItemClicked.Text







    Dim radGridImpact As New RadGrid











    radGridImpact.ID =



    "rgvChangeImpact"











    radGridImpact.Width =



    Unit.Percentage(100)



    radGridImpact.AllowMultiRowSelection =



    True











    radGridImpact.AutoGenerateColumns =



    False











    radGridImpact.Skin =



    "Master"











    radGridImpact.IsDynamic =



    False











    radGridImpact.SkinsPath =



    "~/App_Themes/MasterTheme/Skins"











    radGridImpact.MasterTableView.TableLayout =



    GridTableLayout.Fixed



    radGridImpact.MasterTableView.Width =



    Unit.Percentage(100)



    radGridImpact.MasterTableView.NoMasterRecordsText =



    ""











    radGridImpact.ItemStyle.BorderStyle =



    BorderStyle.Solid



    radGridImpact.ItemStyle.BorderWidth =



    Unit.Pixel(1)



    radGridImpact.ItemStyle.BorderColor = Drawing.



    Color.Black



    radGridImpact.ClientSettings.EnablePostBackOnRowClick =



    False











    radGridImpact.ClientSettings.Selecting.AllowRowSelect =



    True











    radGridImpact.ClientSettings.Scrolling.AllowScroll =



    True











    radGridImpact.ClientSettings.Scrolling.ScrollHeight =



    Unit.Pixel(140)



    radGridImpact.ClientSettings.Scrolling.UseStaticHeaders =



    True











    radGridImpact.ClientSettings.Scrolling.SaveScrollPosition =



    True















    Dim column1 As New GridBoundColumn











    column1.SortAscImageUrl =



    "#"











    column1.DataField =



    "Rule_Violation"











    column1.FilterImageUrl =



    "#"











    column1.UniqueName =



    "Rule_Violation"











    column1.SortExpression =



    "Rule_Violation"











    column1.SortDescImageUrl =



    "#"











    column1.HeaderText =



    "Rule Violation"











    radGridImpact.MasterTableView.Columns.Add(column1)





    Dim column2 As New GridBoundColumn











    column2.DataFormatString =



    "<nobr>{0}</nobr>"











    column2.DataField =



    "Matric"











    column2.HeaderText =



    "<nobr>Metric Rule</nobr>"











    column2.SortExpression =



    "Matric"











    column2.UniqueName =



    "Matric"











    column2.SortAscImageUrl =



    "~/App_Themes/MasterTheme/Skins/Master/Asc.gif"











    column2.SortDescImageUrl =



    "~/App_Themes/MasterTheme/Skins/Master/Desc.gif"











    radGridImpact.MasterTableView.Columns.Add(column2)





    Dim column3 As New GridBoundColumn











    column3.DataFormatString =



    "<nobr>{0}</nobr>"











    column3.DataField =



    "Original"











    column3.HeaderText =



    "<nobr>Original</nobr>"











    column3.SortExpression =



    "Original"











    column3.UniqueName =



    "Original"











    column3.SortAscImageUrl =



    "~/App_Themes/MasterTheme/Skins/Master/Asc.gif"











    column3.SortDescImageUrl =



    "~/App_Themes/MasterTheme/Skins/Master/Desc.gif"











    radGridImpact.MasterTableView.Columns.Add(column3)





    Dim column4 As New GridBoundColumn











    column4.DataFormatString =



    "<nobr>{0}</nobr>"











    column4.DataField =



    "Adjusted_Approved"











    column4.HeaderText =



    "<nobr>Approved</nobr>"











    column4.SortExpression =



    "Adjusted_Approved"











    column4.UniqueName =



    "Adjusted_Approved"











    column4.SortAscImageUrl =



    "~/App_Themes/MasterTheme/Skins/Master/Asc.gif"











    column4.SortDescImageUrl =



    "~/App_Themes/MasterTheme/Skins/Master/Desc.gif"











    radGridImpact.MasterTableView.Columns.Add(column4)





    Dim column5 As New GridBoundColumn











    column5.DataFormatString =



    "<nobr>{0}</nobr>"











    column5.DataField =



    "Adjusted_Pending"











    column5.HeaderText =



    "<nobr>Approval Pending</nobr>"











    column5.SortExpression =



    "Adjusted_Pending"











    column5.UniqueName =



    "Adjusted_Pending"











    column5.SortAscImageUrl =



    "~/App_Themes/MasterTheme/Skins/Master/Asc.gif"











    column5.SortDescImageUrl =



    "~/App_Themes/MasterTheme/Skins/Master/Desc.gif"











    radGridImpact.MasterTableView.Columns.Add(column5)





    Dim column6 As New GridBoundColumn











    column6.DataFormatString =



    "<nobr>{0}</nobr>"











    column6.DataField =



    "Adjusted_Submission"











    column6.HeaderText =



    "<nobr>Submission Pending</nobr>"











    column6.SortExpression =



    "Adjusted_Submission"











    column6.UniqueName =



    "Adjusted_Submission"











    column6.SortAscImageUrl =



    "~/App_Themes/MasterTheme/Skins/Master/Asc.gif"











    column6.SortDescImageUrl =



    "~/App_Themes/MasterTheme/Skins/Master/Desc.gif"











    radGridImpact.MasterTableView.Columns.Add(column6)





    Dim column7 As New GridBoundColumn











    column7.DataFormatString =



    "<nobr>{0}</nobr>"











    column7.DataField =



    "Total_Adjusted"











    column7.HeaderText =



    "<nobr>Change Impact</nobr>"











    column7.SortExpression =



    "Total_Adjusted"











    column7.UniqueName =



    "Total_Adjusted"











    column7.SortAscImageUrl =



    "~/App_Themes/MasterTheme/Skins/Master/Asc.gif"











    column7.SortDescImageUrl =



    "~/App_Themes/MasterTheme/Skins/Master/Desc.gif"











    radGridImpact.MasterTableView.Columns.Add(column7)





    Dim column8 As New GridBoundColumn











    column8.DataFormatString =



    "<nobr>{0}</nobr>"











    column8.DataField =



    "GTotal"











    column8.HeaderText =



    "<nobr>Total</nobr>"











    column8.SortExpression =



    "GTotal"











    column8.UniqueName =



    "GTotal"











    column8.SortAscImageUrl =



    "~/App_Themes/MasterTheme/Skins/Master/Asc.gif"











    column8.SortDescImageUrl =



    "~/App_Themes/MasterTheme/Skins/Master/Desc.gif"











    radGridImpact.MasterTableView.Columns.Add(column8)





    Dim column9 As New GridBoundColumn











    column9.DataFormatString =



    "<nobr>{0}</nobr>"











    column9.DataField =



    "Change"











    column9.HeaderText =



    "<nobr>Total Change</nobr>"











    column9.SortExpression =



    "Change"











    column9.UniqueName =



    "Change"











    column9.SortAscImageUrl =



    "~/App_Themes/MasterTheme/Skins/Master/Asc.gif"











    column9.SortDescImageUrl =



    "~/App_Themes/MasterTheme/Skins/Master/Desc.gif"











    radGridImpact.MasterTableView.Columns.Add(column9)





    Dim column10 As New GridBoundColumn











    column10.DataFormatString =



    "<nobr>{0}</nobr>"











    column10.DataField =



    "Allowed"











    column10.HeaderText =



    "<nobr>Allowed(Min, Max)</nobr>"











    column10.SortExpression =



    "Allowed"











    column10.UniqueName =



    "Allowed"











    column10.SortAscImageUrl =



    "~/App_Themes/MasterTheme/Skins/Master/Asc.gif"











    column10.SortDescImageUrl =



    "~/App_Themes/MasterTheme/Skins/Master/Desc.gif"











    radGridImpact.MasterTableView.Columns.Add(column10)





    AddHandler radGridImpact.ItemDataBound, AddressOf rgvChangeImpactSummary_ItemDataBound



    ItemClicked.Items(0).Controls.Add(radGridImpact)

    BindChangeSummaryDetails(radGridImpact, ItemClicked.Value)





    End Sub







    'Get call plan values.

    Private





    Sub BindChangeSummaryDetails(ByVal radGrid As RadGrid, ByVal strTerritoryID As String)







    Dim sCallPalnValues As String



    Dim ds As DataSet







    Dim sTerrValue As String = String.Empty







    If strTerritoryID = "" Then







    Exit Sub







    End If







    'Get call plan values.



    ds =



    'some dataset





    If ds Is Nothing OrElse ds.Tables.Count = 0 Then







    'Dataset does not have any table.



    radGrid.DataSource =



    Nothing



    radGrid.DataBind()

    SbShowGridHeader(radGrid)





    Exit Sub







    End If







    If ds.Tables(0).Rows.Count = 0 Then







    Dim dr As DataRow = ds.Tables(0).NewRow()



    dr(0) =



    "No Data"



    dr(1) = 1234

    ds.Tables(0).Rows.Add(dr)





    End If







    With radGrid



    .Width =



    Unit.Percentage(100)



    .MasterTableView.Width =



    Unit.Percentage(100)







    ClsGeneral.setSkinPathToGrid(radGrid)



    .ClientSettings.Selecting.AllowRowSelect =



    True



    .AutoGenerateColumns =



    False







    'Sorting



    .AllowSorting =



    False







    'Set the paging always true and use the page_size to max



    .AllowPaging =



    True



    .AllowCustomPaging =



    True







    'Column Resizing



    .ClientSettings.Resizing.EnableRealTimeResize =



    False



    .ClientSettings.Resizing.ResizeGridOnColumnResize = bResizingEnabled

    .ClientSettings.Resizing.AllowColumnResize = bResizingEnabled





    'If bResizingEnabled = True Then



    .ClientSettings.Resizing.ClipCellContentOnResize = bResizingEnabled

    .PageSize = 20

    .DataSource = ds.Tables(0)

    .DataBind()





    End With







    End Sub



    Thanks
    Bhaskar

  2. bhaskar
    bhaskar avatar
    3 posts
    Member since:
    Jun 2007

    Posted 21 Nov 2011 Link to this post

    Dear Telerik Team,

    Please provide a reply and do the needful.
    It is an urgent issue.
    Whenever we put a radgrid into a panelbar with the panelbar inside a scrollable div, the grid header scrolls properly on vertical scrolling but the grid rows remain static.
    I want the grid header to remain static and grid rows to be scrollable.

    Regartds
    Bhaskar
