issue in getting parameter value from grid

2 posts, 0 answers
  1. Sudhakar
    Sudhakar avatar
    28 posts
    Member since:
    Jul 2014

    Posted 03 Sep 2014 Link to this post

    Hi,

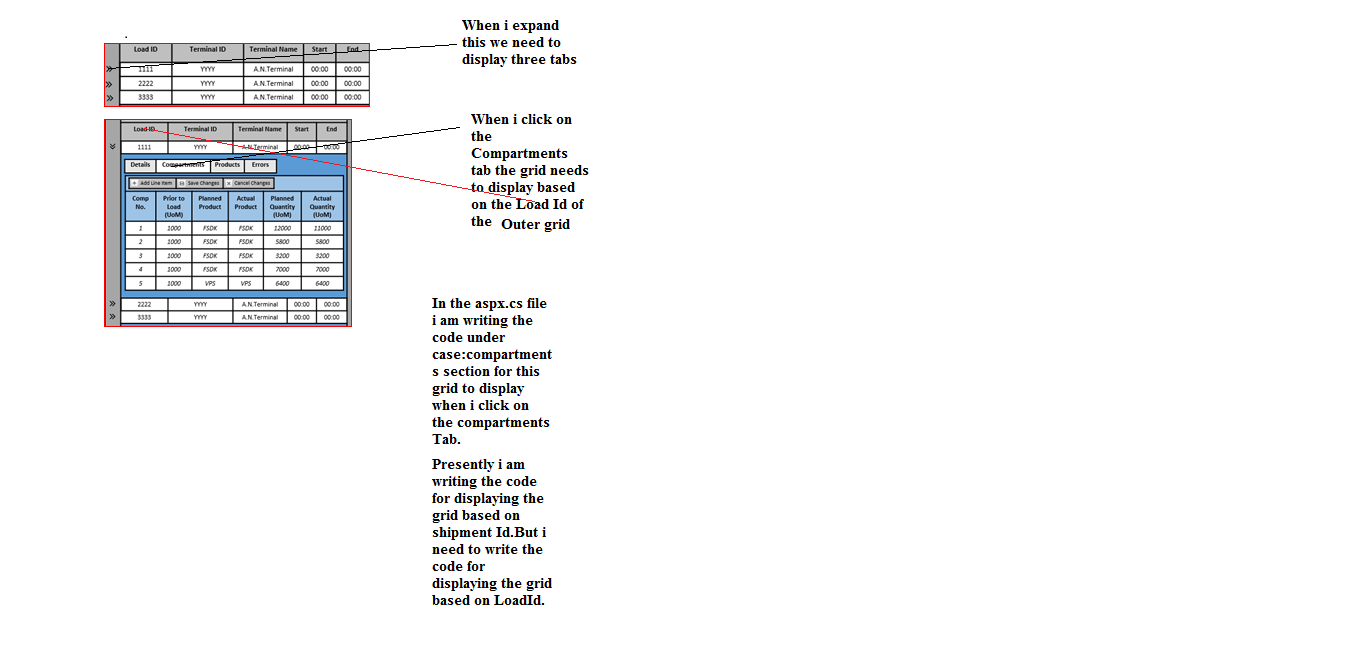

    I have a rad grid displaying on the screen with some rows.When Expand each row i am presenting with three tabs(Detals,compartments,products).See attachment
    When I click on Compartmrents tab need to display the grid based on the LoadId.
    Presently i am displaying this grid based on shipment id but i need this grid based on the LoadId.

    I am facing issue in pasing loadId value to storedprocedure for displaying this grid.

    aspx File
    GetDischargeDetailWSListByDischargeId(dischargeID);
    <telerik:RadPane ID="LoadingPane" runat="server" CssClass="noOverflow" >
                            <div id="LoadingPanelHeader" class="paneHeader">
                                <span class="headerPaneText">
                                    <asp:Label ID="lbl_LoadingHeader" runat="server"></asp:Label></span>
                            </div>
                            <!------------------------------------
                               ---------LOADING SECTION -----------
                               ------------------------------------->
                            <telerik:RadAjaxPanel ID="LoadingPanel" runat="server" CssClass="radPaneContent TransferHeader">
                                                        </telerik:RadAjaxPanel>
                            <telerik:RadGrid ID="LoadingRadGrid" OnItemDataBound="LoadingRadGridFormat_OnItemDataBound"
                                runat="server" AutoGenerateColumns="false" CssClass="TransferGridPanel" Height="275px"
                                Width="375px" OnNeedDataSource="LoadingRadGrid_NeedDataSource">
                                <MasterTableView ShowHeadersWhenNoRecords="true">

                                    <NestedViewTemplate>

                                        <telerik:RadTabStrip runat="server" ID="LoadTabStip" MultiPageID="LoadMultipage"
                                            SelectedIndex="0" OnTabClick="LoadTabStip_TabClick" Orientation="HorizontalTop">
                                            <Tabs runat="server">
                                                <telerik:RadTab runat="server" Text="Details" PageViewID="RadPageViewDetails">
                                                </telerik:RadTab>
                                                <telerik:RadTab runat="server" Text="Compartments" PageViewID="RadPageViewCompartments">
                                                </telerik:RadTab>
                                                <telerik:RadTab runat="server" Text="Products" PageViewID="RadPageViewProducts">
                                                </telerik:RadTab>
                                            </Tabs>
                                        </telerik:RadTabStrip>
                                        <telerik:RadMultiPage runat="server" ID="LoadMultipage" SelectedIndex="0" RenderSelectedPageOnly="false">

                                            <telerik:RadPageView runat="server" ID="RadPageViewDetails">

                                                <div class="contactWrap">
                                                    <table cellpadding="0" cellspacing="0">
                                                        <tr>
                                                           <td><asp:Label ID="lbl_TerminalId" runat="server" Text='Terminal Id:' Font-Bold="true"></asp:Label></td>
                                                           <td><asp:Label ID="lbl_TerminalIdValue" runat="server"></asp:Label> </td>
                                                        </tr>
                                                        <tr>
                                                            <td><asp:Label ID="lbl_TerminalName" runat="server" Text='TerminalName:' Font-Bold="true"></asp:Label></td>
                                                            <td><asp:Label ID="lbl_TerminalNameValue" runat="server"></asp:Label> </td>

                                                        </tr>
                                                    </table>
                                                </div>
                                            </telerik:RadPageView>
                                            <telerik:RadPageView runat="server" ID="RadPageViewCompartments">

                                                <telerik:RadGrid ID="LoadTabRadGrid" runat="server" AutoGenerateColumns="false" CssClass="TransferGridPanel"
                                                    Height="233px" Width="475px" >
                                                    <MasterTableView ShowHeadersWhenNoRecords="true">
                                                        <Columns>
                                                            <telerik:GridBoundColumn UniqueName="CompNo" DataField="CompartmentIndex" HeaderText="Comp No.">
                                                            </telerik:GridBoundColumn>
                                                            <telerik:GridBoundColumn UniqueName="PlannedLoadProd" DataField="PlannedProductName" HeaderText="Planned Product">
                                                            </telerik:GridBoundColumn>
                                                            <telerik:GridBoundColumn UniqueName="ActualLoadProd" DataField="ActualProductName" HeaderText="Actual Product">
                                                            </telerik:GridBoundColumn>
                                                            <telerik:GridBoundColumn UniqueName="PlannedLoadQty" DataField="PlannedQuantity" HeaderText="Planned Quantity">
                                                            </telerik:GridBoundColumn>
                                                            <telerik:GridBoundColumn UniqueName="ActualLoadQty" DataField="ActualQuantity" HeaderText="Actual Quantity">
                                                            </telerik:GridBoundColumn>
                                                        </Columns>
                                                    </MasterTableView>
                                                </telerik:RadGrid>

                                            </telerik:RadPageView>
                                        </telerik:RadMultiPage>

                                    </NestedViewTemplate>

                                    <Columns>
                                        <telerik:GridBoundColumn UniqueName="LoadId" DataField="Loading_ID">
                                        </telerik:GridBoundColumn>
                                        <telerik:GridBoundColumn UniqueName="TerminalId" DataField="Plant_ID">
                                        </telerik:GridBoundColumn>
                                        <telerik:GridBoundColumn UniqueName="TerminalName" DataField="TerminalName">
                                        </telerik:GridBoundColumn>
                                        <telerik:GridBoundColumn UniqueName="LoadingStartTime" DataField="LoadingStartTime">
                                        </telerik:GridBoundColumn>
                                        <telerik:GridBoundColumn UniqueName="LoadingEndTime" DataField="LoadingEndTime">
                                        </telerik:GridBoundColumn>
                                    </Columns>
                                </MasterTableView>
                                <ClientSettings>
                                    <Scrolling AllowScroll="true" />
                                </ClientSettings>
                            </telerik:RadGrid>

                        </telerik:RadPane>

    aspx.cs file:

    protected void LoadTabStip_TabClick(object sender, RadTabStripEventArgs e)
        {
            //AddPageView(e.Tab.Text);
            e.Tab.PageView.Selected = true;
            string selectedtabindex = e.Tab.Text;
            Int64 shipmentID = Convert.ToInt64(ShiftTreeView.SelectedNode.Value);
            switch (selectedtabindex)
            {
                case "Details":
                    {
                            break;
                    }
                case "Compartments":
                    {
                        RadPageView page = (RadPageView)e.Tab.PageView;
                        RadGrid grdLoad = (RadGrid)page.FindControl("LoadTabRadGrid");
                        List<LoadingDetailExtraEntity> loadingTabListinstance = new List<LoadingDetailExtraEntity>();
                        loadingTabListinstance = loadingDetailManager.GetLoadingDetailExtraListByShipmentId(shipmentID);
                        grdLoad.DataSource = loadingTabListinstance;
                        grdLoad.DataBind();
                        //e.Tab.Controls.Add(grdLoad);
                        break;
                    }
                case "Products":
                    {
                        break;
                    }
            }
        }
  2. Jayesh Goyani
    Jayesh Goyani avatar
    2732 posts
    Member since:
    May 2010

    Posted 04 Sep 2014 in reply to Sudhakar Link to this post

    Hi,

    1. Please check the below link.
    Programmatic creation of RadGrid / Hierarchy with Templates UI for ASP.NET AJAX Resources Buy Try Thread is closed for posting Feed for this thread Email Subscription

    2. Please check the below code snippet.

    RadPageView page = (RadPageView)e.Tab.PageView;
    //((GridNestedViewItem)page.Parent.Parent.....N times ).ParentItem.GetDataKeyValue("LoadId").ToString(); // You can get the parent grid by using parent and ParentItem -- Please above link for sample


    <MasterTableView DataKeyNames="LoadID">

    Please set above key in parent grid.

    Thanks,
    Jayesh Goyani
