Issue in border width in Pixel/Point in RadScheduler

[Jiten]

Hello,

I have problem in border width in RadScheduler. I set the color as well as width below in AppointmentDataBound event:

e.Appointment.BorderColor = System.Drawing.Color.FromName(e.Appointment.Attributes["VisitTypeColorName"].ToString());
                e.Appointment.BorderStyle = BorderStyle.Solid;
                e.Appointment.BorderWidth = Unit.Pixel(10);

But appointment border width is still small. And this e.Appointment.Attributes["VisitTypeColorName"].ToString() is come from the database. It get the color from the database.

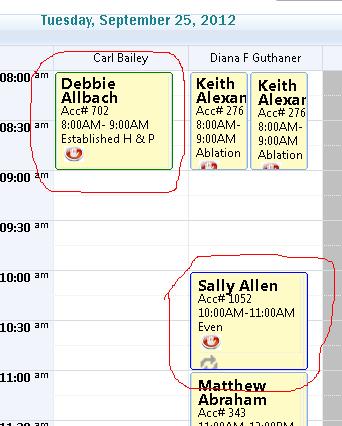

I am attach the file and mark the appointment in image which border color show.

Please help me as soon as possible.
Thanks.

Jiten Mutum

[Princy]

Hi Jiten,

I tried to replicate the problem in telerik version 2012, 2, 607, 40 and it worked as expected at my end. Following is the sample code that I tried and attached is the screenshot.

C#:

protected void RadScheduler1_AppointmentDataBound(object sender, SchedulerEventArgs e)
    {
        e.Appointment.BorderColor = System.Drawing.Color.Red;
        e.Appointment.BorderStyle = BorderStyle.Solid;
        e.Appointment.BorderWidth = Unit.Pixel(10);
    }

Please elaborate your scenario if it doesn't helps.

Regards,
Princy.

[Jiten]

Hello Princy,
This is the code what i doing in the AppointmentDataBound. I want to know that any related event or property
which could be problem in displaying the border width color.
 protected void RadScheduler1_AppointmentDataBound(object sender, SchedulerEventArgs e)
    {
                    e.Appointment.BackColor = System.Drawing.Color.Yellow;
                    e.Appointment.BorderColor = System.Drawing.Color.Red;

                    e.Appointment.BorderStyle = BorderStyle.Solid;
                    e.Appointment.BorderWidth = Unit.Pixel(10);

}
And another properties use in the radScheduler are
<telerik:RadScheduler AllowInsert="false" HoursPanelTimeFormat="hh:mm tt" OnAppointmentDataBound="RadScheduler1_AppointmentDataBound"
                                                        OnAppointmentCreated="RadScheduler1_AppointmentCreated" runat="server" ID="RadScheduler1"
                                                        Skin="Windows7" Width="100%" Height="100%" CustomAttributeNames="StatusId,ColorName,StatusColor,RegistrationId,DoesPatientOweMoney,ValidPaymentCaseId,TooTipText,DoctorId,Type,EligibilityChecked,AppointmentColor,AppointmentName"
                                                        ShowFooter="true" SelectedDate="2010-03-18" OnClientAppointmentClick="OnClientAppointmentClick"
                                                        EnableDescriptionField="true" ShowNavigationPane="false" OnAppointmentDelete="RadScheduler1_AppointmentDelete"
                                                        OnAppointmentUpdate="RadScheduler1_AppointmentUpdate" DataSubjectField="Subject"
                                                        DataStartField="FromTime" DataEndField="ToTime" ShowAllDayRow="false" OnClientTimeSlotClick="OnClientTimeSlotClick"
                                                        AllowEdit="False" DataKeyField="AppointmentId" DataDescriptionField="StatusColor"
                                                        OnTimeSlotContextMenuItemClicked="RadScheduler1_TimeSlotContextMenuItemClicked"
                                                        AllowDelete="false" OnAppointmentContextMenuItemClicked="RadScheduler1_AppointmentContextMenuItemClicked"
                                                        OnNavigationCommand="RadScheduler1_NavigationCommand" OnTimeSlotCreated="RadScheduler1_TimeSlotCreated"
                                                        OnClientAppointmentContextMenu="OnClientAppointmentContextMenu" AppointmentStyleMode="Default">
                                                        <AppointmentContextMenuSettings EnableDefault="true" />
                                                        <AdvancedForm Modal="true" />
                                                        <TimelineView UserSelectable="false" />
                                                        <AppointmentTemplate>
                                                           <%# Eval("Subject")%>
                                                            <asp:Label runat="server" ID="Teacher" />
                                                            <asp:Label runat="server" ID="Students" />
                                                        </AppointmentTemplate>

Still small in border width. What is the exact problem. If you saying ok in your reply to me then control property or event could be the  problem.
So please help me soon as possible.

Thanks

Jiten Mutum

[Princy]

Hi Jiten,

I could replicate the problem when the AppointmentStyleMode property of RadScheduler is set to Default. Please try setting the AppointmentStyleMode property of RadScheduler to Simple or Auto to set the BorderWidth for the Appointment.

Hope this helps.

Regards,
Princy.

[Sean]

Princy,

This helped me out, as well.

Thank you,
Sean
