Is chart styles override each other ?

4 posts, 0 answers
  1. Mohammed
    Mohammed avatar
    87 posts
    Member since:
    Aug 2011

    Posted 03 Mar 2013 Link to this post

    Dear team,
    I'm afraid to say I got crazy with the chart styles or its configuration in general.
    I try to study the documentation and make implementation to a sample static chart I created.

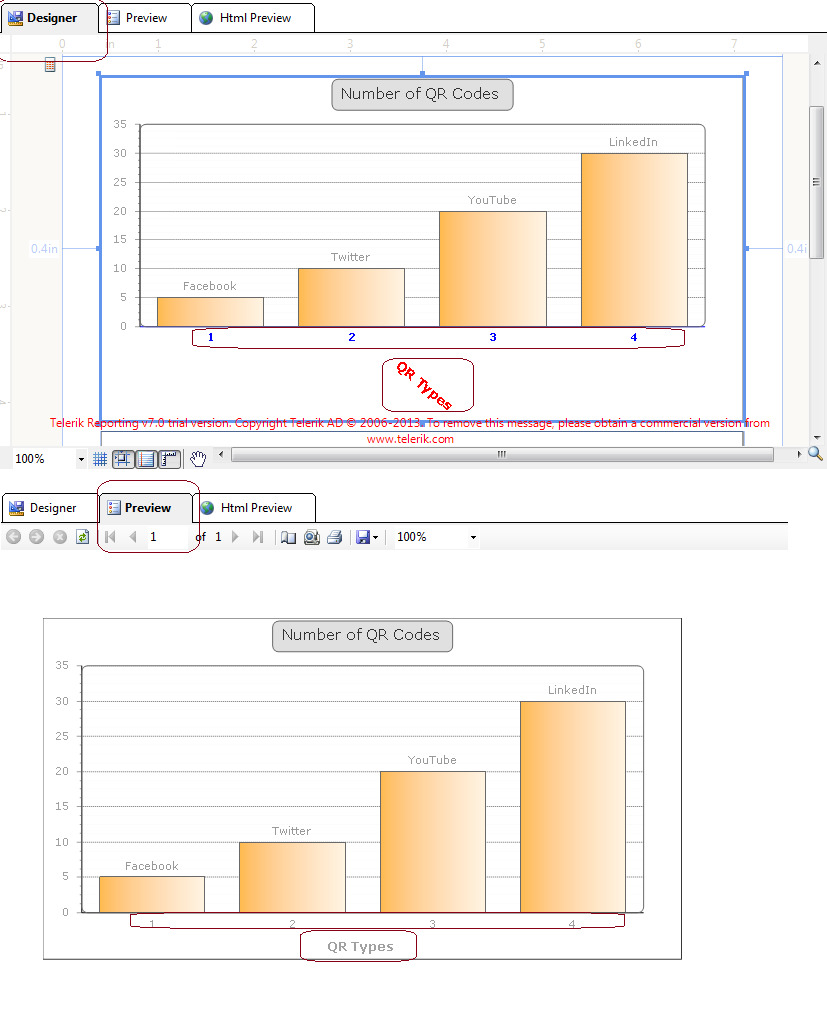

    I assigned a skin to the chart at the beginning and after that i tried to customize the styles according to what i read in the documentation but almost every time i don't see the updated styles.
    now I see in the design mode some of my styles but when I run it in the preview mode I can't see it "check the attached photo"
    is chart styles override each other ? and if yes how can i know what override what ?
    we are attending to buy the reporting tool but as you see I have troubles to understand the chart.
    Regards,
    Mohammed
  2. Mohammed
    Mohammed avatar
    87 posts
    Member since:
    Aug 2011

    Posted 03 Mar 2013 Link to this post

    this is the generated code behind for more details :

      #region Component Designer generated code
            /// <summary>
            /// Required method for telerik Reporting designer support - do not modify
            /// the contents of this method with the code editor.
            /// </summary>
            private void InitializeComponent() {
                Telerik.Reporting.Charting.Styles.Corners corners1 = new Telerik.Reporting.Charting.Styles.Corners();
                Telerik.Reporting.Charting.Styles.ChartMargins chartMargins1 = new Telerik.Reporting.Charting.Styles.ChartMargins();
                Telerik.Reporting.Charting.Styles.Corners corners2 = new Telerik.Reporting.Charting.Styles.Corners();
                Telerik.Reporting.Charting.ChartSeries chartSeries1 = new Telerik.Reporting.Charting.ChartSeries();
                Telerik.Reporting.Charting.ChartSeriesItem chartSeriesItem1 = new Telerik.Reporting.Charting.ChartSeriesItem();
                Telerik.Reporting.Charting.ChartSeriesItem chartSeriesItem2 = new Telerik.Reporting.Charting.ChartSeriesItem();
                Telerik.Reporting.Charting.ChartSeriesItem chartSeriesItem3 = new Telerik.Reporting.Charting.ChartSeriesItem();
                Telerik.Reporting.Charting.ChartSeriesItem chartSeriesItem4 = new Telerik.Reporting.Charting.ChartSeriesItem();
                Telerik.Reporting.Charting.ChartSeries chartSeries2 = new Telerik.Reporting.Charting.ChartSeries();
                Telerik.Reporting.Charting.ChartSeriesItem chartSeriesItem5 = new Telerik.Reporting.Charting.ChartSeriesItem();
                Telerik.Reporting.Charting.ChartSeriesItem chartSeriesItem6 = new Telerik.Reporting.Charting.ChartSeriesItem();
                Telerik.Reporting.Charting.ChartSeriesItem chartSeriesItem7 = new Telerik.Reporting.Charting.ChartSeriesItem();
                Telerik.Reporting.Charting.ChartSeriesItem chartSeriesItem8 = new Telerik.Reporting.Charting.ChartSeriesItem();
                System.ComponentModel.ComponentResourceManager resources = new System.ComponentModel.ComponentResourceManager(typeof(NumberOfQRCodesReport));
                Telerik.Reporting.Drawing.StyleRule styleRule1 = new Telerik.Reporting.Drawing.StyleRule();
                this.pageHeaderSection1 = new Telerik.Reporting.PageHeaderSection();
                this.detail = new Telerik.Reporting.DetailSection();
                this.chart1 = new Telerik.Reporting.Chart();
                this.chart2 = new Telerik.Reporting.Chart();
                this.sqlDataSource1 = new Telerik.Reporting.SqlDataSource();
                this.pageFooterSection1 = new Telerik.Reporting.PageFooterSection();
                ((System.ComponentModel.ISupportInitialize)(this)).BeginInit();
                //
                // pageHeaderSection1
                //
                this.pageHeaderSection1.Height = Telerik.Reporting.Drawing.Unit.Inch(0.3999999463558197D);
                this.pageHeaderSection1.Name = "pageHeaderSection1";
                //
                // detail
                //
                this.detail.Height = Telerik.Reporting.Drawing.Unit.Inch(7.6000003814697266D);
                this.detail.Items.AddRange(new Telerik.Reporting.ReportItemBase[] {
                this.chart1,
                this.chart2});
                this.detail.Name = "detail";
                //
                // chart1
                //
                this.chart1.AutoLayout = true;
                this.chart1.BitmapResolution = 96F;
                this.chart1.ChartTitle.Appearance.Border.Color = System.Drawing.Color.DimGray;
                corners1.BottomLeft = Telerik.Reporting.Charting.Styles.CornerType.Round;
                corners1.BottomRight = Telerik.Reporting.Charting.Styles.CornerType.Round;
                corners1.RoundSize = 6;
                corners1.TopLeft = Telerik.Reporting.Charting.Styles.CornerType.Round;
                corners1.TopRight = Telerik.Reporting.Charting.Styles.CornerType.Round;
                this.chart1.ChartTitle.Appearance.Corners = corners1;
                chartMargins1.Bottom = new Telerik.Reporting.Charting.Styles.Unit(14D, Telerik.Reporting.Charting.Styles.UnitType.Pixel);
                chartMargins1.Left = new Telerik.Reporting.Charting.Styles.Unit(0D, Telerik.Reporting.Charting.Styles.UnitType.Percentage);
                chartMargins1.Right = new Telerik.Reporting.Charting.Styles.Unit(10D, Telerik.Reporting.Charting.Styles.UnitType.Pixel);
                chartMargins1.Top = new Telerik.Reporting.Charting.Styles.Unit(4D, Telerik.Reporting.Charting.Styles.UnitType.Percentage);
                this.chart1.ChartTitle.Appearance.Dimensions.Margins = chartMargins1;
                this.chart1.ChartTitle.Appearance.FillStyle.GammaCorrection = false;
                this.chart1.ChartTitle.Appearance.FillStyle.MainColor = System.Drawing.Color.FromArgb(((int)(((byte)(224)))), ((int)(((byte)(224)))), ((int)(((byte)(224)))));
                this.chart1.ChartTitle.Appearance.Position.AlignedPosition = Telerik.Reporting.Charting.Styles.AlignedPositions.Top;
                this.chart1.ChartTitle.TextBlock.Appearance.TextProperties.Font = new System.Drawing.Font("Verdana", 11.25F);
                this.chart1.ChartTitle.TextBlock.Text = "Number of QR Codes";
                this.chart1.ImageFormat = System.Drawing.Imaging.ImageFormat.Emf;
                this.chart1.Legend.Appearance.Border.Color = System.Drawing.Color.DimGray;
                this.chart1.Legend.Appearance.ItemTextAppearance.TextProperties.Color = System.Drawing.Color.DimGray;
                this.chart1.Legend.Appearance.Visible = false;
                this.chart1.Legend.Visible = false;
                this.chart1.Location = new Telerik.Reporting.Drawing.PointU(Telerik.Reporting.Drawing.Unit.Inch(0.40000000596046448D), Telerik.Reporting.Drawing.Unit.Inch(0.20000012218952179D));
                this.chart1.Name = "chart1";
                this.chart1.PlotArea.Appearance.Border.Color = System.Drawing.Color.DimGray;
                corners2.BottomLeft = Telerik.Reporting.Charting.Styles.CornerType.Round;
                corners2.BottomRight = Telerik.Reporting.Charting.Styles.CornerType.Round;
                corners2.RoundSize = 6;
                corners2.TopLeft = Telerik.Reporting.Charting.Styles.CornerType.Round;
                corners2.TopRight = Telerik.Reporting.Charting.Styles.CornerType.Round;
                this.chart1.PlotArea.Appearance.Corners = corners2;
                this.chart1.PlotArea.Appearance.FillStyle.FillType = Telerik.Reporting.Charting.Styles.FillType.Solid;
                this.chart1.PlotArea.Appearance.FillStyle.MainColor = System.Drawing.Color.White;
                this.chart1.PlotArea.XAxis.Appearance.Color = System.Drawing.Color.Blue;
                this.chart1.PlotArea.XAxis.Appearance.LabelAppearance.Position.AlignedPosition = Telerik.Reporting.Charting.Styles.AlignedPositions.Center;
                this.chart1.PlotArea.XAxis.Appearance.MajorGridLines.Color = System.Drawing.Color.DimGray;
                this.chart1.PlotArea.XAxis.Appearance.MajorGridLines.Width = 0F;
                this.chart1.PlotArea.XAxis.Appearance.MajorTick.Visible = false;
                this.chart1.PlotArea.XAxis.Appearance.TextAppearance.TextProperties.Color = System.Drawing.Color.Blue;
                this.chart1.PlotArea.XAxis.Appearance.TextAppearance.TextProperties.Font = new System.Drawing.Font("Verdana", 8.25F, System.Drawing.FontStyle.Bold);
                this.chart1.PlotArea.XAxis.AxisLabel.Appearance.RotationAngle = 40F;
                this.chart1.PlotArea.XAxis.AxisLabel.Appearance.Visible = true;
                this.chart1.PlotArea.XAxis.AxisLabel.TextBlock.Appearance.Position.AlignedPosition = Telerik.Reporting.Charting.Styles.AlignedPositions.Right;
                this.chart1.PlotArea.XAxis.AxisLabel.TextBlock.Appearance.TextProperties.Color = System.Drawing.Color.Red;
                this.chart1.PlotArea.XAxis.AxisLabel.TextBlock.Appearance.TextProperties.Font = new System.Drawing.Font("Verdana", 9.75F, System.Drawing.FontStyle.Bold);
                this.chart1.PlotArea.XAxis.AxisLabel.TextBlock.Text = "QR Types";
                this.chart1.PlotArea.XAxis.AxisLabel.Visible = true;
                this.chart1.PlotArea.XAxis.MaxValue = 4D;
                this.chart1.PlotArea.XAxis.MinValue = 1D;
                this.chart1.PlotArea.YAxis.Appearance.MajorGridLines.Color = System.Drawing.Color.DimGray;
                this.chart1.PlotArea.YAxis.AxisLabel.TextBlock.Appearance.TextProperties.Font = new System.Drawing.Font("Verdana", 9.75F, System.Drawing.FontStyle.Bold);
                this.chart1.PlotArea.YAxis.AxisLabel.TextBlock.Text = "# of Creation";
                this.chart1.PlotArea.YAxis.AxisMode = Telerik.Reporting.Charting.ChartYAxisMode.Extended;
                this.chart1.PlotArea.YAxis.MaxValue = 35D;
                this.chart1.PlotArea.YAxis.Step = 5D;
                this.chart1.PlotArea.YAxis2.AxisLabel.TextBlock.Appearance.TextProperties.Font = new System.Drawing.Font("Verdana", 9.75F, System.Drawing.FontStyle.Bold);
                chartSeries1.Appearance.Border.Color = System.Drawing.Color.DimGray;
                chartSeries1.Appearance.FillStyle.MainColor = System.Drawing.Color.FromArgb(((int)(((byte)(255)))), ((int)(((byte)(186)))), ((int)(((byte)(74)))));
                chartSeries1.Appearance.FillStyle.SecondColor = System.Drawing.Color.FromArgb(((int)(((byte)(255)))), ((int)(((byte)(244)))), ((int)(((byte)(227)))));
                chartSeries1.DefaultLabelValue = "#ITEM";
                chartSeriesItem1.Name = "Facebook";
                chartSeriesItem1.YValue = 5D;
                chartSeriesItem2.Name = "Twitter";
                chartSeriesItem2.YValue = 10D;
                chartSeriesItem3.Name = "YouTube";
                chartSeriesItem3.YValue = 20D;
                chartSeriesItem4.Name = "LinkedIn";
                chartSeriesItem4.YValue = 30D;
                chartSeries1.Items.AddRange(new Telerik.Reporting.Charting.ChartSeriesItem[] {
                chartSeriesItem1,
                chartSeriesItem2,
                chartSeriesItem3,
                chartSeriesItem4});
                chartSeries1.Name = "QR Codes Types";
                this.chart1.Series.AddRange(new Telerik.Reporting.Charting.ChartSeries[] {
                chartSeries1});
                this.chart1.Size = new Telerik.Reporting.Drawing.SizeU(Telerik.Reporting.Drawing.Unit.Inch(6.7000007629394531D), Telerik.Reporting.Drawing.Unit.Inch(3.5999212265014648D));
                this.chart1.Skin = "Colorful";
                //
                // chart2
                //
                this.chart2.BitmapResolution = 96F;
                this.chart2.ChartTitle.TextBlock.Text = "QR Codes";
                this.chart2.DefaultType = Telerik.Reporting.Charting.ChartSeriesType.Pie;
                this.chart2.ImageFormat = System.Drawing.Imaging.ImageFormat.Emf;
                this.chart2.Location = new Telerik.Reporting.Drawing.PointU(Telerik.Reporting.Drawing.Unit.Inch(0.3999999463558197D), Telerik.Reporting.Drawing.Unit.Inch(3.9000003337860107D));
                this.chart2.Name = "chart2";
                this.chart2.PlotArea.XAxis.Appearance.MajorGridLines.PenStyle = System.Drawing.Drawing2D.DashStyle.DashDotDot;
                this.chart2.PlotArea.XAxis.Appearance.MajorTick.Visible = false;
                this.chart2.PlotArea.XAxis.MaxValue = 4D;
                this.chart2.PlotArea.XAxis.MinValue = 1D;
                this.chart2.PlotArea.YAxis.Appearance.MajorTick.Visible = false;
                this.chart2.PlotArea.YAxis.Appearance.MinorTick.Visible = false;
                chartSeries2.DefaultLabelValue = "#ITEM - (#Y)";
                chartSeriesItem5.Appearance.Exploded = true;
                chartSeriesItem5.Name = "Facebook";
                chartSeriesItem5.YValue = 20D;
                chartSeriesItem6.Name = "Twitter";
                chartSeriesItem6.YValue = 30D;
                chartSeriesItem7.Name = "YouTube";
                chartSeriesItem7.YValue = 60D;
                chartSeriesItem8.Name = "LinkedIn";
                chartSeriesItem8.YValue = 20D;
                chartSeries2.Items.AddRange(new Telerik.Reporting.Charting.ChartSeriesItem[] {
                chartSeriesItem5,
                chartSeriesItem6,
                chartSeriesItem7,
                chartSeriesItem8});
                chartSeries2.Name = "QR Codes";
                chartSeries2.Type = Telerik.Reporting.Charting.ChartSeriesType.Pie;
                this.chart2.Series.AddRange(new Telerik.Reporting.Charting.ChartSeries[] {
                chartSeries2});
                this.chart2.Size = new Telerik.Reporting.Drawing.SizeU(Telerik.Reporting.Drawing.Unit.Inch(6.7000007629394531D), Telerik.Reporting.Drawing.Unit.Inch(3.5D));
                //
                // sqlDataSource1
                //
                this.sqlDataSource1.ConnectionString = "Bartizan.LeadsLightning.Reports.Properties.Settings.lldn";
                this.sqlDataSource1.Name = "sqlDataSource1";
                this.sqlDataSource1.SelectCommand = resources.GetString("sqlDataSource1.SelectCommand");
                //
                // pageFooterSection1
                //
                this.pageFooterSection1.Height = Telerik.Reporting.Drawing.Unit.Inch(0.40000024437904358D);
                this.pageFooterSection1.Name = "pageFooterSection1";
                //
                // NumberOfQRCodesReport
                //
                this.DataSource = null;
                this.Items.AddRange(new Telerik.Reporting.ReportItemBase[] {
                this.pageHeaderSection1,
                this.detail,
                this.pageFooterSection1});
                this.Name = "NumberOfQRCodesReport";
                this.PageSettings.Landscape = true;
                this.PageSettings.Margins = new Telerik.Reporting.Drawing.MarginsU(Telerik.Reporting.Drawing.Unit.Inch(1D), Telerik.Reporting.Drawing.Unit.Inch(1D), Telerik.Reporting.Drawing.Unit.Inch(1D), Telerik.Reporting.Drawing.Unit.Inch(1D));
                this.PageSettings.PaperKind = System.Drawing.Printing.PaperKind.A4;
                this.Style.BackgroundColor = System.Drawing.Color.White;
                styleRule1.Selectors.AddRange(new Telerik.Reporting.Drawing.ISelector[] {
                new Telerik.Reporting.Drawing.TypeSelector(typeof(Telerik.Reporting.TextItemBase)),
                new Telerik.Reporting.Drawing.TypeSelector(typeof(Telerik.Reporting.HtmlTextBox))});
                styleRule1.Style.Padding.Left = Telerik.Reporting.Drawing.Unit.Point(2D);
                styleRule1.Style.Padding.Right = Telerik.Reporting.Drawing.Unit.Point(2D);
                this.StyleSheet.AddRange(new Telerik.Reporting.Drawing.StyleRule[] {
                styleRule1});
                this.Width = Telerik.Reporting.Drawing.Unit.Inch(7.5D);
                ((System.ComponentModel.ISupportInitialize)(this)).EndInit();

            }
            #endregion
  3. DevCraft banner
  4. Hadib Ahmabi
    Hadib Ahmabi avatar
    181 posts
    Member since:
    Nov 2011

    Posted 04 Mar 2013 Link to this post

    When you use chart skin, it overrides all the properties that the skin itself sets. If you want to use a skin and work on top of it, you should do it programmatically in the report constructor (after the skins has actually been applied).
  5. Mohammed
    Mohammed avatar
    87 posts
    Member since:
    Aug 2011

    Posted 04 Mar 2013 Link to this post

    aha no i see
    thanks very much.
    Regards,
    Mohammed
Back to Top
