This is a migrated thread and some comments may be shown as answers.

insert update delete rdgrid

25 Answers 172 Views

Grid

This is a migrated thread and some comments may be shown as answers.

25 Answers, 1 is accepted

answered on 28 Apr 2014, 06:02 AM

Hi Rajeswari,

I guess you have three RadComboBox in the edit mode of the RadGrid, and on one RadComboBox selection change you want to change the control of another RadComboBox. Please have a look at the following code snippet.

ASPX:

<Columns>

<telerik:GridTemplateColumn HeaderText="ComboBox1" Display="false">

<EditItemTemplate>

<telerik:RadComboBox runat="server" ID="RadComboBox1" EmptyMessage="Select" AutoPostBack="true" OnSelectedIndexChanged="RadComboBox1_SelectedIndexChanged">

<Items>

<telerik:RadComboBoxItem Text="Nearest" Value="1" />

<telerik:RadComboBoxItem Text="Top" Value="2" />

<telerik:RadComboBoxItem Text="Others" Value="3" />

</Items>

</telerik:RadComboBox>

</EditItemTemplate>

</telerik:GridTemplateColumn>

<telerik:GridTemplateColumn HeaderText="ComboBox2" Display="false">

<EditItemTemplate>

<telerik:RadComboBox runat="server" ID="RadComboBox2" EmptyMessage="Select">

<Items>

<telerik:RadComboBoxItem Text="1" Value="1" />

<telerik:RadComboBoxItem Text="2" Value="2" />

<telerik:RadComboBoxItem Text="3" Value="3" />

<telerik:RadComboBoxItem Text="4" Value="4" />

</Items>

</telerik:RadComboBox>

</EditItemTemplate>

</telerik:GridTemplateColumn>

<telerik:GridTemplateColumn HeaderText="ComboBox3" Display="false">

<EditItemTemplate>

<telerik:RadComboBox runat="server" ID="RadComboBox3" EmptyMessage="Select">

<Items>

<telerik:RadComboBoxItem Text="Yes" Value="1" />

<telerik:RadComboBoxItem Text="No" Value="0" />

</Items>

</telerik:RadComboBox>

</EditItemTemplate>

</telerik:GridTemplateColumn>

</Columns>

C#:

protected void RadComboBox1_SelectedIndexChanged(object sender, RadComboBoxSelectedIndexChangedEventArgs e)

{

RadComboBox combo1 = (RadComboBox)sender;

GridEditableItem editItem = (GridEditableItem)combo1.NamingContainer;

string selectedText = combo1.SelectedItem.Text;

RadComboBox combo2 = (RadComboBox)editItem.FindControl("RadComboBox2");

if (selectedText == "Nearest")

{

combo2.Visible = false;

TextBox textbox = new TextBox();

textbox.ID = "TextBox1";

combo2.Parent.Controls.Add(textbox);

}

else if (selectedText == "Top")

{

combo2.Visible = false;

RadNumericTextBox radnumerictextbox = new RadNumericTextBox();

radnumerictextbox.ID = "RadNumericTextBox";

combo2.Parent.Controls.Add(radnumerictextbox);

}

else

{

combo2.Visible = true;

}

Please elaborate on your requirement if this doesn't help, and provide your code snippet as well.
Thanks,
Princy

answered on 28 Apr 2014, 06:29 PM


Hi Princy

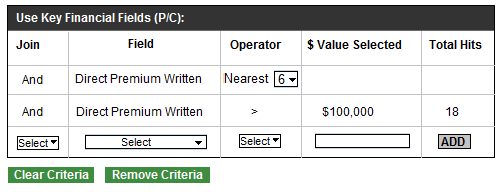

Thanks for your reply. I am showing the grid when one of the option button is selected on the page. I want to show the grid in editmode with the comboboxes when the grid first time loaded. The grid is will not be associated with any data table. I am binding with empty datatable for the grid to appear. I am able to display the combo boxes when the grid loaded first time I am doing it in grid prerender event lke this. I also populate the 3 comboboxes in the code behind grids onitemdatabound event. When the grid loaded for the first time , I want to show only insert text in Gridedicommandbutton . I dont want to show Update text. I am not able to do this. How do I poipulate the grid with Radcomboiboxes selected values. Also if one of the combos selected value is "nearest" Grids column should have numeric text box .. If the user select insert or update button I will have to add grids column values to the where clause of the sql to populate total hits column of the grid.I am attaching the aspx and code
<telerik:RadGrid ID="gridkeyfin" AutoGenerateColumns="false" runat="server"

Skin="Default" Width="100%" Height="100px" AllowAutomaticInserts="true" OnItemDataBound="Onitemdataboundhandler" AllowAutomaticUpdates="true" AllowAutomaticDeletes="false" AutoGenerateEditButton="true">
<MasterTableView TableLayout="Fixed" BorderWidth="0" EditMode="InPlace"
runat="server"
ShowHeadersWhenNoRecords="true" AutoGenerateColumns="false" >
<Columns>
<telerik:GridTemplateColumn UniqueName="coljoin" HeaderText="Join">
<HeaderStyle Width="10%" Font-Bold="true" BackColor="#d6d3ce"></HeaderStyle>
<ItemTemplate>
<asp:Label ID="lJoin" Text="" Style="text-align: center;" runat="server" Width="10%" />
</ItemTemplate>
<EditItemTemplate>
<telerik:RadComboBox Height="100px" Width="60px" ID="cmbjoin" Autopostback="true" runat="server">

</telerik:RadComboBox></EditItemTemplate>
</telerik:GridTemplateColumn>
<telerik:GridTemplateColumn UniqueName="Colfield" HeaderText="Field">
<HeaderStyle Width="30%" Font-Bold="true" BackColor="#d6d3ce"></HeaderStyle>
<ItemTemplate>
<asp:Label ID="lField" Text="" Style="text-align: center;" runat="server" Width="30%" />
</ItemTemplate>
<EditItemTemplate>
<telerik:RadComboBox Height="80px" Width="180px" Autopostback="true" ID="cmbField" runat="server">

</telerik:RadComboBox></EditItemTemplate>
</telerik:GridTemplateColumn>
<telerik:GridTemplateColumn UniqueName="Coloperator" HeaderText="Operator">
<HeaderStyle Width="15%" Font-Bold="true" BackColor="#d6d3ce"></HeaderStyle>

<EditItemTemplate>
<telerik:RadComboBox Height="100px" Width="80px" AutoPostBack="true" ID="cmboperator"
runat="server">
</telerik:RadComboBox>
</EditItemTemplate>
</telerik:GridTemplateColumn>

<telerik:GridTemplateColumn UniqueName="Colvalue" HeaderText="$ Value Selected">
<HeaderStyle Width="20%" Font-Bold="true" BackColor="#d6d3ce"></HeaderStyle>
<ItemTemplate>
<telerik:RadTextBox ID="txtvalue" runat="Server" AutoPostBack="true">
</telerik:RadTextBox></ItemTemplate>
</telerik:GridTemplateColumn>

<telerik:GridTemplateColumn UniqueName="ColHits" HeaderText="Total Hits" >
<HeaderStyle Width="10%" Font-Bold="true" BackColor="#d6d3ce"></HeaderStyle>
<ItemTemplate>
<asp:Label ID="lhits" Text="" Style="text-align: center;" runat="server" Width="15%" />
</ItemTemplate>
</telerik:GridTemplateColumn>
<telerik:GridRowIndicatorColumn runat="server"></telerik:GridRowIndicatorColumn>
<telerik:GridEditCommandColumn ItemStyle-Width="200px" EditText="ADD" HeaderStyle-Font-Bold="true" UniqueName="EditCommandColumn"
HeaderText="ADD" HeaderStyle-BackColor="#d6d3ce" UpdateText="Insert" HeaderStyle-Height="15px" CancelText="Cancel" ButtonType="linkbutton" HeaderButtonType="TextButton"
HeaderStyle-Width="10px">
</telerik:GridEditCommandColumn>

</Columns>

</MasterTableView>
</telerik:RadGrid>
Private Sub gridkeyfin_PreRender(sender As Object, e As System.EventArgs) Handles gridkeyfin.PreRender
For Each Item As GridItem In gridkeyfin.MasterTableView.Items
If TypeOf Item Is GridEditableItem Then
Dim editableitem As GridEditableItem = CType(Item, GridDataItem)
editableitem.Edit = True
End If
Next
gridkeyfin.Rebind()
End Sub

.

answered on 29 Apr 2014, 06:29 AM

Hi Rajeswari,

Please take a look at the below code snippet. I guess you want to hide the EditColumn first and make the grid in InsertMode. Please set the CommandItemDisplay property of the MasterTableView and try the following.

ASPX:

<MasterTableView CommandItemDisplay="Top">

VB:

Shared isSelected As Boolean = False

Protected Sub gridkeyfin_ItemDataBound(sender As Object, e As GridItemEventArgs)

' Hide the editcolumn

If TypeOf e.Item Is GridDataItem Then

Dim item As GridDataItem = DirectCast(e.Item, GridDataItem)

Dim editButton As LinkButton = DirectCast(item("EditCommandColumn").Controls(0), LinkButton)

editButton.Visible = False

End If

If TypeOf e.Item Is GridEditableItem AndAlso e.Item.IsInEditMode Then

Dim editItem As GridEditableItem = DirectCast(e.Item, GridEditableItem)

Dim comboBoxcmbjoin As RadComboBox = DirectCast(editItem.FindControl("cmbjoin"), RadComboBox)

'Bind the RadComboBox here

'set the selectedtext here

comboBoxcmbjoin.SelectedValue = "SomeValue"

End If

End Sub

Protected Sub gridkeyfin_PreRender(sender As Object, e As EventArgs)

'Show the grid in insert mode

If Not IsPostBack Then

gridkeyfin.MasterTableView.IsItemInserted = True

gridkeyfin.Rebind()

End If

End Sub

Protected Sub cmbjoin_SelectedIndexChanged(sender As Object, e As RadComboBoxSelectedIndexChangedEventArgs)

isSelected = True

Dim cmbjoin As RadComboBox = DirectCast(sender, RadComboBox)

Dim editItem As GridEditableItem = DirectCast(cmbjoin.NamingContainer, GridEditableItem)

Dim selectedText As String = cmbjoin.SelectedItem.Text

Dim cmbField As RadComboBox = DirectCast(editItem.FindControl("cmbField"), RadComboBox)

'Access other fields similarly

If selectedText = "Nearest" Then

isSelected = True

cmbField.Visible = False

'set the RadNumericTextBox for combobox

Dim radnumerictextbox As New RadNumericTextBox()

radnumerictextbox.ID = "RadNumericTextBox"

'similarly add for all the controls you need

cmbField.Parent.Controls.Add(radnumerictextbox)

Else

cmbField.Visible = True

End If

End Sub

Protected Sub gridkeyfin_UpdateCommand(sender As Object, e As GridCommandEventArgs)

'Access the edit form for manual operation

Dim editItem As GridEditableItem = DirectCast(e.Item, GridEditableItem)

Dim cmbField As RadComboBox = DirectCast(editItem.FindControl("cmbjoin"), RadComboBox)

Dim num As RadNumericTextBox = DirectCast(editItem.FindControl("RadNumericTextBox"), RadNumericTextBox)

End Sub

Protected Sub gridkeyfin_ItemCreated(sender As Object, e As GridItemEventArgs)

If TypeOf e.Item Is GridEditableItem AndAlso e.Item.IsInEditMode AndAlso isSelected Then

Dim editItem As GridEditableItem = DirectCast(e.Item, GridEditableItem)

Dim cmbjoin As RadComboBox = DirectCast(editItem.FindControl("cmbjoin"), RadComboBox)

Dim cmbField As RadComboBox = DirectCast(editItem.FindControl("cmbField"), RadComboBox)

If cmbjoin.SelectedItem.Text = "Nearest" Then

cmbField.Visible = False

Dim radnumerictextbox As New RadNumericTextBox()

radnumerictextbox.ID = "RadNumericTextBox"

cmbField.Parent.Controls.Add(radnumerictextbox)

End If

End Sub

Please not that you cannot combine manual and automatic CRUD operations.Please take a look at this demo to know about the operations:
Grid - Automatic Operations and Grid - Manual CRUD Operations

Thanks,
Princy

answered on 30 Apr 2014, 08:47 PM

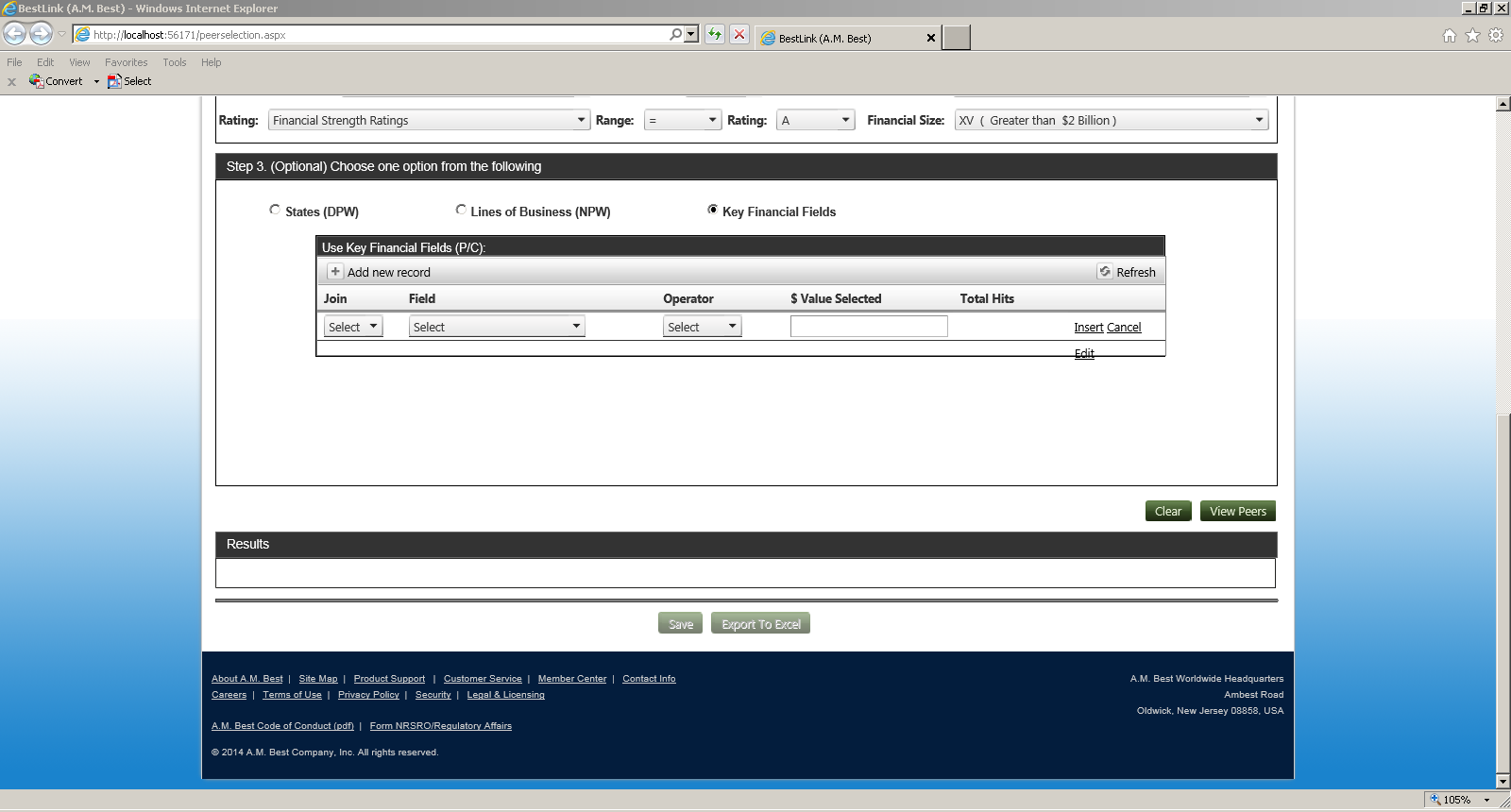

Hi Princy ,Thanks for your update. After your suggestions I updated the code . I made the grid to insert mode pre render and also made the edit form button visible to false in item databound. But now when the grid is loaded I am seeing all the comboboxes in the Gridtemplatecolumn( in edititemtemplate ). I am also seeing the Cancel button. My requirement is to have Add or Insert button when the grid loaded first with the combos , So user can select values and click on insert , I should populate grid rows with the selected values . The grid should populate with the values selected from the Gridtemplate column edititemplate only. I have to update the itemtemplate with the selected values. The Grids rows values should have to be a search citeria . I want to make sure , if i am using the right column types for the grid. If click on cancel or change the values in combobox , the grid disappears. Do i have to add selectedindexchanged function for each combo in the grid.

answered on 02 May 2014, 05:37 AM

Hi Rajeswari,

I guess initially you want to display a empty grid with Insert form open. The values inserted should be then shown in the grid rows along with edit and delete columns. Make sure that you bind the Grid using the NeedDataSource event so that it retains on postbacks. Please take a look at the sample code snippet given below. Let me know if any concern.

ASPX:

<telerik:RadGrid ID="RadGrid1" runat="server" AutoGenerateColumns="false" AutoGenerateEditColumn="true" AutoGenerateDeleteColumn="true" OnDeleteCommand="RadGrid1_DeleteCommand" OnInsertCommand="RadGrid1_InsertCommand" OnNeedDataSource="RadGrid1_NeedDataSource" OnUpdateCommand="RadGrid1_UpdateCommand" OnItemCreated="RadGrid1_ItemCreated" OnPreRender="RadGrid1_PreRender" OnItemDataBound="RadGrid1_ItemDataBound">

<MasterTableView CommandItemDisplay="Top" DataKeyNames="Id">

<Columns>

<telerik:GridBoundColumn UniqueName="Id" DataField="Id" HeaderText="Id">

</telerik:GridBoundColumn>

<telerik:GridTemplateColumn UniqueName="Name" HeaderText="Name" DataField="Name">

<ItemTemplate>

<asp:Label ID="lblName" runat="server" Text='<%# Eval("Name") %>' />

</ItemTemplate>

<EditItemTemplate>

<telerik:RadComboBox ID="cmbName" AutoPostBack="true" AppendDataBoundItems="true" runat="server" OnSelectedIndexChanged="cmbName_SelectedIndexChanged">

<Items>

<telerik:RadComboBoxItem Text="Select" Value="" />

<telerik:RadComboBoxItem Text="Nearest" Value="1" />

<telerik:RadComboBoxItem Text="Top" Value="2" />

<telerik:RadComboBoxItem Text="Others" Value="3" />

</Items>

</telerik:RadComboBox>

</EditItemTemplate>

</telerik:GridTemplateColumn>

<telerik:GridTemplateColumn UniqueName="Country" HeaderText="Country" DataField="Country">

<ItemTemplate>

<asp:Label ID="lblCountry" runat="server" Text='<%# Eval("Country") %>' />

</ItemTemplate>

<EditItemTemplate>

<telerik:RadComboBox ID="cmbCountry" runat="server" AllowCustomText="true" AppendDataBoundItems="true"

EmptyMessage="Select">

</telerik:RadComboBox>

</EditItemTemplate>

</telerik:GridTemplateColumn>

<telerik:GridTemplateColumn UniqueName="ExamID" HeaderText="ExamID" DataField="ExamID">

<ItemTemplate>

<asp:Label ID="lblExamID" runat="server" Text='<%# Eval("ExamID") %>' />

</ItemTemplate>

<EditItemTemplate>

<telerik:RadComboBox ID="cmbExamID" runat="server" AllowCustomText="true" AppendDataBoundItems="true">

</telerik:RadComboBox>

</EditItemTemplate>

</telerik:GridTemplateColumn>

</Columns>

</MasterTableView>

</telerik:RadGrid>

<asp:SqlDataSource ID="SqlDataSource1" runat="server" ConnectionString="<%$ ConnectionStrings:ConnectionString %>"

SelectCommand="SELECT distinct [Name] FROM [Test]"></asp:SqlDataSource>

<asp:SqlDataSource ID="SqlDataSource2" runat="server" ConnectionString="<%$ ConnectionStrings:ConnectionString %>"

SelectCommand="SELECT distinct [Country] FROM [Test]"></asp:SqlDataSource>

<asp:SqlDataSource ID="SqlDataSource3" runat="server" ConnectionString="<%$ ConnectionStrings:ConnectionString %>"

SelectCommand="SELECT distinct [ExamID] FROM [Test]"></asp:SqlDataSource>

C#:

public static DataTable dtTable;

static bool isSelected = false;

SqlConnection SqlConnection = new SqlConnection(ConfigurationManager.ConnectionStrings["ConnectionString"].ConnectionString);

public SqlDataAdapter SqlDataAdapter = new SqlDataAdapter();

public SqlCommand SqlCommand = new SqlCommand();

protected void Page_Load(object sender, EventArgs e)

{

if (!IsPostBack)

{

RadGrid1.DataSource = new int[] { };

}

protected void RadGrid1_NeedDataSource(object sender, Telerik.Web.UI.GridNeedDataSourceEventArgs e)

{

dtTable = new DataTable();

SqlConnection.Open();

try

{

//Select Query to populate the RadGrid with data from table Employees.

string selectQuery = "SELECT * FROM Test";

SqlDataAdapter.SelectCommand = new SqlCommand(selectQuery, SqlConnection);

SqlDataAdapter.Fill(dtTable);

RadGrid1.DataSource = dtTable;

}

finally

{

SqlConnection.Close();

}

protected void RadGrid1_InsertCommand(object sender, Telerik.Web.UI.GridCommandEventArgs e)

{

int Id;

string Name, Country, ExamID, insertQuery;

GridEditFormInsertItem insertedItem = (GridEditFormInsertItem)e.Item;

Id = Convert.ToInt16((insertedItem["Id"].Controls[0] as TextBox).Text);

RadComboBox cmbName = (RadComboBox)insertedItem.FindControl("cmbName");

Name = cmbName.SelectedItem.Text;

RadComboBox cmbCountry = (RadComboBox)insertedItem.FindControl("cmbCountry");

Country = cmbCountry.Text;

if (isSelected)

{

RadNumericTextBox numtxtExamID = (RadNumericTextBox)insertedItem.FindControl("radnumtxtExamID");

ExamID = numtxtExamID.Text;

}

else

{

RadComboBox cmbExamID = (RadComboBox)insertedItem.FindControl("cmbExamID");

ExamID = cmbExamID.Text;

}

try

{

//Open the SqlConnection

SqlConnection.Open();

//Update Query to insert into the database

insertQuery = "INSERT into Test(Id,Name,Country,ExamID) values('" + Id + "','" + Name + "','" + Country + "','" + ExamID + "')";

SqlCommand.CommandText = insertQuery;

SqlCommand.Connection = SqlConnection;

SqlCommand.ExecuteNonQuery();

//Close the SqlConnection

SqlConnection.Close();

}

catch (Exception ex)

{

RadGrid1.Controls.Add(new LiteralControl("Unable to insert Data. Reason: " + ex.Message));

e.Canceled = true;

}

protected void RadGrid1_UpdateCommand(object sender, Telerik.Web.UI.GridCommandEventArgs e)

{

//Code to update

//similar to Insert

}

protected void RadGrid1_DeleteCommand(object sender, Telerik.Web.UI.GridCommandEventArgs e)

{

string Id, deleteQuery;

GridDataItem dataItem = (GridDataItem)e.Item;

Id = dataItem.GetDataKeyValue("Id").ToString();

try

{

//Open the SqlConnection

SqlConnection.Open();

//Update Query to insert into the database

deleteQuery = "DELETE FROM Test WHERE Id='" + Id + "'";

SqlCommand.CommandText = deleteQuery;

SqlCommand.Connection = SqlConnection;

SqlCommand.ExecuteNonQuery();

//Close the SqlConnection

SqlConnection.Close();

}

catch (Exception ex)

{

RadGrid1.Controls.Add(new LiteralControl("Unable to Delete Data. Reason: " + ex.Message));

e.Canceled = true;

}

protected void cmbName_SelectedIndexChanged(object sender, RadComboBoxSelectedIndexChangedEventArgs e)

{

RadComboBox cmbName = (RadComboBox)sender;

GridEditableItem editItem = (GridEditableItem)cmbName.NamingContainer;

string selectedText = cmbName.SelectedItem.Text;

RadComboBox cmbExamID = (RadComboBox)editItem.FindControl("cmbExamID");

if (selectedText == "Nearest")

{

isSelected = true;

cmbExamID.Visible = false;

//set the RadNumericTextBox for combobox

RadNumericTextBox radnumerictextbox = new RadNumericTextBox();

radnumerictextbox.ID = "radnumtxtExamID";

cmbExamID.Parent.Controls.Add(radnumerictextbox);

}

else

{

cmbExamID.Visible = true;

}

protected void RadGrid1_ItemCreated(object sender, GridItemEventArgs e)

{

if (e.Item is GridEditableItem && e.Item.IsInEditMode && isSelected)

{

GridEditableItem editItem = (GridEditableItem)e.Item;

RadComboBox cmbName = (RadComboBox)editItem.FindControl("cmbName");

RadComboBox cmbExamID = (RadComboBox)editItem.FindControl("cmbExamID");

if (cmbName.SelectedItem.Text == "Nearest")

{

cmbExamID.Visible = false;

RadNumericTextBox radnumerictextbox = new RadNumericTextBox();

radnumerictextbox.ID = "radnumtxtExamID";

cmbExamID.Parent.Controls.Add(radnumerictextbox);

}

protected void RadGrid1_PreRender(object sender, EventArgs e)

{

if (!IsPostBack)

{

RadGrid1.MasterTableView.IsItemInserted = true;

RadGrid1.Rebind();

}

protected void RadGrid1_ItemDataBound(object sender, GridItemEventArgs e)

{

if (e.Item.IsInEditMode && e.Item is GridEditableItem && !e.Item.OwnerTableView.IsItemInserted)

{

GridEditableItem editItem = (GridEditableItem)e.Item;

RadComboBox cmbName = (RadComboBox)editItem.FindControl("cmbName");

RadComboBox cmbExamID = (RadComboBox)editItem.FindControl("cmbExamID");

RadComboBox cmbCountry = (RadComboBox)editItem.FindControl("cmbCountry");

cmbName.DataSourceID = "SqlDataSource1";

cmbName.DataTextField = "Name";

cmbName.DataValueField = "Name";

cmbCountry.DataSourceID = "SqlDataSource2";

cmbCountry.DataValueField = "Country";

cmbCountry.DataTextField = "Country";

cmbExamID.DataSourceID = "SqlDataSource3";

cmbExamID.DataTextField = "ExamID";

cmbExamID.DataValueField = "ExamID";

// To set the selected value in edit mode

cmbName.SelectedValue = DataBinder.Eval(editItem.DataItem, "Name").ToString();

cmbCountry.SelectedValue = DataBinder.Eval(editItem.DataItem, "Country").ToString();

cmbExamID.SelectedValue = DataBinder.Eval(editItem.DataItem, "ExamID").ToString();

}

Thanks,
Princy

answered on 05 May 2014, 05:30 PM


Hi Princy

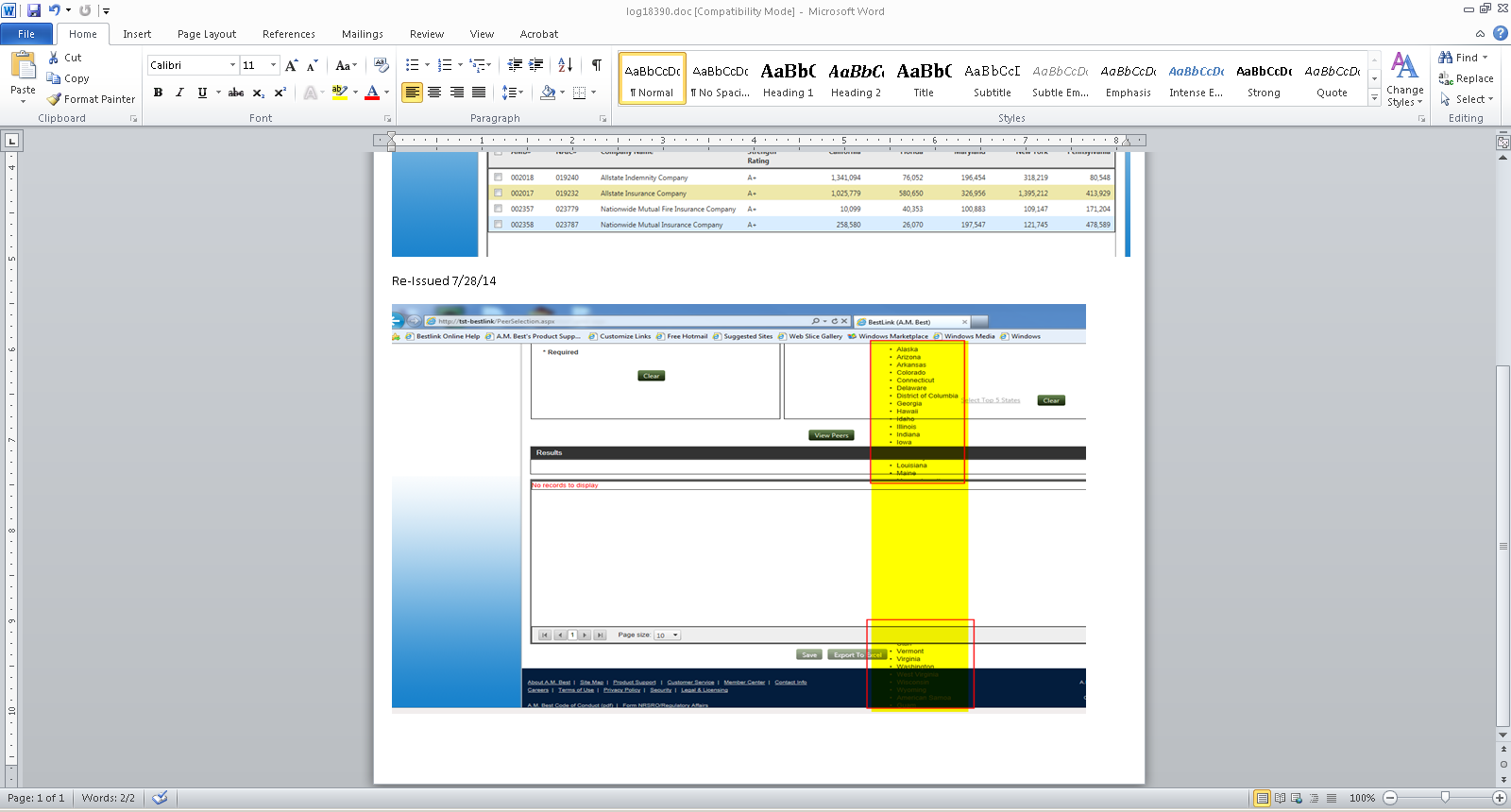

Thanks. I think I made you confused , I attached a picture , when the grid loads , i want to show the grid as in attachment , I made it editmode inplace. I dont want to show the editform . I dont have any datatable with rows. Once the user change the selection in the radcomboboboxes in in edititemtemplate and click on insert link , I have to add a row to the datatable and displayed it in the grid cells. When i set it in edit mode , i also see another edit button below insert/cancel , I dont know why that is showing . On Prerender, i added code like this as you suggested gridkeyfin.MasterTableView.IsItemInserted = True gridkeyfin.Rebind(). I have selected index changed event for all the combos , When i changed the values , i want retain the values for all the combos anc click on insert i should be adding the row to the in memory table and populate the grid. I hope you understood my specifications. If you look at the attachment , you will understand. ,
Thanks
Rajeswari

answered on 11 May 2014, 02:13 PM

Hi Princy,
I have this grid inside the asp panel which is not visible in the page load. I am making the asp panel visible in the option button changed event in the page. I am also binding the grid to an empty datatable in the same event. I am making the grid items to insert mode in the prerender. When i change the value of the Radcombobox inside the grid, the grid disappears. I have the autopostback property of the combo set to true and also have selected event changed event. In that event I am setting the selected value to the viewstate . Event when i call rebind in the selected event changed event nothing happens, the grid disapperars. I have the grid in the ajaxsettings. I also have the asp panel inside the updated controls in ajaxsettings onf the optiob button . What am i mssing here.Is that because the asp panel is not visible in page load? Do i have to do something special for invisible controls in the page load. Following is my aspx code ajax setting I have two grid in the page. Other grid is outside the panel
<telerik:RadAjaxManager ID="RadAjaxManager1" runat ="server" >
<AjaxSettings >
<telerik:AjaxSetting AjaxControlID="RadAjaxManager1">
<UpdatedControls>
<telerik:AjaxUpdatedControl ControlID="gridpeer" />
<telerik:AjaxUpdatedControl ControlID="gridkeyfin" />
</UpdatedControls>
</telerik:AjaxSetting>
<telerik:AjaxSetting AjaxControlID="gridkeyfin">
<UpdatedControls>
<telerik:AjaxUpdatedControl ControlID="gridkeyfin" />
</UpdatedControls>
</telerik:AjaxSetting>
<telerik:AjaxSetting AjaxControlID="rbviewSelection">
<UpdatedControls>
<telerik:AjaxUpdatedControl ControlID="pnlstateselection" />
<telerik:AjaxUpdatedControl ControlID="pnllineselection" />
<telerik:AjaxUpdatedControl ControlID="pnlfinselection" />
<telerik:AjaxUpdatedControl ControlID="rbviewSelection" />
</UpdatedControls>
</telerik:AjaxSetting>
</AjaxSettings>
</telerik:RadAjaxManager>
<asp:Panel ID="pnlfinselection" runat="server">
<div style="vertical-align: bottom; margin-top: 105px; height: 300px; width: 97%;
margin-left: 10px;">
<table border="0" width="100%" cellpadding="0" cellspacing="0">
<tr>
<td class="keyfinlbl">
<asp:Label ID="lblkey" runat="server" Text="Use Key Financial Fields (P/C):"></asp:Label>
</td>
</tr>
<tr>
<td>
<telerik:RadGrid ID="gridkeyfin" AutoGenerateColumns="false" runat="server" AutoGenerateEditColumn="false"
Skin="Default" Width="100%" Height="100px" OnItemDataBound="Onitemdataboundhandler"
OnUpdateCommand="gridkeyfin_UpdateCommand" AllowAutomaticInserts="true" OnItemCreated="gridkeyfin_ItemCreated"
OnNeedDataSource="gidkeyfin_NeedDataSource">
<MasterTableView TableLayout="Fixed" BorderWidth="0" runat="server" CommandItemDisplay="none"
EnableViewState="true" EditMode="InPlace" ShowHeadersWhenNoRecords="false" AutoGenerateColumns="false">
<Columns>
<telerik:GridTemplateColumn UniqueName="coljoin" HeaderText="Join">
<HeaderStyle Width="15%" Font-Bold="true"></HeaderStyle>
<ItemTemplate>
<asp:Label ID="lJoin" Text='<%#Eval("displayJoin")%>' Style="text-align: center;"
runat="server" Width="10%" />
</ItemTemplate>
<EditItemTemplate>
<telerik:RadComboBox Height="100px" Width="65px" AutoPostBack="false" ID="cmbjoin"
runat="server" >
<Items>
<telerik:RadComboBoxItem runat="server" Value="Select" Text="Select" />
<telerik:RadComboBoxItem runat="server" Value="And" Text="And" />
<telerik:RadComboBoxItem runat="server" Value="Or" Text="Or" />
<telerik:RadComboBoxItem runat="server" Value="Minus" Text="Minus" />
</Items>
</telerik:RadComboBox>
</EditItemTemplate>
</telerik:GridTemplateColumn>
<telerik:GridTemplateColumn UniqueName="Colfield" HeaderText="Field">
<HeaderStyle Width="28%" Font-Bold="true"></HeaderStyle>
<ItemTemplate>
<asp:Label ID="lField" Text='<%#Eval("displayfield")%>' Style="text-align: center;"
runat="server" Width="30%" />
</ItemTemplate>
<EditItemTemplate>
<telerik:RadComboBox Height="80px" Width="160px" AutoPostBack="false" ID="cmbField"
runat="server" OnSelectedIndexChanged="CmbField_selectedIndexChanged">
<Items>
<telerik:RadComboBoxItem runat="server" Value="Select" Text="Select" />
<telerik:RadComboBoxItem runat="server" Value="DPW" Text="Direct Preminu Written" />
<telerik:RadComboBoxItem runat="server" Value="NPW" Text="Net Premium Written" />
<telerik:RadComboBoxItem runat="server" Value="Assets" Text="Total Assets" />
<telerik:RadComboBoxItem runat="server" Value="PHS" Text="PHS" />
</Items>
</telerik:RadComboBox>
</EditItemTemplate>
</telerik:GridTemplateColumn>
<telerik:GridTemplateColumn UniqueName="Coloperator" HeaderText="Operator">
<HeaderStyle Width="15%" Font-Bold="true"></HeaderStyle>
<ItemTemplate>
<asp:Label ID="lbloperator" Text='<%#Eval("displayoperator")%>' Style="text-align: center;"
runat="server" Width="30%" />
</ItemTemplate>
<EditItemTemplate>
<telerik:RadComboBox Height="100px" Width="80px" AutoPostBack="true" ID="cmboperator"
runat="server" OnSelectedIndexChanged="cmboperator_selectedindexchanged" >
<Items>
<telerik:RadComboBoxItem runat="server" Value="Select" Text="Select" />
<telerik:RadComboBoxItem runat="server" Value=">" Text=">" />
<telerik:RadComboBoxItem runat="server" Value="<" Text="<" />
<telerik:RadComboBoxItem runat="server" Value="=" Text="=" />
<telerik:RadComboBoxItem runat="server" Value="Between" Text="Between" />
<telerik:RadComboBoxItem runat="server" Value="Nearest" Text="Nearest" />
<telerik:RadComboBoxItem runat="server" Value="Top" Text="Top" />
</Items>
</telerik:RadComboBox>
</EditItemTemplate>
</telerik:GridTemplateColumn>
<telerik:GridTemplateColumn UniqueName="Colvalue" HeaderText="$ Value Selected">
<HeaderStyle Width="25%" Font-Bold="true"></HeaderStyle>
<ItemTemplate>
<asp:Label ID="lblvalue" Text='<%#Eval("displaysearchvalue")%>' runat="server" Style="text-align: center;"></asp:Label>
</ItemTemplate>
<EditItemTemplate>
<telerik:RadTextBox ID="txtvalue" Width="110px" runat="Server" AutoPostBack="true">
</telerik:RadTextBox></EditItemTemplate>
</telerik:GridTemplateColumn>
<telerik:GridTemplateColumn UniqueName="ColHits" HeaderText="Total Hits">
<HeaderStyle Width="8%" Font-Bold="true"></HeaderStyle>
<ItemTemplate>
<asp:Label ID="lhits" Text='<%#Eval("displayHits")%>' Style="text-align: center;"
runat="server" />
</ItemTemplate>
</telerik:GridTemplateColumn>
<telerik:GridEditCommandColumn HeaderStyle-HorizontalAlign="Right" ItemStyle-HorizontalAlign="Right"
ItemStyle-Width="180px" ItemStyle-Font-Bold="true" InsertText="ADD" HeaderStyle-Font-Bold="true"
UniqueName="EditCommandColumn" HeaderText="ADD" HeaderStyle-Height="15px" ButtonType="linkbutton"
HeaderButtonType="TextButton" HeaderStyle-Width="10px">
</telerik:GridEditCommandColumn>
</Columns>
</MasterTableView>
</telerik:RadGrid>
</td>
</tr>
<tr>
<td>

</td>
</tr>
<tr>
<td width="100%">
<telerik:RadButton ID="btnclearcriteria" runat="server" Text="Clear Criteria" Skin="MyForest"
EnableEmbeddedSkins="false">
</telerik:RadButton>

<telerik:RadButton ID="btnremovecriteria" runat="server" Text="Remove Criteria" Skin="MyForest"
EnableEmbeddedSkins="false">
</telerik:RadButton>
</td>
</tr>
</table>
</div>
</asp:Panel>
Following is my vb code for grid
Private Sub gridkeyfin_PreRender(sender As Object, e As System.EventArgs) Handles gridkeyfin.PreRender

        For Each Item As GridItem In gridkeyfin.MasterTableView.Items
            If TypeOf Item Is GridEditableItem Then
                Dim editableitem As GridEditableItem = CType(Item, GridDataItem)
                editableitem.Edit = True
            End If
        Next

        btnclearcriteria.Enabled = True
        btnremovecriteria.Enabled = True
        gridkeyfin.Rebind()
    End Sub
Protected Sub gidkeyfin_NeedDataSource(sender As Object, e As Telerik.Web.UI.GridNeedDataSourceEventArgs)
Dim dskey As New DataSet
Dim dtkey As DataTable
If Not ViewState("dsCriteria") Is Nothing Then
dskey = ViewState("dsCriteria")
Dim dr As DataRow
' TryCast(sender, RadGrid).DataSource = dskey.Tables(0)
gridkeyfin.DataSource = dskey.Tables(0)
End If
End Sub
Protected Sub Onitemdataboundhandler(sender As Object, e As Telerik.Web.UI.GridItemEventArgs)


        If TypeOf e.Item Is GridEditableItem AndAlso e.Item.IsInEditMode Then            Dim editItem As GridEditableItem = DirectCast(e.Item, GridEditableItem)            'Dim comboBoxcmbjoin As RadComboBox = DirectCast(editItem.FindControl("cmbjoin"), RadComboBox)
            Dim item As GridDataItem = DirectCast(e.Item, GridDataItem)            Dim editButton As LinkButton = DirectCast(item("EditCommandColumn").Controls(0), LinkButton)
            Dim Cancelbutton As LinkButton = DirectCast(item("EditCommandColumn").Controls(2), LinkButton)
            Cancelbutton.Visible = False
            If editButton.Text = "Update" Then
                editButton.Text = "ADD"
            End If

        End If        If e.Item.IsInEditMode And TypeOf e.Item Is GridEditableItem And Not e.Item.OwnerTableView.IsItemInserted Then
            Dim edititem As GridEditableItem = e.Item
            Dim cmbjoin As RadComboBox = DirectCast(edititem.FindControl("cmbjoin"), RadComboBox)
            Dim cmbField As RadComboBox = DirectCast(edititem.FindControl("cmbField"), RadComboBox)
            Dim cmboperator As RadComboBox = DirectCast(edititem.FindControl("cmboperator"), RadComboBox)
            cmbjoin.SelectedValue = ViewState("Join")
            cmbField.SelectedValue = ViewState("Field")
            cmboperator.SelectedValue = ViewState("Operator")
        End If
    End Sub
Protected Sub cmboperator_selectedindexchanged(sender As Object, e As RadComboBoxSelectedIndexChangedEventArgs)
Dim sOperator As String = String.Empty

Dim cmb As RadComboBox = DirectCast(sender, RadComboBox)
If cmb.SelectedValue <> "Select" Then
sOperator = cmb.SelectedValue
ViewState.Add("Operator", sOperator)
End If
End Sub
Thanks,
Rajeswari

answered on 13 May 2014, 04:04 AM

Hi Rajeswari,

Please try the following sample code snippet. I have modified your code and the grid is persisting with the ComboBox selected values.

ASPX:

<telerik:RadAjaxManager ID="RadAjaxManager1" runat="server">

<AjaxSettings>

<telerik:AjaxSetting AjaxControlID="RadAjaxManager1">

<UpdatedControls>

<telerik:AjaxUpdatedControl ControlID="pnlGrid" />

<telerik:AjaxUpdatedControl ControlID="btnShowGrid" />

</UpdatedControls>

</telerik:AjaxSetting>

<telerik:AjaxSetting AjaxControlID="btnShowGrid">

<UpdatedControls>

<telerik:AjaxUpdatedControl ControlID="pnlGrid" />

<telerik:AjaxUpdatedControl ControlID="btnShowGrid" />

</UpdatedControls>

</telerik:AjaxSetting>

</AjaxSettings>

</telerik:RadAjaxManager>

<asp:Button ID="btnShowGrid" runat="server" Text="Button" OnClick="Button1_Click" />

<asp:Panel ID="pnlGrid" runat="server" Visible="false">

<telerik:RadGrid ID="gridSample" runat="server" AllowPaging="true">

<MasterTableView CommandItemDisplay="Top" EditMode="InPlace">

<Columns>

<telerik:GridTemplateColumn UniqueName="ID" HeaderText="ID">

<ItemTemplate>

<asp:Label ID="lblID" Text='<%#Eval("ID")%>' runat="server" />

</ItemTemplate>

<EditItemTemplate>

<telerik:RadComboBox AutoPostBack="true" ID="cmbSelect" runat="server" OnSelectedIndexChanged="cmbSelect_selectedindexchanged">

<Items>

<telerik:RadComboBoxItem runat="server" Value="Select" Text="Select" />

<telerik:RadComboBoxItem runat="server" Value=">" Text=">" />

<telerik:RadComboBoxItem runat="server" Value="<" Text="<" />

<telerik:RadComboBoxItem runat="server" Value="=" Text="=" />

</Items>

</telerik:RadComboBox>

</EditItemTemplate>

</telerik:GridTemplateColumn>

<telerik:GridTemplateColumn UniqueName="City" HeaderText="City">

<ItemTemplate>

<asp:Label ID="lblCity" Text='<%#Eval("City")%>' runat="server"></asp:Label>

</ItemTemplate>

<EditItemTemplate>

<telerik:RadTextBox ID="txtvalue" runat="Server" ></telerik:RadTextBox>

</EditItemTemplate>

</telerik:GridTemplateColumn>

<telerik:GridEditCommandColumn UniqueName="EditCommandColumn" ButtonType="linkbutton" InsertText="Add">

</telerik:GridEditCommandColumn>

</Columns>

</MasterTableView>

</telerik:RadGrid>

</asp:Panel>

VB:

Private isVisible As Boolean = False

Protected Sub gridSample_PreRender1(sender As Object, e As EventArgs)

If isVisible Then

gridSample.MasterTableView.IsItemInserted = True

gridSample.Rebind()

End If

End Sub

Protected Sub Onitemdataboundhandler(sender As Object, e As GridItemEventArgs)

If TypeOf e.Item Is GridDataInsertItem AndAlso e.Item.OwnerTableView.IsItemInserted Then

gridSample.MasterTableView.GetColumn("EditCommandColumn").Visible = True

For Each dataItem As GridDataItem In gridSample.MasterTableView.Items

DirectCast(dataItem("EditCommandColumn").Controls(0), LinkButton).Visible = False

Next

Else

gridSample.MasterTableView.GetColumn("EditCommandColumn").Visible = False

End If

End Sub

Protected Sub Button1_Click(sender As Object, e As EventArgs)

pnlGrid.Visible = True

isVisible = True

End Sub

Thanks,
Princy

answered on 16 May 2014, 04:17 AM

Hi Rajeswari,

I guess you have a GridTemplateColumn with Label and RadNumericTextBox in ItemTemplate, then Another TemplateColumn having a Label in ItemTemplate and RadComboBox in EditItemTemplate. According to the value of second column you want to hide and show the controls in first column. Please try the following code snippet:

ASPX:

<telerik:GridTemplateColumn UniqueName="ID" HeaderText="ID">

<ItemTemplate>

<asp:Label ID="lblID" Text='<%#Eval("ID")%>' runat="server" />

</ItemTemplate>

<EditItemTemplate>

<telerik:RadComboBox ID="cmbID" runat="server". .>

</telerik:RadComboBox>

</EditItemTemplate>

</telerik:GridTemplateColumn>

<telerik:GridTemplateColumn>

<ItemTemplate>

<asp:Label ID="Label" runat="server" Text="Label"></asp:Label>

<telerik:RadNumericTextBox ID="RadNumericTextBox" runat="server">

</telerik:RadNumericTextBox>

</ItemTemplate>

</telerik:GridTemplateColumn>

C#:

protected void RadGrid1_ItemDataBound(object sender, GridItemEventArgs e)

{

if (e.Item is GridDataItem)

{

GridDataItem dataItem = (GridDataItem)e.Item;

Label lblID = (Label)dataItem.FindControl("lblID");

string ID =lblID.Text;

Label lbl = (Label)dataItem.FindControl("Label");

RadNumericTextBox rntxt = (RadNumericTextBox)dataItem.FindControl("RadNumericTextBox");

if (ID == "Some Value")

{

lbl.Visible = false;

rntxt.Visible = true;

}

else

{

rntxt.Visible = false;

lbl.Visible = true;

}

Thanks,
Princy

answered on 16 May 2014, 02:51 PM

Hi Princy . Thanks . I have 3 Gridtemplatecolumn in the grid. all the 3 gridtemplate column had itemtemplate and edititemtempllate. I have to to show the label or radnumeric text box in the same itemtemplate based on the ediiitemplate combobox selected value in the same gridtemplate column. when i add the following code on itemdatabound I am getting finding nothing on lblid
GridDataItem dataItem = (GridDataItem)e.Item; Label lblID = (Label)dataItem.FindControl("lblID"); I added follwing code if it will recognise the lable in itemtemplate column .
Dim dataitem As GridDataItem = DirectCast(e.Item, GridDataItem)
Dim cell As TableCell = dataitem("Coloperator") where "Coloperator" is the uniquename of gridtemplatecoolumn whe i do the following cell.Controls(0) , the label is showing as Literalcontrol . Radnumerictextbox as literal control . But combobox is showing as radcombobox. I would like to access the label and Radnumerictext box in itemtemplate , on itemdatabound.
Thanks,
Rajeswari

answered on 05 Jun 2014, 06:53 PM

Hi Princy
i am not he add new button in the grid. when the grid loads i am binding the empty datatable and also has following code to show the editform items as part of the grid
gridkeyfin.MasterTableView.IsItemInserted = True . So far delete , insert , update are working fine. I have a clear button outside the grid , if the button is clickeded , i want to clear the rows inserted , i have the following code
gridkeyfin.MasterTableView.SortExpressions.Clear()
gridkeyfin.DataSource = New String("") gridkeyfin.DataBind() bu am getting following error in aspx where i have gridiemplate column itemtemplate with<asp:Label ID="lhits" Text='<%#Eval("displayHits")%>' Style="text-align: center;"
runat="server" />
DataBinding: 'Telerik.Web.UI.GridInsertionObject' does not contain a property with the name 'displayHits'. I saw many forums saying to bind with default values to fix the error. If i do that when the grid loads I am getting a blank row in the grid with edit cancel buttons . How can i fix the error. I also have another question regarding the selected row index grid in update and dele command. Is there any column in the grid that gives the current selected row on update/delete. I need to add the rowindex to the data base to do some calculations when i ansert the /update/deltete data.
Thanks,
Rajeswari Raman

answered on 06 Jun 2014, 06:07 AM

Hi Rajeswari,

I'm not clear about the issue you have mentioned first, please provide your full code snippet. For your second requirement you can use ItemCommand event and get the rowindex.

VB:

Protected Sub RadGrid1_ItemCommand(sender As Object, e As GridCommandEventArgs)

If e.CommandName = RadGrid.UpdateCommandName Then

Dim edit As GridEditableItem = DirectCast(e.Item, GridEditableItem)

Dim index As Integer = edit.ItemIndex

ElseIf e.CommandName = "Delete" Then

Dim dataItem As GridDataItem = DirectCast(e.Item, GridDataItem)

Dim index As Integer = dataItem.ItemIndex

End If

End Sub

Thanks,
Princy

answered on 28 Jul 2014, 08:54 PM


Hi , I have a radlistbox inside the asp panel . Some times (not always) The list box items over flows. I have the height set for the panel and also for the Radlist box I attached the image.
Thanks,
Rajeswari Raman

Product Bundles

DevCraft

Web

Mobile

Document Management

Desktop

Reporting & Mocking

Automated Testing

CMS

UI/UX Tools

Debugging

Free Tools

Support and Learning

Productivity and Design Tools

insert update delete rdgrid

25 Answers, 1 is accepted
