How To Remove White Border Around RadDock

7 posts, 1 answers
  1. Virgil Rodriguez
    Virgil Rodriguez avatar
    70 posts
    Member since:
    Oct 2008

    Posted 29 May 2012 Link to this post

    Hi Telerik,

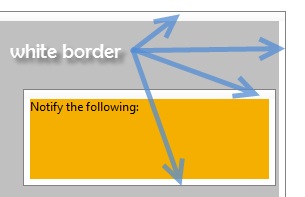

    I have RadDocks that I fill with controls and I would like to remove the White Border that shows up (see attached image) so the control fills up the whole area of the RadDock.

    Thanks!
  2. Princy
    Princy avatar
    17421 posts
    Member since:
    Mar 2007

    Posted 30 May 2012 Link to this post

    Hi,

    Try overriding the default CSS as follows.

    CSS:
    <style type="text/css">
      .RadDockZone
         {
            padding:0px !important;
         }
    </style>

    Thanks,
    Princy.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Virgil Rodriguez
    Virgil Rodriguez avatar
    70 posts
    Member since:
    Oct 2008

    Posted 30 May 2012 Link to this post

    Hi Princy,

    Did what you suggested but it didn't work. Tried this and it didn't work either:



    .RadDock .rdTable .rdContent
    {
        padding: 0px!important;
    }



     By the way, these are RadDocks positioned outside of RadDockZones. See my code below and thanks for any other input you or anyone else can give:



    Dim rdl as New RadDockLayout
    Dim
    rd as New RadDock
    Dim ctl as Control
    Dim lblField As New Label
    lblField.ID = "lblField"
    lblField.Text = "Testing 123"
    ctl.Controls.Add(lblField)
    rd.Resizable = True
    rd.DockHandle = DockHandle.Grip
    rd.ContentContainer.HorizontalAlign = HorizontalAlign.Left
    rd.ContentContainer.Style.Add(HtmlTextWriterStyle.Overflow, "hidden")
    rd.ContentContainer.Style.Add(HtmlTextWriterStyle.BackgroundColor, "gray")
    rd.ContentContainer.Controls.Add(ctl)
    rdl.Controls.Add(rd)

  5. Virgil Rodriguez
    Virgil Rodriguez avatar
    70 posts
    Member since:
    Oct 2008

    Posted 30 May 2012 Link to this post

    I have managed to remove the white border using the following, but I lost the ability to resize the dock. Is there any way around this?



    .rdLeft, .rdBottom, .rdRight
    {
         display: none !important;
    }

  6. Virgil Rodriguez
    Virgil Rodriguez avatar
    70 posts
    Member since:
    Oct 2008

    Posted 30 May 2012 Link to this post

    Here is an update.

    I have managed to remove the white borders and still retain the ability to resize the RadDock. I have even managed to reduce the size of the Grip handle to 1px. However, if you will notice from the attached image, there is still actually a white border at the bottom. How can I get rid of it totally ?

    .rdGripTop .rdLeft,
    .rdGripTop .rdCenter,
    .rdGripTop .rdRight
    {
        height: 1px !important;
    }

    .rdLeft, .rdBottom, .rdRight
    {
        background-image: none!important;
    }


    Thanks!

  7. Answer
    Princy
    Princy avatar
    17421 posts
    Member since:
    Mar 2007

    Posted 31 May 2012 Link to this post

    Hi,

    Try overriding the default CSS as follows.

    CSS:
    <style type="text/css">
      .RadDock .rdBottom .rdLeft, .RadDock .rdBottom .rdCenter, .RadDock .rdBottom .rdRight
         {
            background: none!important;
            height:0px !important;
         }
    </style>

    Hope this helps.

    Regards,
    Princy.
  8. Virgil Rodriguez
    Virgil Rodriguez avatar
    70 posts
    Member since:
    Oct 2008

    Posted 31 May 2012 Link to this post

    That did it !!!
    Thanks a bunch Princy!
