How to improve the GridView's load times

6 posts, 0 answers
  1. TSRG - IT
    TSRG - IT avatar
    26 posts
    Member since:
    Nov 2009

    Posted 09 Dec 2010 Link to this post

    Hi guys,

    I have a user control which contains a RadPanelBar with 5 RadPanelBarItems and within each item is a grid (total 5 grids). The issue I am having is that that the grids take around 3-4 seconds to render. Each grid consists of about 10 rows, 16-17 columns, 1-2 groupings. The RadPanelItems are set to expanded by default. Each grid has a row loaded event handler attached and data is bound in XAML via CollectionViewSource objects. I've checked out the degraded performance section in the help file so I tried setting the Grid's Rows, RadPanelBar, RadPanelBarItems and GridView to fixed sizes. I'm binding to an ObservableCollection of BindingLists so not sure if this affects performance. Not using converters, cell templates or alternate row style.

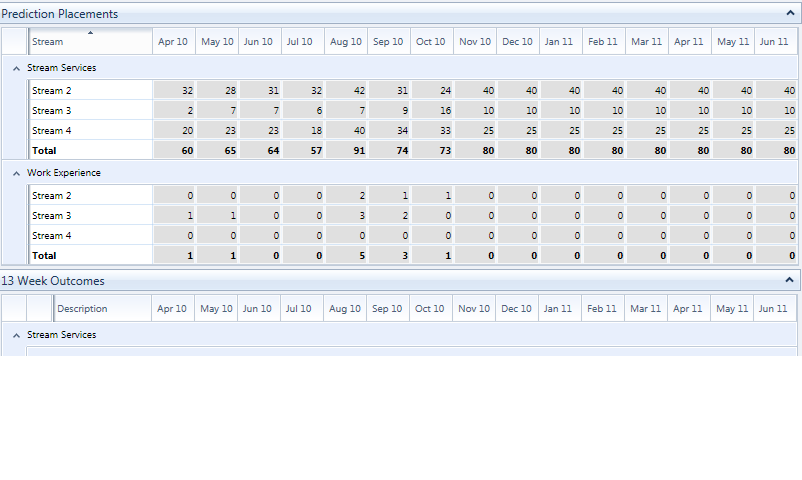

    I've used JetBrains dotTrace performance to determine which functions are taking the longest to load. I've managed to narrow it down to the MeasureOverride function from the GridViewCellsPanel class, specifically it goes down to the GenerateAndMeasureChildrenForRealizedColumns() -> GenerateChildren() functions. My question is that is there anyway I can do to reduce the load times of these grids? This app supercedes our old app which was written in C# WinForms, however loads instantaneously. I've attached a screenshot of my grids setup (the rest of the grids require me to scroll down the view).

    Cheers,

    Tim.
  2. Vlad
    Admin
    Vlad avatar
    11100 posts

    Posted 13 Dec 2010 Link to this post

    Hi,

     As far as I can see from the screenshot all grids are measured with infinity - no vertical scrollbar. Please specify height for the grids or panel items.

    Kind regards,
    Vlad
    the Telerik team
    Browse the videos here>> to help you get started with RadControls for WPF
  3. UI for WPF is Visual Studio 2017 Ready
  4. TSRG - IT
    TSRG - IT avatar
    26 posts
    Member since:
    Nov 2009

    Posted 15 Dec 2010 Link to this post

    Hi Vlad,

    Thank you for your reply. What I am trying to do now is set the RadGridView's ColumnWidth="*" to get an even distribution of column widths, however when contained within the RadPanelBarItem the width stretches more than the width of the screen. I also found this thread from 2009 which says that there was a bug with the RadPanelBarItem measuring with infinite width: http://www.telerik.com/community/forums/wpf/panelbar/radpanelbaritem-content-width.aspx just not sure if this was related?

    Is it possible to have even column widths without fixed RadPanelBarItem widths given that our users have varying screen sizes?

    Cheers,

    Tim.


  5. Petar Mladenov
    Admin
    Petar Mladenov avatar
    2891 posts

    Posted 16 Dec 2010 Link to this post

    Hi Timothy Lin,

    Instead of setting a fixed width of the RadPanleBarItem, you can bind its MaxWidth to the ActualWidth of the RadPanelBar like so :
    <telerik:RadPanelBar x:Name="Panelbar">
                <telerik:RadPanelBarItem Header="BAR ITEM 1" MaxWidth="{Binding ActualWidth, ElementName=Panelbar}">

                    <telerik:RadGridView x:Name="GridView" ColumnWidth="*" >
                        <telerik:RadGridView.Columns>
                            <telerik:GridViewDataColumn Header="AAAAAAAAAAAA" />
                            <telerik:GridViewDataColumn Header="BBBBBBBBB" />
                            <telerik:GridViewDataColumn Header="CCCCCC" />
                            <telerik:GridViewDataColumn Header="DDD" />
                        </telerik:RadGridView.Columns>

                    </telerik:RadGridView>
                </telerik:RadPanelBarItem>
            </telerik:RadPanelBar>
    Hope this helps you and fits in your scenario. If it doesn`t , feel free to ask and we will assist you further.

    All the best,
    Petar Mladenov
    the Telerik team
    Browse the videos here>> to help you get started with RadControls for WPF
  6. Suhas
    Suhas avatar
    5 posts
    Member since:
    Jan 2013

    Posted 30 Jul 2015 in reply to Petar Mladenov Link to this post

    Hi Petar,

    I had the same issue with placing the RadGridview in Radpanelitembar. If i set the Height to RadGridview, UI is not Freezing but i don't want that to be harcoded in Xaml. Do you have any other way of setting the Height?

    Code is here:

    <telerik:RadPanelBar x:Name="Panelbar">
    <telerik:RadPanelBarItem  VerticalAlignment="Stretch" HorizontalAlignment="Stretch" IsExpanded="True" >


                                    <telerik:RadGridView x:Name="Docdyngrid"  IsReadOnly="True" Height="300" EnableRowVirtualization="True"   EnableColumnVirtualization="True"  ShowColumnFooters="True" SelectionUnit="FullRow" SelectionMode="Extended" AutoGenerateColumns="False" ItemsSource="{Binding CrossResultsTagDocCollection}" Margin="0,5,0,0">
                                        <telerik:RadGridView.Columns>
                                            <!--<telerik:GridViewSelectColumn Width="25" >
                                            </telerik:GridViewSelectColumn>-->
                                            <telerik:GridViewDataColumn DataMemberBinding="{Binding Name}" Header="{ui:SPEResources Id=Link_Name}">
                                                <telerik:GridViewDataColumn.AggregateFunctions>
                                                    <telerik:CountFunction Caption="{ui:SPEResources Id=Total_Objects}"   />
                                                </telerik:GridViewDataColumn.AggregateFunctions>
                                            </telerik:GridViewDataColumn>
                                            <telerik:GridViewDataColumn DataMemberBinding="{Binding Description}" Header="{ui:SPEResources Id=Link_Description}"/>
                                            <telerik:GridViewDataColumn DataMemberBinding="{Binding ClassDefinitionUID}" Header="{ui:SPEResources Id=Link_Class}"/>
                                            <telerik:GridViewDataColumn DataMemberBinding="{Binding Classification}" Header="{ui:SPEResources Id=Link_Classification}"/>
                                        </telerik:RadGridView.Columns>
                                    </telerik:RadGridView>



                    </telerik:RadPanelBarItem>
                    <telerik:RadPanelBarItem  VerticalAlignment="Stretch" HorizontalAlignment="Stretch" IsExpanded="True" >


                                    <telerik:RadGridView x:Name="TagDyn" IsReadOnly="True" Height="300" EnableRowVirtualization="True"   EnableColumnVirtualization="True" ShowColumnFooters="True" SelectionUnit="FullRow" SelectionMode="Extended" AutoGenerateColumns="False" ItemsSource="{Binding CrossResultsTagDocCollection}" Margin="0,5,0,0">
                                        <telerik:RadGridView.Columns>
                                            <!--<telerik:GridViewSelectColumn Width="25" >
                                            </telerik:GridViewSelectColumn>-->
                                            <telerik:GridViewDataColumn DataMemberBinding="{Binding Name}" Header="{ui:SPEResources Id=Link_Name}">
                                                <telerik:GridViewDataColumn.AggregateFunctions>
                                                    <telerik:CountFunction Caption="{ui:SPEResources Id=Total_Objects}"   />
                                                </telerik:GridViewDataColumn.AggregateFunctions>
                                            </telerik:GridViewDataColumn>
                                            <telerik:GridViewDataColumn DataMemberBinding="{Binding Description}" Header="{ui:SPEResources Id=Link_Description}"/>
                                            <telerik:GridViewDataColumn DataMemberBinding="{Binding ClassDefinitionUID}" Header="{ui:SPEResources Id=Link_Class}"/>
                                            <telerik:GridViewDataColumn DataMemberBinding="{Binding Classification}" Header="{ui:SPEResources Id=Link_Classification}"/>
                                        </telerik:RadGridView.Columns>
                                    </telerik:RadGridView>



                    </telerik:RadPanelBarItem>
                    </telerik:RadPanelBar>

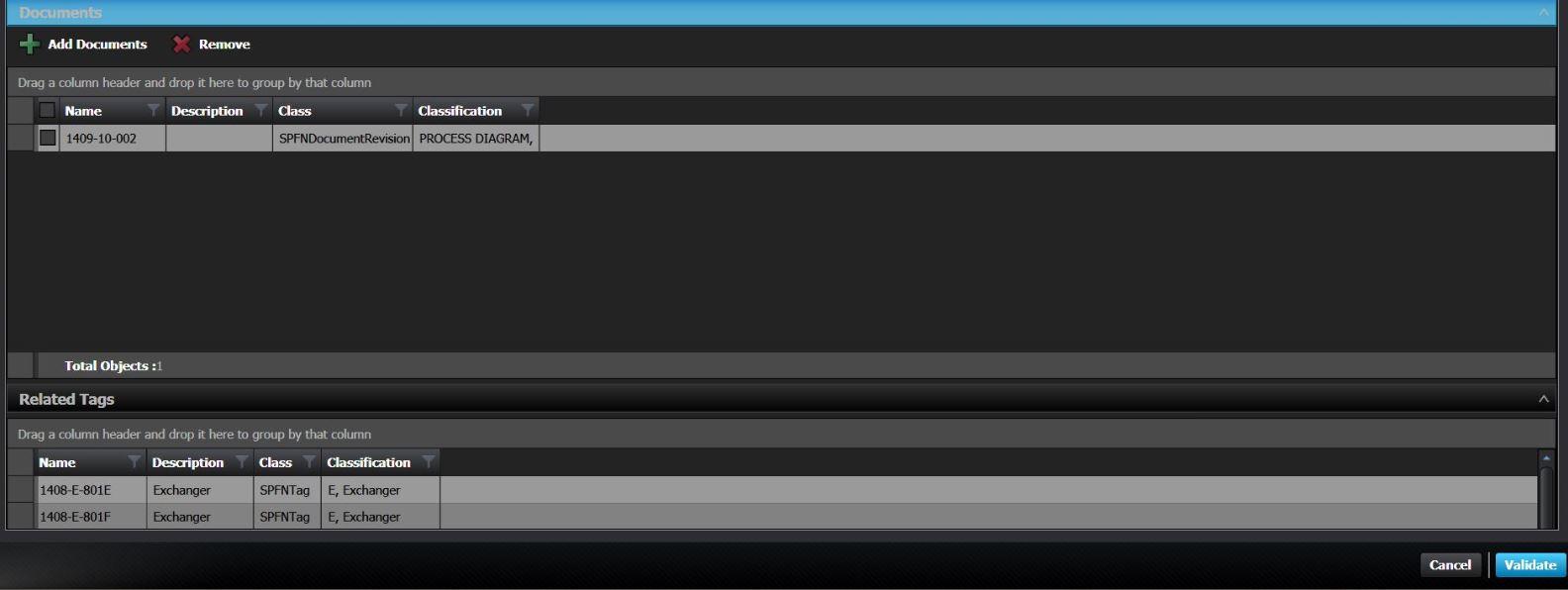

    In above code i hard coded the height=300 for RadGridview, But this is getting under the the Outer control on some resoultions and making scrolling impossible.I attached the image for reference.

     ​





  7. Dimitrina
    Admin
    Dimitrina avatar
    3769 posts

    Posted 31 Jul 2015 Link to this post

    Hello,

    You can apply a Style targeting RadGridView control and set a Height that way. You can also refer to the common topic about Setting a Theme (Using Implicit Styles).

    Regards,
    Dimitrina
    Telerik
