How to change row indicator in header column?

2 posts, 1 answers
  1. Peter Meinl
    Peter Meinl avatar
    35 posts
    Member since:
    Jan 2010

    Posted 19 Feb 2010 Link to this post

    I created some filter rows in the header using a custom HeaderCellStyle.





    How can I write some text in the row indicator column of header rows?

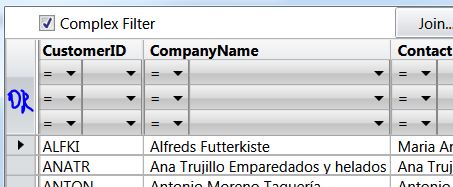

    See picture attached.

    I want to show the text "or" in front of the second and third filter rows.

  2. Answer
    Kalin Milanov
    Admin
    Kalin Milanov avatar
    447 posts

    Posted 22 Feb 2010 Link to this post

    Hi Peter Meinl,

    To change the RowIndicator of the header row you will need to edit the template of the header row. In it find the PART_IndicatorPresenter and change the way it looks to fit your case. Below I am sending you the style of the HeaderRow with indicator part being highlighted.

    <SolidColorBrush x:Key="GridViewHeaderRowDataCellsPresenterBackground" Color="Transparent"/>
    <telerik:Office_BlackTheme x:Key="Theme"/>
    <SolidColorBrush x:Key="GridViewHeaderCellInnerBorderBrush" Color="#FFEEEEEE"/>
    <DataTemplate x:Key="GridViewHeaderIndentCellDataTemplate">
      <Telerik_Windows_Controls_GridView:GridViewHeaderIndentCell telerik:StyleManager.Theme="{StaticResource Theme}"/>
    </DataTemplate>
    <telerik:BooleanToVisibilityConverter x:Key="BooleanToVisibilityConverter"/>
    <ControlTemplate x:Key="GridViewHeaderRowTemplate" TargetType="Telerik_Windows_Controls_GridView:GridViewHeaderRow">
      <Border x:Name="PART_GridViewHeaderRowBorder" Margin="{TemplateBinding Margin}" MinHeight="{TemplateBinding MinHeight}" Background="{TemplateBinding Background}" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Padding="{TemplateBinding Padding}">
        <Telerik_Windows_Controls_GridView:SelectiveScrollingGrid>
      <Telerik_Windows_Controls_GridView:SelectiveScrollingGrid.ColumnDefinitions>
        <ColumnDefinition Width="Auto"/>
        <ColumnDefinition Width="Auto"/>
        <ColumnDefinition Width="Auto"/>
        <ColumnDefinition Width="*"/>
      </Telerik_Windows_Controls_GridView:SelectiveScrollingGrid.ColumnDefinitions>
                      <Telerik_Windows_Controls_GridView:DataCellsPresenter x:Name="PART_DataCellsPresenter" MinHeight="{TemplateBinding MinHeight}" Background="{StaticResource GridViewHeaderRowDataCellsPresenterBackground}" Grid.Column="3" telerik:StyleManager.Theme="{StaticResource Theme}"/>
      <Border x:Name="PART_IndicatorPresenter" MinHeight="{TemplateBinding MinHeight}" VerticalAlignment="Stretch" Width="24" Visibility="{TemplateBinding RowIndicatorVisibility}" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="0,0,1,0" Telerik_Windows_Controls_GridView:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical">
        <Border Background="{TemplateBinding Background}" BorderBrush="{StaticResource GridViewHeaderCellInnerBorderBrush}" BorderThickness="0,0,1,1"/>
      </Border>
      <Telerik_Windows_Controls_GridView:IndentPresenter x:Name="PART_IndentPresenter" MinHeight="{TemplateBinding MinHeight}" Grid.Column="1" ItemTemplate="{StaticResource GridViewHeaderIndentCellDataTemplate}" Telerik_Windows_Controls_GridView:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" IndentLevel="{TemplateBinding IndentLevel}" telerik:StyleManager.Theme="{StaticResource Theme}"/>
      <Border x:Name="PART_HierarchyIndentPresenter" MinHeight="{TemplateBinding MinHeight}" Width="24" Visibility="{Binding HasHierarchy, Converter={StaticResource BooleanToVisibilityConverter}, RelativeSource={RelativeSource TemplatedParent}}" Grid.Column="2" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="0,0,1,0" Telerik_Windows_Controls_GridView:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical">
        <Border BorderBrush="{StaticResource GridViewHeaderCellInnerBorderBrush}" BorderThickness="0,0,1,1"/>
      </Border>
        </Telerik_Windows_Controls_GridView:SelectiveScrollingGrid>
      </Border>
    </ControlTemplate>

    <LinearGradientBrush x:Key="GridViewHeaderBackground" EndPoint="0.5,1" StartPoint="0.5,0">
      <GradientStop Color="#FFF8F8F9" Offset="0"/>
      <GradientStop Color="#FFDBDEE1" Offset="1"/>
      <GradientStop Color="#FFDFE2E5" Offset="0.4"/>
      <GradientStop Color="#FFC7CBD1" Offset="0.4"/>
    </LinearGradientBrush>
    <SolidColorBrush x:Key="GridViewHeaderCellBorderBrush" Color="#FFB3B3B3"/>
    <Style x:Key="GridViewHeaderRowStyle" TargetType="Telerik_Windows_Controls_GridView:GridViewHeaderRow">
      <Setter Property="Template" Value="{StaticResource GridViewHeaderRowTemplate}"/>
      <Setter Property="Background" Value="{StaticResource GridViewHeaderBackground}"/>
      <Setter Property="MinHeight" Value="26"/>
      <Setter Property="BorderBrush" Value="{StaticResource GridViewHeaderCellBorderBrush}"/>
      <Setter Property="BorderThickness" Value="0,0,0,1"/>
    </Style>

    I hope you will find this useful.

    Regards,
    Kalin Milanov
    the Telerik team
