height problem

2 posts, 0 answers
  1. Webster Velasco
    Webster Velasco avatar
    115 posts
    Member since:
    Nov 2009

    Posted 16 Jun 2010 Link to this post

    hi

    could you help me to set the height w/ % size of the screen?

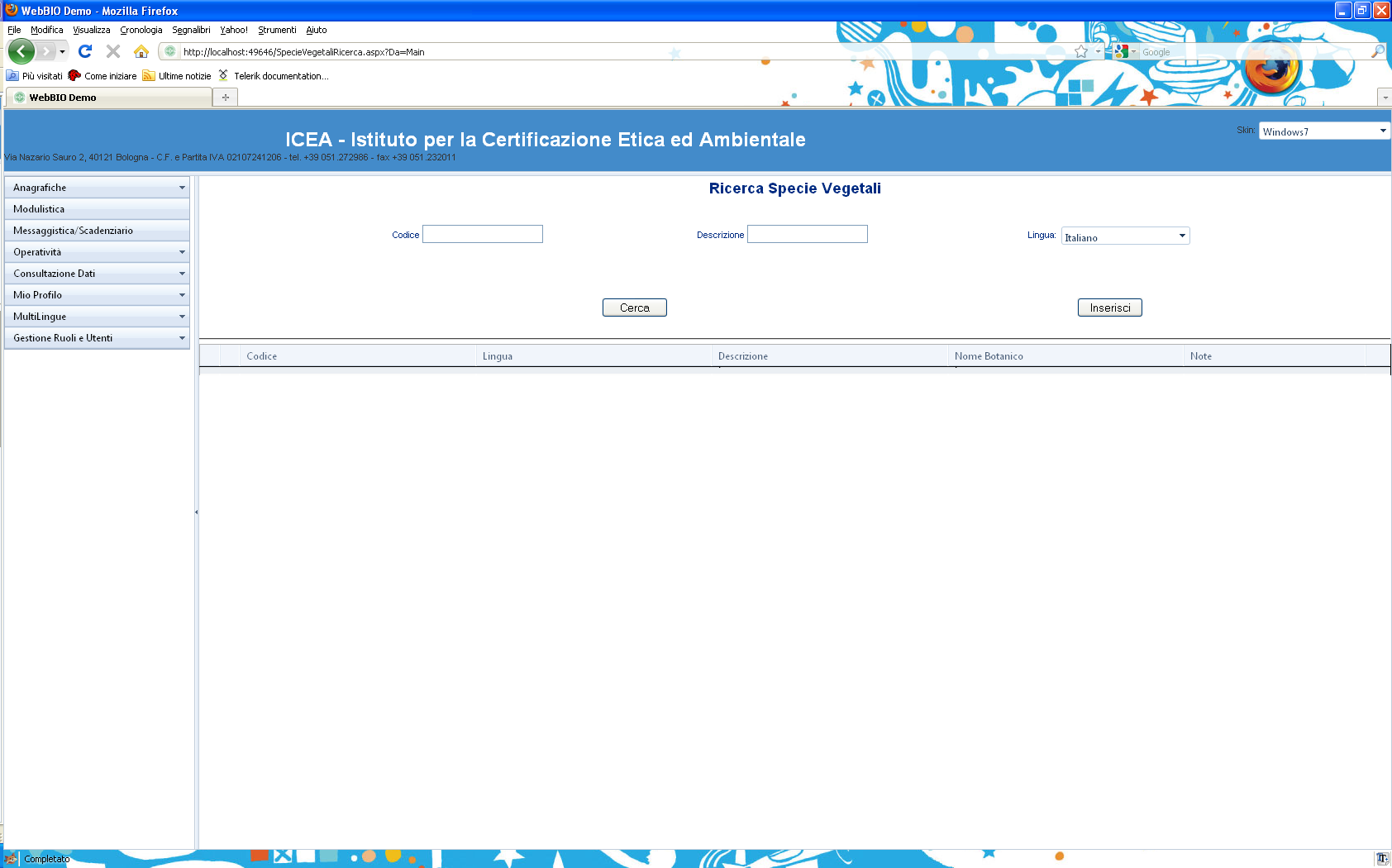

    what i want is to set the height of my data grid for the remaining spaceof my page.. im going to attach an image so u can understand what iwant..

    here is the code too
    <%@ Page Language="vb" MasterPageFile="~/Main.Master" AutoEventWireup="false" CodeBehind="SpecieVegetaliRicerca.aspx.vb" Inherits="WICEA.SpecieVegetaliRicerca" %>


    <asp:Content ID="Content1" ContentPlaceHolderID="cphMain" Runat="Server">
      <div style="height:100%"
        <telerik:RadCodeBlock runat="server" ID="rcbSchemi"
            <script type="text/javascript"
              var myWidth = 0myHeight = 0

              function setWH(){
                  if( typeof( window.innerWidth ) == 'number' ) {
                    //Non-IE
                    myWidth = window.innerWidth;
                    myHeight = window.innerHeight;
                  } else if( document.documentElement && ( document.documentElement.clientWidth || document.documentElement.clientHeight ) ) {
                    //IE 6+ in 'standards compliant mode'
                    myWidth = document.documentElement.clientWidth;
                    myHeight = document.documentElement.clientHeight;
                  } else if( document.body && ( document.body.clientWidth || document.body.clientHeight ) ) {
                    //IE 4 compatible
                    myWidth = document.body.clientWidth;
                    myHeight = document.body.clientHeight;
                  }

                  myWidthmyWidth = myWidth * (90 / 100);
                  myHeightmyHeight = myHeight * (90 / 100);

                  return [myWidth, myHeight];
              }

                function ShowTraduzioneForm(id)
                {
                    var v = setWH();

                    var oWindow = radopen("TraduttoreAnagrafica.aspx?S=SV&Id=" + id, "rwdSchemi");
                    oWindow.setSize (v[0], v[1]);
                    oWindow.set_behaviors(Telerik.Web.UI.WindowBehaviors.Move + Telerik.Web.UI.WindowBehaviors.Close);
                    oWindow.set_modal(true);
                    oWindow.center();
                    oWindow.set_status("");
                    return false;
                }

                function refreshGrid()
                {
                 $find("<%= RadAjaxManager1.ClientID %>").ajaxRequest("Rebind");
                }
            </script>
        </telerik:RadCodeBlock>
        <telerik:RadWindowManager ID="RadWindowManager1" runat="server" Behavior="Close,Move" InitialBehaviors="None" ReloadOnShow="true" VisibleStatusbar="false" OnClientClose="refreshGrid"
            <Windows>
            </Windows>
        </telerik:RadWindowManager>
        <telerik:RadAjaxManager ID="RadAjaxManager1" runat="server"
            <AjaxSettings>
                <telerik:AjaxSetting AjaxControlID="RadAjaxManager1"
                    <UpdatedControls>
                        <telerik:AjaxUpdatedControl ControlID="grdAnagraf" />
                    </UpdatedControls>
                </telerik:AjaxSetting>
            </AjaxSettings>
        </telerik:RadAjaxManager>
            <table width="80%" align="center" class="tbContorno"
                <tr>
                    <th colspan="6" align="center" class="tbContenuto"><asp:Label ID="lblTitolo" runat="server" Text="Filtri di Ricerca" /></th
                </tr>
                <tr><td colspan="6">&nbsp;</td></tr
                <tr>
                <td align="center"
                    <asp:Label runat="server" ID="lblCODICE" Text="Codice: " />
                    <asp:TextBox runat="server" ID="txtCODICE" ToolTip="Codice Certificazione" />
                </td>
                <td align="center"
                    <asp:Label runat="server" ID="lblDESCRIZIONE" Text="Descrizione: " />
                    <asp:TextBox runat="server" ID="txtDESCRIZIONE" ToolTip="Nome" />
                </td>
                <td align="center"
                    <asp:Label runat="server" ID="lblLINGUA" Text="Lingua: " />
                    <telerik:RadComboBox runat="server" ID="lstLingua" EnableLoadOnDemand="true" LoadingMessage=" please wait... " MarkFirstMatch="true"></telerik:RadComboBox>
                </td>

            </tr>
            <tr><td colspan="4">&nbsp;</td></tr
            <tr><td><div id="divWait" runat="server"
            <asp:Label runat="server" ID="lblWAIT" Text=""  /></div></td>
            </tr>

            <tr>
            <td><asp:Label runat="server" ID="lblRisultato"  /></td
            </tr>
            <tr>
                <td style="text-align:center" colspan="2"
                    <asp:Button runat="server" id="cmdRicerca" Text="Cerca" OnClick="cmdRicerca_Click" Width="80px"/>
                </td>
                <td style="text-align:center" colspan="2"
                <asp:Button runat="server" id="cmdNuovo" Text="Inserisci" onclick="cmdNuovo_Click" Width="80px"/>
                </td>

            </tr>
            <tr>
                <td><asp:Label runat="server" ID="lblErrorMsg" Text="" CssClass="ErrMsg"></asp:Label></td
            </tr>
            </table>
            <hr />
            <div style="height:75%"
                <telerik:RadGrid
                    ID="grdAnagraf"
                    runat="server"
                    OnDeleteCommand="objAnagra_deleteItem"
                    AllowPaging="false"
                    AutoGenerateColumns="False"
                    AllowSorting="true"
                    AllowCustomPaging="True"
                    AllowFilteringByColumn="false"
                    BorderWidth="0"
                    GridLines="Both"
                    Width="100%"
                    ShowStatusBar="true"
                    Height="100%"
                    <ClientSettings EnableRowHoverStyle="true"
                        <Selecting AllowRowSelect="true" />
                        <Scrolling AllowScroll="true" UseStaticHeaders="true" SaveScrollPosition="true" />
                    </ClientSettings>
                    <MasterTableView
                        DataKeyNames="CODICE,LINGUA"
                        ClientDataKeyNames="CODICE,LINGUA"
                        Width="100%"
                        CommandItemDisplay="None"
                        <Columns>

                                <telerik:GridTemplateColumn UniqueName="EditRecord" AllowFiltering="False" Resizable="False">
                                    <ItemTemplate>
                                        <asp:HyperLink ID="EditLink" runat="server" Text="Edit"
                                            <img src="_img/Edit.gif" alt="modifica" style="border:none" />
                                        </asp:HyperLink>
                                    </ItemTemplate>
                                    <HeaderStyle Width="24px" />
                                </telerik:GridTemplateColumn>

                            <telerik:GridTemplateColumn UniqueName="colTranslate" AllowFiltering="False" Resizable="False">
                                <ItemTemplate>
                                    <asp:HyperLink ID="Translate" runat="server" Text="Traduci"
                                        <img src="_img/Editor.gif" alt="modifica" style="border:none" />
                                    </asp:HyperLink>
                                </ItemTemplate>
                                <HeaderStyle Width="24px" />
                            </telerik:GridTemplateColumn>

                               <telerik:GridBoundColumn DataField="CODICE" HeaderText="Codice" SortExpression="CODICE"
                                    UniqueName="colCODICE" FilterImageToolTip="Filtro per Codice" Resizable="true">
                                </telerik:GridBoundColumn>

                               <telerik:GridBoundColumn DataField="LINGUA" HeaderText="Lingua" SortExpression="LINGUA"
                                    UniqueName="colLINGUA" FilterImageToolTip="Filtro per Codice" Resizable="true">
                                </telerik:GridBoundColumn>

                                <telerik:GridBoundColumn DataField="DESCRIZIONE" HeaderText="Descrizione" SortExpression="DESCRIZIONE"
                                    UniqueName="colDESCRIZIONE" FilterImageToolTip="Filtro per Descrizione" Resizable="true">
                                </telerik:GridBoundColumn>

                                <telerik:GridBoundColumn DataField="NOMEBOTANICO" HeaderText="Nome Botanico" SortExpression="NOMEBOTANICO"
                                    UniqueName="colNOMEBOTANICO" FilterImageToolTip="Filtro per Nome Botanico" Resizable="true">
                                </telerik:GridBoundColumn>

                                <telerik:GridBoundColumn DataField="ANNOTAZIONI" HeaderText="Note" SortExpression="ANNOTAZIONI"
                                    UniqueName="colANNOTAZIONI" FilterImageToolTip="Filtro per Note" Resizable="true"
                                    <HeaderStyle Width="220px" />
                                </telerik:GridBoundColumn>

                                <telerik:GridButtonColumn ConfirmText="Eliminare la Specie Vegetale?" ButtonType="ImageButton" ImageUrl="_img/Delete.gif" CommandName="Delete" Text="Elimina" UniqueName="colDelete"
                                    <HeaderStyle Width="30px" />
                                </telerik:GridButtonColumn>
                        </Columns>
                    </MasterTableView>
                </telerik:RadGrid>
            </div>
        <asp:ObjectDataSource
            ID="objAnagra"
            runat="server"
            SelectMethod="selectAnagrafica"
            SortParameterName="orderBy"
            TypeName="GestioneAnagrafiche" >
            <SelectParameters>
                <asp:ControlParameter ControlID="grdAnagraf" Name="filterBy" PropertyName="MasterTableView.FilterExpression" Type="String" />
                <asp:QueryStringParameter Name="NomeSP" DefaultValue="SpecieVegetali_Ricerca" Direction="Input" Type="String" />
                <asp:Parameter Name="Chiamante" DefaultValue="STNDL" Type="String" Direction="Input" />
            </SelectParameters>
        </asp:ObjectDataSource>

        <input type="hidden" id="lblHelpPagina" runat="server"/>

        </div>
      </asp:Content>

  2. Dimo
    Admin
    Dimo avatar
    8391 posts

    Posted 21 Jun 2010 Link to this post

    Hello Webster,

    You need to ensure that

    1) The html, body and form tags have a 100% height style applied, otherwise the topmost <div> in the content page will not expand vertically.

    2) The update panel generated for RadGrid has a 100% height style applied, otherwise the RadGrid will not expand vertically.

    Here is a relevant demo, which shows how to proceed:

    http://www.telerik.com/community/code-library/aspnet-ajax/ajax/how-to-set-100-height-and-random-styles-to-a-radajaxmanager-update-panel.aspx

    Greetings,
    Dimo
    the Telerik team
