GroupBox in RadTabItem

5 posts, 0 answers
  1. Dodd
    Dodd avatar
    44 posts
    Member since:
    Dec 2012

    Posted 11 Sep 2013 Link to this post

    Hi, I'm using a GroupBox control inside RadTabItem, but the GroupBox's header doesn't display properly when it is placed in RadTabItem.

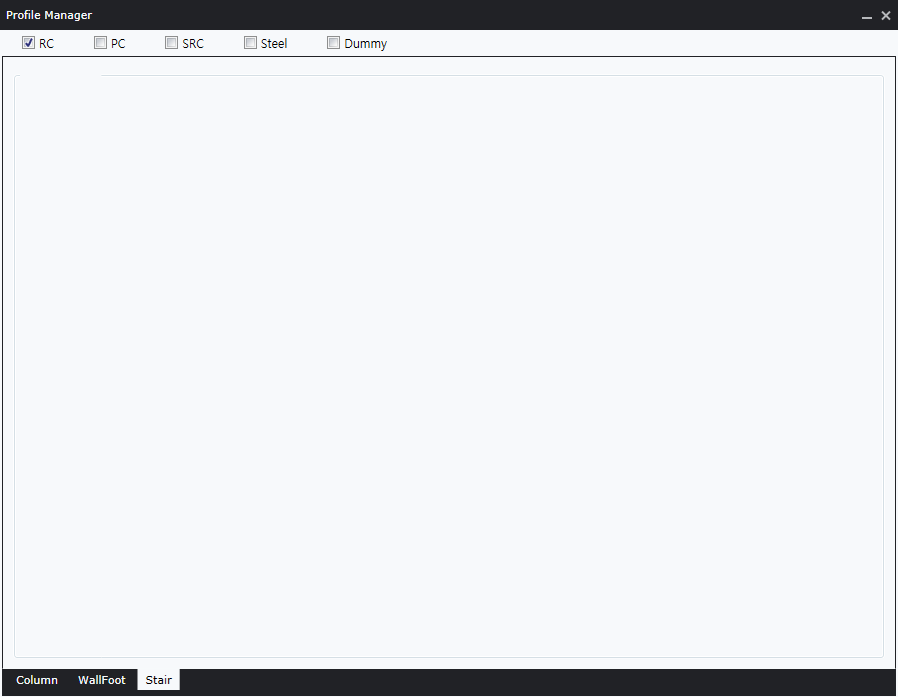

    How can I fix this? I attached the code and a captured image.
    Thanks!

    <telerik:RadTabControl x:Name="radTabControl" Grid.Row="1" TabStripPlacement="Bottom" >
         <telerik:RadTabItem x:Name="Column" Header="Column">

         </telerik:RadTabItem>

         <telerik:RadTabItem x:Name="WallFoot" Header="WallFoot">
         </telerik:RadTabItem>

         <telerik:RadTabItem x:Name="Stair" Header="Stair">
              <GroupBox Header="GroupBoxtest" Margin="10"/>
         </telerik:RadTabItem>

    </telerik:RadTabControl>

  2. Pavel R. Pavlov
    Admin
    Pavel R. Pavlov avatar
    1182 posts

    Posted 13 Sep 2013 Link to this post

    Hi Dodd,

    I tested the provided snippet with our latest release and it seems that the code works as expected. Can you please clarify which version of our dlls you use? If you use outdated version of our dlls we suggest you to upgrade to our latest release. In case that you use our latest I will need to take a look at your current implementation. By doing so I will be able to fully understand your scenario and investigate the reasons behind the reported behavior.

    Thank you for understanding.

    Regards,
    Pavel R. Pavlov
    Telerik
    TRY TELERIK'S NEWEST PRODUCT - EQATEC APPLICATION ANALYTICS for WPF.
    Learn what features your users use (or don't use) in your application. Know your audience. Target it better. Develop wisely.
    Sign up for Free application insights >>
  3. UI for WPF is Visual Studio 2017 Ready
  4. Dodd
    Dodd avatar
    44 posts
    Member since:
    Dec 2012

    Posted 01 Oct 2013 Link to this post

    I'm using 2013_2_0724. Can you give me a sample project that works? Thank you very much!
  5. Pavel R. Pavlov
    Admin
    Pavel R. Pavlov avatar
    1182 posts

    Posted 03 Oct 2013 Link to this post

    Hello,

    I just copied the provided code snipped and I tested it with several versions of our binaries.

    However, I suggest applying Foreground and FontSize to the GroupBox control. If you see the Header after these changes, you need to make sure that your custom style propagates these properties correctly.

    Regards,
    Pavel R. Pavlov
    Telerik
    TRY TELERIK'S NEWEST PRODUCT - EQATEC APPLICATION ANALYTICS for WPF.
    Learn what features your users use (or don't use) in your application. Know your audience. Target it better. Develop wisely.
    Sign up for Free application insights >>
  6. Dodd
    Dodd avatar
    44 posts
    Member since:
    Dec 2012

    Posted 04 Oct 2013 Link to this post

    Hi, I found out that GroupBox's header does not show up when using a custom theme.
    I will open a support ticket for a sample project I'm working on. Can you please look at that?
    Thanks!!
