Exporting Gantt

4 posts, 0 answers
  1. Daniel Grünberger
    Daniel Grünberger avatar
    46 posts
    Member since:
    May 2008

    Posted 14 Nov 2013 Link to this post

    Hi, I've used your sample from
    http://www.telerik.com/help/silverlight/radganttview-exportingsupport.html
    to export my RadGanttView, but printing does not work properly.

    The conversion between BitmapSource and Image does not seem to work, because all properties of the image are set to 0.0 (eg. ActualWidth, Width=NaN,...). The bitmap seems to be ok!

    private static UIElement PrintPage(BitmapSource bitmap)
    {
        var bitmapSize = new System.Windows.Size(bitmap.PixelWidth, bitmap.PixelHeight);
        var image = new System.Windows.Controls.Image { Source = bitmap };
        image.Measure(bitmapSize);
        image.Arrange(new System.Windows.Rect(new System.Windows.Point(0, 0), bitmapSize));
        return image;
    }


    When I print to XPS, the filesize of the produced .oxps file is 0 bytes.


  2. Vladi
    Admin
    Vladi avatar
    744 posts

    Posted 18 Nov 2013 Link to this post

    Hi,

    We are not aware of such issues with the built-in exporting feature of the current version of RadGanttView control.

    You could find a runnable project of the described approach from the help article in our GitHub repository here. You can download the entire repository as a zip file via this link. Could you download that example and see if runs as expected on your side. If you continue to experience issues could you open a new support thread and send us the sample project which fails to run on your side in it.

    Regards,
    Vladi
    Telerik
    TRY TELERIK'S NEWEST PRODUCT - EQATEC APPLICATION ANALYTICS for SILVERLIGHT.
    Learn what features your users use (or don't use) in your application. Know your audience. Target it better. Develop wisely.
    Sign up for Free application insights >>
  3. DevCraft banner
  4. Daniel Grünberger
    Daniel Grünberger avatar
    46 posts
    Member since:
    May 2008

    Posted 28 Nov 2013 Link to this post

    Hi, thanks for your reply!

    I'm was able to get the example code working. One reason was that .oxps files always have 0 bytes after exporting via your library. When I print to PDF the file contains data!

    What I also want to mention is that your newest release of SL controls (RadControls.for.Silverlight.2013.3.1016) seems to have a bug in the GanttView control. I was not able to make any of the ganttview examples working with the newest release -> The gantts did not show up in the UI!
    Version RadControls.for.Silverlight.2013.2.0724 works!


    Anyway, now I have another problem with the ganttview-export:

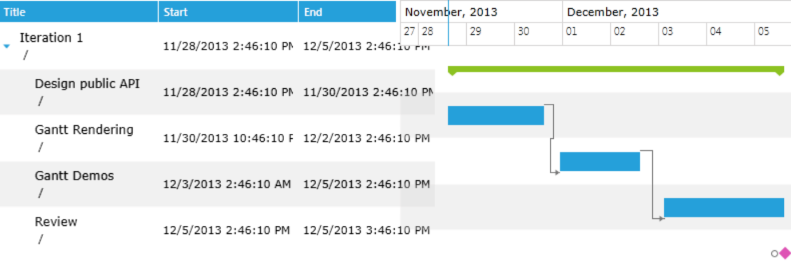

    The styles will be ignored in the print result and the text within the eventcontainers do not appear (look at PRINT.png)

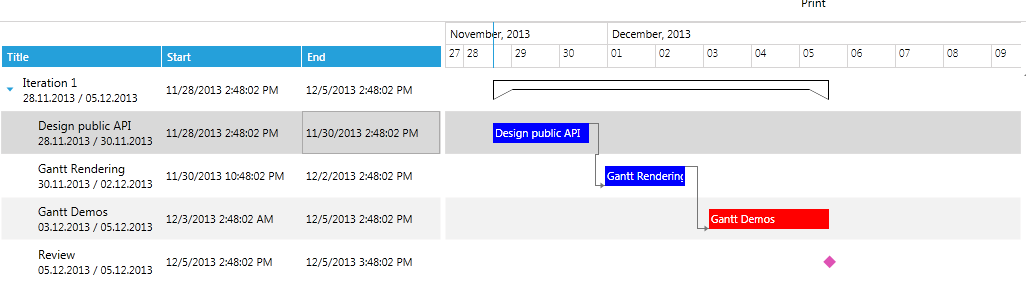

    The attachment BROWSER.png shows how the control gets rendered in Silverlight, PRINT.png shows how the print result looks like. How can I print with the styles I have applied? My Tasks (Custom Task class) have a Status property, which affects the background color of the container. The print result must contain this colors...

    PS: I have applied the EventContainerTemplate as you have suggested in this post: http://www.telerik.com/community/forums/silverlight/ganttview/height-of-summarycontainer.aspx





  5. Vladi
    Admin
    Vladi avatar
    744 posts

    Posted 28 Nov 2013 Link to this post

    Hi,

    It looks like the custom Styles that you have added are placed inside the Resources of the UserControl in which the RadGanttView is placed which is causing the issues. The correct way of adding customizations to the control is to:
    • Either added the custom Styles in the App.xaml after the merged ResourceDictionary of the RadGanttView control
    or
    • Add the custom Styles to a custom ResourceDictionary, in which merge the necessary ResourceDictionary for the RadGanttView control. After that merge the custom ResourceDictionary in the App.xaml
    Hope this is helpful.

    Regards,
    Vladi
    Telerik
