Error openning Report Designer

17 posts, 0 answers
  1. Tomashiba
    Tomashiba avatar
    6 posts
    Member since:
    Feb 2010

    Posted 14 Jun 2012 Link to this post

    Hi,

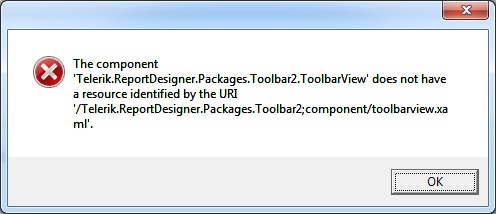

    I just installed Q2 2012 6.1.12.611 Reports but I am getting error message when starting the Report Designer:
    The component
    'Telerik.ReportDesigner.Packages.Toolbar2.ToolbarView' does not have a resource identified by the URI '/Telerik.ReportDesigner.Packages.Toolbar2;component/toolbarview.xaml'

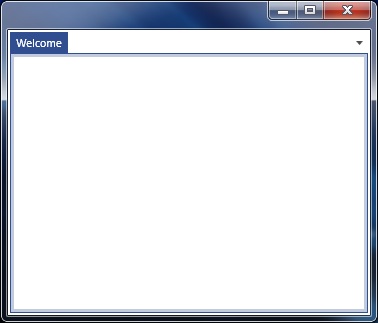

    After which a window with "Welcome" one tab is opend, no buttons or menues.

    Any help would be appreciated.

    Tomashiba

  2. Steve
    Admin
    Steve avatar
    10941 posts

    Posted 15 Jun 2012 Link to this post

    Hello,

    We were able to reproduce this error on a machine that has VS2012 RC installed and we're currently investigating what is causing it. If you do not have VS2012 RC on the machine where you get the problem, we would appreciate if you provide us with more information how to pinpoint the culprit. We have the following questions/suggestions:
    • Make sure that you have installed .NET Framework 4.0 Full Profile (the Designer requires the "System.Design" assembly that is not included in the Client Profile of .NET4.0).
    • Test the report designer on another machine (to exclude the possibility of this being a local machine issue). If you cannot reproduce it on another machine, compare what differs?
    • What is your dev environment - OS and IDE, installed frameworks.
    All the best,
    Steve
    the Telerik team

    BLOGGERS WANTED! Write a review about Telerik Reporting or the new Report Designer, post it on your blog and get a complimentary license for Telerik Reporting. We’ll even promote your blog and help bring you a few fresh readers. Yes, it’s that simple. And it’s free. Get started today >

  3. DevCraft banner
  4. Tomashiba
    Tomashiba avatar
    6 posts
    Member since:
    Feb 2010

    Posted 15 Jun 2012 Link to this post

    Hi,

    Yes, the PC has VS2010 and VS2012 RC on it, should I try it on PC without VS2012 RC?

    Tomashiba
  5. erwin
    erwin avatar
    358 posts
    Member since:
    Dec 2006

    Posted 15 Jun 2012 Link to this post

    Had same issue here,

    Solution was to remove all .net Framework 4.5 beta versions and re-install .net Framework Full 4.0.

    I had VS 2012 Betas /RCs installed, but later uninstalled - however the .net 4.5 beta stuff was left on the system.

    Regards
    Erwin
  6. Steve
    Admin
    Steve avatar
    10941 posts

    Posted 15 Jun 2012 Link to this post

    Hello Tomashiba,

    We've already confirmed the problem when VS2012 RC is present on the machine, on other machines it is ok, so for the time being if you want to use the standalone designer, please use it on a machine without the RC available.

    We apologize for the inconvenience and rest assured we're working on addressing this for subsequent internal build.

    All the best,
    Steve
    the Telerik team

    BLOGGERS WANTED! Write a review about Telerik Reporting or the new Report Designer, post it on your blog and get a complimentary license for Telerik Reporting. We’ll even promote your blog and help bring you a few fresh readers. Yes, it’s that simple. And it’s free. Get started today >

  7. Robert Bevis
    Robert Bevis avatar
    4 posts
    Member since:
    Oct 2009

    Posted 19 Jul 2012 Link to this post

    Hi,

    Since we need 4.5 beta because of this issue with radchart:
    http://www.telerik.com/community/forums/silverlight/chart/adding-radchart-in-visual-studio-designer.aspx

    Is there any other workaround for this ?

    Thanks
    Eduardo Barbosa
  8. Steve
    Admin
    Steve avatar
    10941 posts

    Posted 23 Jul 2012 Link to this post

    Hi Eduardo,

    You can use Visual Studio to create reports for the time being and when you need those reports to be used in the standalone designer, serialize them to .trdx as shown in the Serializing Report Definition in XML help article.

    Kind regards,
    Steve
    the Telerik team

    BLOGGERS WANTED! Write a review about Telerik Reporting or the new Report Designer, post it on your blog and get a complimentary license for Telerik Reporting. We’ll even promote your blog and help bring you a few fresh readers. Yes, it’s that simple. And it’s free. Get started today >

  9. Will
    Will avatar
    11 posts
    Member since:
    Apr 2012

    Posted 19 Aug 2012 Link to this post

    I never installed 2012 RC, but I have installed the RTMREL (11.0.50727.1 of VS, 4.5.50709 of .NET 4.5) and am having this issue.
  10. Steve
    Admin
    Steve avatar
    10941 posts

    Posted 20 Aug 2012 Link to this post

    Hi Will,

    Please install the Q2 2012 SP1 that we just released and let us know if you're still having problems.

    Regards,
    Steve
    the Telerik team

    BLOGGERS WANTED! Write a review about Telerik Reporting or the new Report Designer, post it on your blog and get a complimentary license for Telerik Reporting. We’ll even promote your blog and help bring you a few fresh readers. Yes, it’s that simple. And it’s free. Get started today >

  11. Will
    Will avatar
    11 posts
    Member since:
    Apr 2012

    Posted 26 Aug 2012 Link to this post

    6.1.12.820.

    ---------------------------
    Configure SQL Data Source - sqlDataSource1
    ---------------------------
    SqlCeCommand.CommandTimeout does not support non-zero values.

    Fail.

  12. Steve
    Admin
    Steve avatar
    10941 posts

    Posted 27 Aug 2012 Link to this post

    Hi Will,

    This is a generic error not thrown by our product. A quick internet search lists available reasons for the issue. If you believe you received this error due to specific of our product, please elaborate on your scenario.

    Regards,
    Steve
    the Telerik team

    BLOGGERS WANTED! Write a review about Telerik Reporting or the new Report Designer, post it on your blog and get a complimentary license for Telerik Reporting. We’ll even promote your blog and help bring you a few fresh readers. Yes, it’s that simple. And it’s free. Get started today >

  13. Will
    Will avatar
    11 posts
    Member since:
    Apr 2012

    Posted 27 Aug 2012 Link to this post

    This happens when attempting to configure a Sql compact 4.0 data source within your standalone designer.

    Here, try this.

    Install Sql Compact 4.0, whip up an .SDF, and create a new report against it within your standalone designer.

    If you get past the point where the wizard grabs the schema, let me know.  I'll reinstall everything, as it will be my bad.

    If you get that error, then you might want to find out why.

  14. Steve
    Admin
    Steve avatar
    10941 posts

    Posted 30 Aug 2012 Link to this post

    Hi Will,

    Actually there was a misunderstanding as I tried it with the VS report designer, where I used a different provided which is registered only for VS and it worked correctly with it. This provided however is not available as generic data provider and therefore is not available in the standalone designer. The SQL CE 4.0 generic provider has a check whether CommandTimeout is always 0, and if not throws the exception you posted. To workaround this problem you would have to manually set:

    CommandTimeout: 0
    ConnectionString: <your_connection>
    SelectCommand: <your_select>
    ProviderName: System.Data.SqlServerCe.4.0

    from the property grid of the SqlDataSource component.

    Sorry for the temporary inconvenience.

    Regards,
    Steve
    the Telerik team

    BLOGGERS WANTED! Write a review about Telerik Reporting or the new Report Designer, post it on your blog and get a complimentary license for Telerik Reporting. We’ll even promote your blog and help bring you a few fresh readers. Yes, it’s that simple. And it’s free. Get started today >

  15. Karl Golling
    Karl Golling avatar
    226 posts
    Member since:
    Jun 2005

    Posted 05 Mar 2013 Link to this post

    Steve,

    Could you write up an example - the exact code and where to place it. I've been trying to do that now for many hours and I seem to be missing something. So the db would be called test.sdf.

    I would deeply appreciate it.

    Thanks

    Karl
  16. Stef
    Admin
    Stef avatar
    3047 posts

    Posted 08 Mar 2013 Link to this post

    Hello Karl,

    Add a SqlDataSource component to your report and in the property grid you will see the mentioned by my colleague properties. If you do it manually (i.e., programmatically), create an instance of SqlDataSource and set the properties to a valid data in order to connect to your database.

    Let us know if you have any further questions.

    Regards,
    Stef
    the Telerik team

    Telerik Reporting Q1 2013 available for download with impressive new visualizations. Download today from your account.

  17. Karl Golling
    Karl Golling avatar
    226 posts
    Member since:
    Jun 2005

    Posted 08 Mar 2013 Link to this post

    Hi Stef,

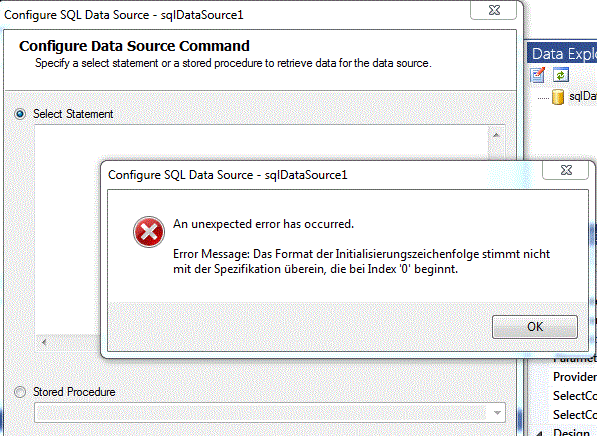

    I'm sorry Stef, I've tried a whole number of branching possiblities based on your sugestions and I just can't seem to be making the right connection. Again I have spent many hours. Please show me how you build a connection to the file scheduler.sdf - located whereever... for me to get started on designing a report. What am I overseeing? A typical error msg is in the image attached.

    Thanks,

    Karl
  18. Stef
    Admin
    Stef avatar
    3047 posts

    Posted 13 Mar 2013 Link to this post

    Hello,

    Here is an example for connecting to Northwind.sdf. Add a SqlDataSource component to your report and instead of using the designer, set its properties in the property grid:
    • CommandTimeout=0;
    • ConnectionString - Data Source=<file_path>\Northwind.sdf;
    • ProviderName=System.Data.SqlServerCe.4.0;
    • SelectCommand - Select Employees.* from Employees for example
    You will be able to use the generated fields in the expression dialogs.

    I hope this helps.

    Regards,
    Stef
    the Telerik team

    Telerik Reporting Q1 2013 available for download with impressive new visualizations. Download today from your account.
