Edited ShapesCollection

11 posts, 0 answers
  1. Hdereli
    Hdereli avatar
    1 posts
    Member since:
    Oct 2014

    Posted 17 Oct 2014 Link to this post


     Hi,

     RadDiagram is really nice component. I am trying to adapt this control to my project. After binding components using server-side methods, it worked fine. However I couldn't get edited shapes new properties (new title,X,Y). ShapesCollection has initial shapes. Is there any way that we can get the latest state of shapes at the server side.

     Thanks.
  2. Slav
    Admin
    Slav avatar
    1359 posts

    Posted 22 Oct 2014 Link to this post

    Hello,

    The changes that you make on the RadDiagram control are saved only on the client, so it is expected that the ShapesCollection will have the initial shapes.

    There is an option for exporting the diagram data as shown in the following demo: http://demos.telerik.com/aspnet-ajax/diagram/examples/saveload/defaultcs.aspx. Nevertheless, currently it has a bug with getting the information for modified connections. You could use the following bug item in our feedback portal to track the status of the issue, vote for it and comment it: http://feedback.telerik.com/Project/108/Feedback/Details/139644

    Regards,
    Slav
    Telerik
  3. Bhavya
    Bhavya avatar
    42 posts
    Member since:
    Aug 2015

    Posted 15 Dec 2016 in reply to Slav Link to this post

    Hi Slav,
    I am creating a raddigram as in this link "http://docs.telerik.com/devtools/aspnet-ajax/controls/diagram/functionality/shape-templates"

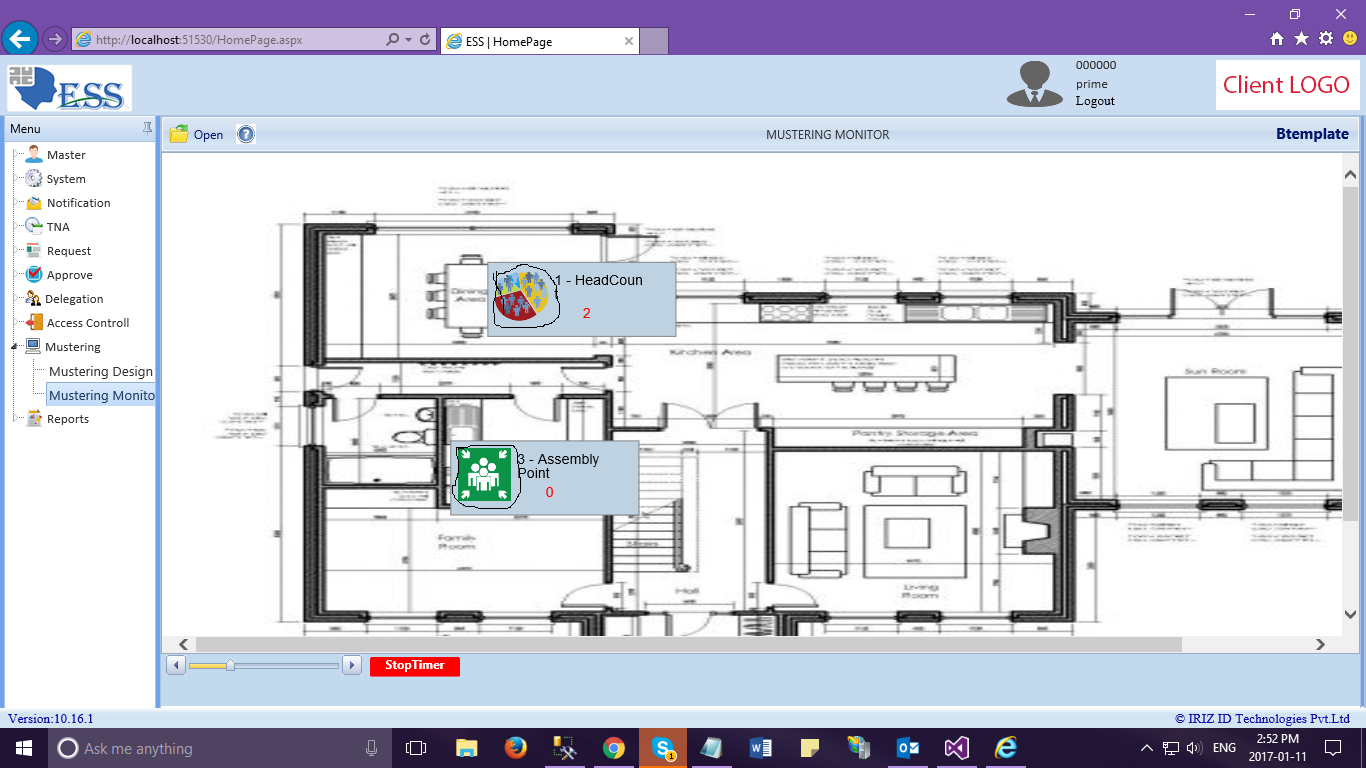

    but i am not using DiagramShape. i am able to get the data as shown in the picture pic1.
    later i am calling a function to check the value has been increased or not, if value increased i have to update the value. only value should be updated, i should not redraw whole shape. can i do that? if so how?
    Please help me in this context.
    in timer i am doing in this way but not able to update.
    aspx:
    <telerik:RadDiagram runat="server" ID="theDiagram" width="1330" RenderMode="Auto">
                            <ClientEvents OnClick="OnClick"  />
                            <ShapeDefaultsSettings Visual="ImageTemplate"></ShapeDefaultsSettings>
    </telerik:RadDiagram>
    ImageTemplate:
    function ImageTemplate(options) {
                       var dataviz = kendo.dataviz;
                        var group = new dataviz.diagram.Group({ autoSize: true });
                        var backGID = options.id;
                        if (backGID != "s1") {
                            group.append(new dataviz.diagram.Rectangle({
                                x: 0,
                                y: 0,
                                width: options.width,
                                height: options.height,
                                width: 195,
                                height: 75,
                                border_radius: 5,
                                background: "webkit-linear-gradient(top,  #bed2e2 0%,#abd3ee 94%,#d5ebfb 100%)",
                                fill: {
                                    color: "#bed2e2"

                                }
                            }));

                            var textWrap1 = options.content.substring(0, 12);
                            var textWrap2 = options.content.substring(12, 19);
                            group.append(new dataviz.diagram.TextBlock({
                                text: textWrap1,
                                color: "#000000",
                                x: 70,
                                y: 10
                            }));

                            if (textWrap2 != "") {
                                group.append(new dataviz.diagram.TextBlock({
                                    text: textWrap2,
                                    color: "#000000",
                                    x: 70,
                                    y: 25
                                }));
                            }


                            var img = options.content;
                            if (img.indexOf("ead") != -1) {
                                img = "../Images/Img_HeadCount.png";
                                group.append(new dataviz.diagram.TextBlock({
                                    text: options.Counter,
                                    color: "#FF0000",
                                    x: 100,
                                    y: 45
                                }));
                            }
                            else if (img.indexOf("oll") != -1) {
                                img = "../Images/Img_Rollcall.png";
                                group.append(new dataviz.diagram.TextBlock({
                                    text: options.Counter,
                                    color: "#FF0000",
                                    x: 100,
                                    y: 45
                                }));

                            }
                            else {
                                img = "../Images/Img_Assembly_Point.png";
                                group.append(new dataviz.diagram.TextBlock({
                                    text: options.Counter,
                                    color: "#FF0000",
                                    x: 100,
                                    y: 45
                                }));
                            }
                            var image = new dataviz.diagram.Image({
                                source: img,
                                x: 5,
                                y: 5,
                                width: 60,
                                height: 60,
                            });
                            group.append(image);
                        }
                        else {
                            var jsonFilename = '<%=backImageUpload%>';
                            if (jsonFilename == null || jsonFilename == "") {
                                var imageFolder = "../backgroundImage/backgound.jpg";
                            }
                            else {
                                var imageFolder = "../backgroundImage/" + jsonFilename + ".jpg";
                            }

                            var wid = dataviz.DEFAULT_WIDTH;
                            var image = new dataviz.diagram.Image({
                                source: "../backgroundImage/" + options.content + ".jpg",
                                x: 10,
                                y: 7,
                                width: wid + 550,
                                height: 400 + 200,
                            });
                            group.append(image);
                        }
                        return group;
                    };
    timer function:
    function CountDownTimer() {
                        $.ajax({
                            type: "POST",
                            url: "Frm_MusteringMonitor.aspx/GetSessionValue",
                            contentType: "application/json;",
                            data: JSON.stringify(),
                            success: function (Data) {
                                if (Data.d != "") {
                               var diagramWidget1 = $find("<%= theDiagram.ClientID %>").kendoWidget;
                                    var listOfObject = JSON.parse(Data.d);
                                    var dectionaryItem = Data.d.replace(/[&\/\\#+()$~%.'"*?<>{}]/g, '');
                                    var getVal = dectionaryItem.split(',');
                                    var leng = diagramWidget1.shapes.length;
                                    var i = 1;
                                    for (i = 1; i < leng; i++) {
                                        var jsonObjName = getVal[i - 1].split(":");
                                        var DiaObjname = diagramWidget1.shapes[i].options.content;
                                        if (jsonObjName[0] === DiaObjname) {
                                            var NewValue = jsonObjName[1];
                                            diagramWidget1.shapes[i].options.Counter = NewValue ;
    // i have three shapes so doing loop here and i am able to get the value here but not updating on diagram
                                        }
                                    }
                                }
                               },
                               error: function (XMLHttpRequest, textStatus, errorThrown) {
                               }
                           });
                    }
    Thanks in advance.
  4. Slav
    Admin
    Slav avatar
    1359 posts

    Posted 20 Dec 2016 Link to this post

    Hello Bhavya,

    You can redraw the visual of the shape to show the new value. I have attached a short sample that demonstrates this approach.

    Regards,
    Slav
    Telerik by Progress
    Try our brand new, jQuery-free Angular 2 components built from ground-up which deliver the business app essential building blocks - a grid component, data visualization (charts) and form elements.
  5. Bhavya
    Bhavya avatar
    42 posts
    Member since:
    Aug 2015

    Posted 20 Dec 2016 in reply to Slav Link to this post

    Hi Slav,

    Thanks for the solution. it is working now without flickering.

  6. Bhavya
    Bhavya avatar
    42 posts
    Member since:
    Aug 2015

    Posted 11 Jan Link to this post

    Hi Slav,

    There is a function CountDownTimer(),which is in previous message

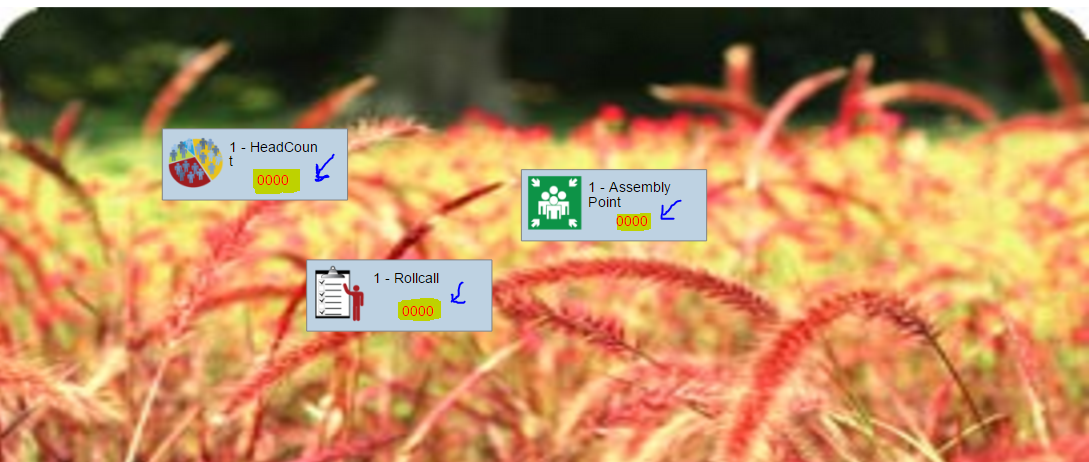

    How can i change the image ,In the Attached file i have highlighted the image.

  7. Bhavya
    Bhavya avatar
    42 posts
    Member since:
    Aug 2015

    Posted 11 Jan in reply to Bhavya Link to this post

    You can redraw the visual of the shape to show the new image. I have attached a short sample that demonstrates this approach.


    Regards,
    Slav
    Telerik by Progress
  8. Bhavya
    Bhavya avatar
    42 posts
    Member since:
    Aug 2015

    Posted 11 Jan in reply to Slav Link to this post

    Hi Slav

    How Can i redraw the visual of the shape to show the New Image.methods are same as in previous msg(count down timer). I have attached a template ,where it should affect.

    Thanx in advance

  9. Slav
    Admin
    Slav avatar
    1359 posts

    Posted 16 Jan Link to this post

    Hello Bhavya,

    You can create an Image object in the visual as shown in the following help article: http://docs.telerik.com/devtools/aspnet-ajax/controls/diagram/functionality/shape-templates

    Then you can pass the path of the new image via the options of the shape and redraw its visual similarly to how I update the content in my previous sample.

    Regards,
    Slav
    Telerik by Progress
    Try our brand new, jQuery-free Angular 2 components built from ground-up which deliver the business app essential building blocks - a grid component, data visualization (charts) and form elements.
  10. Bhavya
    Bhavya avatar
    42 posts
    Member since:
    Aug 2015

    Posted 21 Jan in reply to Slav Link to this post

    Hi Slavs,

    Thank You For the Previous Solution,

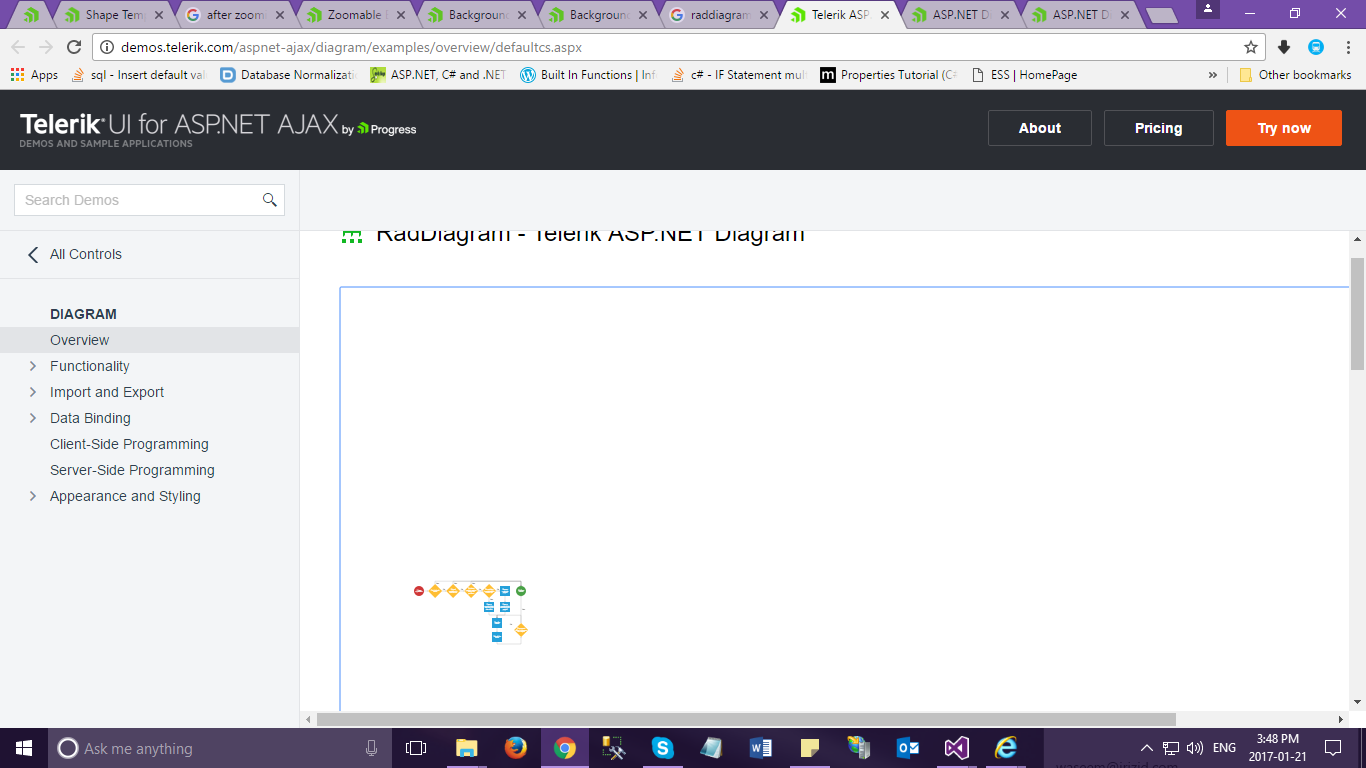

    As we are working on RAD DIAGRAM and we are trying to customise. Our requirement is to show the designed diagram even after zoom in and zoom out  but in the existing one once we zoom in and try to zoom out the designed diagram is going out of the RAD DIAGRAM window. So can you please suggest us to resolve this issue asap.

    Thanks & Regards

    Bhavya

  11. Vessy
    Admin
    Vessy avatar
    1567 posts

    Posted 25 Jan Link to this post

    Hi Bhavya,

    I would like to kindly ask you to open a separate support ticket/thread for each issue you are facing.

    Since the new request is not directly related to the theme of the initial post, I created a new thread, you can expect our answer here:
    http://www.telerik.com/forums/keep-diagram-centered-after-zooming


    Regards,
    Vessy
    Telerik by Progress
