DropPosition is always Inside - even when it's not really inside

[Andrei Rinea]

I have a small test project to check the Drag/Drop feature of RadTreeListView. Markup:

<t:RadTreeListView ItemsSource="{Binding Items}" IsReadOnly="True" IsDragDropEnabled="True" x:Name="tree" AutoGenerateColumns="False">
<t:RadTreeListView.DragCueItemTemplate>
<DataTemplate>
<StackPanel>
<TextBlock Text="{Binding Name}"/>
<StackPanel Orientation="Horizontal">
<TextBlock Text="Children count : "/>
<TextBlock Text="{Binding Children.Count}"/>
</StackPanel>
</StackPanel>
</DataTemplate>
</t:RadTreeListView.DragCueItemTemplate>
<t:RadTreeListView.ChildTableDefinitions>
<t:TreeListViewTableDefinition ItemsSource="{Binding Children}" />
</t:RadTreeListView.ChildTableDefinitions>
<t:RadTreeListView.Columns>
<t:GridViewDataColumn DataMemberBinding="{Binding Name}" Header="Nume"/>
</t:RadTreeListView.Columns>
</t:RadTreeListView>









Nothing fancy here... I bind it to a simple hierarchy of Node's and if I drag an item I receive this event in







private static void TreePreviewDragEnded(object sender, RadTreeListViewDragEndedEventArgs e)
{
Debug.WriteLine("DropPosition: " + e.DropPosition);
Debug.WriteLine("IsCanceled: " + e.IsCanceled);
Debug.WriteLine("TargetDropItem: " + (e.TargetDropItem == null ? "<null>" : e.TargetDropItem.ToString()));
Debug.WriteLine("DraggedItems: " + e.DraggedItems);
if (e.DraggedItems.Count > 0)
{
foreach (var item in e.DraggedItems)
{
Debug.WriteLine(" Dragged item : " + item);
}
}
Debug.WriteLine("-----------------");
}

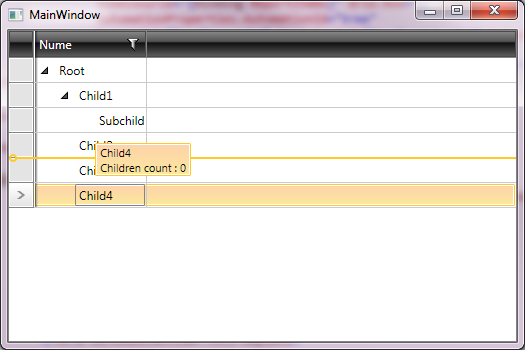

The issue is that no matter if I drop between (see attachment 1) or drop inside (see attachment 2) in the PreviewDragEnded event handler I always get e.DropPosition == Inside.

Am I doing something wrong?

[Tsvyatko]

Hello Andrei Rinea,

We have have checked the described scenario and seems that there is issue regarding this functionality.

I have logged this in our PITS system where you can track its progress - http://www.telerik.com/support/pits.aspx#/public/silverlight/4699

I have also updated your telerik points.

Kind regards,
Tsvyatko
the Telerik team

[Andrei Rinea]

Thanks,

However the platform I'm experiencing is WPF and not Silverlight. Maybe it's the same codebase but I don't know this for sure.

[Vlad]

Hi,

 Indeed the issue is for both platforms. Here is the correct link for WPF:
http://www.telerik.com/support/pits.aspx#/public/wpf/4699

Regards,
Vlad
the Telerik team

[John Slocum]

Hi,

I'm currently having this same issue, but the links that were provided don't really show anything.
I assume they used to be routed somewhere else.  Is there a new place one might find the answer to this question?

Thanks

[Nick]

Hello John,

The issue was fixed recently, you can check our latest internal builds to see if the problem is solved with your scenario.

Regards,
Nik
Telerik
