Does the Diagram control support drawing "SQL-like" diagrams ...

2 posts, 0 answers
  1. Jay
    Jay avatar
    87 posts
    Member since:
    Nov 2007

    Posted 27 Apr Link to this post

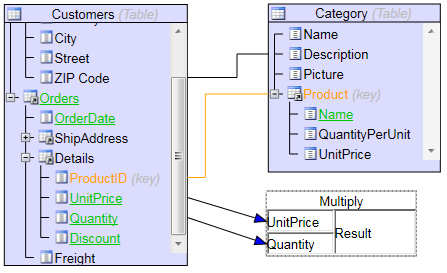

    I am looking for controls that will enable me to easily draw diagrams that are like SQL relationships. Basically with each object having a title (table name), and having multiple properties under it (like table columns). And then I want to link the properties in one object to a property in another object (like SQL links). similar to the attached image.

    Do the Telerik controls support this type of view?

  2. Misho
    Admin
    Misho avatar
    129 posts

    Posted 02 May Link to this post

    Hello,

    Telerik Diagram control enables you to use the built in shapes as well as to create a custom shape by passing the desired SVG path to the DiagramShape’s Path property. You can fully control where and how data is displayed in the RadDiagram shapes by defining a visual template.

    You can find more information in the following help resources:
    http://docs.telerik.com/devtools/aspnet-ajax/controls/diagram/functionality/shape-templates

    http://docs.telerik.com/devtools/aspnet-ajax/controls/diagram/structure/shape
    http://docs.telerik.com/devtools/aspnet-ajax/controls/diagram/structure/connection
    http://docs.telerik.com/devtools/aspnet-ajax/controls/diagram/how-to/custom-shapes-and-connectors
    http://demos.telerik.com/aspnet-ajax/diagram/examples/overview/defaultcs.aspx

    I hope you will find this information helpful.

    Best Regards,
    Misho
    Telerik
