Different MinValue than AxisCrossingValue

2 posts, 0 answers
  1. Mike
    Mike avatar
    41 posts
    Member since:
    Aug 2011

    Posted 04 Apr Link to this post

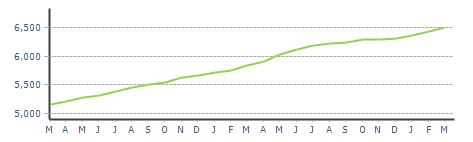

    I am transitioning my charts from another third party product to the RadHTMLChart and the only functionality that I can't quite get to work is getting a proper buffer between the bottom of the chart and the beginning of my data. I wanted to have clean, rounded number increments on the YAxis so I rounded my min value down (e.g. 5,187  to 5,000) but now I want a larger buffer on the bottom between my first MajorTickLine and the X-Axis. Attached is an image of the old chart that I want to replicate. Notice that the XAxis does not have a value itself but the first YAxis tick line does.

    Any help is appreciated.

  2. Ianko
    Admin
    Ianko avatar
    1535 posts

    Posted 07 Apr Link to this post

    Hi Robert,

    You can achieve that by using the YAxis-LabelAppearance-Skip property—http://docs.telerik.com/devtools/aspnet-ajax/controls/htmlchart/server-side-programming/axes-configuration#attribute-properties-in-axis--labelsappearance.

    Here you are a basic example:
    <telerik:RadHtmlChart runat="server" ID="AreaLineSplineChart">
        <PlotArea>
            <Series>
                <telerik:LineSeries Name="Line Series">
                    <MarkersAppearance Visible="false" />
                    <SeriesItems>
                        <telerik:CategorySeriesItem Y="5000" />
                        <telerik:CategorySeriesItem Y="5800" />
                        <telerik:CategorySeriesItem Y="6300" />
                    </SeriesItems>
                </telerik:LineSeries>
            </Series>
            <XAxis>
                <Items>
                    <telerik:AxisItem LabelText="2004" />
                    <telerik:AxisItem LabelText="2005" />
                    <telerik:AxisItem LabelText="2006" />
                </Items>
            </XAxis>
            <YAxis MinValue="4500" Step="500" >
                <MajorGridLines Color="#EFEFEF" Width="1" />
                <MinorGridLines Color="#F7F7F7" Width="1" />
                <LabelsAppearance Skip="1">
                </LabelsAppearance>
            </YAxis>
        </PlotArea>
    </telerik:RadHtmlChart>


    Regards,
    Ianko
