Databind from WCF

13 posts, 0 answers
  1. Jonathan Miller
    Jonathan Miller avatar
    57 posts
    Member since:
    Jun 2008

    Posted 10 Nov 2008 Link to this post

    I have a <List> coming from WCF Async.  This list is ID, ParentFolderID, Name

    How can I set the (radTreeView.ItemsSource = e.Result;) from code-behind and bind in a hierarchy (parent child) relationship?

    Thanks
  2. Hristo
    Admin
    Hristo avatar
    832 posts

    Posted 11 Nov 2008 Link to this post

    Hello Jonathan Miller,

    At the moment you cannot create hierarchy list from flat list. You should do it yourself. After that you should use HierarchicalDataTemplate to define hierarchy. Please see the example on how to use HierarchicalDataTemplate in our demos:
    http://demos.telerik.com/silverlight/#TreeView/TemplateSelector

    Drop us a line if you need more help.


    Best wishes,
    Hristo
    the Telerik team

    Check out Telerik Trainer, the state of the art learning tool for Telerik products.
  3. Paresh Maniar
    Paresh Maniar avatar
    4 posts
    Member since:
    Nov 2008

    Posted 01 Dec 2008 Link to this post

    Hi Guys

    We're trying to display an organisation hierarchy using the Tree View control.

    We have 2 entities;

    organisation and
    person

    organisation has 2 properties;
       organisation[] organisations
       person[] people

    We would like to display the hierarchy like this

    Top Organisation
            |
            |---- Person1
            |---- Organisation 1.1
                        |-------Organisation 2.1
                        |                    |-----------Organisation 3.1
                        |-------Person 1.1
                        |-------Person 1.2

    etc

    I'm struggling to work out how to display treeviewitems of the different types

    Any help would be most appreciated.

    Many thanks in advance
  4. Jonathan Miller
    Jonathan Miller avatar
    57 posts
    Member since:
    Jun 2008

    Posted 01 Dec 2008 Link to this post

    I had the same issue with an unknown number of child nodes.

    Here is some sample code to help manually add the nodes.  You can also use a "while / do"

    //declared and filled with self referencing data earlier
    // private ObservableCollection<ServiceReference.Folders> ocFolders;

    //from WCF
    ocFolders = e.Result;
                treeFolders.Items.Clear();
                RadTreeViewItem itm;
                for (int i = 0; i < ocFolders.Count; i++)
                {
                        foreach (RadTreeViewItem itmParent in treeFolders.Items)
                        {
                            if (ocFolders[i].ParentFolderID.ToString().Trim() == itmParent.Tag.ToString().Trim())
                            {
                                itm = new RadTreeViewItem();
                        itm.Header = ocFolders[i].FolderName; //this is the name you will see on your screen
                        itm.Tag = ocFolders[i].ID.ToString(); //I'm using this like a selectedvalue
                        itm.DefaultImageSrc = "folder.png"//(optional) this is the image to display in the tree if you are using one
                        treeFolders.Items.Add(itm);
                            }

                    }
                }

  5. Miroslav
    Admin
    Miroslav avatar
    922 posts

    Posted 03 Dec 2008 Link to this post

    Hi Jonathan,

    The ItemTemplate will allow you to choose the look of the TreeView items, but it is useful only if you have 1 type of item. To have varying item templates you need to make a template selector and set it to the ItemTemplateSelector property. Please note that this is similar to the ItemContainerStyle & ItemContainerStyleSelector, which you can use to completely change the properties of the TreeViewItem.

    In this example

    http://demos.telerik.com/silverlight/#TreeView/TemplateSelector

    the template selector gets the templates from the resources, but they can easily be properties of the custom DataTemplateSelector and be part of it in xaml.

    I would suggest binding the items since this will way you will better separate your ui from your other logic.

    Suppose you have your data in as a hierachical structure, then you can use a DataTemplateSelector based on the type of the object.

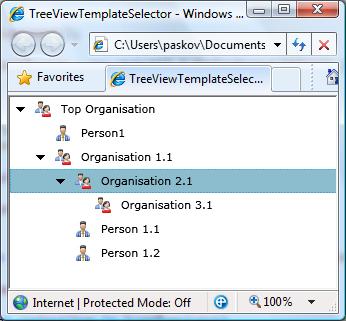

    Here is what I came up with:



    Please have a look at the example attached, and if you have any other qustions, come back to us.

    Kind regards,
    Miroslav
    the Telerik team

    Check out Telerik Trainer, the state of the art learning tool for Telerik products.
  6. oboron
    oboron avatar
    6 posts
    Member since:
    Dec 2007

    Posted 03 Dec 2008 Link to this post

    Thanks

    That is really useful.

    However, the 2 collections of people in an organisation are separate rather than in 1 list

    Organisation
    {
    List<Person> People;
    List<Organisation> SubOrganisations;
    }

    I can render out the organisation but not sure how to render out the person details.

    Any help in refining your example would be much appreciated.


  7. Mark Vetrano
    Mark Vetrano avatar
    1 posts
    Member since:
    Oct 2008

    Posted 03 Dec 2008 Link to this post

    oboron, based on the previous sample, looks like you'll need to create a new model based on the 2 list you have, then bind via datatemplate

    cheers
  8. oboron
    oboron avatar
    6 posts
    Member since:
    Dec 2007

    Posted 03 Dec 2008 Link to this post

    Thanks. I tried that but it only seems to bind the organisationmodel not the personmodel.

    The selecttemplate function doesn't seem to ever see the people list.

  9. Miroslav
    Admin
    Miroslav avatar
    922 posts

    Posted 08 Dec 2008 Link to this post

    Hi Robin,

    The example I showed uses a TemplateSelector which changes the templates based on the Type of the data item (the model). Of course the selection happens in code, so you can base the selection on different properties and their values, or external factors.

    Unfortunately the TreeView can present hierarchical models that have a maximum of 1 children source. So if the child nodes for an item will be based on more children collections, I suggest creating a ViewModel for the nodes (a class that will "wrap" the data items) and will combine the multiple children collection properties into one. In the previous example the Children collection comes in place of the People + Organization collections.

    Combining collections can be done with the LINQ Union extension, or a custom implementation.

    Does that work for you?

    Regards,
    Miroslav
    the Telerik team

    Check out Telerik Trainer, the state of the art learning tool for Telerik products.
  10. oboron
    oboron avatar
    6 posts
    Member since:
    Dec 2007

    Posted 09 Dec 2008 Link to this post

    Hi

    How do I access the datacontext from the HeaderTemplate?

    Thanks
  11. Miroslav
    Admin
    Miroslav avatar
    922 posts

    Posted 10 Dec 2008 Link to this post

    Hi Robin,

    When you bind the TreeView the DataContext in the HeaderTemplate will be the data item and all of the {Bindings ... } will be bound to it. The DataContext is inherited, so that will actually be the DataContext of the TreeView item as well.

    Do you need to access the DataContext in code from a member of the DataTemplate? Then you can walk down the visual tree until you find the TreeViewItem, but again - this will be the same DataContext that you will bind against.

    All the best,
    Miroslav
    the Telerik team

    Check out Telerik Trainer, the state of the art learning tool for Telerik products.
  12. oboron
    oboron avatar
    6 posts
    Member since:
    Dec 2007

    Posted 10 Dec 2008 Link to this post

    This is the code I have in the xaml.cs

    foreach(OrganisationProxy.Organisation organisation in this.TopLevelOrganisations)
    {
    RadTreeViewItem orgNode = new RadTreeViewItem();
    orgNode.HeaderTemplate = (DataTemplate)this.Resources["OrganisationTemplate"];
    ordNode.DataContext = organisation

    this.TheRecipientTree.Items.Add(orgNode);
    }

    and in the xaml page

    <DataTemplate x:Key="OrganisationTemplate">
    <TextBlock Text="{Binding Path=OrganisationProxy.Organisation.Name}" />
    <CheckBox x:Name="IsRecipient"/>
    </DataTemplate>


    I just can't get the text value of the organisation to render.

    Also, how do I find the checkbox control to check it has been ticked?

    Thanks

  13. Miroslav
    Admin
    Miroslav avatar
    922 posts

    Posted 10 Dec 2008 Link to this post

    Hello Robin,

    The binding property path requires just the names of the properties. Also, you can set the item as the Header of the RadTreeView item, to make sure that it will be properly bound.

    You normally can not get objects that are part of the template. Therefore the easiest way to manage the Checkboxis to bind it. So your code will look like:

    foreach(OrganisationProxy.Organisation organisation in this.TopLevelOrganisations)
    {
        RadTreeViewItem orgNode = new RadTreeViewItem();
        orgNode.HeaderTemplate = (DataTemplate)this.Resources["OrganisationTemplate"];
        orgNode.Header = organisation

        this.TheRecipientTree.Items.Add(orgNode);
    }


    and xaml:

    <DataTemplate x:Key="OrganisationTemplate">
        <TextBlock Text="{Binding Name}" />
        <CheckBox IsChecked="{Binding MyBoolProperty, Mode=TwoWay}"/>
    </DataTemplate>

    Then you need to add "MyBoolProperty" to the Organisation object and you can handle the change there.

    Regards,
    Miroslav
    the Telerik team

    Check out Telerik Trainer, the state of the art learning tool for Telerik products.
