Customize Telerik RadCartesianChart

2 posts, 0 answers
  1. Rinno
    Rinno avatar
    6 posts
    Member since:
    Sep 2014

    Posted 24 Sep 2014 Link to this post

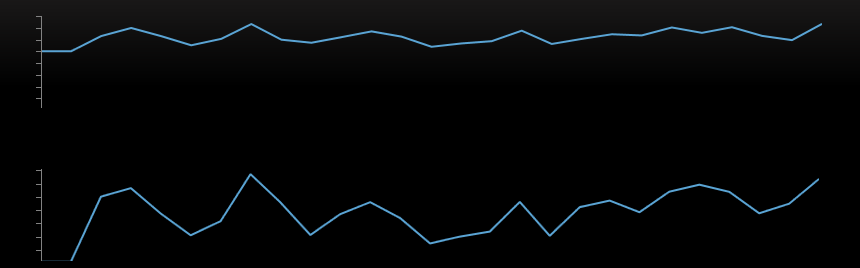

    I have WPF application and 2 RadCartesianChart (please see my screenshot attach)

    This is the code of one of them (they both identical):

    <telerik:RadCartesianChart x:Name="ccPacketsPerSeconds" Margin="145,392,53,-119">
    <telerik:CartesianChartGrid MajorXLineDashArray="5, 5" MajorYLineDashArray="5, 5" MajorLinesVisibility="None">
    <Style TargetType="{x:Type Line}">
    <Setter Property="Stroke" Value="Gray"/>
    <Style TargetType="{x:Type Line}">
    <Setter Property="Stroke" Value="Gray"/>
    <telerik:LinearAxis ShowLabels="False" IsEnabled="False" Minimum="-5"/>
    <telerik:RadCartesianChart.HorizontalAxis >
    <telerik:CategoricalAxis ShowLabels="False" IsEnabled="False"/>

    And i want to change 2 things:

    1. the color of the line
    2. remove the y axis that remained.

    I try to change almost all the properties and it still the same so i will glad for some help.

  2. Martin
    Martin avatar
    1044 posts

    Posted 25 Sep 2014 Link to this post

    Hello Rinno,

    In order to change the color of a LineSeries's line you can set its Stroke property.
    <telerik:LineSeries Stroke="Green">

    To hide the axis you can set its Visibility property to Collapsed.
    <telerik:LinearAxis ShowLabels="False" IsEnabled="False" Minimum="-5" Visibility="Collapsed"/>

    Please let me know if have any further questions.
