CreateColumnEditor Event to Change Editor Control Type

11 posts, 0 answers
  1. Rocky
    Rocky avatar
    7 posts
    Member since:
    Sep 2009

    Posted 06 Sep 2009 Link to this post

    My problem is changing an auto-generated column editor type..

    I want to change from a textbox control to a dropdownlist control using AutoGenerateColumns = true

    Is there a different way to do what I'm doing below? I really hate deriving from GridTextBoxColumnEditor just to expose a DropDownList.


    <telerik:RadGrid ID="RadGrid1" runat="server" AutoGenerateColumns="true" AllowAutomaticUpdates="true" OnNeedDataSource="RadGrid1_NeedDataSource"  OnCreateColumnEditor="RadGrid1_CreateColumnEditor">

    protected void RadGrid1_CreateColumnEditor(object sender, GridCreateColumnEditorEventArgs e)
        {
            if (e.Column is GridBoundColumn)
            {
                if ((e.Column as GridBoundColumn).DataField == "Code"
                {
                    DropDownList ddl = new DropDownList();
                    e.ColumnEditor = new CustomDropDownList(ddl);
                }
            }
        }
    // Derived class used to expose a dropdownlist
    // (Notice i'm deriving from GridTextBoxColumnEditor)
    public class CustomDropDownList : GridTextBoxColumnEditor
        private DropDownList _ddl;

        public CustomDropDownList(DropDownList ddl)
        {
            this._ddl = ddl;
        }

        protected override void LoadControlsFromContainer()
        {
            this._ddl = this.ContainerControl.Controls[0] as DropDownList;
        }

        public override bool IsInitialized
        {
            get
            {
                return this._ddl != null
            }
        }

        public override string Text
        {
            get
            {
                return this._ddl.SelectedValue;
            }
            set
            {
                this._ddl.SelectedIndex = this._ddl.Items.IndexOf(this._ddl.Items.FindByValue(value));
            }
        }

        protected override void AddControlsToContainer()
        {
            this.ContainerControl.Controls.Add(this._ddl);
        }

  2. Rocky
    Rocky avatar
    7 posts
    Member since:
    Sep 2009

    Posted 06 Sep 2009 Link to this post

    I have no idea why the above post looks soo terrible, but I can't seem to reformat it to save my life. Sorry. Hope it's readable.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Rocky
    Rocky avatar
    7 posts
    Member since:
    Sep 2009

    Posted 06 Sep 2009 Link to this post

    Maybe I should word it another way.

    The grid will have a data source with a different select command potentially every time. There are some columns that I'll change for by their DataField property that will need to be converted to DropDownLIsts when edited. In order to change the editor control, the replacment control must derive from the control type you're trying to replace. Is there a different way to replace autogenerated editable controls to different types? (like drop down?)
  5. Sebastian
    Admin
    Sebastian avatar
    9934 posts

    Posted 09 Sep 2009 Link to this post

    Hello Rocky,

    It seems that you discovered a way to replace the default textbox column editor of auto-generated GridBoundColumn with dropdown list. Indeed there is a requirement your custom class to extend the GridTextBoxColumnEditor class (used as a base class for derived auto-generated textbox column editors) in order to assign an object of this class to e.ColumnEditor inside the OnCreateColumnEditor event handler.

    I updated your Telerik points for sharing your implementation in this public forum thread.

    Kind regards,
    Sebastian
    the Telerik team

    Instantly find answers to your questions on the new Telerik Support Portal.
    Watch a video on how to optimize your support resource searches and check out more tips on the blogs.
  6. chris lively
    chris lively avatar
    11 posts
    Member since:
    Sep 2009

    Posted 28 Sep 2010 Link to this post

    This code sample gets me SO CLOSE I can smell it.

    However, it doesn't work when AllowMultiRowEdit is turned on...

    I can get my drop downs enabled on only the last row in the grid.  Any ideas how to get AutoGenerateColumns=true, AllowMultiRowEdit=true, and drop down lists to work together?

    My grid has an unknown number of columns and rows, otherwise I'd just specify it all upfront.
  7. chris lively
    chris lively avatar
    11 posts
    Member since:
    Sep 2009

    Posted 28 Sep 2010 Link to this post

    Problem Solved.  Rocky's original post had one little flaw.  Namely that the DropDownList control was reused.  This caused the last row to be the only row which actually got the controls.

    So, I changed the definition to the following, their might be a better way (probably .clone()..) but for now this seems to work:

    public class DropDownListForTelerik : GridTextBoxColumnEditor {
        private DropDownList _ddl;
        private DropDownList _copyFrom;

        public DropDownListForTelerik(DropDownList ddl) {
            _copyFrom = ddl;
        }


        protected override void LoadControlsFromContainer() {
            this._ddl = this.ContainerControl.Controls[0] as DropDownList;
        }

        public override bool IsInitialized {
            get { return this._ddl != null; }
        }

        public override string Text {
            get { return this._ddl.SelectedValue; }
            set { this._ddl.SelectedIndex = this._ddl.Items.IndexOf(this._ddl.Items.FindByValue(value)); }
        }

        protected override void AddControlsToContainer() {
            _ddl = new DropDownList();

            foreach (ListItem item in _copyFrom.Items) {
                ListItem i2 = new ListItem(item.Text, item.Value);
                _ddl.Items.Add(i2);
            }

            this.ContainerControl.Controls.Add(_ddl);
        }
    }

  8. Mark
    Mark avatar
    11 posts
    Member since:
    May 2012

    Posted 21 Mar 2013 Link to this post

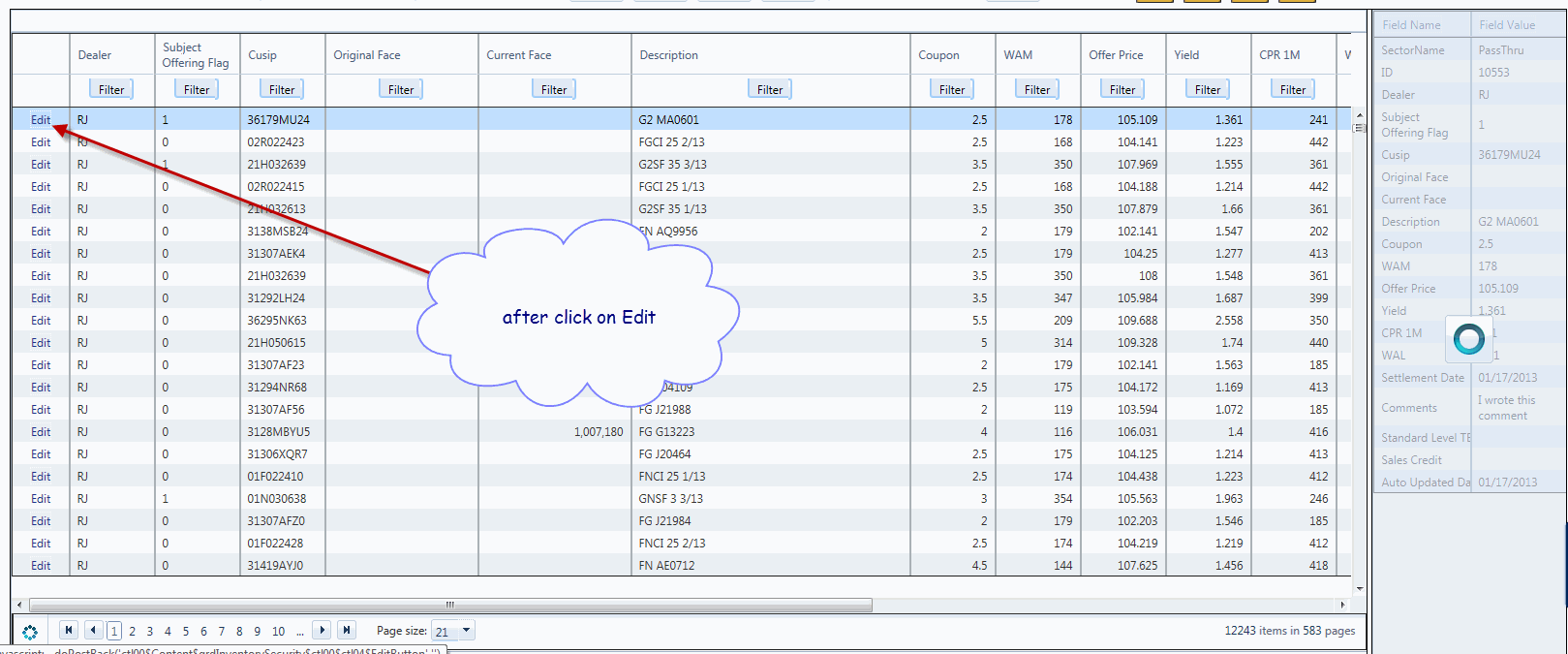

    Can you please give some idea why I am getting an error using the method suggested in the thread?  It works fine if I don't try to convert to a dropdownlistbox, which it's a GridBoundColumn with TextBox editor by default, but I like to show a combobox to show a list of values user can select when Edit button is pressed.

    Help please
    protected void InventorySecurity_CreateColumnEditor(object sender, GridCreateColumnEditorEventArgs e)
    {
        if (e.Column is GridBoundColumn)
        {
            if ((e.Column as GridBoundColumn).DataField == "SubjectOfferingFlag")
            {
                DropDownList ddl = new DropDownList();
                //ddl.Items.Clear();
                //ddl.Items.Insert(0, "0");
                //ddl.Items.Insert(1, "1");
                e.ColumnEditor = new CustomDropDownList(ddl);
            }
        }
    }

    public class CustomDropDownList : GridTextBoxColumnEditor
    {
        private DropDownList _ddl;
        private DropDownList _copyFrom;

        public CustomDropDownList(DropDownList ddl)
        {
            _copyFrom = ddl;
        }

        protected override void LoadControlsFromContainer()
        {
            this._ddl = this.ContainerControl.Controls[0] as DropDownList;
        }

        public override bool IsInitialized
        {
            get { return this._ddl != null; }
        }

        public override string Text
        {
            get { return this._ddl.SelectedValue; }
            set { this._ddl.SelectedIndex = this._ddl.Items.IndexOf(this._ddl.Items.FindByValue(value)); }
        }

        protected override void AddControlsToContainer()
        {
            _ddl = new DropDownList();

            foreach (ListItem item in _copyFrom.Items)
            {
                ListItem i2 = new ListItem(item.Text, item.Value);
                _ddl.Items.Add(i2);
            }
            this.ContainerControl.Controls.Add(_ddl);
        }
    }
  9. Andrey
    Admin
    Andrey avatar
    836 posts

    Posted 26 Mar 2013 Link to this post

    Hi,

    The problem comes from the fact that you are trying to change the editor control type. The GridColumnEditor classes could be used to apply changes that are not greatly affecting the working process of the control. Changes like single-line to multi-line TextBox, DatePicker to DateTimePicker and so on. Basically the controls should be compatible with each, the relation should be either direct or indirect inheritance.

    Greetings,
    Andrey
    the Telerik team
    If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the RadControls for ASP.NET AJAX, subscribe to their blog feed now.
  10. Jeff Sager
    Jeff Sager avatar
    26 posts
    Member since:
    Aug 2006

    Posted 20 Mar 2015 Link to this post

    Hi,
    I'm trying to accomplish the same thing (convert specific columns to dropdownlist in the editors).
    I have the same problem in that I don't know all of the columns but will know which ones (if they are there) need to be dropdownlist. I am using the code provided (converted to vb.net).  When I try to edit/insert a row, I get an Object reference not set to an instance of an object. Below is the code from the CreateColumnEditor and the CustomDropDownList class.
    Any help would be greatly appreciated.
    Thanks,
    Jeff
    Protected Sub RadGrid1_CreateColumnEditor(sender As Object, e As GridCreateColumnEditorEventArgs) Handles RadGrid1.CreateColumnEditor
            If TypeOf e.Column Is GridBoundColumn Then
                If TryCast(e.Column, GridBoundColumn).DataField = "knowncolumn" Then
                    Dim ddl2 As New DropDownList()
                    ddl2.Items.Clear()
                    For Each row In knowncolumnDT.Rows
                        ddl2.Items.Add(row("field"))
                    Next
                    e.ColumnEditor = New CustomDropDownList(ddl2)
                End If
            End If
        End Sub

    Public Class CustomDropDownList
        Inherits GridTextBoxColumnEditor
        Private _ddl As DropDownList
        Private _copyFrom As DropDownList

        Public Sub New(ddl As DropDownList)
            _copyFrom = ddl
        End Sub

        Protected Overrides Sub LoadControlsFromContainer()
            Me._ddl = TryCast(Me.ContainerControl.Controls(0), DropDownList)
        End Sub

        Public Overrides ReadOnly Property IsInitialized() As Boolean
            Get
                Return Me._ddl IsNot Nothing
            End Get
        End Property

        Public Overrides Property Text() As String
            Get
                Return Me._ddl.SelectedValue
            End Get
            Set(value As String)
                Me._ddl.SelectedIndex = Me._ddl.Items.IndexOf(Me._ddl.Items.FindByValue(value))
            End Set
        End Property

        Protected Overrides Sub AddControlsToContainer()
            _ddl = New DropDownList()

            For Each item As ListItem In _copyFrom.Items
                Dim i2 As New ListItem(item.Text, item.Value)
                _ddl.Items.Add(i2)
            Next
            Me.ContainerControl.Controls.Add(_ddl)
        End Sub
    End Class





  11. Jeff Sager
    Jeff Sager avatar
    26 posts
    Member since:
    Aug 2006

    Posted 20 Mar 2015 in reply to Jeff Sager Link to this post

    A little more information.
    It seems related to the GridTextBoxColumnEditor.CreateControls function

    [NullReferenceException: Object reference not set to an instance of an object.]
    Telerik.Web.UI.GridTextBoxColumnEditor.CreateControls() +254
    Telerik.Web.UI.GridColumnEditorBase.EnsureControlsCreated() +31
    Telerik.Web.UI.GridColumnEditorBase.InitializeInControl(Control containerControl) +48
    Telerik.Web.UI.GridBoundColumn.InitializeCell(TableCell cell, Int32 columnIndex, GridItem inItem) +360
    Telerik.Web.UI.GridEditFormItem.InitializeAutogeneratedForm(GridColumn[] columns, ControlCollection controls, GridEditFormSettings formSettings) +2189
    Telerik.Web.UI.GridEditFormItem.InitializeEditForm(GridColumn[] columns) +4264
    Telerik.Web.UI.GridEditFormItem.SetupItem(Boolean dataBind, Object dataItem, GridColumn[] columns, ControlCollection rows) +248
    Telerik.Web.UI.GridItemBuilder.CreateItems(GridGroupingContext group) +1036
    Telerik.Web.UI.GridTableView.CreateItems(IEnumerator enumerator, GridColumn[] columns, ControlCollection controls) +160
    Telerik.Web.UI.GridTableView.CreateControlHierarchy(Boolean useDataSource) +2143
    Telerik.Web.UI.GridTableView.CreateChildControls(IEnumerable dataSource, Boolean useDataSource) +1365
    System.Web.UI.WebControls.CompositeDataBoundControl.PerformDataBinding(IEnumerable data) +94
    System.Web.UI.WebControls.DataBoundControl.OnDataSourceViewSelectCallback(IEnumerable data) +221
    Telerik.Web.UI.GridTableView.PerformSelect() +243
    Telerik.Web.UI.GridTableView.DataBind() +440
    Telerik.Web.UI.GridTableView.Rebind() +209
    Telerik.Web.UI.GridCommandEventArgs.ExecuteCommand(Object source) +193
    Telerik.Web.UI.RadGrid.OnBubbleEvent(Object source, EventArgs e) +146
    System.Web.UI.Control.RaiseBubbleEvent(Object source, EventArgs args) +83
    Telerik.Web.UI.GridItem.OnBubbleEvent(Object source, EventArgs e) +101
    System.Web.UI.Control.RaiseBubbleEvent(Object source, EventArgs args) +83
    System.Web.UI.Page.ProcessRequestMain(Boolean includeStagesBeforeAsyncPoint, Boolean includeStagesAfterAsyncPoint) +3803
  12. Jeff Sager
    Jeff Sager avatar
    26 posts
    Member since:
    Aug 2006

    Posted 20 Mar 2015 in reply to Jeff Sager Link to this post

    Found it!
    the customdropdownlist class needs to inherit GridTextColumnEditor not GridTextBoxColumnEditor
    Hope this helps someone else later.
    Jeff
