Column Chart MaxValue not showing FireFox/Chrome

3 posts, 0 answers
  1. Vince
    Vince avatar
    6 posts
    Member since:
    Jan 2013

    Posted 27 Feb 2013 Link to this post

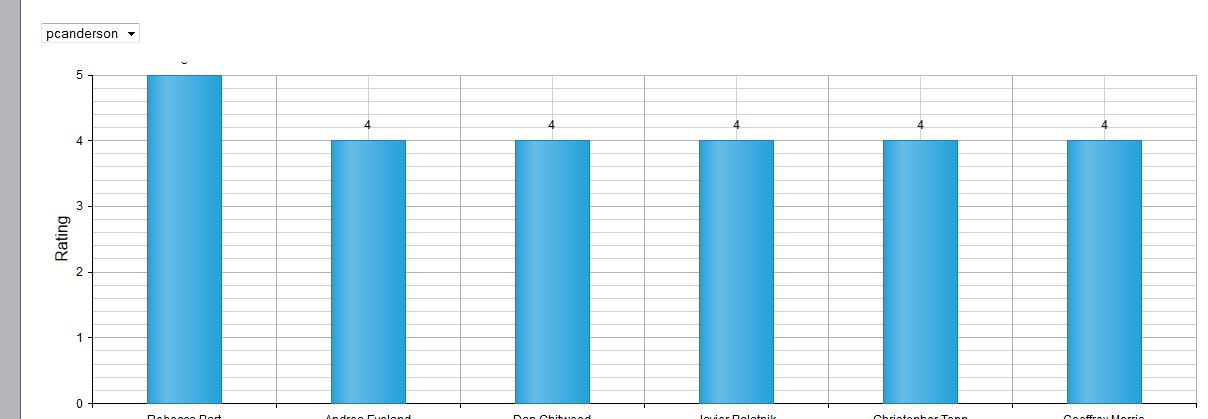

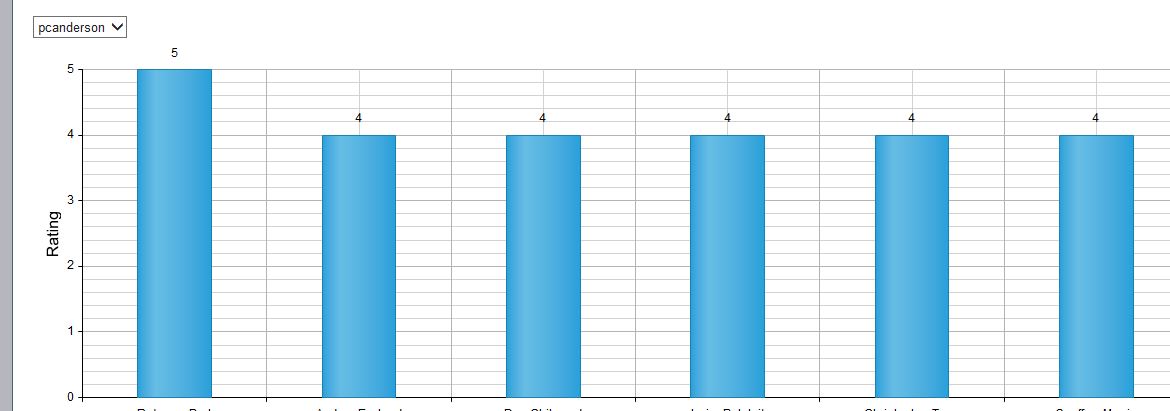

    See 2 attached screenshots.  IE works, FireFox and Chrome do not.  I have not modified any CSS and am using the Metro skin.

        <telerik:RadHtmlChart ID="RadHtmlChart1" runat="server" DataSourceID="SqlDSUserRatings" Skin="Metro">
            <ChartTitle>
                <Appearance Visible="False" />
            </ChartTitle>
            <Legend>
                <Appearance Visible="False" />
            </Legend>
            <PlotArea>
                <YAxis MaxValue="5" MinValue="0">
                    <TitleAppearance Text="Rating" />
                </YAxis>
                <XAxis DataLabelsField="FullName">
                    <TitleAppearance Text="User"></TitleAppearance>
                </XAxis>
                <Series>
                    <telerik:ColumnSeries DataFieldY="Rating" Name="Series 1">
                    </telerik:ColumnSeries>
                </Series>
            </PlotArea>
        </telerik:RadHtmlChart>

    Thanks,
    Andrew
  2. Vince
    Vince avatar
    6 posts
    Member since:
    Jan 2013

    Posted 27 Feb 2013 Link to this post

    I am using <LabelsAppearance Position="InsideEnd" /> in the mean time.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Danail Vasilev
    Admin
    Danail Vasilev avatar
    1493 posts

    Posted 01 Mar 2013 Link to this post

    Hello Vince,

    Thank you for contacting the Telerik Support Team.

    This is an issue with the labels of the SeriesItems when:
    • Their value is equal or greater than the MaxValue of the YAxis.
    • Labels' position property is set to outsideEnd or Above.
    • The chart title is not set.

     I have logged this issue in our feedback portal here, so that you can comment, monitor or vote on it. However, I cannot guarantee with any time bounds for the fix as our developers have already prioritized their tasks for this Q.

    For the time being you can simply set the chart title with space character.

    I have also updated your Telerik points for reporting this issue.


    Kind regards,
    Danail Vasilev
    the Telerik team
