ChartView Path SplineAreaSeries

3 posts, 1 answers
  1. Peter
    Peter avatar
    2 posts
    Member since:
    Sep 2013

    Posted 20 Jun 2015 Link to this post

    So I am using RadCartesianChart with SplineAreaSeries to simulate the oceans tide. I am using DateTimeContinuousAxis as my horizontal value and the tide height as my vertical value. The chart draws great curves, but I cannot find a way to get the path details from the chart that is drawn. What I am trying to do is have an object move itself across the Spline on a timed interval. The object will show the tides height in the middle of it.

    So here are my questions.

    ->Is there a way to find out the vertical intersection point given the horizontal value. chart.series.GetVerticalValue(HorizontalValue); So if I provide a DateTime, it will give me the vertical height value.

    -> If not, are there any other ways to find out intersection points of the spline or the drawn path itself? If I could get access to that then I can duplicate a path for my object to follow.

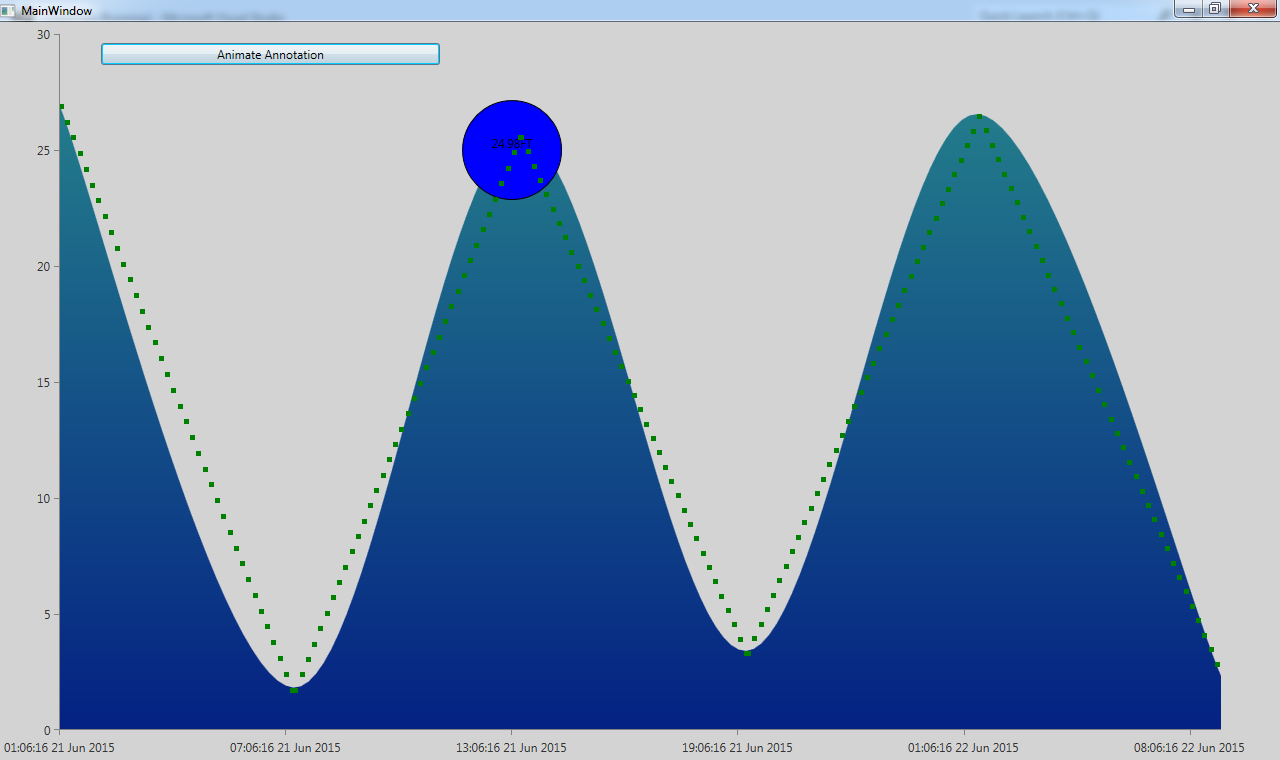

    Attached is the closest that I have come. The SplineChart is draw in blue, then I have automatically calculated the tide height at timed intervals(Green) and have the annotation follow it, but just can't make it curve to follow.



  2. Answer
    Petar Marchev
    Petar Marchev avatar
    968 posts

    Posted 22 Jun 2015 Link to this post

    Hello Peter,

    We have not introduced public methods that will work in the desired way. There is no equivalent to the GetVerticalValue method that you need.

    The spline series uses the same algorithm as the canonical splines, so if you were to code this algorithm on your own, you could predict where the vertical value is (for a given horizontal value.
    canonical splines blog
    demo here (download demo here)

    An alternative is to get the Path element of the spline series and get its Data. From the path geometry you should be able to find all the segments and points of the spline curve.

    I hope this information is helpful, let us know how it goes.

    Petar Marchev
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  3. DevCraft R3 2016 release webinar banner
  4. Peter
    Peter avatar
    2 posts
    Member since:
    Sep 2013

    Posted 22 Jun 2015 in reply to Petar Marchev Link to this post

    Thanks Petar!

     The Spline Series Algorithm you posted the link to did the job. I modified the library to exposed the PathGeomotry in a dependency object and binded right to it.

     Thank you!
