Hello,
I am looking for an implementation at the following features for ChartView in the latest 2013 Q2 Telerik Silverlight release:
Can you please give us more insights about how to implement these features.
Best Regards,
Nitin R
I am looking for an implementation at the following features for ChartView in the latest 2013 Q2 Telerik Silverlight release:
- Custom line annotations
This will allow you to place an arbitrary line within the chart area. - Scroll-to-zoom
Allow the users to use the mouse scroll to zoom in and out - Drag-to-pan
Allow the users to click-and-hold and then drag the chart area in order to pan.
Can you please give us more insights about how to implement these features.
Best Regards,
Nitin R
10 Answers, 1 is accepted
0
Nitin Nitin
Top achievements
Rank 1
answered on 26 Jun 2013, 02:50 PM
Hello Telerik,
I request you to please reply to my query asap.
Waiting.
Thanks,
Nitin
I request you to please reply to my query asap.
Waiting.
Thanks,
Nitin
0
Hello Nitin Nitin,
RadControls are accompanied with a vast collection of online demos with source code included and online help documentation, both regarding many different topics.
How to do CustomLineAnnotations:
Regarding scroll-to-zoom, you can check out this demo.
To enable drag to pan feature you need to do the following thing:
Regards,
Rosko
Telerik
RadControls are accompanied with a vast collection of online demos with source code included and online help documentation, both regarding many different topics.
How to do CustomLineAnnotations:
<
telerik:RadCartesianChart.Annotations
>
<!--Each Of these properties define the positioning of the line-->
<
telerik:CartesianCustomLineAnnotation
HorizontalFrom
=
"0"
HorizontalTo
=
"10"
VerticalFrom
=
"0"
VerticalTo
=
"15"
/>
</
telerik:RadCartesianChart.Annotations
>
Regarding scroll-to-zoom, you can check out this demo.
To enable drag to pan feature you need to do the following thing:
<
telerik:RadCartesianChart.Behaviors
>
<
telerik:ChartPanAndZoomBehavior
DragMode
=
"Pan"
/>
</
telerik:RadCartesianChart.Behaviors
>
Regards,
Rosko
Telerik
TRY TELERIK'S NEWEST PRODUCT - EQATEC APPLICATION ANALYTICS for SILVERLIGHT.
Learn what features your users use (or don't use) in your application. Know your audience. Target it better. Develop wisely.
Sign up for Free application insights >>
Learn what features your users use (or don't use) in your application. Know your audience. Target it better. Develop wisely.
Sign up for Free application insights >>
0
Nitin Nitin
Top achievements
Rank 1
answered on 27 Jun 2013, 07:04 AM
Hello Rosko,
Thanks for your quick reply.
CustomLineAnnotations:
I need to know how can we allow the user to create the annotations dynamically via mouse-clicks.
I want to allow my user to create vertical lines on a single mouse click which they can drag and delete.
You may see this example the other charting tool has provided
http://www.scichart.com/Abt.Controls.SciChart.SL.ExampleTestPage.html#/Abt.Controls.SciChart.Example;component/Examples/IWantTo/AnnotateAChart/CreateAnnotationsDynamically/CreateAnnotationsDynamically.xaml
Select vertical line from the above link and try out.
Can we achieve this using telerik customr line annotations.
It would be great if you can send me a demo for this feature.
Thanks,
Nitin R
Thanks for your quick reply.
CustomLineAnnotations:
I need to know how can we allow the user to create the annotations dynamically via mouse-clicks.
I want to allow my user to create vertical lines on a single mouse click which they can drag and delete.
You may see this example the other charting tool has provided
http://www.scichart.com/Abt.Controls.SciChart.SL.ExampleTestPage.html#/Abt.Controls.SciChart.Example;component/Examples/IWantTo/AnnotateAChart/CreateAnnotationsDynamically/CreateAnnotationsDynamically.xaml
Select vertical line from the above link and try out.
Can we achieve this using telerik customr line annotations.
It would be great if you can send me a demo for this feature.
Thanks,
Nitin R
0
Hello Nitin Nitin
Dragging the custom line annotation is not a feature that is supported out-of-the-box. Nevertheless, it can be achieved. I must warn you that this is an application specific scenario which is not extensively tested. It has been demonstrated in the attached project.
Also, in the attached project, you can find, how an annotation has been created programmatically. You can use this approach to create an annotation, for example, with a button click.
Regards,
Rosko
Telerik
Dragging the custom line annotation is not a feature that is supported out-of-the-box. Nevertheless, it can be achieved. I must warn you that this is an application specific scenario which is not extensively tested. It has been demonstrated in the attached project.
Also, in the attached project, you can find, how an annotation has been created programmatically. You can use this approach to create an annotation, for example, with a button click.
Regards,
Rosko
Telerik
0
Nitin Nitin
Top achievements
Rank 1
answered on 05 Jul 2013, 08:02 AM
Hello Rosko,
Thanks for the solution. It helped me to get started.
Now, I have added vertical line on the radchartview.

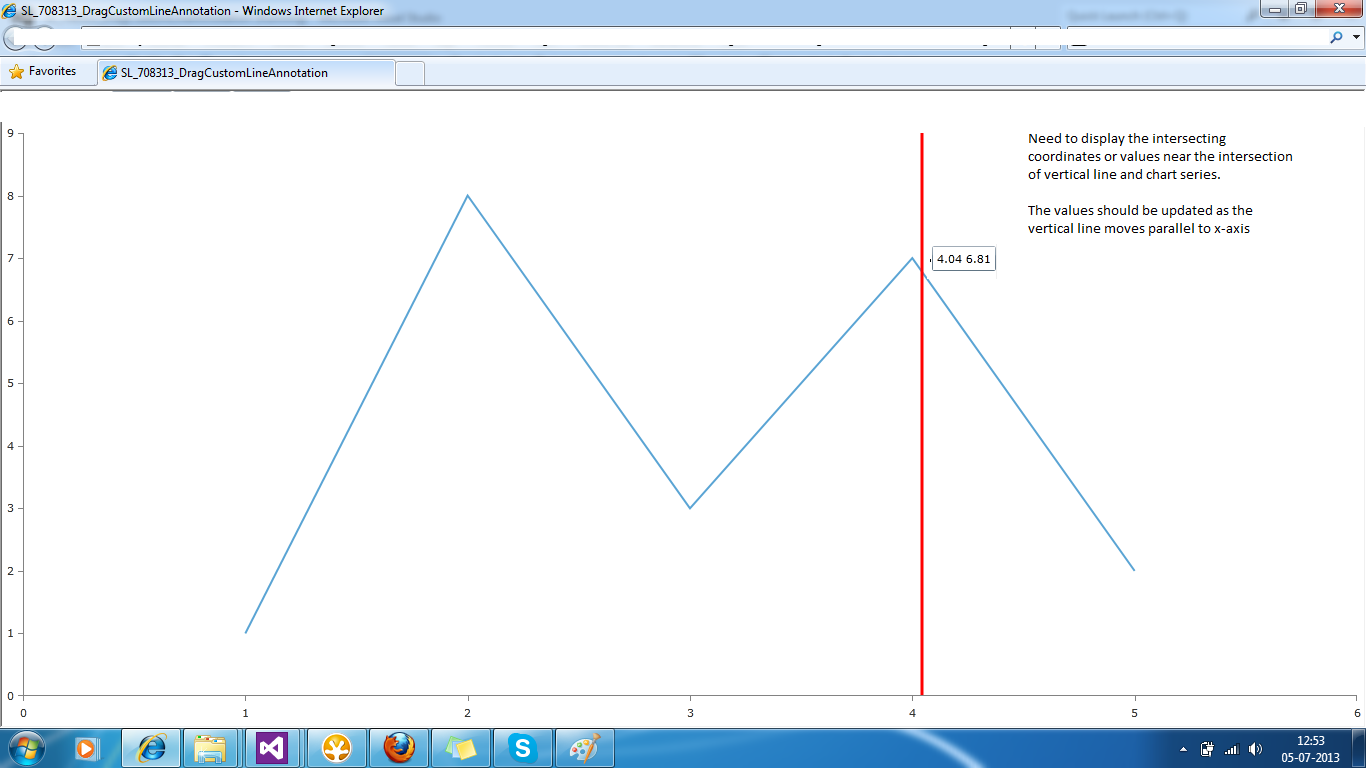

I need to show the intersection points (x1,y1) near the vertical line just like the trackball.
I would really appreciate if you could send me a solution at the earliest
Also, to add a new vertical line, I need to implement a context menu on right click, which will show options of Add New Vertical Line and Delete existing line.
Thanks,
Nitin R
Thanks for the solution. It helped me to get started.
Now, I have added vertical line on the radchartview.
I need to show the intersection points (x1,y1) near the vertical line just like the trackball.
I would really appreciate if you could send me a solution at the earliest
Also, to add a new vertical line, I need to implement a context menu on right click, which will show options of Add New Vertical Line and Delete existing line.
Thanks,
Nitin R
0
Hi Nitin Nitin,
I suppose that you want to have those values appear whenever the custom line annotation intersects with one of the scatter line series. This can be achieved only by using either the ChartCrosshairBehavior or ChartTrackBallBehavior.
Regarding the context menu, you can use RadContextMenu, please refer to the corresponding online help topic and online demos with included source.
Also, I have edited the project from last time to demonstrate RadContextMenu and attached it to this post.
Regards,
Rosko
Telerik
I suppose that you want to have those values appear whenever the custom line annotation intersects with one of the scatter line series. This can be achieved only by using either the ChartCrosshairBehavior or ChartTrackBallBehavior.
<
telerik:RadCartesianChart.Behaviors
>
<!--Use one of these two-->
<
telerik:ChartCrosshairBehavior
/>
<
telerik:ChartTrackBallBehavior
/>
</
telerik:RadCartesianChart.Behaviors
>
Regarding the context menu, you can use RadContextMenu, please refer to the corresponding online help topic and online demos with included source.
Also, I have edited the project from last time to demonstrate RadContextMenu and attached it to this post.
Regards,
Rosko
Telerik
TRY TELERIK'S NEWEST PRODUCT - EQATEC APPLICATION ANALYTICS for SILVERLIGHT.
Learn what features your users use (or don't use) in your application. Know your audience. Target it better. Develop wisely.
Sign up for Free application insights >>
Learn what features your users use (or don't use) in your application. Know your audience. Target it better. Develop wisely.
Sign up for Free application insights >>
0
Nitin Nitin
Top achievements
Rank 1
answered on 11 Jul 2013, 10:42 AM
Hello,
Thanks for the solution.
When I try to create a custom annotation for a chartview where my x-axis denotes time(HH:mm) format, I am unable to see the custom line on the chart.
Can you pls show me with the same example where the x-axis would be time(HH:mm)?
Thanks,
Nitin
Thanks for the solution.
When I try to create a custom annotation for a chartview where my x-axis denotes time(HH:mm) format, I am unable to see the custom line on the chart.
Can you pls show me with the same example where the x-axis would be time(HH:mm)?
Thanks,
Nitin
0
Nitin Nitin
Top achievements
Rank 1
answered on 12 Jul 2013, 09:00 AM
Hello Rosko,
Following is my horizontal axis code using which I am unable to draw a vertical line using customannotationline
Please help. I would be great if you show me how to add the custom line for datetimecategoricalaxis
Thanks,
Nitin
Following is my horizontal axis code using which I am unable to draw a vertical line using customannotationline
<
telerik:RadCartesianChart.HorizontalAxis
>
<
telerik:DateTimeCategoricalAxis
PanZoomBarStyle
=
"{StaticResource PanZoomBarStyle}"
LineThickness
=
"0"
Margin
=
"0,0,0,0"
DateTimeComponent
=
"Ticks"
PlotMode
=
"OnTicks"
MajorTickInterval
=
"180"
ShowLabels
=
"True"
MajorTickStyle
=
"{StaticResource tickStyle}"
>
<
telerik:DateTimeCategoricalAxis.LabelTemplate
>
<
DataTemplate
>
<
Border
BorderThickness
=
"0"
>
<
TextBlock
Margin
=
"32,0,5,0"
Text
=
"{Binding}"
Style
=
"{StaticResource AxisLabelTemplate}"
/>
</
Border
>
</
DataTemplate
>
</
telerik:DateTimeCategoricalAxis.LabelTemplate
>
</
telerik:DateTimeCategoricalAxis
>
</
telerik:RadCartesianChart.HorizontalAxis
>
Please help. I would be great if you show me how to add the custom line for datetimecategoricalaxis
Thanks,
Nitin
0
Nitin Nitin
Top achievements
Rank 1
answered on 12 Jul 2013, 10:06 AM
Hi Rosko,
I got the above problem resolved.
We have added the context menu (Add VerticalLine & Delete Line) on which we are able to add/delete those lines.
I want to add vertical line on this position where user selects "Add Vertical Line" from context menu on the cartesianchart.
For example : If user right clicks at (x,y) = (10,50) then he gets a context menu there, when on selecting "Add vertical line", the line should be drawn at x=10 which we are currently hard coded as HorizontalTo=2 & HorizontalFrom=2
Could you please advise me or send a small solution.
Thanks,
Nitin
Thanks.
I got the above problem resolved.
Dim annotation As New CartesianCustomLineAnnotation()
annotatio_index += 1
annotation.VerticalFrom = CDbl(0)
annotation.VerticalTo = CDbl(50)
annotation.HorizontalFrom = "9:00" // adding the string value for these properties solved the problem for me
annotation.HorizontalTo = "9:00"
annotation.Stroke = New SolidColorBrush(Colors.Red)
annotation.StrokeThickness = 3
We have added the context menu (Add VerticalLine & Delete Line) on which we are able to add/delete those lines.
I want to add vertical line on this position where user selects "Add Vertical Line" from context menu on the cartesianchart.
For example : If user right clicks at (x,y) = (10,50) then he gets a context menu there, when on selecting "Add vertical line", the line should be drawn at x=10 which we are currently hard coded as HorizontalTo=2 & HorizontalFrom=2
Could you please advise me or send a small solution.
Thanks,
Nitin
Thanks.
0
Hi,
Again, you can take advantage of the conversion API, already used in annotation_MouseLeftButtonDown event.
Regards, Rosko
Telerik
Again, you can take advantage of the conversion API, already used in annotation_MouseLeftButtonDown event.
private
void
RadContextMenu_ItemClick(
object
sender, Telerik.Windows.RadRoutedEventArgs e)
{
Point mousePosition = (sender
as
RadContextMenu).MousePosition;
//tuple contains the coordinates of the context menu in terms of chart data
//already demonstrated in annotation_MouseLeftButtonDown
var tuple = chart.ConvertPointToData(mousePosition);
var clickedItem = (e.Source
as
RadMenuItem);
var header = clickedItem.Header.ToString();
if
(header ==
"Add New Vertical Line"
)
{
//Add a line
}
else
if
(header ==
"Delete Existing Line"
)
{
//Remove a line
}
}
Regards, Rosko
Telerik
