Changing header text when exporting to excel

9 posts, 0 answers
  1. Kirk Thomas
    Kirk Thomas avatar
    23 posts
    Member since:
    Aug 2009

    Posted 28 Sep 2009 Link to this post

    Hello,

    I'm having some trouble with getting the header column of the datagrid I'm exporting to excell to display what I want.  I have the grid display the header the way I want but when I export the grid the excel spread sheet has the header as the column names in my database table.  Can I change that so the spreadsheet headers say what I want?

    Thanks,
    Kirk
  2. Princy
    Princy avatar
    17421 posts
    Member since:
    Mar 2007

    Posted 28 Sep 2009 Link to this post

    Hello Kirk,

    You can set the HeaderText for the required column while exporting as shown below:
    c#:
     protected void btnExport_Click(object sender, EventArgs e)
        {
            RadGrid1.MasterTableView.GetColumn("ColumnUniqueName").HeaderText = "Your Custom Text"

            RadGrid1.ExportSettings.OpenInNewWindow = true
            RadGrid1.ExportSettings.ExportOnlyData = true
            RadGrid1.ExportSettings.IgnorePaging = true

            RadGrid1.MasterTableView.ExportToExcel();

        }

    Thanks
    Princy.
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Kirk Thomas
    Kirk Thomas avatar
    23 posts
    Member since:
    Aug 2009

    Posted 29 Sep 2009 Link to this post

    This works for when the IgnorePaging is set to true but it doesn't when it is set to false.  Why is that and is there a way to fix it?
  5. Kirk Thomas
    Kirk Thomas avatar
    23 posts
    Member since:
    Aug 2009

    Posted 29 Sep 2009 Link to this post

    This works for when the IgnorePaging is set to true but it doesn't when it is set to false.  Why is that and is there a way to fix it?
  6. Erick Burgess
    Erick Burgess avatar
    12 posts
    Member since:
    Apr 2009

    Posted 14 May 2015 Link to this post

    Luckily i stumbled upon this thread. I was trying to change the value of a gridboundcolumn in an export and was not able to do it. Of course I had IgnorePaging set to true. As soon as I commented that out, everything works.

     Any news on this actually getting fixed?

  7. Erick Burgess
    Erick Burgess avatar
    12 posts
    Member since:
    Apr 2009

    Posted 14 May 2015 Link to this post

    teset
  8. Eyup
    Admin
    Eyup avatar
    3005 posts

    Posted 19 May 2015 Link to this post

    Hello Erick,

    Which event do you use to change the text?
    protected void RadGrid1_ItemDataBound(object sender, GridItemEventArgs e)
    {
        if (e.Item is GridDataItem && e.Item.ItemIndex == 5) // custom condition
        {
            GridDataItem item = e.Item as GridDataItem;
            item["Freight"].Text = "Success";
        }
    }

    Looking forward to your reply.

    Regards,
    Eyup
    Telerik
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
  9. Graeme
    Graeme avatar
    2 posts
    Member since:
    Aug 2012

    Posted 04 Jun 2015 Link to this post

     01.
    Protected Sub Button1btnPrintToWord_Click(sender As Object, e As System.Web.UI.ImageClickEventArgs) Handles Button1btnPrintToWord.Click
    02.    isExport = True
    03.    gvMain.MasterTableView.GetColumn("OReading").HeaderText = "OReading"
    04.    gvMain.MasterTableView.GetColumn("linkBtn").Display = False
    05.    gvMain.BorderStyle = BorderStyle.None
    06.    gvMain.HeaderStyle.BackColor = System.Drawing.ColorTranslator.FromHtml("#178cc6")
    07.    gvMain.HeaderStyle.ForeColor = Drawing.Color.White
    08.    'gvMain.Style.Remove("border")
    09.    For Each item As GridDataItem In gvMain.Items
    10.      'item.Style("background-color") = "#888888"
    11.      item.Style("border") = "none"
    12.    Next
    13.    For Each item As GridDataItem In gvMain.Items
    14.      'item.Style("background-color") = "#888888"
    15.      item.Style("border") = "none"
    16.    Next
    17.    gvMain.MasterTableView.ExportToPdf()
    18.  End Sub

    01.<telerik:RadGrid ID="gvMain" runat="server" CellSpacing="-1" GridLines="None"
    02.                            ResolvedRenderMode="Classic" AutoGenerateColumns="false" Skin="Web20">
    03.                            <ExportSettings ExportOnlyData="true" OpenInNewWindow="true">
    04.                              <Pdf PageWidth="297mm" PageHeight="210mm" PageLeftMargin="5px" PageRightMargin="5px"
    05.                                DefaultFontFamily="Arial Unicode MS" />
    06.                            </ExportSettings>
    07.                            <MasterTableView TableLayout="Auto" GridLines="Both" AllowPaging="false" Width="100%">
    08.                              <CommandItemSettings ShowAddNewRecordButton="false" ShowRefreshButton="false" />
    09.                              <Columns>
    10.                                <telerik:GridBoundColumn DataField="Size" UniqueName="Category" HeaderText="Category"></telerik:GridBoundColumn>
    11.                                <telerik:GridBoundColumn DataField="Model" UniqueName="Model" HeaderText="Model"></telerik:GridBoundColumn>
    12.
    13.                                <telerik:GridTemplateColumn HeaderText="Rego" UniqueName="Rego">
    14.                                  <ItemTemplate>
    15.                                    <asp:Label ID="lblRego" runat="server" Text=""></asp:Label>
    16.                                  </ItemTemplate>
    17.                                </telerik:GridTemplateColumn>
    18.                                <telerik:GridBoundColumn DataField="FleetNo" UniqueName="FleetNo" HeaderText="Fleet#"></telerik:GridBoundColumn>
    19.                                <telerik:GridBoundColumn DataField="Colour" HeaderText="Colour"></telerik:GridBoundColumn>
    20.                                <telerik:GridBoundColumn DataField="CurrentCity" UniqueName="CurrentCity" HeaderText="Located"></telerik:GridBoundColumn>
    21.                                <telerik:GridBoundColumn DataField="CurrentCity" UniqueName="CLocated" HeaderText="Currently<br/>Located"></telerik:GridBoundColumn>
    22.                                <telerik:GridBoundColumn DataField="CurrentCity" UniqueName="ALocated" HeaderText="Actual Location"></telerik:GridBoundColumn>
    23.                                <telerik:GridBoundColumn DataField="Mileage" UniqueName="OReading" HeaderText="Odometer Reading"></telerik:GridBoundColumn>
    24.                                <telerik:GridBoundColumn DataField="Mileage" UniqueName="ActualKMS" HeaderText=""></telerik:GridBoundColumn>
    25.                                <telerik:GridBoundColumn DataField="Cleaned" UniqueName="Cleaned" HeaderText="Vehicle<br/>Cleaned"></telerik:GridBoundColumn>
    26.                                <telerik:GridBoundColumn DataField="Cleaned" UniqueName="CleanedStatus" HeaderText="Actual Vehicle<br/>Cleaned Status"></telerik:GridBoundColumn>
    27.                                <telerik:GridBoundColumn DataField="NextPickupDate" UniqueName="NextPickupDate" HeaderText="Next Pickup"></telerik:GridBoundColumn>
    28.                                <telerik:GridTemplateColumn HeaderText="" UniqueName="linkBtn">
    29.                                  <ItemTemplate>
    30.                                    <asp:HyperLink ID="lnkbtnRego" Target="_blank" Text="Update" runat="server" />
    31.                                  </ItemTemplate>
    32.                                </telerik:GridTemplateColumn>
    33.
    34.                                </Columns>
    35.                            </MasterTableView>
    36.                          </telerik:RadGrid>

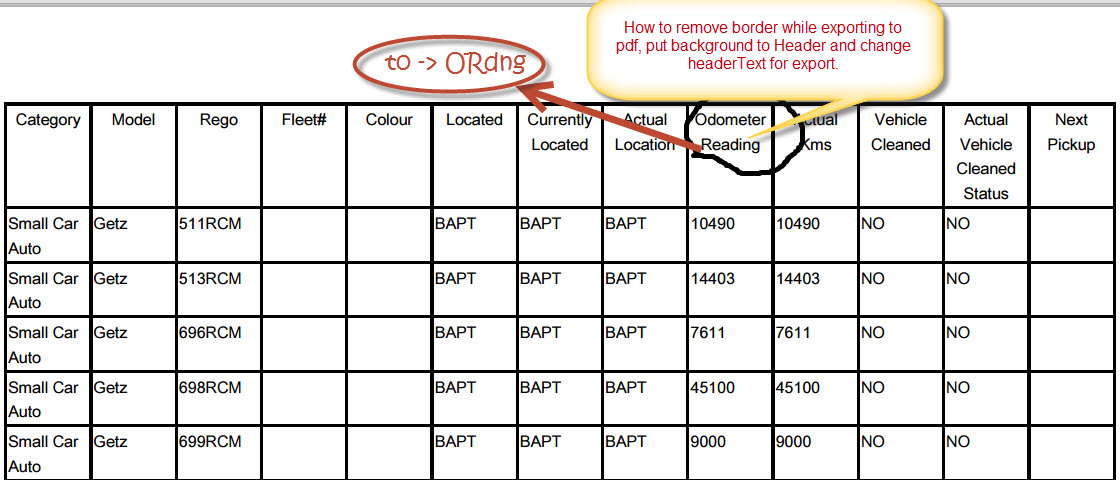

    Hello Team,

    I have already checked http://www.telerik.com/forums/radgrid-ignorepaging-on-export but no sucess. I just want to format the pdf like remove or change the border thickness, add background to Headers and Items, Change the HeaderText for Export.

    Please help urgent.

    Thanks,

    Mrinal



  10. Eyup
    Admin
    Eyup avatar
    3005 posts

    Posted 09 Jun 2015 Link to this post

    Hi Graeme,

    You can check the following section:
    http://docs.telerik.com/devtools/aspnet-ajax/controls/grid/functionality/exporting/export-formats/pdf-export#border-support

    Hope this helps.

    Regards,
    Eyup
    Telerik
