Chage Background ReadOnlyVisualElement DatePicker by Code Behind

3 posts, 0 answers
  1. Abner
    Abner avatar
    10 posts
    Member since:
    Apr 2014

    Posted 28 Apr 2014 Link to this post

    Hello Guys,

    I have been trying to change the gray background <Border ReadOnlyVisualElement to white, but I would like to do by code behind,the problem is when I try to get the element <Border ReadOnlyVisualElement using Border border = this.txtDatePickerIdle.ParentOfType<Border>(); didn't work because get the parent above, I tried Child as well and didn't work, I tried to using Immediate Window and navegate in the control but when I try to find the border is always 'NULL'.

    I am running the code in the LayoutUpdated event.

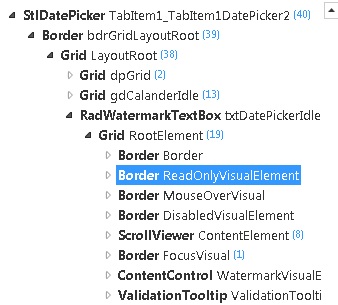

    The xaml is below, and I attached a file with the print of structure:
    <
    RadWatermarkTextBox x:Name="txtDatePickerIdle" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" AllowDrop="True" Background="#00FFFFFF" BorderBrush="#00FFFFFF" BorderThickness="1, 1, 1, 1" Foreground="#FF000000" HorizontalContentAlignment="Left" HorizontalScrollBarVisibility="Hidden" IsHitTestVisible="False" IsReadOnly="True" IsTabStop="False" Margin="0, 0, 15, 0" MinHeight="15" SelectedText="" SelectionBackground="#FF444444" SelectionForeground="#FFFFFFFF" SelectionLength="0" SelectionStart="0" TabNavigation="Once" Text="dd/MM/yyyy" UseLayoutRounding="False" VerticalScrollBarVisibility="Hidden">
      <Grid x:Name="RootElement" AllowDrop="True" Cursor="IBeam" UseLayoutRounding="False">
        <Border x:Name="Border" AllowDrop="True" Background="#00FFFFFF" BorderBrush="#00FFFFFF" BorderThickness="1, 1, 1, 1" CornerRadius="1, 1, 1, 1" UseLayoutRounding="False" />
        <Border x:Name="ReadOnlyVisualElement" AllowDrop="True" Background="#5EC9C9C9" CornerRadius="1, 1, 1, 1" UseLayoutRounding="False" />
        <Border x:Name="MouseOverVisual" Grid.ColumnSpan="2" Grid.RowSpan="2" AllowDrop="True" BorderBrush="#FFFFC92B" BorderThickness="1, 1, 1, 1" CornerRadius="1, 1, 1, 1" IsHitTestVisible="False" Opacity="0" UseLayoutRounding="False" Visibility="Collapsed" />
        <Border x:Name="DisabledVisualElement" AllowDrop="True" Background="#FFE0E0E0" BorderBrush="#FF989898" BorderThickness="1, 1, 1, 1" CornerRadius="1, 1, 1, 1" IsHitTestVisible="False" Opacity="0" UseLayoutRounding="False" />
        <ScrollViewer x:Name="ContentElement" AllowDrop="True" Background="#00FFFFFF" BorderBrush="#FF848484" Cursor="Arrow" Foreground="#FF000000" HorizontalContentAlignment="Stretch" HorizontalScrollBarVisibility="Hidden" IsTabStop="False" Margin="1, 1, 1, 1" UseLayoutRounding="False" VerticalAlignment="Center" VerticalContentAlignment="Stretch" VerticalScrollBarVisibility="Hidden">
          <Border AllowDrop="True" Background="#00FFFFFF" BorderBrush="#FF848484" UseLayoutRounding="False">
            <Grid AllowDrop="True" Background="#00FFFFFF" UseLayoutRounding="False">
              <Grid.ColumnDefinitions>
                <ColumnDefinition />
                <ColumnDefinition Width="Auto" />
              </Grid.ColumnDefinitions>
              <Grid.RowDefinitions>
                <RowDefinition />
                <RowDefinition Height="Auto" />
              </Grid.RowDefinitions>
              <ScrollContentPresenter x:Name="ScrollContentPresenter" AllowDrop="True" CanHorizontallyScroll="True" CanVerticallyScroll="True" Cursor="Arrow" UseLayoutRounding="False">
                <ScrollContentPresenter.Clip>
                  <RectangleGeometry Rect="-1, 0, 103, 16" />
                </ScrollContentPresenter.Clip>
                <TextBoxView />
              </ScrollContentPresenter>
              <Border Grid.Column="1" Grid.Row="1" AllowDrop="True" Margin="0, 0, -1, -1" UseLayoutRounding="False" Visibility="Collapsed">
                <Border AllowDrop="True" BorderBrush="#FF848484" BorderThickness="0, 0, 1, 1" UseLayoutRounding="False" Visibility="Collapsed">
                  <Border.Background>
                    <RadialGradientBrush Center="0, 0" GradientOrigin="0, 0" RadiusX="1" RadiusY="1">
                      <GradientStopCollection>
                        <GradientStop Offset="0.066">#FF848484</GradientStop>
                        <GradientStop Offset="0.066">#FFBFBFBF</GradientStop>
                        <GradientStop Offset="0.29">#FFF0F0F0</GradientStop>
                      </GradientStopCollection>
                    </RadialGradientBrush>
                  </Border.Background>
                </Border>
              </Border>
              <ScrollBar x:Name="VerticalScrollBar" Grid.Column="1" AllowDrop="True" BorderBrush="#FF848484" BorderThickness="1, 0, 1, 0" Foreground="#FF000000" IsTabStop="False" Margin="0, 0, -1, 0" Maximum="0" MinHeight="15" MinWidth="15" UseLayoutRounding="False" ViewportSize="16" Visibility="Collapsed">
                <ScrollBar.Background>
                  <LinearGradientBrush EndPoint="1, 0.5" StartPoint="0, 0.5">
                    <GradientStopCollection>
                      <GradientStop Offset="0.257">#FFF0F0F0</GradientStop>
                      <GradientStop>#FFBFBFBF</GradientStop>
                    </GradientStopCollection>
                  </LinearGradientBrush>
                </ScrollBar.Background>
              </ScrollBar>
              <ScrollBar x:Name="HorizontalScrollBar" Grid.Row="1" AllowDrop="True" BorderBrush="#FF848484" BorderThickness="0, 1, 0, 1" Foreground="#FF000000" IsTabStop="False" Margin="0, 0, 0, -1" Maximum="0" MinHeight="15" MinWidth="15" Orientation="Horizontal" UseLayoutRounding="False" ViewportSize="101" Visibility="Collapsed">
                <ScrollBar.Background>
                  <LinearGradientBrush EndPoint="1, 0.5" StartPoint="0, 0.5">
                    <GradientStopCollection>
                      <GradientStop Offset="0.257">#FFF0F0F0</GradientStop>
                      <GradientStop>#FFBFBFBF</GradientStop>
                    </GradientStopCollection>
                  </LinearGradientBrush>
                </ScrollBar.Background>
              </ScrollBar>
            </Grid>
          </Border>
        </ScrollViewer>
        <Border x:Name="FocusVisual" Grid.ColumnSpan="2" Grid.RowSpan="2" AllowDrop="True" BorderBrush="#FFFFC92B" BorderThickness="1, 1, 1, 1" CornerRadius="1, 1, 1, 1" IsHitTestVisible="False" Opacity="0" UseLayoutRounding="False">
          <Border AllowDrop="True" BorderBrush="#00FFFFFF" BorderThickness="1, 1, 1, 1" UseLayoutRounding="False" />
        </Border>
        <ContentControl x:Name="WatermarkVisualElement" AllowDrop="True" BorderThickness="1, 1, 1, 1" FontStyle="Italic" Foreground="#FF000000" HorizontalAlignment="Left" HorizontalContentAlignment="Left" IsHitTestVisible="False" IsTabStop="False" Margin="2, 0, 0, 0" Opacity="0.5" UseLayoutRounding="False" VerticalAlignment="Center" VerticalContentAlignment="Top">
          <Border AllowDrop="True" BorderThickness="1, 1, 1, 1" UseLayoutRounding="False">
            <ContentPresenter AllowDrop="True" UseLayoutRounding="False" />
          </Border>
        </ContentControl>
        <ValidationTooltip x:Name="ValidationTooltip" Grid.ColumnSpan="2" AllowDrop="True" BorderBrush="#FFCB576E" BorderThickness="1, 1, 1, 1" CornerRadius="1, 1, 1, 1" Foreground="#FF000000" IsTabStop="False" UseLayoutRounding="False" Visibility="Collapsed">
          <ValidationTooltip.TooltipContent />
        </ValidationTooltip>
      </Grid>
    </RadWatermarkTextBox>

    Thanks
  2. Rosen Vladimirov
    Admin
    Rosen Vladimirov avatar
    640 posts

    Posted 30 Apr 2014 Link to this post

    Hi Abner,

    As the border which you are trying to get is inside txtDatePickerIdle in the visual tree, you have to use ChildrenOfType<Border> (you have to add the following using to your code behind: using Telerik.Windows.Controls; )
    In order to get exactly this border, you can use:
    var border = this.txtDatePickerIdle.ChildrenOfType<Border>().FirstOrDefault(b => b.Name == "ReadOnlyVisualElement") as Border;
    if (border != null)
    {

    }

    Hope this helps.

    Regards,
    Rosen Vladimirov
    Telerik

    Check out Telerik Analytics, the service which allows developers to discover app usage patterns, analyze user data, log exceptions, solve problems and profile application performance at run time. Watch the videos and start improving your app based on facts, not hunches.

  3. DevCraft banner
  4. Abner
    Abner avatar
    10 posts
    Member since:
    Apr 2014

    Posted 30 Apr 2014 in reply to Rosen Vladimirov Link to this post

    Rose Vladimirov,

    Thanks very much, your suggestion really worked.

    Abner
