Bullet chart reference line in cluster chart

2 posts, 0 answers
  1. rakesh
    rakesh avatar
    5 posts
    Member since:
    May 2015

    Posted 29 Jun 2015 Link to this post

    Hello ,

    I have a cluster Bar series with 2 clusters or may 3 clusters. Now I want one more reference line, like we have on the bullet chart on these clustered bar series. Is it possible in telerik? . I think its combining the cluster bar series feature and reference line feature of bullet chart.

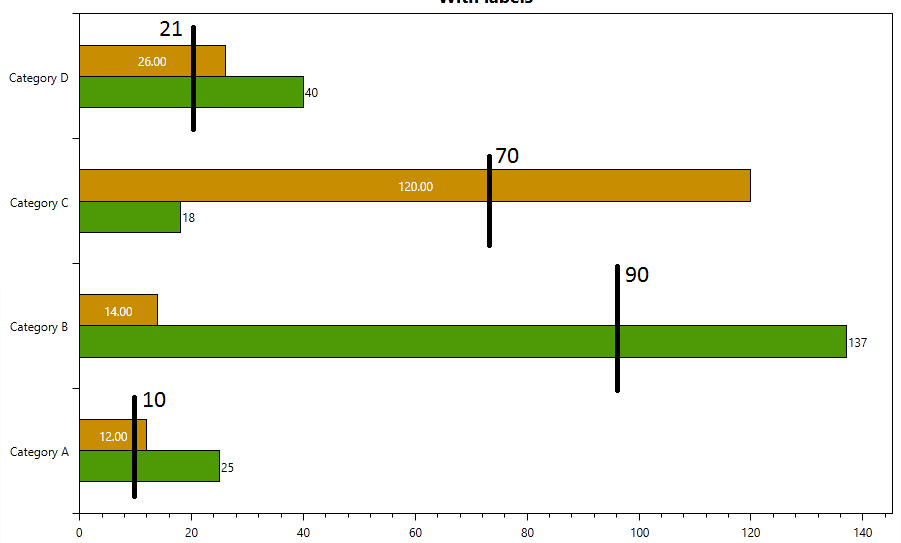

    Please see the attachment of the kind of graph I am expecting.
  2. Petar Marchev
    Admin
    Petar Marchev avatar
    968 posts

    Posted 30 Jun 2015 Link to this post

    Hello,

    I think that the best way to go here is to use a third BarSeries with CombineMode None and a PointTemplate. In the template you need to place some element (a Border perhaps) with vertical alignment right and width 10. Of course, you can customize the template in any way you find appropriate.

    Regards,
    Petar Marchev
