Bug: Docking Not Cleaning Up...

10 posts, 0 answers
  1. RoadWarrior
    RoadWarrior avatar
    45 posts
    Member since:
    Jan 2010

    Posted 03 Apr 2010 Link to this post

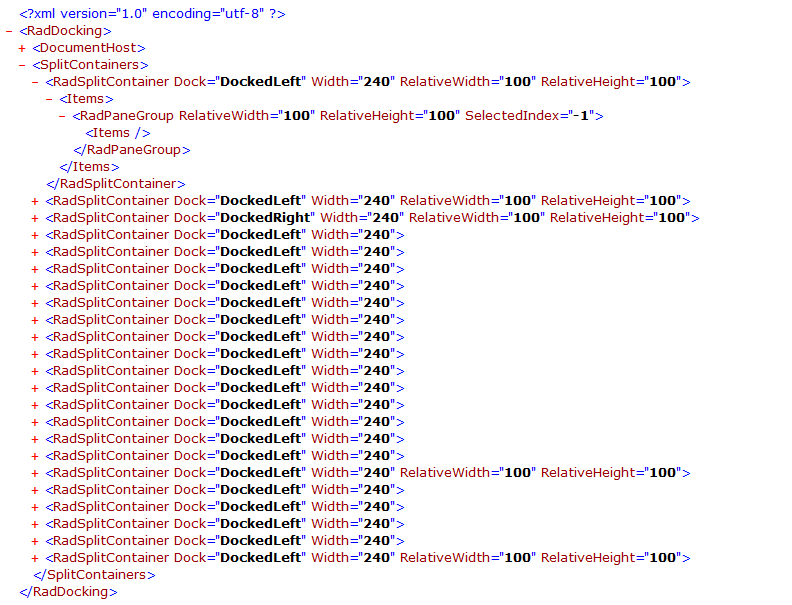

    The Docking Control is not cleaning up after itself.  Through the course of adding, removing panes over a duration, I noticed that the startup of my application was taking longer and longer.  Problem was traced to Telerik's LoadLayout, SaveLayout process.  When I inspected the persisted layout file, I found the every RadSplitContainer, and RadGroup that has ever created was still hanging around and being serialized unecessarily.  (see attached image of empty generated items).  When the empty generated items were removed, the performance issue was solved.

    Solution:  Telerik should be cleaning up these objects on the on RemoveFromParent() API of the RadPane / RadGroup.

    Workaround:  On the RadDocking.Close Event, perform some function similar to the following:

            void ClearEmptyContainers()
            {

                for (int i = DockManager.Items.Count; i > 0; i--)
                {
                    object item = DockManager.Items[i - 1];
                    if (item is RadSplitContainer)
                    {
                        RadSplitContainer container = (RadSplitContainer)item;
                        if (container.Items.Count == 0)
                        {
                            DockManager.Items.Remove(container);
                        }
                        else
                        {
                            //Check for empty groups
                            for (int j = container.Items.Count; j > 0; j--)
                            {
                                RadPaneGroup group = container.Items[j - 1] as RadPaneGroup;
                                if (group.Items.Count == 0)
                                {
                                    group.RemoveFromParent();
                                    DockManager.Items.Remove(container);
                                }
                            }
                        }
                    }
                }
            }


  2. Miroslav Nedyalkov
    Admin
    Miroslav Nedyalkov avatar
    1718 posts

    Posted 06 Apr 2010 Link to this post

    Hi Rick,

     Thank you for reporting us this issue! The reason why we are not cleaning these elements is that we are not persisting that they are auto-generated and we should do so. I logged the problem and we will fix it for one of the upcoming releases. The title of the item is "Docking control doesn't persis is the element autogenerated or when saving the layout.".

    Your Telerik points were updated.

    Kind regards,
    Miroslav Nedyalkov
    the Telerik team

    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.
  3. DevCraft banner
  4. James
    James avatar
    136 posts
    Member since:
    Nov 2008

    Posted 13 Sep 2010 Link to this post

    Hi Miroslav,

    I am having the same problem, PaneGroups and SplitContainers are not being cleaned up once all RadPanes are removed, causing over time the output of SaveLayout to be enormous.

    Can I assume this one is not high on your priority list?

    I will try the OP's work around but ideally RadDock should do a better job of cleaning up after itself.

    Kind regards,

    James.
  5. George
    Admin
    George avatar
    1332 posts

    Posted 16 Sep 2010 Link to this post

    Hi James,

    Thank you for contacting us.

    This problem will be resolved in our Q2 Service Pack 2 release coming soon.

    Please do not hesitate to contact us if you require any further information.

    Regards,
    George
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  6. Pasha Alasheev
    Pasha Alasheev avatar
    4 posts
    Member since:
    Jan 2010

    Posted 28 Sep 2010 Link to this post

    Hi

    I'm trying to clean up dynamically created RadPane by executing its RemoveFromParent() method. RadPane seems to be closed correctly but in my case it has large amount of content. I tried to write Content = null; but the application memory was not decreased - the content still stays in the memory. Maybe RadPane still holds references to it and it prevents Garbage Collector to release it.

    Do you have any idea?

    Does Q2 Service Pack 2 contain smth to resolve this issue?

  7. George
    Admin
    George avatar
    1332 posts

    Posted 01 Oct 2010 Link to this post

    Hello Pasha,

    That is the right way to dispose the RadPane. But, please double check that this RadPane has no references. Otherwise It won't go to the garbage collector.

    The Q2 Service Pack 2 contains a fix for the Save/Load of RadDocking layout. It has nothing to do with memory leaks.

    Please do not hesitate to contact us if you require any further information.

    Best wishes,
    George
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  8. James
    James avatar
    136 posts
    Member since:
    Nov 2008

    Posted 07 Oct 2010 Link to this post

    This appears to now be resolved, though I did notice something unusual while testing the SP2 fix..

    Auto-generated empty SplitContainers and PaneGroups are only removed from the generated layout after they have been through a fresh LoadLayout/SaveLayout cycle, which may be caused by the fact there are still references to the SplitContainer/PaneGroup that are only disposed of after completing a SaveLayout then a fresh LoadLayout. Regardless, it caused me to initially believe the fix had not been applied correctly in SP2, but that is not the case.

    So to reiterate, if I close a RadPane that leaves behind an empty auto generated SplitContainer/PaneGroup, then do SaveLayout, this empty SplitContainer/PaneGroup is still generated from SaveLayout (with attached IsAutoGenerated=True to each).

    If I then do a LoadLayout of the previously persisted layout, then another SaveLayout, the SplitContainer/PaneGroup are not generated, which is the expected behaviour.

    James

  9. George
    Admin
    George avatar
    1332 posts

    Posted 13 Oct 2010 Link to this post

    Hello James,

    When a RadPane leaves behind an empty autogenerated RadPaneGroup and RadSplitContainer, these empty autogenerated RadPaneGroup/RadSplitContainer are destroyed if they don't keep any reference and they no longer exist. When you save the RadDocking control, these RadPaneGroup/RadSplitContainer won't be saved in the xml file because they don't exist. This is how the RadDocking control works. If something different happens, it could be a bug. Could you please explain in details what you do in order to accomplish the scenario you explained. Also, if you send us a demo and/or running project that reproduces the problem it would be very helpful. I will be glad to assist you further.

    Looking forward to your reply.

    All the best,
    George
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  10. James
    James avatar
    136 posts
    Member since:
    Nov 2008

    Posted 14 Oct 2010 Link to this post

    George, I've previously clearly explained this issue to you within ticket #352987, I really don't think I can give you anymore information I'm afraid.

    Here is the project again for the benefit of others, so they can easily replicate the issue described above (you will need to add in references to SP2 dll's).

    http://cid-47007997392d2bb4.office.live.com/self.aspx/.Public/RadDockingCleanUpIssue20101014.zip

    Kind regards,
    James.
  11. George
    Admin
    George avatar
    1332 posts

    Posted 19 Oct 2010 Link to this post

    Hello James,

    Thank you for reminding me this. I will need some time to take a deep look at the problem. I will inform you when I have any further information.

    Regards,
    George
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
