Begin in edit

22 posts, 1 answers
  1. Kevin
    Kevin avatar
    26 posts
    Member since:
    Mar 2012

    Posted 29 Oct 2014 Link to this post

    How do you make a RadDataForm begin in edit mode on the initial get?
  2. Answer
    Eyup
    Admin
    Eyup avatar
    3005 posts

    Posted 03 Nov 2014 Link to this post

    Hi Kevin,

    Thank you for getting back to us.

    You can use the following approach to achieve the requested functionality:
    protected void CandidateDataForm_PreRender(object sender, EventArgs e)
    {
        if (!IsPostBack)
        {
            // first approach
            RadDataFormItem item = CandidateDataForm.Items[0];
            item.FireCommandEvent("Edit", "");

            // second approach
            //(CandidateDataForm.Items[0] as RadDataFormDataItem).Edit = true;
            //CandidateDataForm.Rebind();
        }
    }

    Hope this helps.

    Regards,
    Eyup
    Telerik
  3. UI for ASP.NET Ajax is Ready for VS 2017
  4. Kevin
    Kevin avatar
    26 posts
    Member since:
    Mar 2012

    Posted 04 Nov 2014 in reply to Eyup Link to this post

    For me CandidateDataForm.Items.Count==0 in PreRender. I'm using a SqlDataSource if that makes a difference.
  5. Eyup
    Admin
    Eyup avatar
    3005 posts

    Posted 07 Nov 2014 Link to this post

    Hello Kevin,

    This behavior is strange, indeed. Can you please prepare a very basic runnable web site sample demonstrating the problem and open a support ticket to send it to us. Thus, we will be able to further debug and analyze the project and try to determine the cause of the issue.

    Regards,
    Eyup
    Telerik
  6. Kevin
    Kevin avatar
    26 posts
    Member since:
    Mar 2012

    Posted 10 Nov 2014 in reply to Eyup Link to this post

    I just wanted to make the note that it's important to do this in the DataForm's PreRender and not the Page's PreRender.

    kd
  7. Eyup
    Admin
    Eyup avatar
    3005 posts

    Posted 12 Nov 2014 Link to this post

    Hi Kevin,

    Thank you for sharing this note with our community. I hope it will be helpful to other developers as well.

    Regards,
    Eyup
    Telerik
  8. Bill Wolff
    Bill Wolff avatar
    10 posts
    Member since:
    Jul 2006

    Posted 13 Nov 2014 in reply to Eyup Link to this post

    This works fine for Edit mode. It will not work for Insert since there are no existing items. How would I open a dataform in Insert mode for the first record? This could be much simpler if there were a property on the RadDataForm that specifies which mode to open in: View, Edit, Insert. Right now, it defaults to View at Item[0].
  9. Viktor Tachev
    Admin
    Viktor Tachev avatar
    1488 posts

    Posted 18 Nov 2014 Link to this post

    Hi Bill,

    If you would like to place the RadDataForm initially in Insert Mode you can use an approach similar to the one suggested by Eyup.

    You can handle the PreRender event if the RadDataForm control and set the IsItemInserted property to true:

    protected void RadDataForm1_PreRender(object sender, EventArgs e)
    {
        if (!Page.IsPostBack)
        {
            (sender as RadDataForm).IsItemInserted = true;
            (sender as RadDataForm).Rebind();
        }
    }


    Regards,
    Viktor Tachev
    Telerik
  10. Mike
    Mike avatar
    1 posts
    Member since:
    Mar 2015

    Posted 19 May 2015 in reply to Kevin Link to this post

    I'm finding this, as well.



    I have trying the posted "answer" in the prerender event of the raddataform and the items count is always 0



    If I simply let the dataform load, it presents a record in the itemtemplate's "view' mode, so i know that my objectdatasouce is returning at least one record.



    Any ideas why this is happening?



    Mmike

  11. Viktor Tachev
    Admin
    Viktor Tachev avatar
    1488 posts

    Posted 21 May 2015 Link to this post

    Hello Mike,

    Would you share the markup of the page with the related code-behind? This will give us better understanding of your scenario. Thus, we would be able to examine the code and look for what could cause the issue.

    Regards,
    Viktor Tachev
    Telerik
  12. Ole Oscar
    Ole Oscar avatar
    10 posts
    Member since:
    Jan 2015

    Posted 27 Nov 2015 Link to this post

    I had the same problem with the items collection always with no items. Then I added an empty <ItemTemplate> and then it worked.
  13. Viktor Tachev
    Admin
    Viktor Tachev avatar
    1488 posts

    Posted 30 Nov 2015 Link to this post

    Hi Ole,

    Thank you for sharing your solution for the issue with the community. This can help someone facing similar behavior.


    Regards,
    Viktor Tachev
    Telerik
  14. jyotsna
    jyotsna avatar
    9 posts
    Member since:
    Mar 2016

    Posted 17 Mar in reply to Viktor Tachev Link to this post

    I am trying to open the Raddataform which is in Editform control in the insert mode ,and as there are no items in the grid it goes to exception  as above users,I tried the solution from Ole but dint work out. when I have data in the grid it works fine for the new grid to add a record using the dataform it fails.pls suggest.Here is sample.



    gridDataform is the instance of the usercontrol which has Raddataform and this code is beign used in the grid itemcommand.



                        if (gridDataform == null)
                        { throw new Exception("No Grid Found"); }

                        log.logDebug(logMessage: "Fire Insert Mode for DataForm");


                       gridDataform.DataForm.Items[0].FireCommandEvent("InitInsert", "");

  15. jyotsna
    jyotsna avatar
    9 posts
    Member since:
    Mar 2016

    Posted 17 Mar in reply to jyotsna Link to this post

    Also my add buttons are on the mastertableview of the grid



     <MasterTableView Width="100%" CommandItemDisplay="Top" ShowGroupFooter="true" AllowFilteringByColumn="true">
                <EditFormSettings EditFormType="Template">
                    <EditColumn UniqueName="EditCommandColumn1" />
                    <FormTemplate>
                        <uc1:PageUIControl IsBoundToGrid="true" runat="server" ID="EditFormControl"  />
                    </FormTemplate>
                    <PopUpSettings ScrollBars="None" />
                </EditFormSettings>

                <CommandItemTemplate>


                    <div style="color:black!important;" >

                        <asp:LinkButton ID="btnEditSelected" runat="server" CommandName="EditSelected" Visible='<%# RadGridUI.EditIndexes.Count == 0 %>'><i class="fa fa-pencil fa-lg"></i></asp:LinkButton>
                            <asp:LinkButton ID="btnUpdateEdited" runat="server" CommandName="UpdateEdited" Visible='<%# RadGridUI.EditIndexes.Count > 0 %>'><i class="fa fa-pencil fa-lg"></i></asp:LinkButton>
                            <asp:LinkButton ID="btnCancel" runat="server" CommandName="CancelAll" Visible='<%# RadGridUI.EditIndexes.Count > 0 || RadGridUI.MasterTableView.IsItemInserted %>'><i class="fa fa-ban fa-lg"></i></asp:LinkButton>&nbsp;&nbsp;
                           <asp:LinkButton ID="btnNew" runat="server" CommandName="InitInsert" Visible='<%# !RadGridUI.MasterTableView.IsItemInserted %>'><i class="fa fa-plus-square fa-lg"></i></asp:LinkButton>
                            <asp:LinkButton ID="btnInsert" runat="server" CommandName="PerformInsert" Visible='<%# RadGridUI.MasterTableView.IsItemInserted %>'><i class="fa fa-plus-square fa-lg"></i></asp:LinkButton>&nbsp;&nbsp;
                            <asp:LinkButton ID="btnDelete" OnClientClick="javascript:return confirm('Delete all selected customers?')" runat="server" CommandName="DeleteSelected"><i class="fa fa-trash fa-lg"></i></asp:LinkButton>&nbsp;&nbsp;

                    </div>

                </CommandItemTemplate>
            </MasterTableView>



  16. Viktor Tachev
    Admin
    Viktor Tachev avatar
    1488 posts

    Posted 21 Mar Link to this post

    Hi,

    Please examine the following online examples that illustrate how you can use Template EditForms and also UserControls as EditForm:



    Regards,
    Viktor Tachev
    Telerik
  17. jyotsna
    jyotsna avatar
    9 posts
    Member since:
    Mar 2016

    Posted 21 Mar in reply to Viktor Tachev Link to this post

    Victor,

    I tried all the code as per your links before,and the thing is it is totally working to nsert if the items has data,for a new record I mean to say if You insert the first record and when you click on Add  in the Grid,it is not able to open the Raddataform in the Insert mode.

    The Below code Perfectly works  if the datasource has Data,But to insert a first record it fails to open the raddataform in insert mode.

    As there is no data this statement is going to exception.

    gridDataform.DataForm.Items[0].FireCommandEvent("InitInsert", "");

    I also tried many ways as suggested in the above forums,like rebinding ,setting the isinsertmode =true All these only work if thre is data.Please suggest.I hope you got my point.

    Thanks in Advance

    if (e.CommandName == RadGrid.InitInsertCommandName)


    e.Canceled = true;
    log.logDebug(logMessage: "Setup Dataform for Insert");

    e.Item.OwnerTableView.InsertItem();

    GridEditableItem insertedItem = e.Item.OwnerTableView.GetInsertItem();

    if (insertedItem == null)
     { throw new Exception("No Inserted Item Found"); }
     gridDataform = (PageUIControl)insertedItem.FindControl("EditFormControl");
     gridDataform.UpdateMode = PageUIControl.Mode.Insert;
    gridDataform.UserContext = this.UserContext;
     gridDataform.UserID = this.UserID;
     // gridDataform = insertedItem.FindControl(MyUserControlId) as PageUIControl;
     if (gridDataform == null) { throw new Exception("No Grid Found"); }
     log.logDebug(logMessage: "Fire Insert Mode for DataForm");
    gridDataform.DataForm.IsItemInserted = true;

    gridDataform.DataForm.Items[0].FireCommandEvent("InitInsert", "");

    } else if (e.CommandName == "RowClick") if (ItemCommand !=null) { ItemCommand(sender, e); } }

  18. jyotsna
    jyotsna avatar
    9 posts
    Member since:
    Mar 2016

    Posted 22 Mar in reply to jyotsna Link to this post

    My Issue is not witht the edit form  settings,My issue is with the raddataform not opening in Insert mode if no datasource  when it is in Editformsettings of a grid.
  19. Vasil
    Admin
    Vasil avatar
    1547 posts

    Posted 24 Mar Link to this post

    Hi Jyotsna,

    What type is the collection that you are binding. We have recently fixed an issue with empty IQuerable
    http://feedback.telerik.com/Project/108/Feedback/Details/181925-a-server-exception-is-thrown-when-trying-to-add-a-new-record-to-radgrid-which-is

    For example this code is not working. But it will work in the next official version.

    protected void RadGrid1_NeedDataSource(object sender, GridNeedDataSourceEventArgs e)
    {
        RadGrid1.DataSource = Enumerable.Empty<Thing>().AsQueryable();
    }
    The workaround is to bind directly to Enumerable.

    If you still problem, please describe it in further details. I see from your code that you are using RadGrid and DataForm probably inside. But the exact configuration is not clear enough.

    Regards,
    Vasil
    Telerik
  20. jyotsna
    jyotsna avatar
    9 posts
    Member since:
    Mar 2016

    Posted 24 Mar in reply to Vasil Link to this post

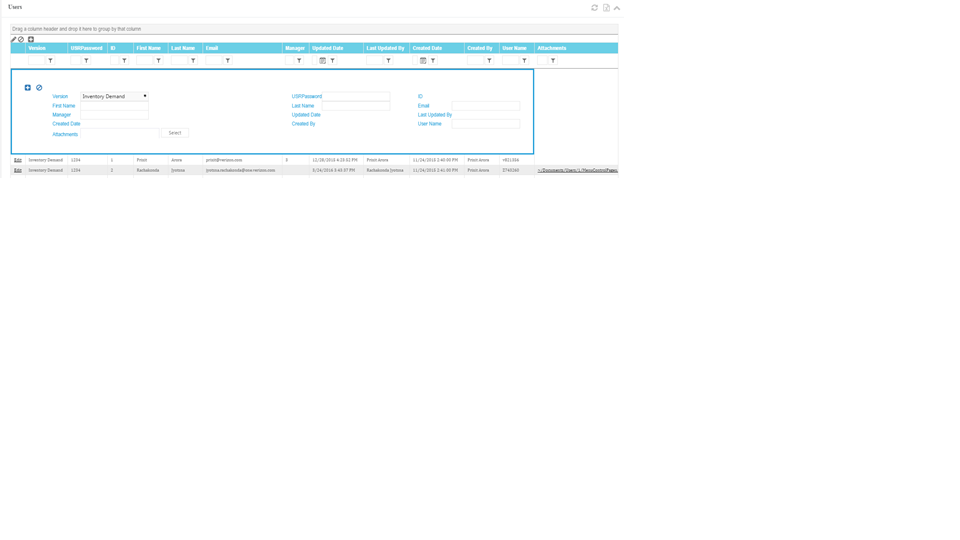

    Its a directDataset  Binding,and on Edit/Insert from the Grid I am trying to open the Raddataform,Where it fails for Insert when inserting first record.

    protected void RadGridUI_NeedDataSource(object sender, GridNeedDataSourceEventArgs e)
            {
                logHelper log = null;
                HtmlTable layoutTable = null;
                HtmlGenericControl wrapper = null;
                TableRow layoutTableRow1 = null;
                TableRow layoutTableRow2 = null;
                TableCell vCell = null;
                TableCell vCell2 = null;
                ImageButton imageButton = null;
                Label vtitle = null;
                Control veditCtrl = null;
                EventHandler vevent = null;
                try
                {
                    log = logHelper.getlogger(ref log, Logger: "RadGridUI_NeedDataSource", userid: UserID, userContext: UserContext);
                    UserContext = log.vUserObj;
                    log.logDebug(logMessage: "RadGridUI_NeedDataSource Start");

                    if (IntitiateGridLoad)
                    {
                        DataSet entityData = DynamicUILayoutHelper.FetchEntityData(EntityObject, selectedCommand: "[EIS_SP_GetGenericEntityData]", log: ref log, whereCond: WhereCond,mapperId:MapperID,taskOrder:TaskOrderID);
                    log.logDebug(logMessage: "RadGridUI_NeedDataSource Fetched Data Done");
                    RadGridUI.DataSource = entityData;
                        //if (entityData.Tables[0].Rows.Count > 0)
                        //    RadGridUI.Visible = true;
                        //else
                        //    RadGridUI.Visible = false;
                        if (entityData.Tables.Count > 1)
                        {
                            if (Convert.ToInt64(entityData.Tables[1].Rows[0]["Count"].ToString()) > 300000)
                            {
                                //((TextBox)TableUIErrorNotification.ContentContainer.FindControl("txtnot")).Text = "Entity has more than 300000 records .Please apply filter to get selected load";
                                //TableUIErrorNotification.Show();
                            }

                        }

                     }

                    else
                        RadGridUI.DataSource = null;



                log.logDebug(logMessage: "RadGridUI_NeedDataSource ListView DataSource Setup Done");

                }
                catch (Exception ex)
                {
                    log.logError(logMessage: "RadGridUI_NeedDataSource Error: " + ex.Message);
                    ((TextBox)TableUIErrorNotification.ContentContainer.FindControl("txtnot")).Text = log.logstr;
                    TableUIErrorNotification.Show();
                }
                finally
                {
                    log.logDebug(logMessage: "RadGridUI_NeedDataSource Exit ");
                    log.Flush(logger: "RadGridUI_NeedDataSource");
                }
            }

  21. Vasil
    Admin
    Vasil avatar
    1547 posts

    Posted 25 Mar Link to this post

    Hi Jyotsna,

    I am not seeing the code for creating using the DataForm in your page. I would suggest you to check this example, and if you continue to have the problem, please send us whole example, where we can test/debug what you are having.

    Regards,
    Vasil
    Telerik
  22. jyotsna
    jyotsna avatar
    9 posts
    Member since:
    Mar 2016

    Posted 25 Mar in reply to Vasil Link to this post

    hi Vasil,

    here the usercontrol with the dataform:

    <%@ Control Language="C#" AutoEventWireup="true" CodeBehind="PageUIControl.ascx.cs" Inherits="BMA.Core_User_Controls.PageUIControl" %>
    <%@ Register TagPrefix="telerik" Namespace="Telerik.Web.UI" Assembly="Telerik.Web.UI" %>
    <telerik:RadAjaxManagerProxy ID="RadAjaxManager1" runat="server" ClientIDMode="AutoID">
        <AjaxSettings>
            <telerik:AjaxSetting AjaxControlID="Raddataform1">
                <UpdatedControls>
                    <telerik:AjaxUpdatedControl ControlID="Raddataform1" LoadingPanelID="PageUIPnlLoad"></telerik:AjaxUpdatedControl>
                    <telerik:AjaxUpdatedControl ControlID="PageUIErrorNotification" LoadingPanelID="PageUIPnlLoad"> </telerik:AjaxUpdatedControl>  <telerik:AjaxUpdatedControl ControlID="ValidationSummary1" LoadingPanelID="PageUIPnlLoad">
                    </telerik:AjaxUpdatedControl>
                </UpdatedControls>
            </telerik:AjaxSetting>
        </AjaxSettings>
    </telerik:RadAjaxManagerProxy>
    <link href="../Content/styles.css" rel="stylesheet" />


    <div id="divPageUIControlMain">


        <asp:Panel ID="Panel1" runat="server" Width="100%" BorderStyle="None" CssClass="PageUIBackground">
            <telerik:RadAjaxLoadingPanel runat="server" ID="PageUIPnlLoad" Skin="Metro" Transparency="35">
                         <div style="background-color:#ffffff; width:100%; height:100%"></div>
                        </telerik:RadAjaxLoadingPanel>
            <telerik:RadNotification ID="PageUIErrorNotification" runat="server" EnableRoundedCorners="true"
            EnableShadow="true" Text="" Title="" Animation="Slide" AnimationDuration="800" Position="TopCenter" ContentScrolling="Auto">
                    <ContentTemplate>
                        <b>Please copy the Log below and send to Support Team for Issue Resolution </b>
                        <br>
                        <asp:TextBox TextMode="MultiLine" ID="txtpageui" Enabled="false" Height="130" Width="580" runat="server"></asp:TextBox>
                    </ContentTemplate>
                   </telerik:RadNotification>
                   <telerik:RadDataForm Visible="true" runat="server" ID="Raddataform1" AllowPaging="True" EnableViewState="true"  OnNeedDataSource="Raddataform1_NeedDataSource" BorderStyle="None"
                       OnItemUpdating="RadDataForm1_ItemUpdating" OnItemCanceling="Raddataform1_ItemCanceling"  OnItemInserting="RadDataForm1_ItemInserting" >
                        </telerik:RadDataForm>


        <asp:ValidationSummary ID="ValidationSummary1" runat="server"  ShowMessageBox="false"  ShowSummary="true" ShowValidationErrors="true"    />
        </asp:Panel>
    </div>

    Code behind:

    using BMA.Helper;
    using System;
    using System.Collections.Generic;
    using System.Collections;
    using System.Configuration;
    using System.Data;
    using System.Linq;
    using System.Web;
    using System.Web.UI;
    using System.Web.UI.HtmlControls;
    using System.Web.UI.WebControls;
    using Telerik.Web;
    using Telerik.Web.UI;



    namespace BMA.Core_User_Controls
    {
        public partial class PageUIControl : System.Web.UI.UserControl
        {
            public string UserID
            {
                get
                {

                    return Session["UserID"].ToString();
                }
                set
                {
                    Session["UserID"] = value;
                }
            }


            public UserContextHelper UserContext
            {
                get
                {
                    return (UserContextHelper)Session["UserContext"];
                }
                set
                {
                    Session["UserContext"] = value;
                }
            }
            public RadDataForm DataForm
            {
                get
                {
                    return Raddataform1;
                }
            }
            public string KeyNameValue
            {
                get
                {
                    return ViewState["PageUIKeyName"].ToString();
                }
                set
                {
                    ViewState["PageUIKeyName"] = value;
                }
            }



            public string EntityObject
            {
                get
                {
                    if (ViewState["PageUIEntityObject"] == null)
                    { ViewState["PageUIEntityObject"] = ""; }
                    return ViewState["PageUIEntityObject"].ToString();
                }
                set
                {
                    ViewState["PageUIEntityObject"] = value;
                }
            }

            public Mode UpdateMode
            {
                get
                {
                    if (ViewState["PageUIUpdateMode"] == null)
                    { ViewState["PageUIUpdateMode"] = Mode.Item; }
                    return (Mode)ViewState["PageUIUpdateMode"];
                }
                set
                {
                    ViewState["PageUIUpdateMode"] = value;
                }
            }
            public enum Mode
            {
                Update,
                Insert,
                Item
            }

            public string Entity
            {
                get
                {
                    if (ViewState["PageUIEntity"] == null)
                    { ViewState["PageUIEntity"] = ""; }
                    return ViewState["PageUIEntity"].ToString();
                }
                set
                {
                    ViewState["PageUIEntity"] = value;
                }
            }
            private string _primaryKeyValue;
            public event EventHandler ItemCommand;


            public int GridItemIndex
            {
                set
                {
                    ViewState["PageUIGridItemIndex"] = value;

                }
                get
                {
                    if (ViewState["PageUIGridItemIndex"] == null)
                    { ViewState["PageUIGridItemIndex"] = -1; }

                    return (int)ViewState["PageUIGridItemIndex"];
                }
            }

            public bool IsBoundToGrid
            {
                set
                {
                    ViewState["PageUIIsBoundToGrid"] = value;

                }
                get
                {
                    if (ViewState["PageUIIsBoundToGrid"] == null)
                    { ViewState["PageUIIsBoundToGrid"] = false; }

                    return (bool)ViewState["PageUIIsBoundToGrid"];
                }
            }
            public int TaskOrderID
            {
                get
                {
                    if (ViewState["PageUITaskOrderID"] == null)
                    {
                        if (ViewState["PageUITaskOrderID"] == null)
                            ViewState["PageUITaskOrderID"] = 0;
                    }
                    return (int)ViewState["PageUITaskOrderID"];
                }
                set
                {
                    ViewState["TableUITaskOrderID"] = value;
                }
            }
            public string PrimaryKeyValue
            {
                get
                {

                    return (string)ViewState["PageUIprimaryKeyValue"];
                }
                set
                {
                   ViewState["PageUIprimaryKeyValue"] = value;
                }
            }
            public string PrimaryKeyValueData
            {
                get
                {

                    return (string)ViewState["PageUIPrimaryKeyValueData"];
                }
                set
                {
                    ViewState["PageUIPrimaryKeyValueData"] = value;
                }
            }

            public int columnsno
            {
                get
                {
                    if (ViewState["PageUIcolumnsno"] == null)
                    { ViewState["PageUIcolumnsno"] = 5; }

                    return (int)ViewState["PageUIcolumnsno"];
                }
                set
                {
                    ViewState["PageUIcolumnsno"] = value;
                }
            }

            public string Validationgroup
            {
                get
                {
                    return (String)ViewState["Validationgroup"];
                }
                set
                {
                    ViewState["Validationgroup"] = value;
                }
            }

            protected void Page_Init(object sender, EventArgs e)
            {

                logHelper log = null;
                try
                {

                    log = logHelper.getlogger(ref log, Logger: "PageUI.Page_Init", userid: UserID, userContext: UserContext);
                    UserContext = log.vUserObj;
                    log.logDebug(logMessage: "Page_Init Start");

                    if (!Page.IsPostBack)
                    {

                        CurrentSkin = "Metro";
                    }

                    if (IsBoundToGrid)
                    {
                        GridEditFormItem item = (GridEditFormItem)this.NamingContainer;
                        EntityTableUIControl TableCtl = (EntityTableUIControl)item.OwnerTableView.Parent.Parent.Parent;
                         // EntityTableUIControl TableCtl = (EntityTableUIControl)item.OwnerTableView.Parent;
                       // EntityTableUIControl TableCtl = (EntityTableUIControl)item.FindControl("EntityTableUIControl");
                        EntityObject = TableCtl.EntityObject;
                        Entity = TableCtl.Entity;

                            PrimaryKeyValue = TableCtl.PrimaryKeyValue;

                        PrimaryKeyValueData = TableCtl.PrimaryKeyValueData;
                        if (PrimaryKeyValueData == "")
                            PrimaryKeyValueData = null;

                            ValidationSummary1.ValidationGroup = TableCtl.Validationgroup;
                        Raddataform1.ValidationSettings.ValidationGroup = TableCtl.Validationgroup;
                        columnsno = TableCtl.columnsno;

                    }
                    else
                    {
                        string keydata = Request.QueryString["PrimaryKeyData"];
                        PrimaryKeyValueData = keydata;//"5539";

                       Entity = Request.QueryString["Entity"];
                        EntityObject = Request.QueryString["EntityObject"];
                        UserID = this.UserID;//Request.QueryString["UserID"];

                    }
                    Raddataform1.Attributes["Updating"] = "false";

                  //  Raddataform1.Attributes["Inserting"] = "false";
                    log.logDebug(logMessage: "PageUI.Page_Init Executing RenderTableUITemplates Start");

                    RenderTableUITemplates(uiEntity: Entity, log: ref log);

                   // Notification.Title = Entity + " Table UI Notifications";
                    //}

                }
                catch (Exception ex)
                {

                    log.logError(logMessage: "PageUI.Page_Init Error: " + ex.Message);
                    //throw ex;
                    ((TextBox)PageUIErrorNotification.ContentContainer.FindControl("txtpageui")).Text = log.logstr;
                    PageUIErrorNotification.Show();
                }
                finally
                {
                    log.logDebug(logMessage: "Page_Init Exit ");
                    log.Flush(logger: "PageUI.Page_Init");
                }

            }

            private void LayOutprerender_event(object sender, EventArgs e)
            {

            }
            public string CurrentSkin
            {
                get
                {

                    return Session["CurrentSkin"].ToString();
                }
                set
                {

                    Session["CurrentSkin"] = value;
                }
            }

            //public RadNotification Notification
            //{
            //    get
            //    {

            //        return (RadNotification)Session["Notification"];
            //    }
            //    set
            //    {

            //        Session["Notification"] = value;
            //    }
            //}


            public void RenderTableUITemplates(string uiEntity, ref logHelper log)
            {

                try
                {

                    DataSet entityMetaData = null;
                    // int columnsno = 4;

                    log = logHelper.getlogger(ref log, Logger: "RenderPageUITemplates", userid: UserID, userContext: UserContext);
                    UserContext = log.vUserObj;
                    log.logDebug(logMessage: "RenderPageUITemplates Start uiEntity: " + "Entityttribute");

                    entityMetaData = DynamicUILayoutHelper.FetchEntityMetaData(uiEntity, ref log);
                    foreach (DataRow rowitem in entityMetaData.Tables[1].Rows)
                    {
                        if (rowitem["Access"].ToString().IndexOf("R") > -1)
                        {
                            Raddataform1.Visible = true;
                            break;
                        }
                        else
                            Raddataform1.Visible = false;

                    }
                    log.logDebug(logMessage: "RenderPageUITemplates Creating Templates");

                    KeyNameValue = DynamicUILayoutHelper.DataformKey(ref log, Entity, ref Raddataform1);
                    ////Locate the changed row in the DataSource

                    Raddataform1.DataKeyNames = new string[] { KeyNameValue };
                    Raddataform1.LayoutTemplate = null;
                 Raddataform1.EmptyDataTemplate = new PageUIEmptyDataTemplate(entityMetaData, log, CurrentSkin, new System.EventHandler(LayOutprerender_event));
                    Raddataform1.EditItemTemplate = new PageUIEditItemTemplate(entityMetaData, log, columnsno);
                    Raddataform1.ItemTemplate = new PageUIItemTemplate(entityMetaData, log, columnsno);
                    Raddataform1.InsertItemTemplate = new PageUIInsertItemTemplate(entityMetaData, log, columnsno);

                    log.logDebug(logMessage: "RenderPageUITemplates Templates Done");

                    PageUIErrorNotification.Title = "PageUI :" + Entity + "  Page UI Notifications";

                }
                catch (Exception ex)
                {
                    log.logError(logMessage: "RenderPageUITemplates Error: " + ex.Message);
                    //Notification.Title = "PageUI" + "RenderPageUITemplates Error: " + ex.Message;
                    // throw ex;
                    ((TextBox)PageUIErrorNotification.ContentContainer.FindControl("txtpageui")).Text = log.logstr;
                    PageUIErrorNotification.Show();
                }
                finally
                {
                    log.logDebug(logMessage: "RenderPageUITemplates Exit ");
                    log.Flush(logger: "RenderPageUITemplates");
                }


            }
            protected void Raddataform1_NeedDataSource(object sender, RadDataFormNeedDataSourceEventArgs e)
            {
                logHelper log = null;
                try
                {
                    log = logHelper.getlogger(ref log, Logger: "Raddataform1_NeedDataSource", userid: UserID, userContext: UserContext);
                    UserContext = log.vUserObj;
                    log.logDebug(logMessage: "Raddataform1_NeedDataSource Start");
                    if (Entity != "")
                    {
                      DataSet entityData = DynamicUILayoutHelper.FetchEntityData(EntityObject, selectedCommand: "[EIS_SP_GetGenericEntityData]", log: ref log, primaryVal: PrimaryKeyValueData,taskOrder:TaskOrderID);

                        log.logDebug(logMessage: "Raddataform1_NeedDataSource Fetched Data Done");

                        Raddataform1.DataSource = entityData;
                        if (entityData.Tables[0].Rows.Count > 0)
                            Raddataform1.Visible = true;
                        else
                            Raddataform1.Visible = false;

                        log.logDebug(logMessage: "Raddataform1_NeedDataSource RadDataform DataSource Setdate Done");
                    }

                }
                catch (Exception ex)
                {
                    log.logError(logMessage: "Raddataform1_NeedDataSource Error: " + ex.Message);
                    //throw ex;
                    ((TextBox)PageUIErrorNotification.ContentContainer.FindControl("txtpageui")).Text = log.logstr;
                    PageUIErrorNotification.Show();
                }
                finally
                {
                    log.logDebug(logMessage: "Raddataform1_NeedDataSource Exit ");
                    log.Flush(logger: "Raddataform1_NeedDataSource");
                }

            }
            protected void RadDataForm1_ItemInserting(object sender, RadDataFormCommandEventArgs e)
            {
                logHelper log = null;
                try
                {
                    log = logHelper.getlogger(ref log, Logger: "RadDataForm1_ItemInserting", userid: UserID, userContext: UserContext);
                    UserContext = log.vUserObj;
                    log.logDebug(logMessage: "RadDataForm1_ItemInserting Start");

                    RadDataFormEditableItem editedItem = e.DataFormItem as RadDataFormEditableItem;


                    Hashtable newValues = new Hashtable();
                 //   Raddataform1.Attributes["Inserting"] = "True";
                    editedItem.ExtractValues(newValues);

                    string Rowkey = "";
                    newValues.Add("UserName", UserID);
                   // newValues.Add("TaskOrderID", TaskOrderID);
                    newValues.Add("InsertMode", "I");

                    //  object dit = editedItem.GetDataKeyValue(KeyNameValue);
                    log = logHelper.getlogger(ref log, Logger: "RadDataForm1_ItemInserting" + "NewValues:" +newValues);
                    DynamicUILayoutHelper.InsertEntityData(Entity, ref log, Rowkey, newValues);
                    //Raddataform1.Attributes["Inserting"] = "false";
                    if (IsBoundToGrid)
                    {

                        GridEditFormItem item = (GridEditFormItem)this.NamingContainer;
                        EntityTableUIControl parentgrid = (EntityTableUIControl)item.OwnerTableView.Parent.Parent.Parent;
                        // EntityTableUIControl parentgrid = (EntityTableUIControl)editedItem.Page.FindControl("RadGridUI");
                        if (parentgrid != null)
                        {
                            parentgrid.Grid.MasterTableView.GetInsertItem().FireCommandEvent("Cancel", "");
                        }
                    }


                }
                catch (Exception ex)
                {
                    log.logError(logMessage: "RadDataForm1_ItemInserting Error: " + ex.Message);
                    // throw ex;
                    ((TextBox)PageUIErrorNotification.ContentContainer.FindControl("txtpageui")).Text = log.logstr;
                    PageUIErrorNotification.Show();
                }
                finally
                {
                    log.logDebug(logMessage: "RadDataForm1_ItemInserting Exit ");
                    log.Flush(logger: "RadDataForm1_ItemInserting");
                }
            }
            protected void RadDataForm1_ItemUpdating(object sender, RadDataFormCommandEventArgs e)

            {
                logHelper log = null;
                try
                {
                    log = logHelper.getlogger(ref log, Logger: "RadDataForm1_ItemUpdating", userid: UserID, userContext: UserContext);
                    UserContext = log.vUserObj;
                    log.logDebug(logMessage: "RadDataForm1_ItemUpdating Start");

                    RadDataFormEditableItem editedItem = e.DataFormItem as RadDataFormEditableItem;

                    Hashtable newValues = new Hashtable();
                    Raddataform1.Attributes["Updating"] = "true";
                    editedItem.ExtractValues(newValues);

                    newValues.Add("UserName", UserID);
                   // newValues.Add("TaskOrderID", TaskOrderID);
                    newValues.Add("UpdateMode", "U");

                    object dit = editedItem.GetDataKeyValue(KeyNameValue);
                    log = logHelper.getlogger(ref log, Logger: "RadDataForm1_GetValues");
                    log.logDebug(logMessage: "RadDataForm1_NewValues"+ "NewValues: " + newValues.Count);
                    DynamicUILayoutHelper.UpdateEntityData(Entity, ref log, dit.ToString(), newValues);
                    Raddataform1.Attributes["Updating"] = "false";
                    if (IsBoundToGrid)
                    {

                        GridEditFormItem item = (GridEditFormItem)this.NamingContainer;
                       // EntityTableUIControl parentgrid = (EntityTableUIControl)item.OwnerTableView.Parent.Parent.Parent;
                        EntityTableUIControl parentgrid = (EntityTableUIControl)item.OwnerTableView.Parent.Parent.Parent;
                        // EntityTableUIControl parentgrid = (EntityTableUIControl)editedItem.Page.FindControl("RadGridUI");
                        if (parentgrid == null)
                        { throw new Exception("Parent Grid Not Found!"); }

                        if (UpdateMode == Mode.Update)
                        {
                            if (GridItemIndex != -1)
                            {
                                if (parentgrid.Grid.Items[GridItemIndex] != null)
                                { parentgrid.Grid.Items[GridItemIndex].FireCommandEvent("Cancel", ""); }

                            }
                        }
                        else if (UpdateMode == Mode.Insert)
                        {

                            if (parentgrid.MasterTable.IsItemInserted)
                            {
                                parentgrid.Grid.MasterTableView.GetInsertItem().FireCommandEvent("Cancel", "");
                            }

                        }
                    }

                }
                catch (Exception ex)
                {
                    log.logError(logMessage: "RadDataForm1_ItemUpdating Error: " + ex.Message);
                    // throw ex;
                    ((TextBox)PageUIErrorNotification.ContentContainer.FindControl("txtpageui")).Text = log.logstr;
                    PageUIErrorNotification.Show();
                }
                finally
                {
                    log.logDebug(logMessage: "RadDataForm1_ItemUpdating Exit ");
                    log.Flush(logger: "RadDataForm1_ItemUpdating");
                }


            }

            protected void Raddataform1_ItemCanceling(object sender, RadDataFormCommandEventArgs e)
            {
                logHelper log = null;
                try
                {
                    log = logHelper.getlogger(ref log, Logger: "Raddataform1_ItemCanceling", userid: UserID, userContext: UserContext);
                    UserContext = log.vUserObj;
                    log.logDebug(logMessage: "Raddataform1_ItemCanceling Start");

                    RadDataFormEditableItem editedItem = e.DataFormItem as RadDataFormEditableItem;


                    if (IsBoundToGrid)
                    {
                        GridEditFormItem item = (GridEditFormItem)this.NamingContainer;
                        // EntityTableUIControl parentgrid = (EntityTableUIControl)editedItem.Page.FindControl("RadGridUI");
                        EntityTableUIControl parentgrid = (EntityTableUIControl)item.OwnerTableView.Parent.Parent.Parent;
                        if (parentgrid == null)
                        { throw new Exception("Parent Grid Not Found!"); }

                        if (UpdateMode == Mode.Update)
                        {
                            if (GridItemIndex != -1)
                            {
                                if (parentgrid.Grid.Items[GridItemIndex] != null)
                                { parentgrid.Grid.Items[GridItemIndex].FireCommandEvent("Cancel", ""); }

                            }
                        }
                        else if (UpdateMode == Mode.Insert)
                        {

                            if (parentgrid.MasterTable.IsItemInserted)
                            {
                                parentgrid.Grid.MasterTableView.GetInsertItem().FireCommandEvent("Cancel", "");
                            }

                        }
                    }

                }
                catch (Exception ex)
                {
                    log.logError(logMessage: "Raddataform1_ItemCanceling Error: " + ex.Message);
                    //throw ex;
                    ((TextBox)PageUIErrorNotification.ContentContainer.FindControl("txtpageui")).Text = log.logstr;
                    PageUIErrorNotification.Show();
                }
                finally
                {
                    log.logDebug(logMessage: "Raddataform1_ItemCanceling Exit ");
                    log.Flush(logger: "Raddataform1_ItemCanceling");
                }
            }
        }


    }

    Grids UI where Raddataform is used in EditformSettings.I am trying to click the Add icon from the Grid to open a RadDataform to edit/insert.

     <telerik:RadGrid ID="RadGridUI" AllowFilteringByColumn="true" MasterTableView-EditMode="EditForms"
            FilterType="Classic"
            EnableHeaderContextMenu="true"
            EnableHeaderContextFilterMenu="true"
            AllowMultiRowEdit="false"
            AllowMultiRowSelection="false"
            AllowAutomaticUpdates="false"
            AllowAutomaticDeletes="false"
            AllowAutomaticInserts="false"
            OnNeedDataSource="RadGridUI_NeedDataSource"
            OnDeleteCommand="RadGridUI_DeleteCommand"
            OnFilterCheckListItemsRequested="RadGridUI_FilterCheckListItemsRequested"
            OnItemCreated="RadGridUI_ItemCreated"
            OnItemCommand="RadGridUI_ItemCommand" OnItemDataBound="RadGridUI_ItemDataBound"
            EnableLinqExpressions="false"
            ClientSettings-AllowColumnsReorder ="true"
            AllowSorting="true" runat="server" Width="100%" CssClass="GenericGrid">

            <MasterTableView Width="100%" CommandItemDisplay="Top" ShowGroupFooter="true" AllowFilteringByColumn="true">
                <EditFormSettings EditFormType="Template">
                    <EditColumn UniqueName="EditCommandColumn1" />
                    <FormTemplate>
                        <uc1:PageUIControl IsBoundToGrid="true" runat="server" ID="EditFormControl"  />
                    </FormTemplate>
                    <PopUpSettings ScrollBars="None" />
                </EditFormSettings>

                <CommandItemTemplate>


                    <div style="color:black!important;" >

                        <asp:LinkButton ID="btnEditSelected" runat="server" CommandName="EditSelected" Visible='<%# RadGridUI.EditIndexes.Count == 0 %>'><i class="fa fa-pencil fa-lg"></i></asp:LinkButton>
                            <asp:LinkButton ID="btnUpdateEdited" runat="server" CommandName="UpdateEdited" Visible='<%# RadGridUI.EditIndexes.Count > 0 %>'><i class="fa fa-pencil fa-lg"></i></asp:LinkButton>
                            <asp:LinkButton ID="btnCancel" runat="server" CommandName="CancelAll" Visible='<%# RadGridUI.EditIndexes.Count > 0 || RadGridUI.MasterTableView.IsItemInserted %>'><i class="fa fa-ban fa-lg"></i></asp:LinkButton>&nbsp;&nbsp;
                           <asp:LinkButton ID="btnNew" runat="server" CommandName="InitInsert" Visible='<%# !RadGridUI.MasterTableView.IsItemInserted %>'><i class="fa fa-plus-square fa-lg"></i></asp:LinkButton>
                            <asp:LinkButton ID="btnInsert" runat="server" CommandName="PerformInsert" Visible='<%# RadGridUI.MasterTableView.IsItemInserted %>'><i class="fa fa-plus-square fa-lg"></i></asp:LinkButton>&nbsp;&nbsp;
                            <asp:LinkButton ID="btnDelete" OnClientClick="javascript:return confirm('Delete all selected customers?')" runat="server" CommandName="DeleteSelected"><i class="fa fa-trash fa-lg"></i></asp:LinkButton>&nbsp;&nbsp;

                    </div>

                </CommandItemTemplate>
            </MasterTableView>

            <ClientSettings>
                <Selecting AllowRowSelect="true"></Selecting>
                <ClientEvents OnGridCreated="GenericGridCreated"   />

            </ClientSettings>
        </telerik:RadGrid>

    and the code where the raddataform is called in insert mode from grids itemcommand.:I tried all the ways in the below commented code:

     protected void RadGridUI_ItemCommand(object sender, GridCommandEventArgs e)
            {

                logHelper log = null;
                PageUIControl gridDataform;
                try
                {
                    log = logHelper.getlogger(ref log, Logger: "RadGridUI_ItemCommand", userid: UserID, userContext: UserContext);
                    UserContext = log.vUserObj;
                    log.logDebug(logMessage: "RadGridUI_ItemCommand Start");
                    log.TaskOrderID = TaskOrderID;


                if (e.CommandName == RadGrid.InitInsertCommandName)
                {
                    e.Canceled = true;
                            log.logDebug(logMessage: "Setup Dataform for Insert");
                    e.Item.OwnerTableView.InsertItem();
                        GridEditableItem insertedItem = e.Item.OwnerTableView.GetInsertItem();

                        if (insertedItem == null)
                        { throw new Exception("No Inserted Item Found"); }

                        gridDataform = (PageUIControl)insertedItem.FindControl("EditFormControl");
                        gridDataform.UpdateMode = PageUIControl.Mode.Insert;
                        gridDataform.UserContext = this.UserContext;
                        gridDataform.UserID = this.UserID;
                        //String MyUserControlId = GridEditFormItem.EditFormUserControlID;
                        //    gridDataform = insertedItem.FindControl(MyUserControlId) as PageUIControl;

                        if (gridDataform == null)
                        { throw new Exception("No Grid Found"); }

                        log.logDebug(logMessage: "Fire Insert Mode for DataForm");

                      // gridDataform.DataForm.IsItemInserted = true;
                        //  gridDataform.DataForm.Rebind();
                         gridDataform.DataForm.Items[0].FireCommandEvent("InitInsert", "");
                      //  gridDataform.DataForm.ShowInsertItem();
                        //gridDataform.DataForm.DataSource=RadDataFormEmptyItem
                      //  gridDataform.DataForm.Items.FireCommandEvent("InitInsert", "");
                       // gridDataform.DataForm.Items[0].FireCommandEvent("InitInsert", "");
                       // gridDataform.DataForm.Items.Add();
                    }
                    else if (e.CommandName == "RowClick")
                        if (ItemCommand !=null)
                        { ItemCommand(sender, e); }


                }
                catch (Exception ex)
                {
                    log.logError(logMessage: "RadGridUI_ItemCommand Error: " + ex.Message );

                    ((TextBox)TableUIErrorNotification.ContentContainer.FindControl("txtnot")).Text = log.logstr;
                    TableUIErrorNotification.Show();
                }
                finally
                {
                    log.logDebug(logMessage: "RadGridUI_ItemCommand Exit ");
                    log.Flush(logger: "RadGridUI_ItemCommand");
                }

            }

    I am also attaching the screen shot for better understanding of how the ui looks with the raddataform  which opens with the above working code if there is data in grid.



  23. Vasil
    Admin
    Vasil avatar
    1547 posts

    Posted 30 Mar Link to this post

    Hi Jyotsna,

    The DataForm usage in your code is out of the designed usage of the control. DataForm itself is DataBound control and can be used stand-alone, or outside(but related) the grid

    The EditForm of the grid does not need databound control inside. So your user control can just have the inputs, without wrapping them in DataForm. For reference see this demo:
    http://demos.telerik.com/aspnet-ajax/grid/examples/data-editing/edit-form-types/defaultcs.aspx

    Regards,
    Vasil
    Telerik
Back to Top
UI for ASP.NET Ajax is Ready for VS 2017
