Bar Chart Y Axis Title/Tick Position

4 posts, 2 answers
  1. Hunter
    Hunter avatar
    44 posts
    Member since:
    Aug 2012

    Posted 03 Jul 2012 Link to this post

    I'd like to place the Y Axis (Title/Tick) at the bottom of the chart instead of the default top position. To see an example of the default top position you can visit Telerik's demo here. What I'd like to do is display the Sum and ticks (ex. $0, $100000, etc.) at the bottom of the chart. This is the default functionality of the standard Telerik Chart when placed in Horizontal orientation. Thanks.
  2. Answer
    Shinu
    Shinu avatar
    17764 posts
    Member since:
    Mar 2007

    Posted 04 Jul 2012 Link to this post

    Hi Hunter,

    Try setting Reversed property of XAxis to true. Here is the sample code that I tried based on your scenario.

    ASPX:
    <telerik:RadHtmlChart runat="server" ID="BarChart" Width="800" Height="500" Transitions="true">
      <Appearance>
         <FillStyle BackgroundColor="White" />
      </Appearance>
      <ChartTitle Text="Revenue">
         <Appearance Align="Center" BackgroundColor="White" Position="Top" />
      </ChartTitle>
      <Legend>
         <Appearance BackgroundColor="White" Position="Bottom" />
      </Legend>
      <PlotArea>
         <Appearance>
            <FillStyle BackgroundColor="White" />
         </Appearance>
         <XAxis AxisCrossingValue="0" Color="#b3b3b3" MajorTickType="Outside" MinorTickType="Outside" Reversed="true" >
            <Items>
              <telerik:AxisItem LabelText="2003" />
              <telerik:AxisItem LabelText="2004" />
              <telerik:AxisItem LabelText="2005" />
            </Items>
            <LabelsAppearance DataFormatString="Year {0}" RotationAngle="0" />
            <MajorGridLines Color="#EFEFEF" Width="1" />
            <MinorGridLines Color="Black" Width="1" />
            <TitleAppearance Position="Center" RotationAngle="0" Text="Years" />
         </XAxis>
         <YAxis AxisCrossingValue="0" Color="#b3b3b3" MajorTickSize="1" MajorTickType="Outside" MaxValue="1000000" MinorTickSize="1" MinorTickType="Outside" MinValue="0" Reversed="false" Step="100000">
            <LabelsAppearance DataFormatString="${0}" RotationAngle="0" />
            <MajorGridLines Color="#EFEFEF" Width="1" />
            <MinorGridLines Color="#F7F7F7" Width="1" />
            <TitleAppearance Position="Center" RotationAngle="0" Text="Sum" />
         </YAxis>
         <Series>
            <telerik:BarSeries Name="Quarter 1" Stacked="false">
              <Appearance>
                  <FillStyle BackgroundColor="#c5d291" />
              </Appearance>
              <LabelsAppearance DataFormatString="${0}" Position="Center" />
              <TooltipsAppearance BackgroundColor="#c5d291" DataFormatString="${0}" />
              <Items>
                  <telerik:SeriesItem YValue="315000" />
                  <telerik:SeriesItem YValue="495000" />
                  <telerik:SeriesItem YValue="690000" />
              </Items>
            </telerik:BarSeries>
            <telerik:BarSeries Name="Quarter 2">
              <Appearance>
                  <FillStyle BackgroundColor="#92b622" />
              </Appearance>
              <LabelsAppearance DataFormatString="${0}" Position="Center" />
              <TooltipsAppearance BackgroundColor="#92b622" DataFormatString="${0}" />
              <Items>
                  <telerik:SeriesItem YValue="360000" />
                  <telerik:SeriesItem YValue="540000" />
                  <telerik:SeriesItem YValue="735000" />
              </Items>
            </telerik:BarSeries>
            <telerik:BarSeries Name="Quarter 3">
              <Appearance>
                  <FillStyle BackgroundColor="#729021" />
              </Appearance>
              <LabelsAppearance DataFormatString="${0}" Position="Center" />
              <TooltipsAppearance BackgroundColor="#729021" DataFormatString="${0}" />
              <Items>
                  <telerik:SeriesItem YValue="405000" />
                  <telerik:SeriesItem YValue="600000" />
                  <telerik:SeriesItem YValue="780000" />
              </Items>
            </telerik:BarSeries>
         </Series>
      </PlotArea>
    </telerik:RadHtmlChart>

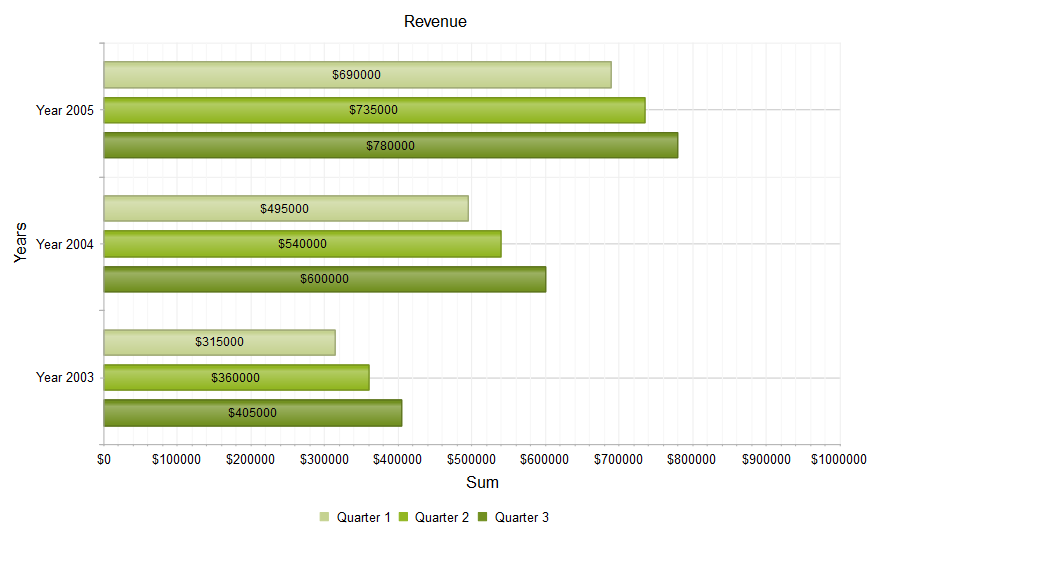

    Attached is the screenshot.

    Thanks,
    Shinu.
