Axis Title Style.

2 posts, 0 answers
  1. Lee
    Lee avatar
    30 posts
    Member since:
    Apr 2014

    Posted 16 May 2014 Link to this post

    Hi.

    My ' MultiVerticalAxis' is setted <Setter Property="Stroke" Value="{Binding Converter={StaticResource seriesColorConverter}}"/>.

    In converter,

    axis.Title = obj.Unit;
    axis.Maximum += 0.5;
    axis.Minimum += -0.5;
    axis.LineStroke = new SolidColorBrush(Colors.White);
    axis.Foreground = new SolidColorBrush(Colors.White);
    axis.FontSize = 11;

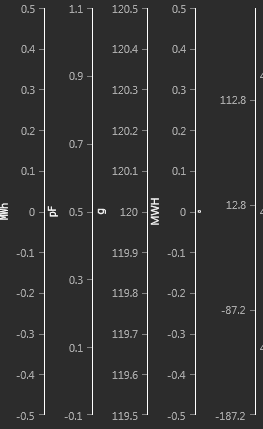

    In this picture, I want to rotate 'Title Font'

    What should I do??


  2. Martin
    Admin
    Martin avatar
    1099 posts

    Posted 19 May 2014 Link to this post

    Hi Lee,

    In order to rotate the Title of your axis you can define a DataTemplate with a native TextBlock element and set it as a value of the TitleTemplate property of the axis.  Then apply RotateTransform on the TextBlock. Here is an example in code:
    <telerik:LinearAxis Title="Axis" >
        <telerik:LinearAxis.TitleTemplate>
            <DataTemplate>
                <TextBlock Text="{Binding}" TextOptions.TextFormattingMode="Display">
                    <TextBlock.LayoutTransform>
                        <RotateTransform Angle="90" />
                    </TextBlock.LayoutTransform>
                </TextBlock>
            </DataTemplate>
        </telerik:LinearAxis.TitleTemplate>
    </telerik:LinearAxis>
    To set the template in code behind you can define it in your application resources and get it in code behind by its x:Key property.
    axis.TitleTemplate = this.Resources["myTitleTemplate"] as DataTemplate;

    Regards,
    Martin
